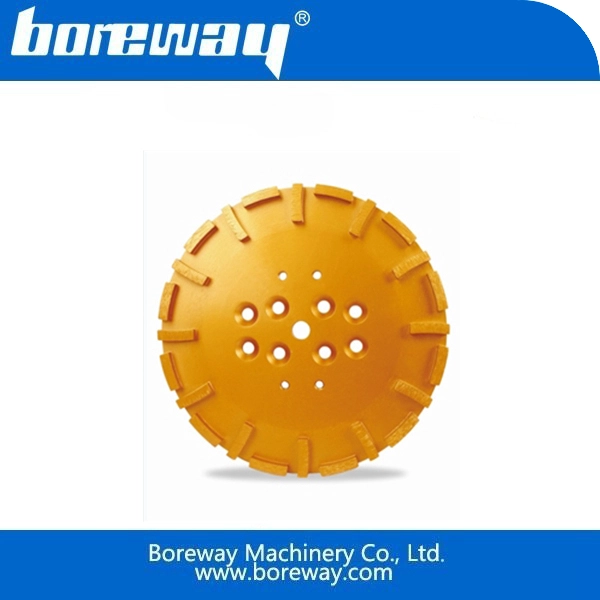

Big flat diamond grinding disc
- Model Number: BW-BFDGD
- Type: Wet or wet use
- Bond Type: Soft, Medium, Hard.
- Diameter: 200-254mm
- Segment Thickness:8-10mm
- Segment Length: 8-10mm
- Inner Hole: 20-25.4mm
- Segment Number: 16-20
- Machine: Floor polishing machine.
- Application: For fast grinding, rough deburring and smooth shaping and finishing of stones and concrete, and any other masonry materials.
Introduction:
This grinding Disc (plate) are designed to give rough concrete surfaces the smoothest finish in the quickest time.
This grinding discs are engineered with Balance Technology to improve machine vibration during application.
It ideal for smoothing rough areas, surface irregularities, floor grinding, surface preparation, polishing, refinishing,
as well as removing epoxies, resins, urethane and other concrete coatings. Hard bond is for grinding green concrete
and asphalt. Soft bond is for grinding old or cured concrete.
Features:
1.A variety of matrix and diamond size formulations for different floor polish.
2.Disc grinding machine balance technology to reduce jitter.
3.Wet or Dry use
4.High working efficiency and using easily.
Specifications:
The followings are the normal specifications of our big flat diamond grinding disc:
|
Product Name |
Product code |
Diameter(mm) |
Segment |
Segment |
Inner |
Segment |
|
Big flat diamond grinding disc |
BFDGD-01 |
200 |
8 |
8 |
20 |
16 |
|
BFDGD-02 |
250 |
10 |
10 |
20 |
16 |
|
|
BFDGD-03 |
250 |
10 |
10 |
20 |
20 |
|
|
BFDGD-04 |
254 |
10 |
10 |
25.4 |
20 |
The above specification just for a reference.Other specification can be ordered by customers.
