10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor

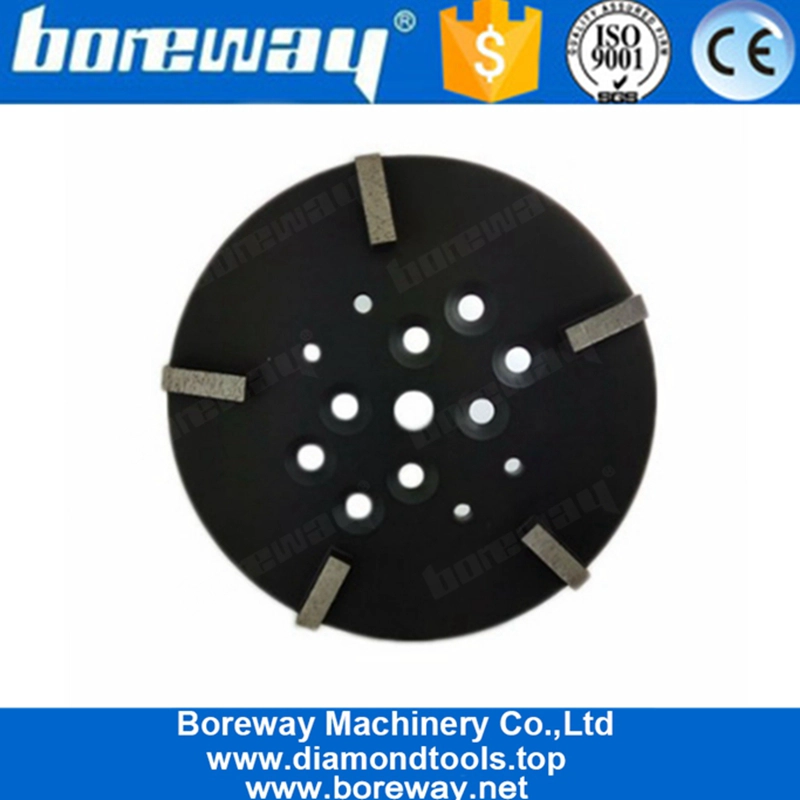

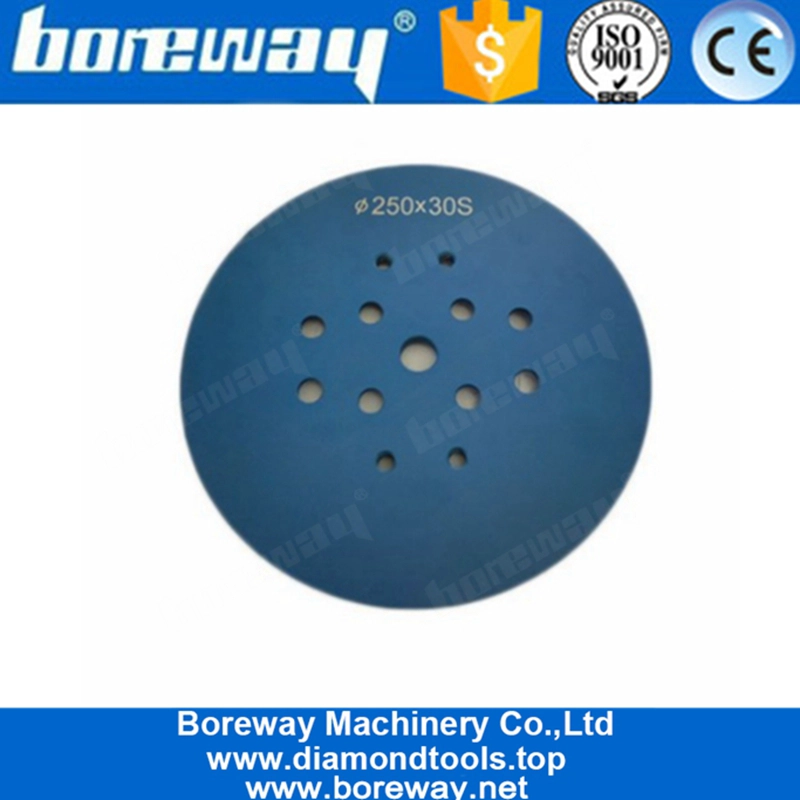

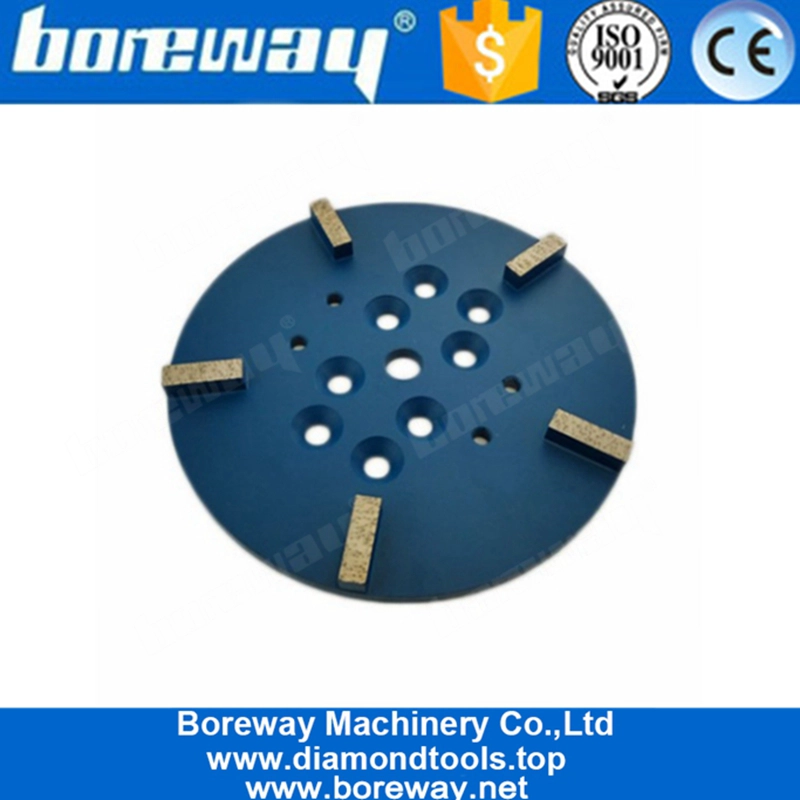

10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor

  • Brand: Boreway
  • Size:Five Segments
  • Segment Grit: 16- 270#,etc
  • Diameter: 10 Inch (D250mm)
  • Surface Finishing: Color Painting
  • Segments Size: 40*10*10mm*5T
  • Machine: General Grinding Machine
  • Connection: Quick Lock Connection
  • Segments Material: Diamond And Metal Powder
  • Bond Available: Soft Bond, Medium Bond, Hard Bond
  • Process: Cold Pressed Sintered, High-Frequency Welded
Descriptions:

10 Inch Diamond Grinding Plate


10 Inch 250mm Diamond Grinding Plate For Concrete Terrazzo Floor


Using 10 Inch Diamond Grinding Plate is the most efficient way to grind from marks and imperfections in concrete, as well as masonry, stone and other vonstruction materials.


10 Inch Diamond Grinding Plate. This single row cup whell is designed for fast removal rates and long lifespan.

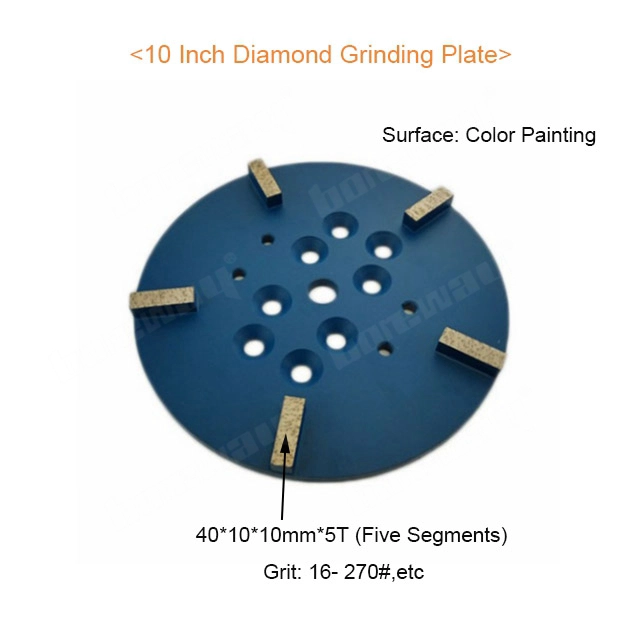

Specifications:

The following are normal specifications 10 Inch Diamond Grinding Plate:

 Name:  10 Inch Diamond Grinding Plate
 Size:  Five Segments
 Segments Grit:  16- 270#,etc
 Segment Size:  40*10*10mm*5T

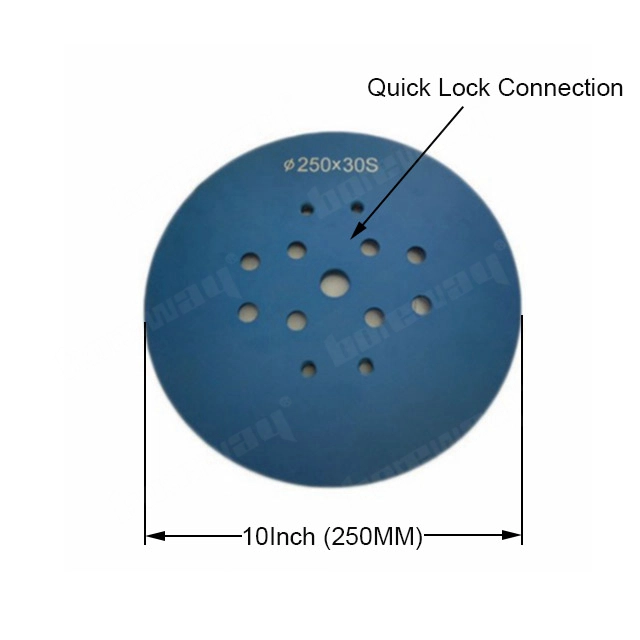

 Diameter:  10 Inch (D250mm)
 Surface Finishing:  Color Painting
 Connection:

 Quick Lock Connection

 Machine:

 General Grinding Machine

 Segments Material:

 Diamonds And Metal Powder

 Bond Available:  Soft Bond, Medium Bond, Hard Bond
Process:

Cold Pressed Sintered,

High-Frequency Welded


Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.

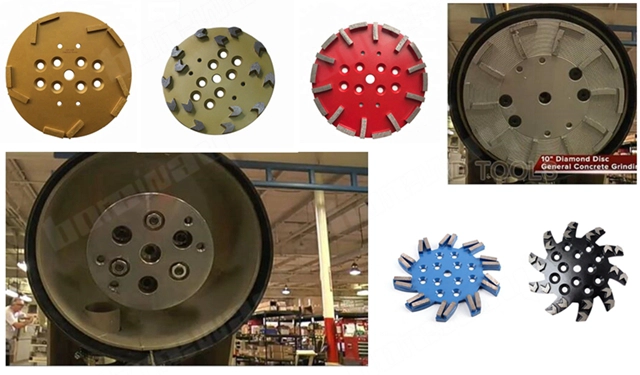

Product Details:

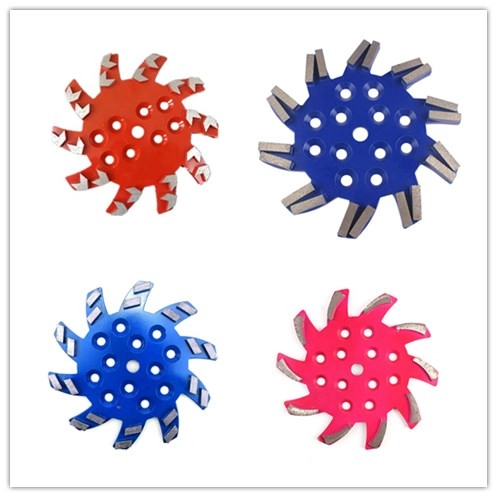

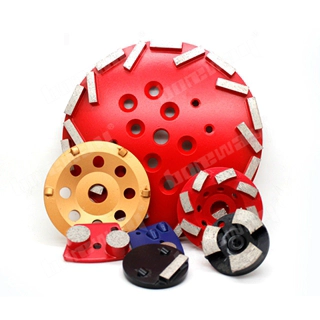

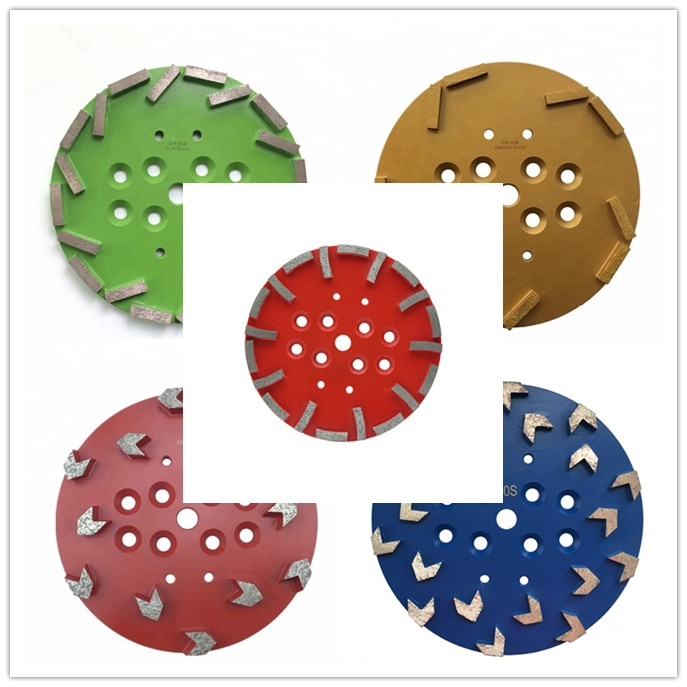

10 Inch Diamond Grinding Plate:

10 Inch Diamond Grinding Plate
10 Inch Diamond Grinding Plate
10 Inch Diamond Grinding Plate
10 Inch Diamond Grinding Plate

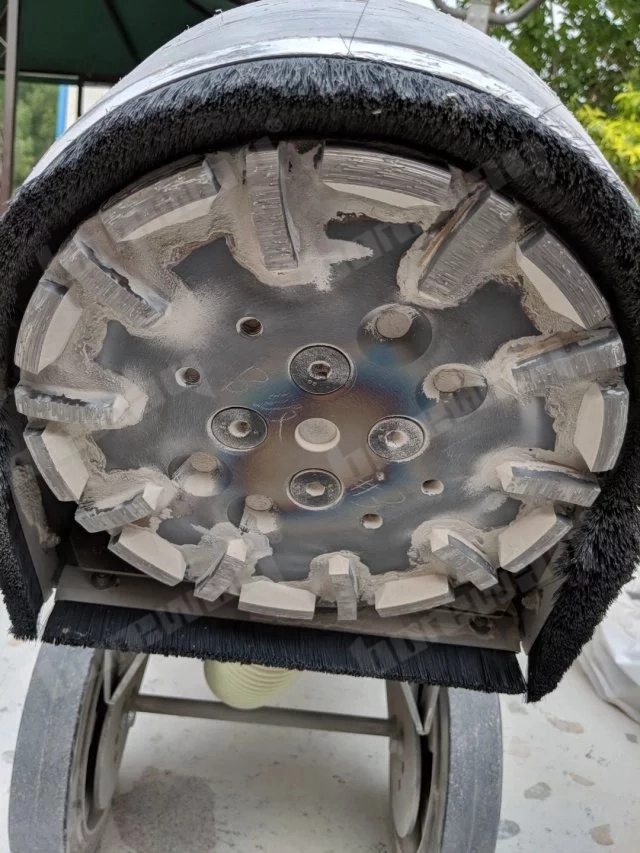

Applications:

10 Inch Diamond Grinding Plate. Granite, marble, concrete products, masonry material and all types of natural stone.

10 Inch Diamond Grinding Plate
10 Inch Diamond Grinding Plate


Grit To Choose:

10 Inch Diamond Grinding Plate. Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient.


10 Inch Diamond Grinding Plate. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.

1) Coarse grit: 16#,24#,25#,30# etc.


Could be used for un-even concrete floors , rough grinding preparation on floor or old floor renovation .


2)Medium grits: 36#, 50/60# , 60/80# etc.


Could be used for all kinds of concrete and terrazzo floors , grinding preparation on floor or old floor renovation.


3) Fine grits: 80/100# , 100/120#, 120/150#, 200# etc.


Could be used for all kinds of concrete and terrazzo floors , find grinding preparation on floor or old floor renovation before polishing.


Bond To Choose:


Choosing between soft, medium, and hard bonds.


1.Soft Bond (Yellow) – The metallic powder in the sintered segment wears away quickly releasing dull diamond crystals exposing new abrasive crystals to cut efficiently. Best used on hard surfaces.


2.Medium Bond (Red) – A metal bond strength right between that of soft and hard bonds.


3.Hard Bond (Black) – The bond of the metallic powder in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.


Advantages:

1. 10 Inch Diamond Grinding Plate Venting holes for fast, dry or wet grinding with long life.


2. Grinding segments with heat treated steel bodies which provide increases durability and wheel life.


3. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.


Features:

1. Suitable for use on grinding on marble, tile, concrete, and rock.

2. Diamond Cup Wheel is ideal for beveling, smoothing and shaping.

3. 10 Inch Diamond Grinding Plate. Venting holes for fast, dry or wet grinding with long life.

4. Grinding segments with heat treated steel bodies which provide increases durability and grinding life.

5. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.
