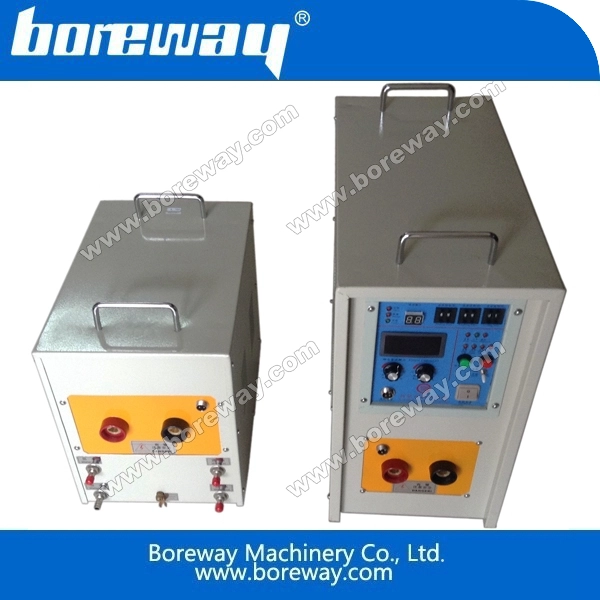

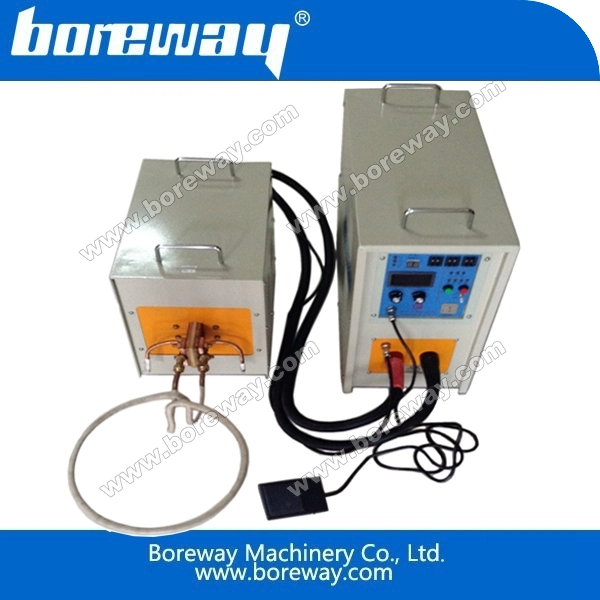

30KW high frequency induction welding machine

  • Model Number: BWM-HFIWM-30KW
  • Type: Electrify
  • Power: 30KW
  • Work frequency: 30-80KHz
  • Packing Dimension:   450mm × 255mm × 390mm
  • Machine Weigh: 30Kg
  • Applications: Boreway 30KW high frequency induction welding machine is welding diamond saw blade and core bit with welding machine frame.
  • Machine: Welding machine frame.
  • Industry: Welding machine
  • Advantage: High quality and long lifespan.

Introduction:
The 30KW high frequency induction heating machine uses a series resonant circuit , the resonant
output low voltage , high current frequency power by high-frequency transformer ; This device is our
first generation products, using MOSFET power devices and our first generation variable flow control
technology, equipment a very simple structure , high reliability , low maintenance, customer self-
maintenance convenience , is currently one of the most widely used devices

Features:
1. Under the same conditions, saving a double electric energy than traditional ones.
2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature
measurement, automatic temperature control, improve the heating quality and simplify the manual
operation.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of
higher reliability and durability.
4. Applied to the workplace with poor environment, you can put the main host machine in clean space,
reducing the host's repair rate, increase the reliability of the device.
5.Can be used in pipeline operations, the small ext machine occupies a small counter top space, easy
to move.

Specifications:
The followings are the normal specifications of our 30KW high frequency induction welding machine:

 Parameters

 Numerical

 Input voltage

 Three-phase 380V

 Power

 30 KW

 Out current

 400-1500 A

 Work frequency

 30-80 KHZ

 Rated duty cycle

 100%

 Power factor

 ≥95

 Temperature of cooling water

 ≤ 40°C

 Cooling water Pressure

 0.06Mpa-0.12Mpa

 Cooling watering flow

 7.5 L/min

 Main host size and weight

  600 × 255 × 540mm  35Kg

 Ext dimensions and weight

 450 × 255 × 390mm  30KG

The above specifications are for reference, other or special specifications can be ordered by customers.

We also have 25KW high frequency induction welding machine and 20KW high frequency induction welding machine
