China 220V-380V 20KW-30KW High Quality induction Heating Welding Machine hot selling

  • Power: 20KW-30KW
  • Power factor: ≥95
  • Rated duty cycle: 100%
  • Work frequency: 30-100KHZ, 30-80KHZ
  • Temperature of cooling wate: ≤ 40°C
  • Cooling water Pressure: 0.06-0.12 Mpa
  • Out current: 200-1050A, 200-1200A, 400-1500A
  • Input voltage: Single-phase 220V 50/60HZ, Three phase 380V
Product description:                                                                 

The high frequency induction heating welding machine uses a series resonant circuit , the resonant output low voltage , high current frequency power by high-frequency transformer ; This high frequency welding machine is our newest generation products, using MOSFET power devices and our newest generation variable flow control technology, equipment a very simple structure , high reliability , low maintenance, customer self- maintenance convenience , is currently one of the most widely used welding machine.


Features:
1.Under the same conditions, saving a double electric energy than traditional ones.
2.Can be used in pipeline operations, the small ext machine occupies a small counter top space, easy to move.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability
 and durability.
4. Applied to the workplace with poor environment, you can put the main host machine in clean space, reducing the
 host's repair rate, increase the reliability of the device.
5.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement,
automatic temperature control, improve the heating quality and simplify the manual operation.

Advantage:
Our high frequency welding machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 
 20 different countries . In these overseas markets,our welding machine enjoy a good reputation, we get good feedbacks after their corresponding test result, so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.


All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Details:
Specification of High frequency induction welding machines:
Parameters Numerical
Input voltage Single-phase 220V 50/60HZ Three phase 380V, 50/60HZ  Three-phase 380V
The operating voltage 220 V 340-430 V 380V
Power 20 KW 25 KW 30 KW
Out current 200-1050 A 200-1200 A 400-1500 A
Work frequency 30-100 KHZ 30-80 KHZ 30-80 KHZ
Rated duty cycle 100% 100% 100%
Power factor ≥95 ≥95 ≥95
Temperature of cooling water ≤ 40°C ≤ 40°C ≤ 40°C
Cooling water Pressure 0.06-0.12 Mpa 0.06Mpa-0.12Mpa 0.06Mpa-0.12Mpa
Cooling watering flow 7.5 L/min 7.3 L/min 7.5 L/min
Main host size and weight 620mm*290mm*500mm 25kg 560*220*590mm 22kg 600*255*540mm  35Kg
Extension size and weight Optional Optional 450*255*390mm  30KG
Other specifications can be customized according to requirements.
Before purchasing the machine, please provide the specifications of the welding workpieces.

The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more products details.
Pictures:

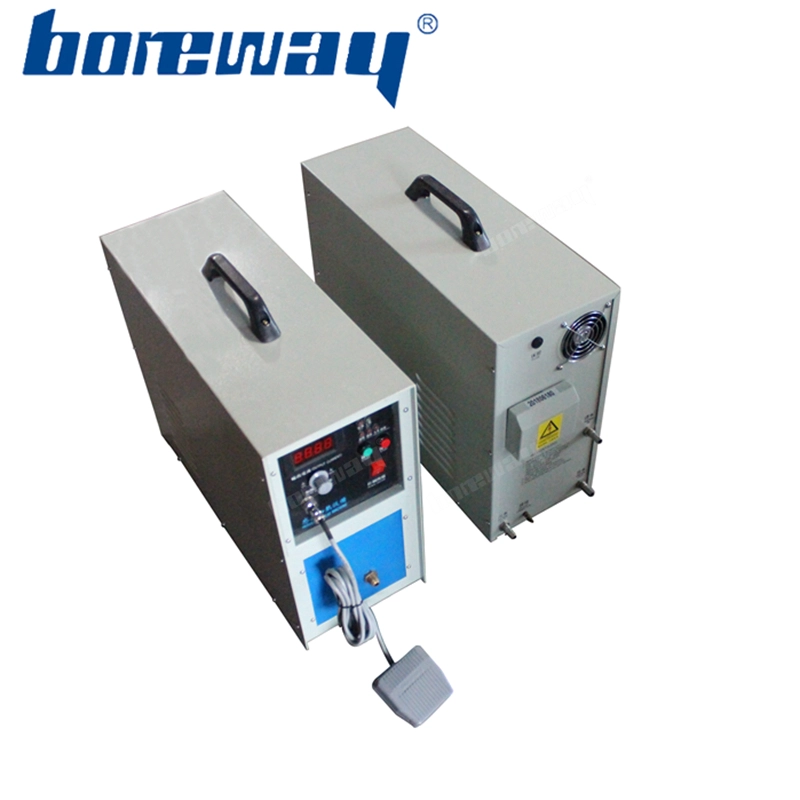

Single Phase 220V+20KW, can make 3phases 380V+20KW/25KW(It depends on customer's demands).

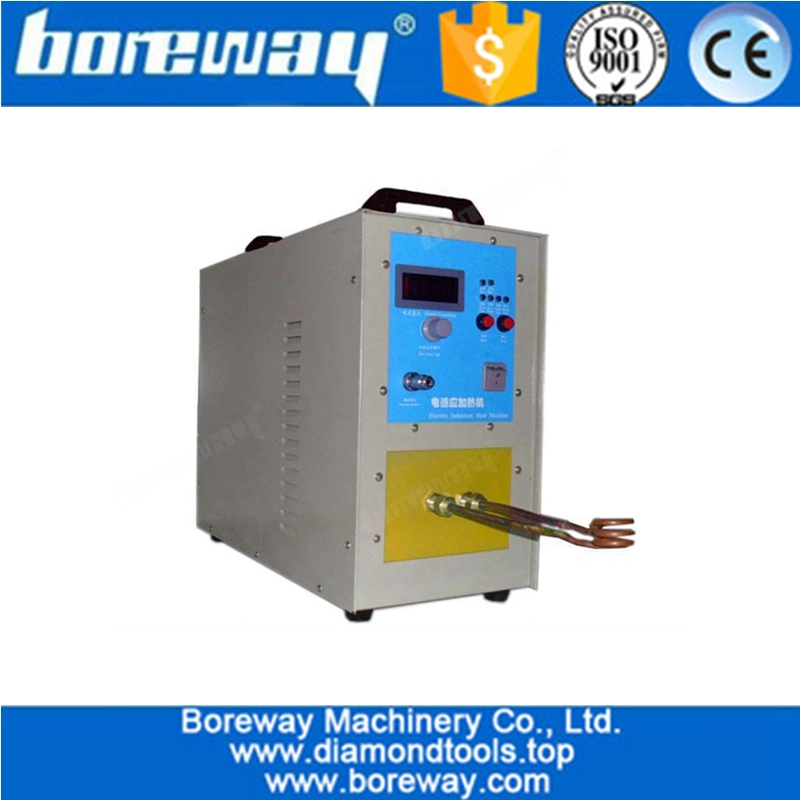

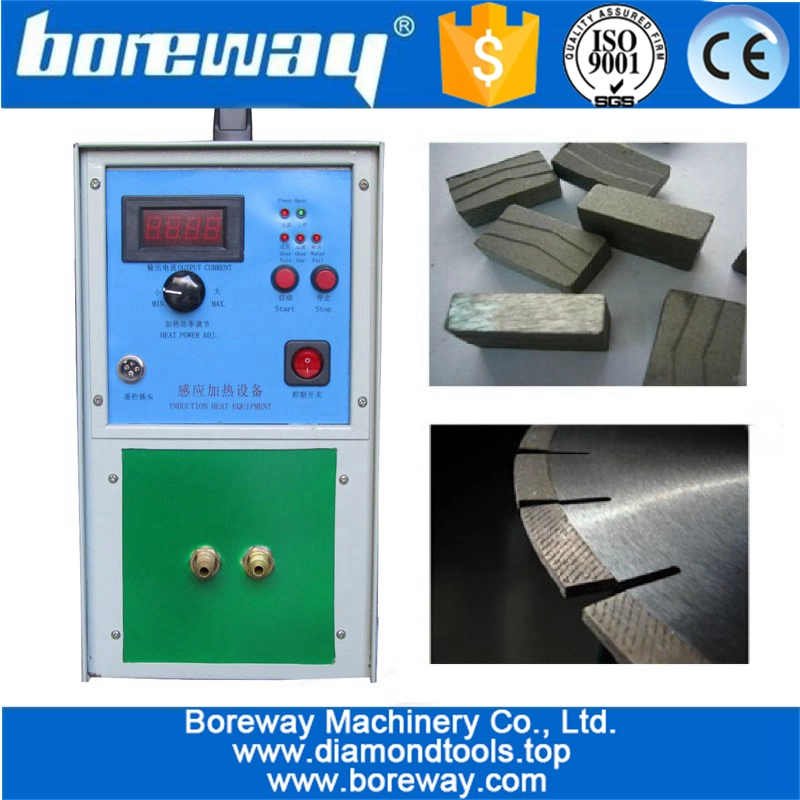

high requency induction heating welding machine   high requency induction heating welding machine

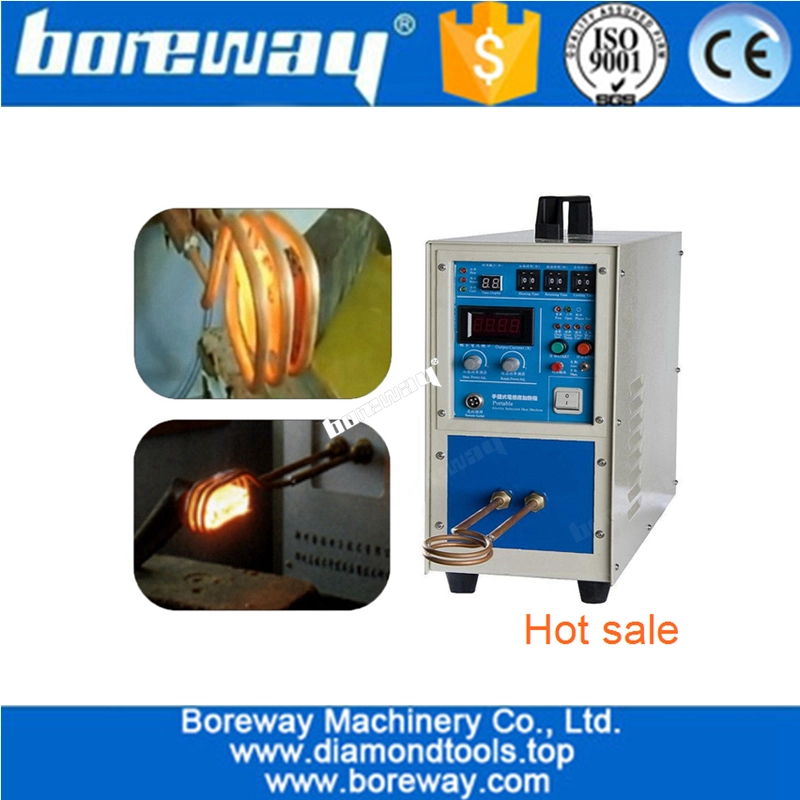

high frequency induction heating welding machine   high frequency induction heating welding machine
high requency induction heating welding machine   high requency induction heating welding machine

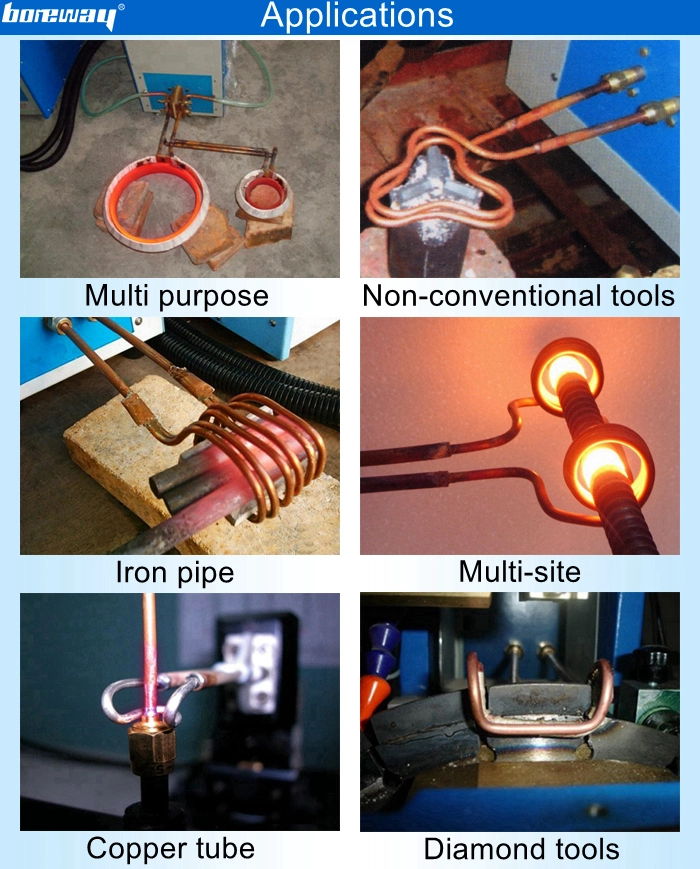

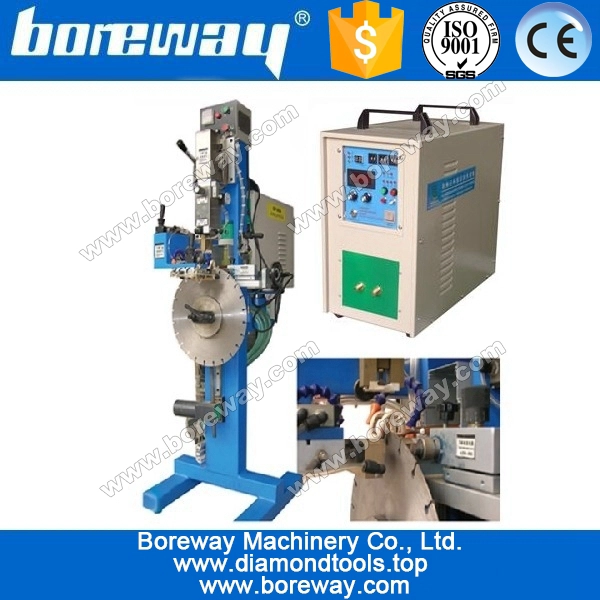

High Frequency induction heating brazing machine connect to welding frame rack
induction heating welding brazing machine
How it works?
high frequency induction heating welding machine

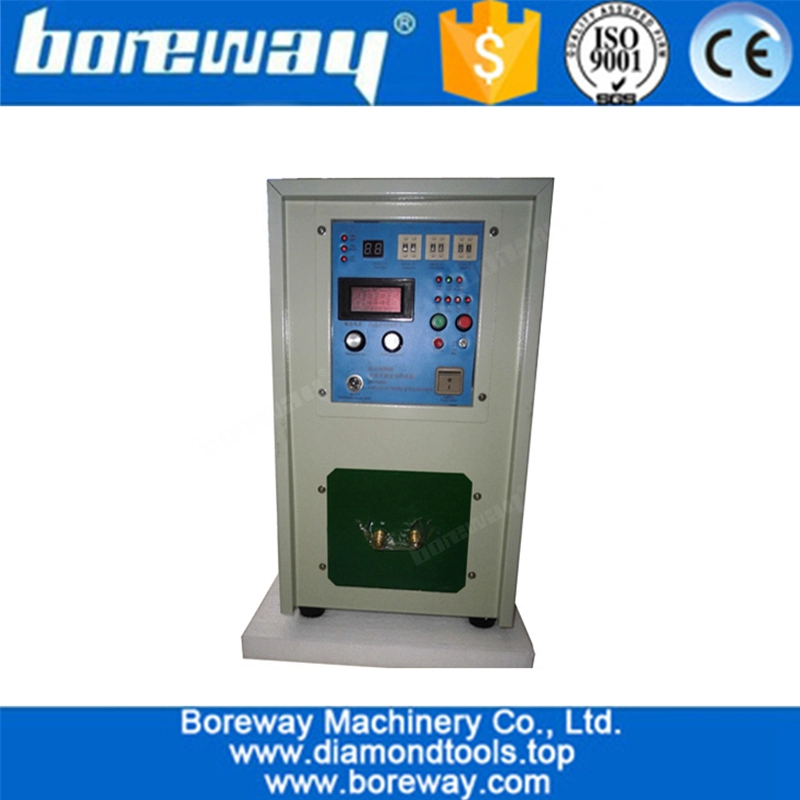

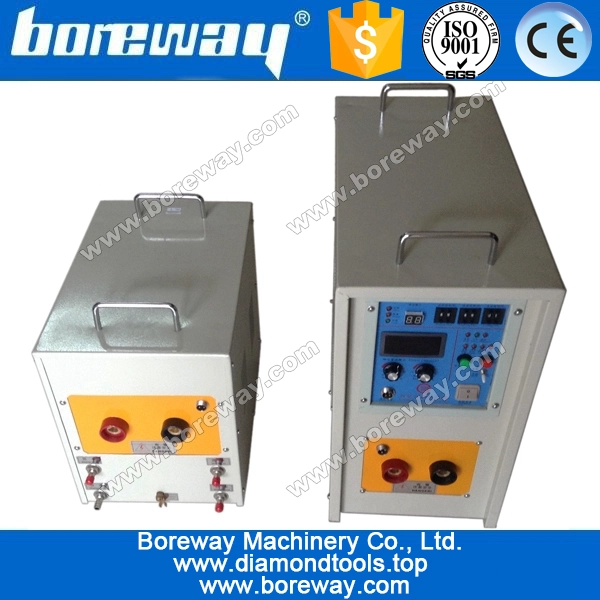

380V+30KW Three phases high frequency induction heating welding machine
high frequency induction heating welding machine

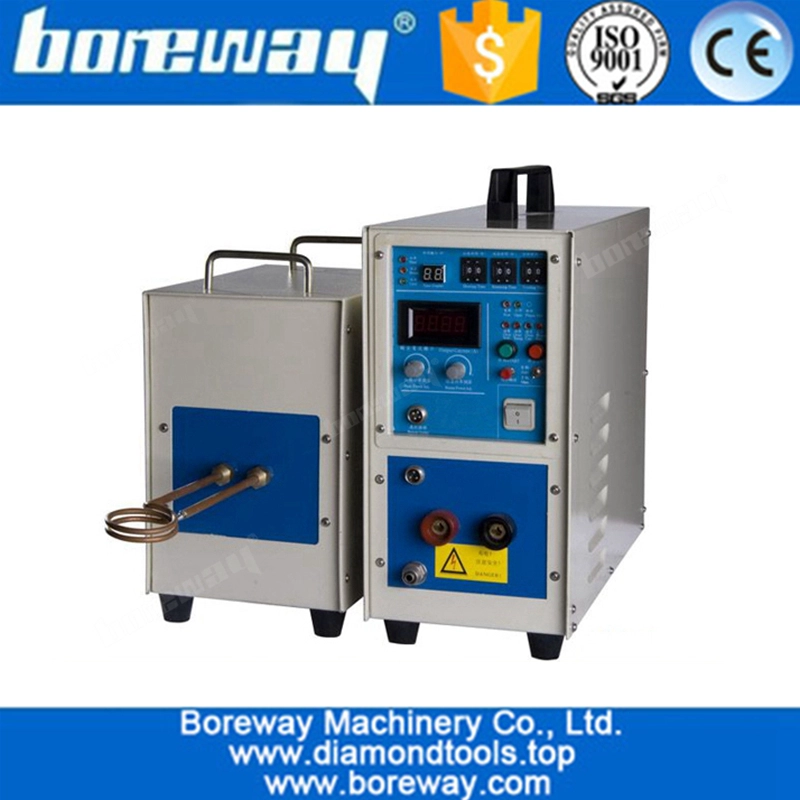

380V+40KW Three phases high frequency induction heating welding machine
high frequency induction heating welding machine

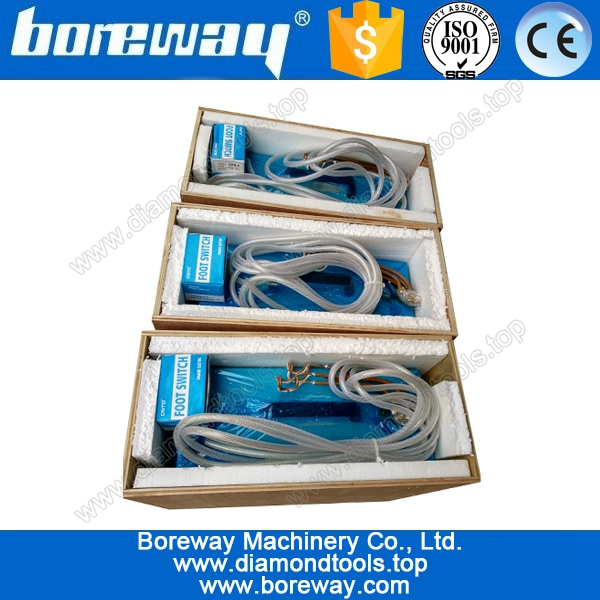

Annex:Foot switch/hand-press switch,heating coil(can be customized),water pipes,water pumps(need to buy).

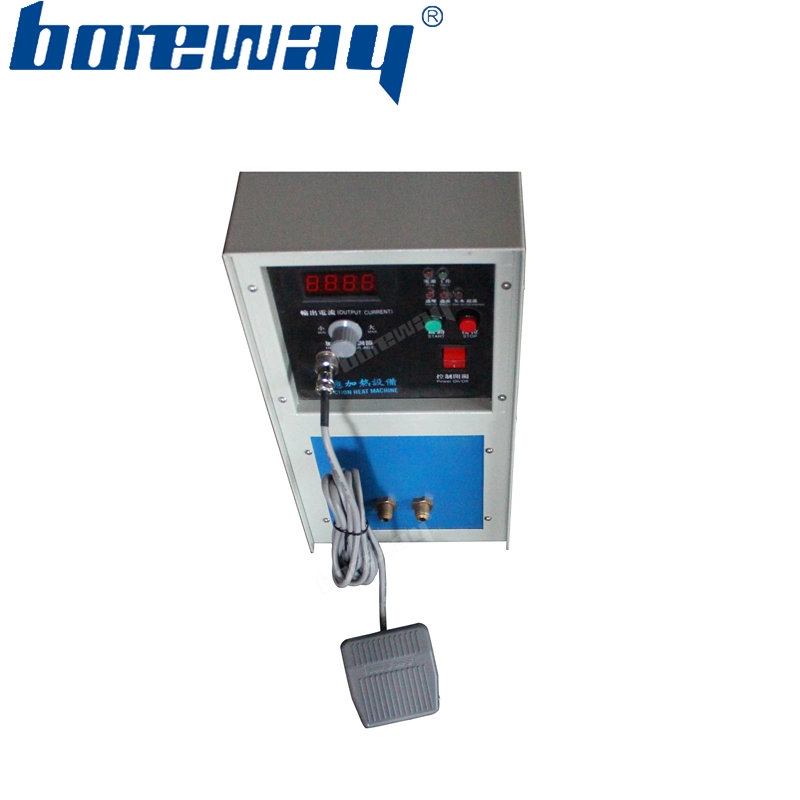

high frequency induction heating welding machine foot switch

Packing & Delivery:
High frequency induction welding machine packing in the wooden.
We can also pack the welding machine according to your requirements.
Special specifications need to be negotiated for delivery times.
