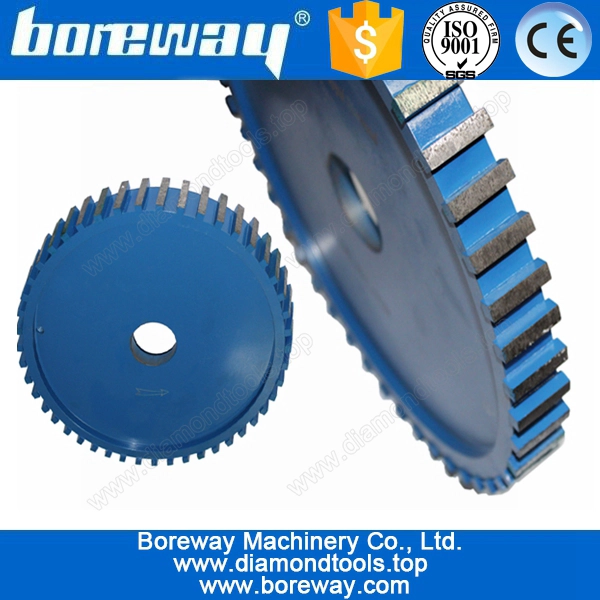

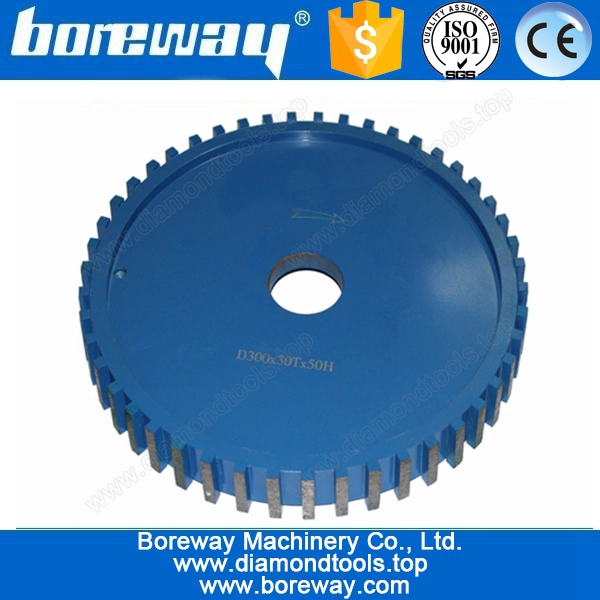

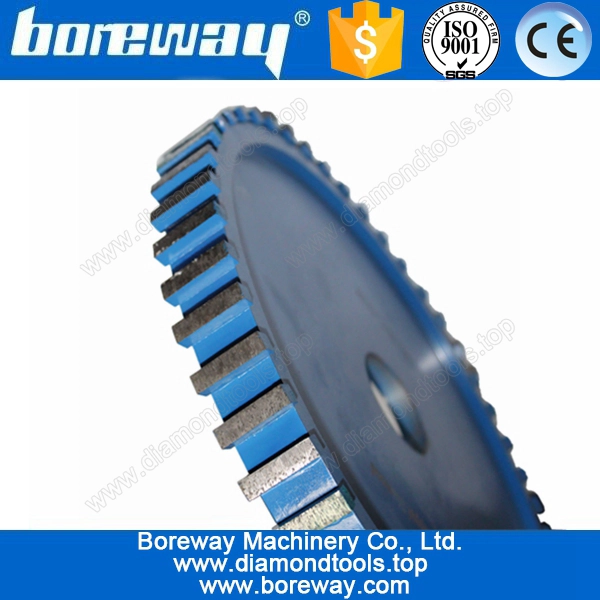

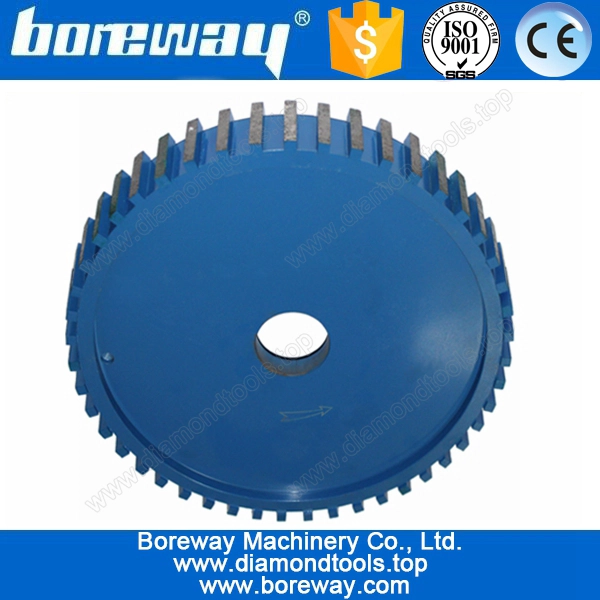

300mm CNC calibrating wheel
- Model Number: BW-CW-01
- Type: Wet Use
- Diameter: 300mm
- Width： 30mm
- Inner Hole： 50mm
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Machine: Profiling machine,edge cutting machine,bridge cutting machine
- Applications: CNC calibrating wheels are designed for thicknessing and calibrating surface of granite,marble,and other stone,also including the counter.
Introduction:
CNC calibrating wheels are designed for thicknessing and calibrating surface of granite,marble,and
other stone,also including the counter.The segment on the calibrating wheel can removal of the stone
uneven part rapidly.It can grinding the shape and thickness what you want quickly.Mainly used in profiling
machine,edge cutting machine,bridge cutting machine.The CNC calibrating wheel including two types,
normal calibrating wheel and silent calibrating wheel.
Features:
1.High efficiency and long lifespan.
2.Lower noise and environment friendly.
3.Making the stone surface thicknessing and calibrating.
Specifications:
There are the normal specification of our CNC calibrating wheel:
|
Diameter |
Width |
Segment size |
Segment Number |
Inner Hole |
||
|
Length |
Width |
Height |
||||
|
300mm |
30mm 40mm 50mm |
34.6mm 46.2mm 57.7mm |
9mm |
6.5mm |
36 |
50mm 60mm |
|
350mm |
40 |
|||||
|
400mm |
45 |
|||||
|
500mm |
60 |
|||||
|
600mm |
72 |
|||||
The above specification just a reference for customer.
Other specification can be ordered by clients.
