230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade

230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade

  • Blade Material:Diamond
  • Size:230mm
  • Segment Height:8mm
  • Segment Thickness:2.6mm
  • Arbor:7/8" (22.23mm)
  • Blade Type:Diamond Blades
  • Application: Cutting for stone
  • Advantage:High efficiency,long lifespan,good stable.
Introduction:

230mm diamond cutting disc is specially designed to provide fast smooth cutting in a variety of materials including marble, granite, stone and paves, but can also be used on concrete, block, brick and masonry material. This supreme quality super drop turbo blade has specially designed deep segments for extremely fast cutting. The blade segment height is 8 mm and the arbor size is 7/8 inch.

Feature:

1.Hot pressed blade provide long life.
2.Professional qualtiy, very fast cutting.
3.For use on an Angle Grinder, Wet Stone Saw or Circular Saw.
4.Primarily designed for Marble, Granite, Stone and Pavers.
5.Can also be used on Concrete, Brick, Block, Stone, Masonry Materials and more.

Specification:

The following are the specification of 230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade:

 Outer Diameter  230mm
 Size  9 inch
 Segment Thickness  2.6mm
 Segment Height 8mm
 Arbor  7/8"(22.23)
 G.W.  660g
 N.W.  700g
 Shape  Turbo

The above specification just a reference.Other specification can be ordered by customers.

Picture:

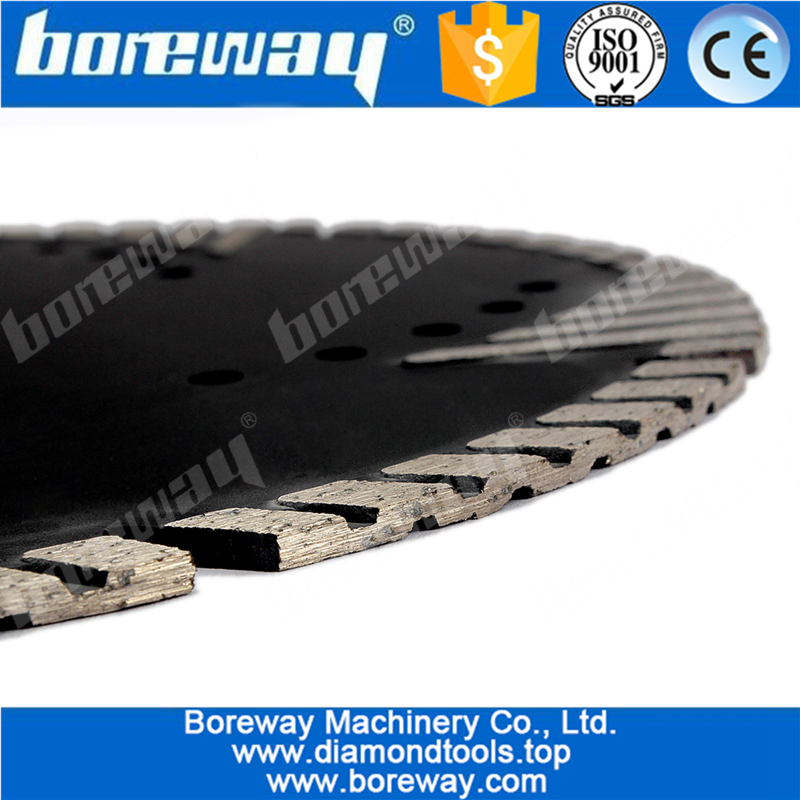

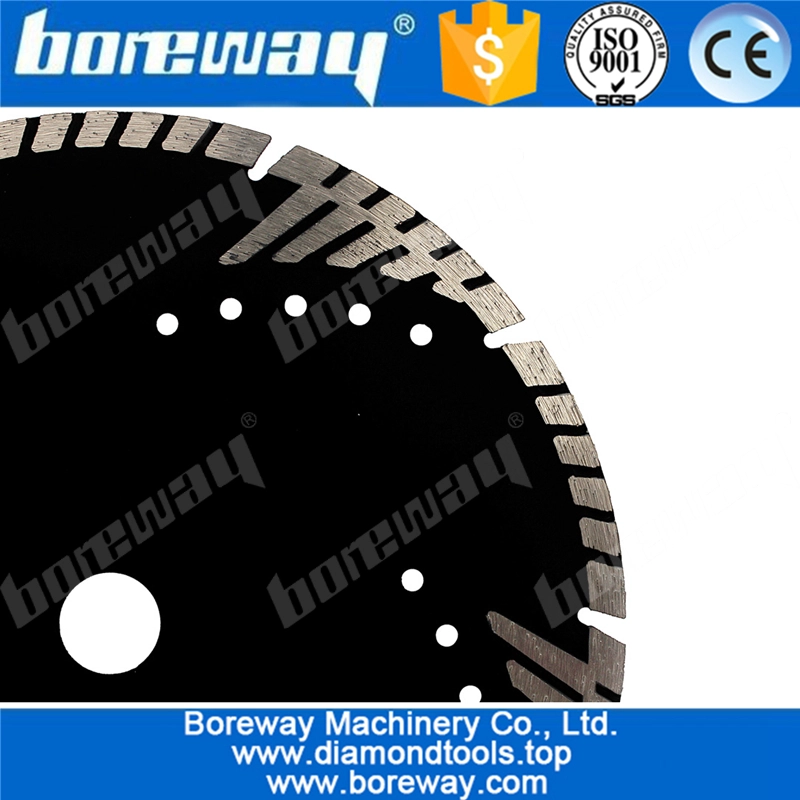

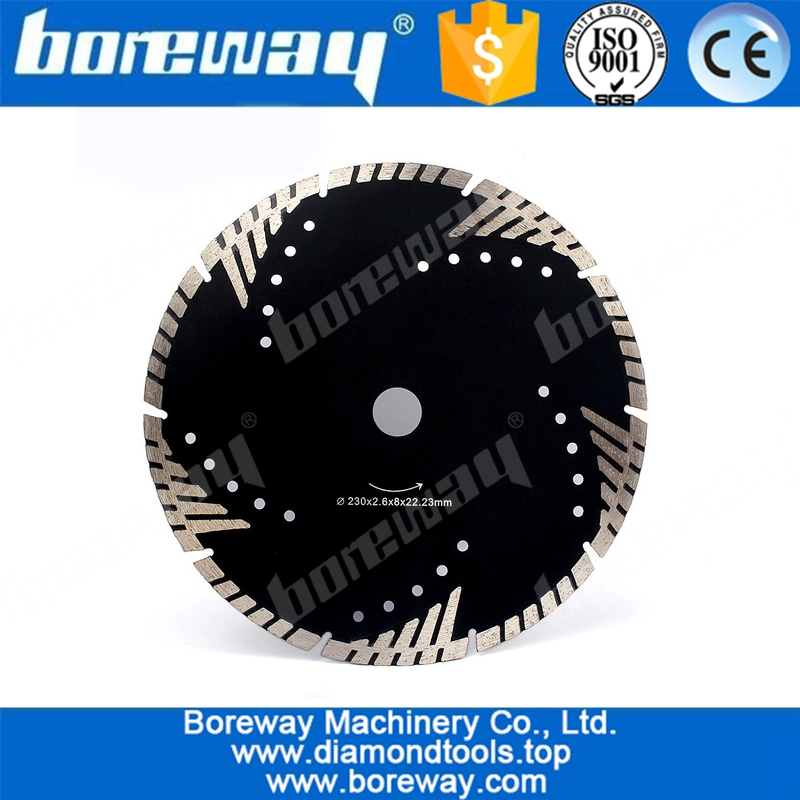

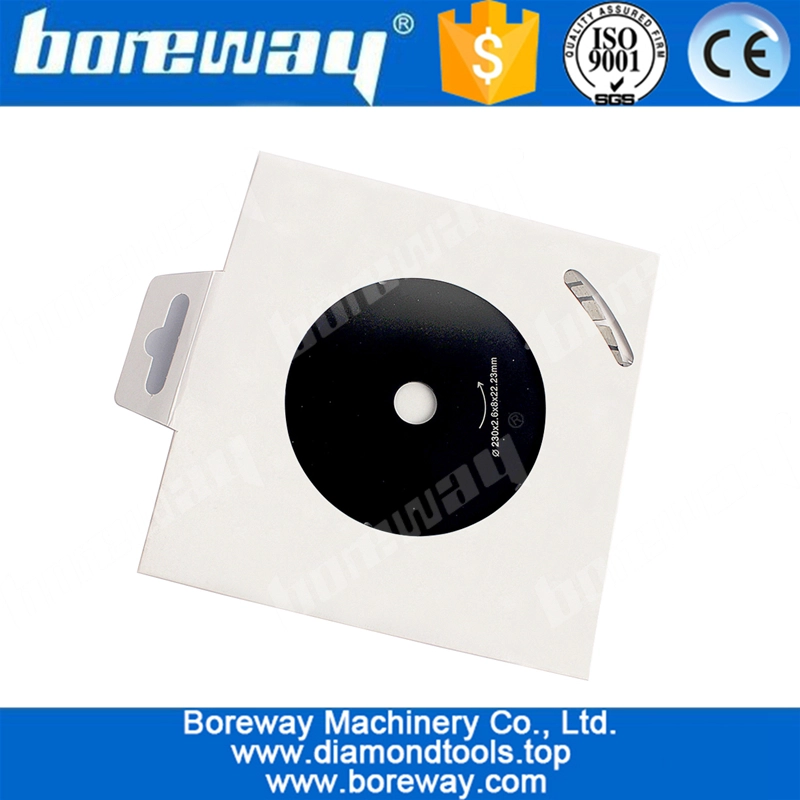

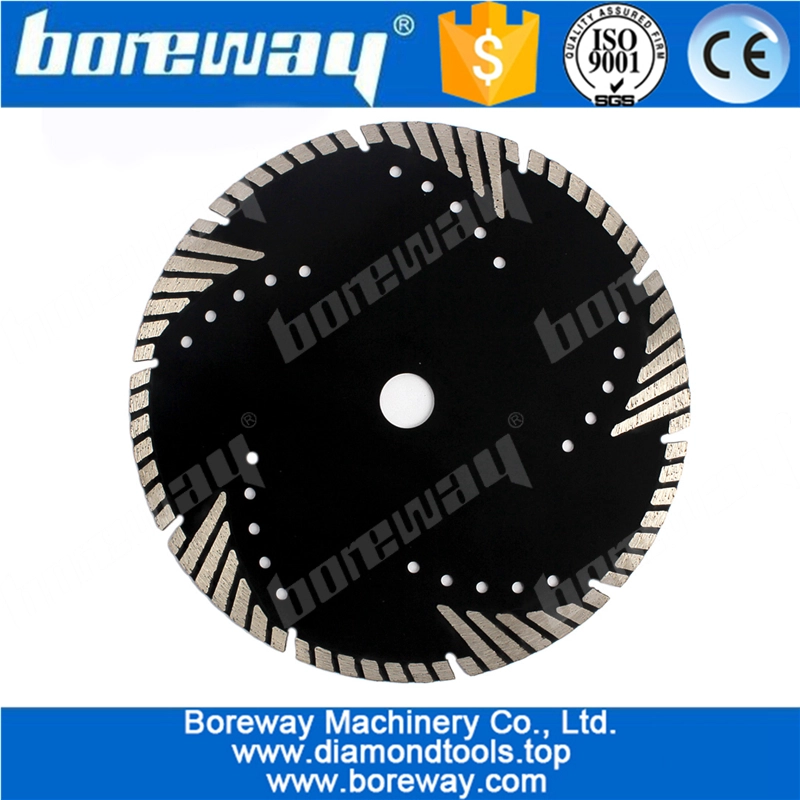

230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade

230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade

230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade230mm Diamond Cutting Disc Granite Marble Turbo Saw Blade

If you are want to know more diamond saw blade,please click here Diamond saw blade.
