105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades

105mm or 115mm Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades

  • Bore: 20mm/22.23mm
  • Segment height: 8mm
  • Blade Material: Diamond
  • Segments thickness 1.2mm
  • Size: 105mm/4", 115mm/4.5"
  • Usage: Wet cutting,and available for short time cutting
  • Application: for ceramic tile, porcelain tile,marble,hard material cutting
Introduction:

BorewayHot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc for Wet Tile Saw. Chip-Free Cutting of Porcelain Tile,Ceramic Tile,Quarry Tile,Marble,Stone,Quarry and some other similar materials. Tile Saw Diamond Blade Provide Fast and Accurate Cutting. WithProfessional Quality,use premium grade diamonds for high production. Provide fast cutting with a long toollife.


Feature: 
1.Wet cutting, and available for short time dry cutting

2. Hot-press technology much better than cold press production procedure.

3. Continue Rim segments and Thin design of kerf provides chip-free cutting

4. High quality diamond grain and strong bond provide long working life and high effieciency


Specification: Hot Pressed Thin continuous Rim Diamond Saw Blade Diamond cutting disc
Please order the right size as per your request
Size Segment height Segments thickness Bore
4"105MM  8mm 1.2mm 20mm with a 20-16mm washer
4.5"115MM  8mm 1.4mm 22.23mm
Any other requirements on this continuous rim diamond blade, Pls contact with us :)

Picture: 

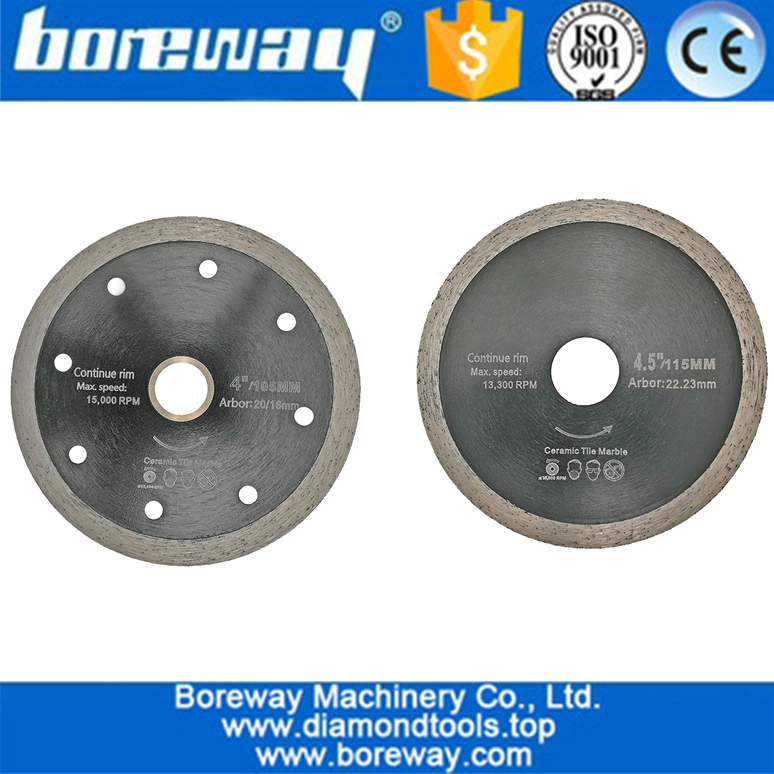

Hot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc
Hot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc

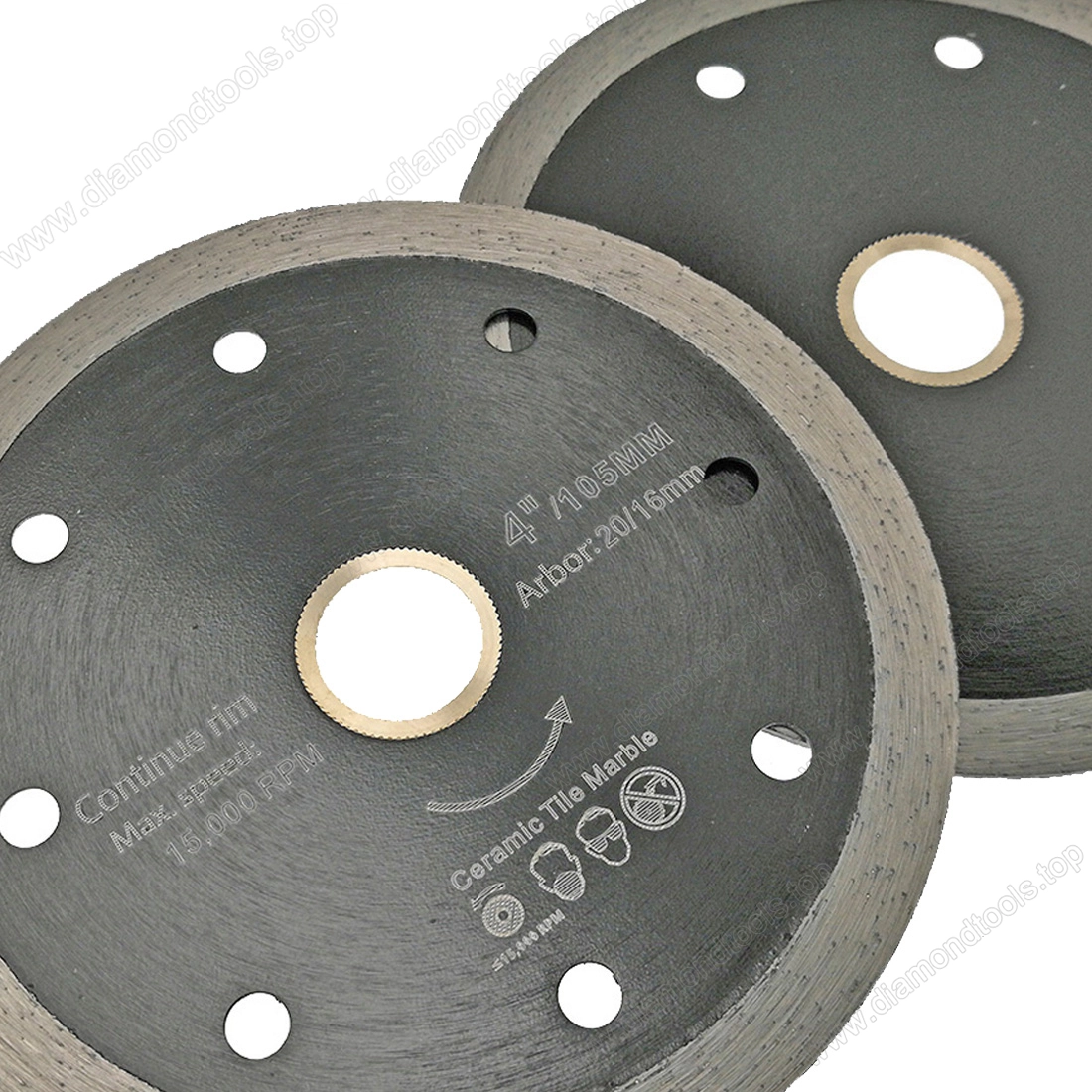

4inchHot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc

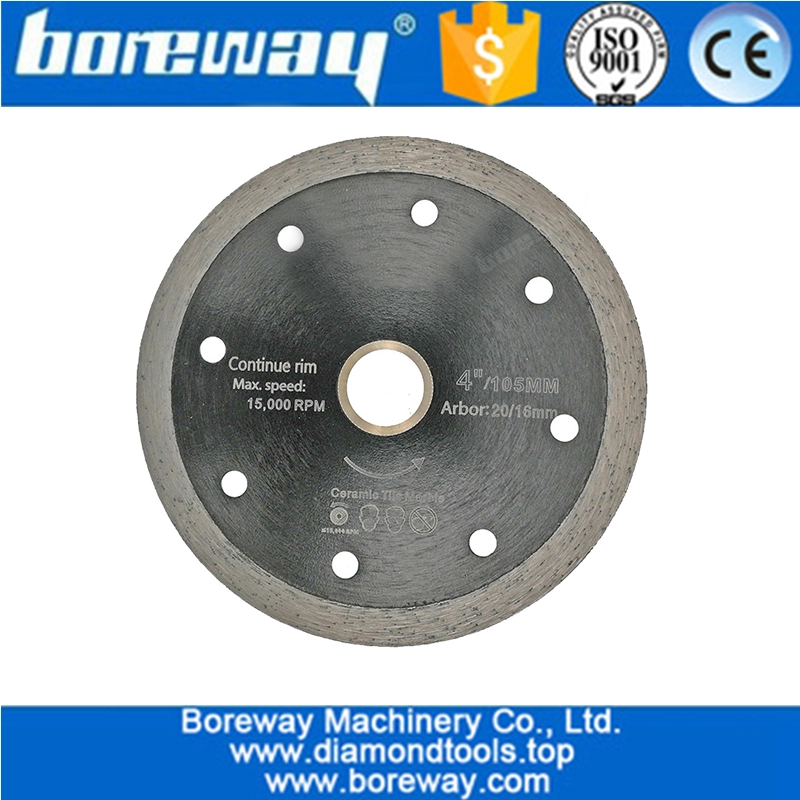

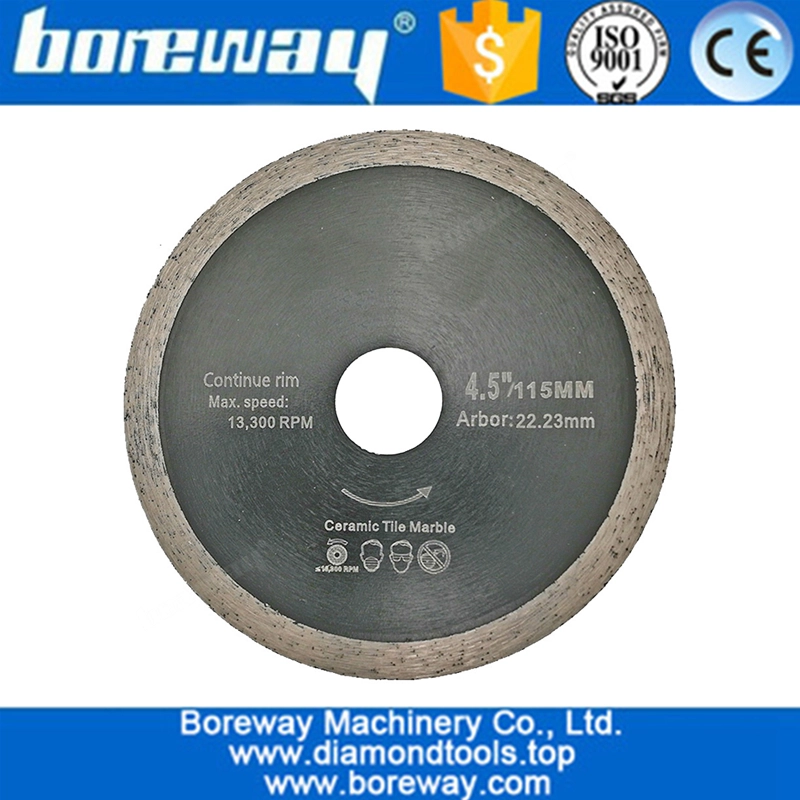

Hot pressed Thin Continuous Rim Diamond Cutting Disc for Ceramic tile porcelain tile from Diamond saw Blades Factory
4inch Hot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc

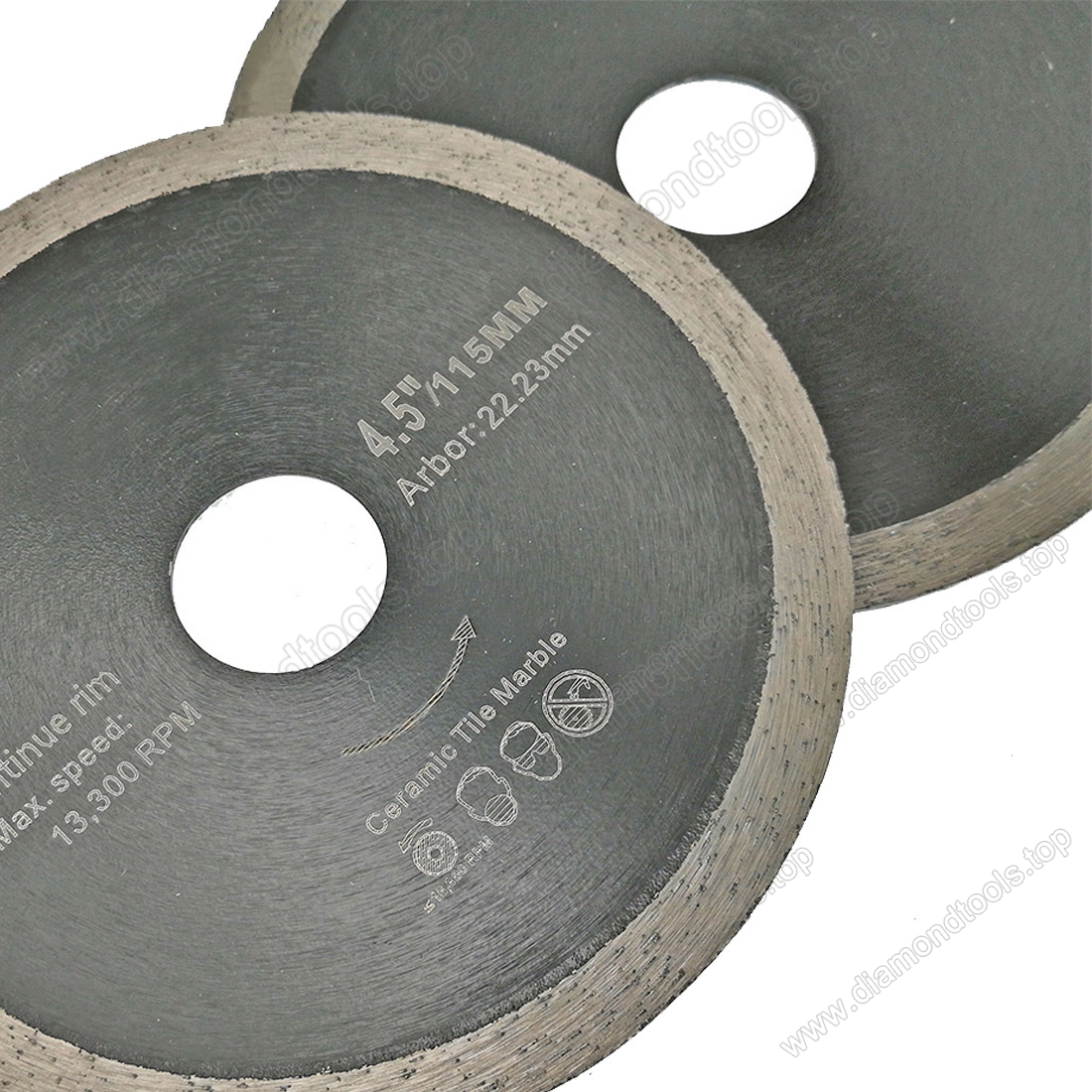

4.5 inchHot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc
4.5 inch Hot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc
4.5 inch Hot pressed Thin Continuous Rim Diamond saw Blades Diamond Cutting Disc

Packing & Delivery:

1. Tools packing in carton cases;

2. When tools are in large quantities, they are packing in wooden cases.

3.According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.

boreway diamond tools delivery boreway05@boreway.net
