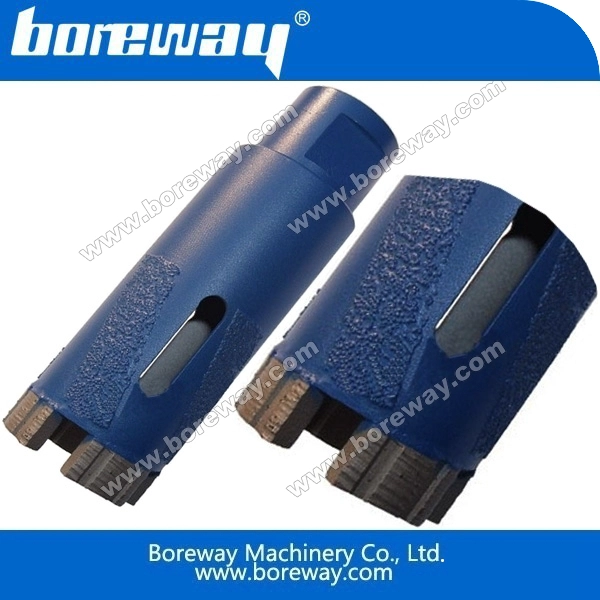

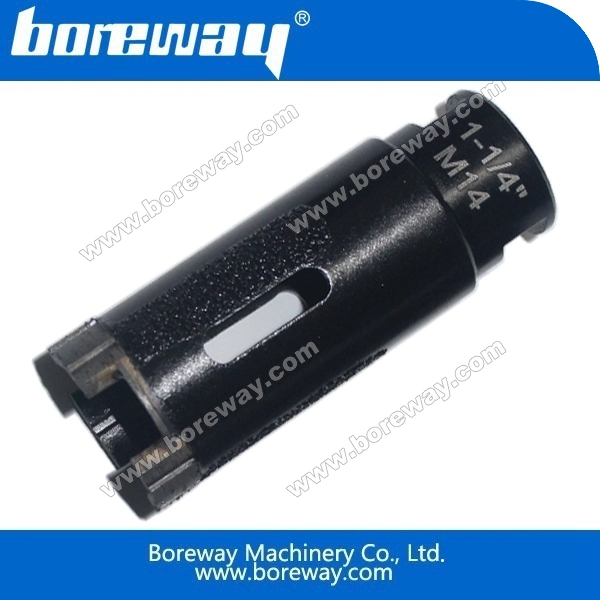

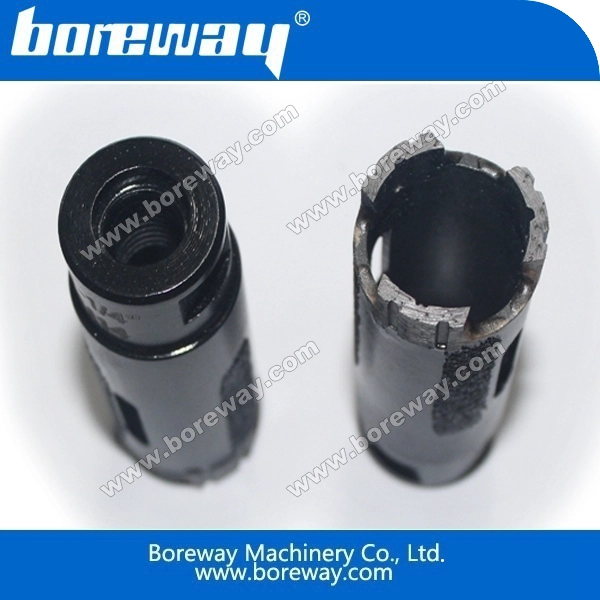

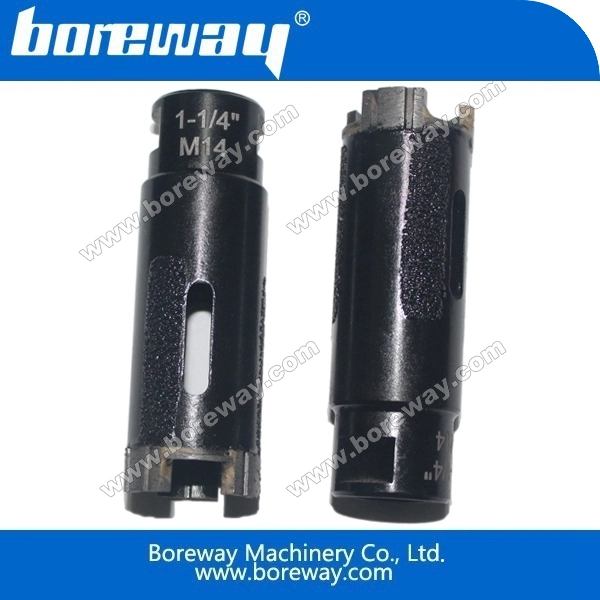

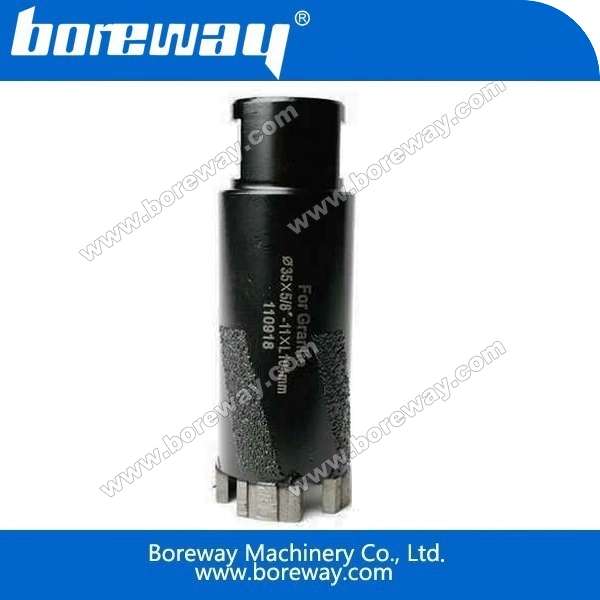

Turbo segment diamond core drill bit
- Model Number: BW-WSDCDB-001
- Type: Wet Use
- Diameter: 29mm to 127mm
- Segment Width: 2.5mm to 4.0mm
- Length : 100mm
- Applications: Boreway turbo segment diamond core drill bit is wet use for drilling granite marble artificial stone and quartz.
- Machine: Hand-held machine,other drilling machine and CNC drilling machine.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and Long lifespan.
Introduction:
Turbo segment diamond core drill bits are suitable for stand drilling machine,electrical hand-held drillers or CNC machines for dry drilling small projects such as drilling our sinkholes for faucets or small holes on slabs. The turbo segments provide faster drilling speed than normal drill bits.
Features:
1.Applicable for most stand drilling machines,hand-held drillers or CNC machines.
2.These drill bits are mainly for dry use.
3.Good balance and stable performance.
4.Turbo segments provide higher drilling efficiency.
5.Diamond vacuum brazed or electroplated on the surface of steel pipe.
Specifications:
The followings are the normal specifications of our turbo segment diamond core drill bit:
|
Product Name |
Diameter |
Segment Size |
Length |
Adaptor |
Applications |
|
Turbo Segment Diamond Core Drill Bit |
29mm (1-1/8") |
16x2.5x10 |
4’’(100mm) |
5/8"-11 M14 1/2 Gas |
Granite Marble Artificial Stone Quartz |
|
32mm (1-1/4”) |
16x3x10 |
||||
|
35mm (1-3/8”) |
16x3x10 |
||||
|
38mm (1-1/2”) |
16x3x10 |
||||
|
42mm (1-5/8") |
16x3x10 |
||||
|
45mm (1-3/4”) |
16x3x10 |
||||
|
50/51mm (2”) |
16x3x10 |
||||
|
57mm (2-1/4”) |
22x3.5x10 |
||||
|
60mm (2-3/8”) |
22x3.5x10 |
||||
|
63mm (2-1/2”) |
22x3.5x10 |
||||
|
70mm (2-3/4”) |
22x3.5x10 |
||||
|
76mm (3”) |
22x3.5x10 |
||||
|
80mm (3-1/8” |
22x3.5x10 |
||||
|
89mm (3-1/2”) |
22x3.5x10 |
||||
|
102mm (4”) |
22x3.5x10 |
||||
|
110mm (4-3/8”) |
22x3.5x10 |
||||
|
127mm (5”) |
24x4x10 |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
