Home > Product > Cuting, Grinding, Polishing and Drilling Tools > Diamond Cup Grinding wheels > flap wheels flap discs surface grinding wheels cut off wheels abrasive discs
flap wheels flap discs surface grinding wheels cut off wheels abrasive discsflap wheels flap discs surface grinding wheels cut off wheels abrasive discsflap wheels flap discs surface grinding wheels cut off wheels abrasive discsflap wheels flap discs surface grinding wheels cut off wheels abrasive discsflap wheels flap discs surface grinding wheels cut off wheels abrasive discs

flap wheels flap discs surface grinding wheels cut off wheels abrasive discs

  • Model: BW-DCGW
  • Size:3,4,5,6,7,8,9 inch
  • Grit:6#,16#,30#,35#,50#,60#,120#,200#,400#
  • Connection:M14,M16,M18,5/8"-11,20mm,22.23mm,Snail Lock
  • Machine:Large grinding machines and hand held grinding machines
  • Application:Diamond cup grinding wheels are designed for the restoration or maintenance of granite,marble,and many other stone surface.


Production Description:

Introduction:Boreway diamond cup grinding wheels are usually used with large grinding machine and other hand-held grinding machines,these diamond cup grinding wheels are designed for the restoration or maintenance of granite,marble,and many other stone surface, Boreway diamond cup grinding wheels are polishing with quick speed and without scratch.

Using sequence:From the thick number to the number,Polishes finally.

Advantage:Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our cup grinding wheels enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.

All of our our products have been strictly tested before access to market.

Other specification can be ordered by client.


Detailed Images:

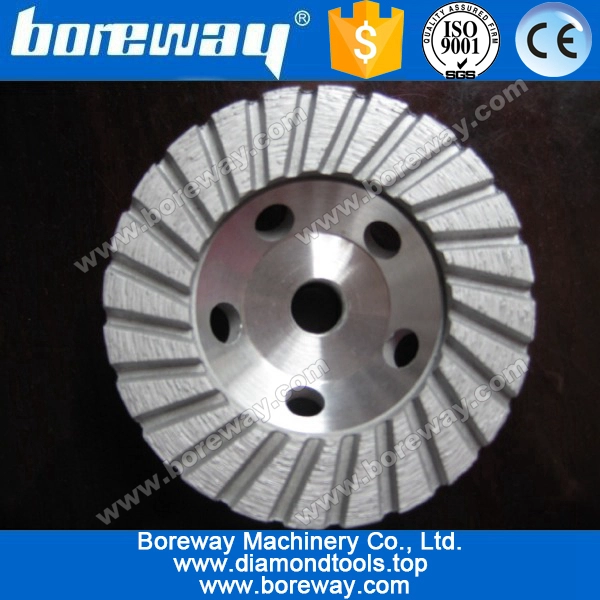

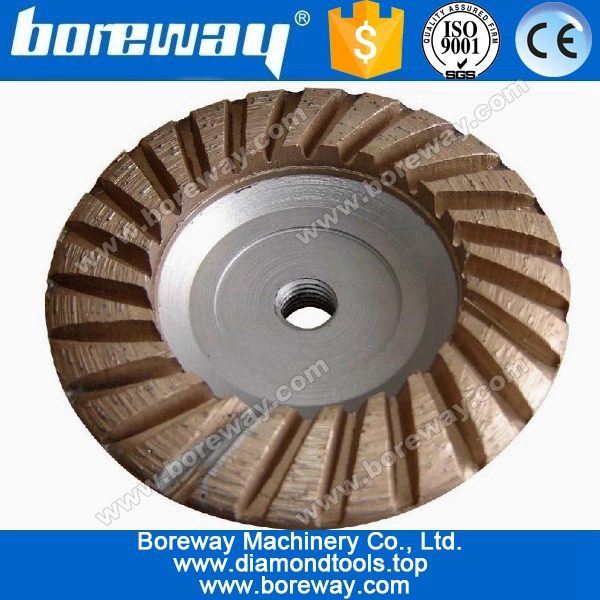

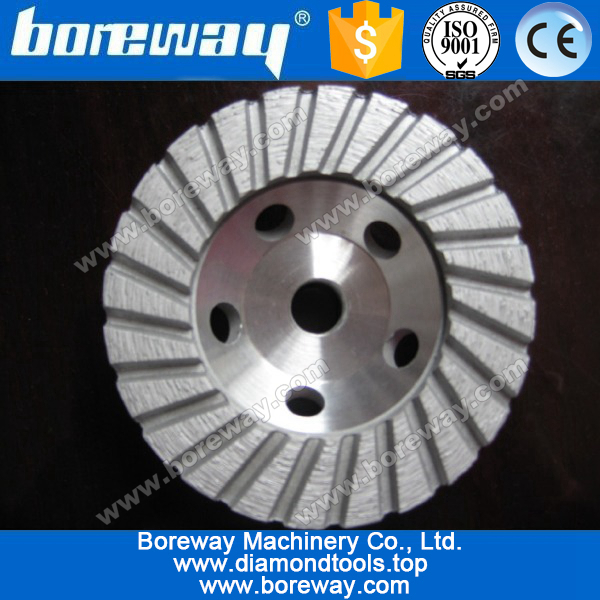

Turbo segment diamond cup grinding wheels:

Turbo segment diamond cup grinding wheels are designed for surface restoration or maintenance of granite,marble,concrete and other stone.

These diamond cup grinding wheels are suitable for large grinding machines and other hand-held machines.

The following are the normal specifications of turbo segment diamond cup grinding wheels:

Diameter

Segment
Height

Connection

Grit

5"/125mm

7-10mm

M14 M16
5/8"-11
20mm 22.23mm
Snail Lock

6#
16#
30#
60#
120#

6"/150mm

7-10mm

7"/180mm

7-10mm

8"/200mm

7-10mm

9"/230mm

7-10mm

The above specifications just a reference for you.

Other specifications can be ordered by client.

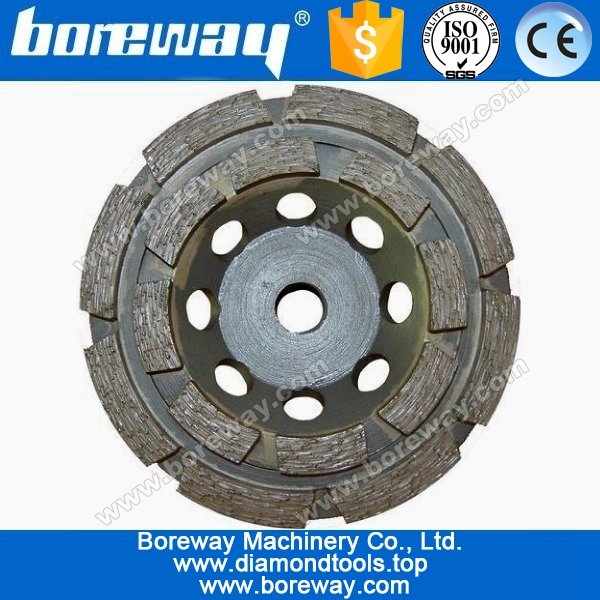

Single/double row diamond cup grinding wheels:

Single/double row diamond cup grinding wheels are designed for surface restoration or maintenance of granite,marble,concrete and other stone.

These single/double row diamond cup grinding wheels are suitable for large grinding machines and other hand-held machines.

The following are the normal specifications of single/double row diamond cup grinding wheels:

Diameter

Segment
Height

Connection

Grit

3"/75mm

5mm/6mm

M14 M16
M18 M20
5/8"-11
20mm 22.23mm
Snail Lock

35#
50#
120#
200#
400#

4"/100mm

5mm/6mm

4.5"/115mm

5mm/6mm

5"/125mm

5mm/6mm

6"/150mm

5mm/6mm

7"/180mm

5mm/6mm

8"/200mm

5mm/6mm

9"/230mm

5mm/6mm

The above specifications just a reference for you.

Other specifications can be ordered by client.



Continuous rim diamond cup grinding wheels:

Continuous rim diamond cup grinding wheels are designed for surface restoration or maintenance of granite,marble,concrete and other stone.

These Continuous rim diamond cup grinding wheels are suitable for large grinding machines and other hand-held machines.

The following are the normal specifications of Continuous rim diamond cup grinding wheels:

Diameter

Segment
Height

Connection

Grit

4"/100mm

5mm/6mm

M14 M16
M18 M20
5/8"-11
20mm 22.23mm
Snail Lock

30#

60#

120#

4.5"/115mm

5mm/6mm

5"/125mm

5mm/6mm

6"/150mm

5mm/6mm

7"/180mm

5mm/6mm

8"/200mm

5mm/6mm

9"/230mm

5mm/6mm

The above specifications just a reference for you.

Other specifications can be ordered by client.

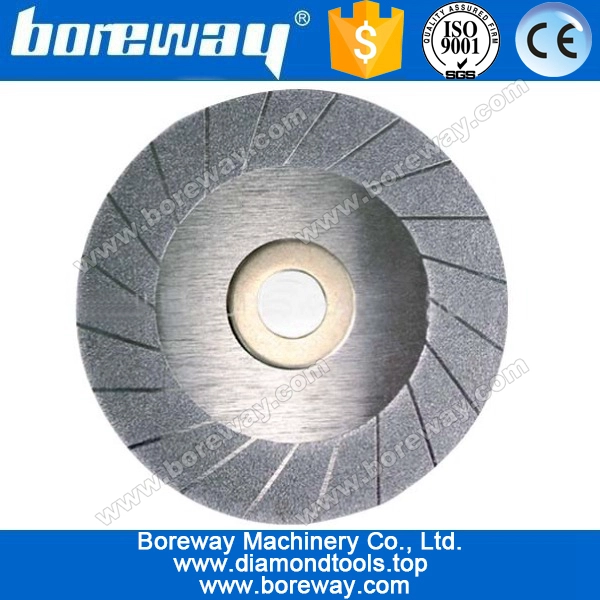

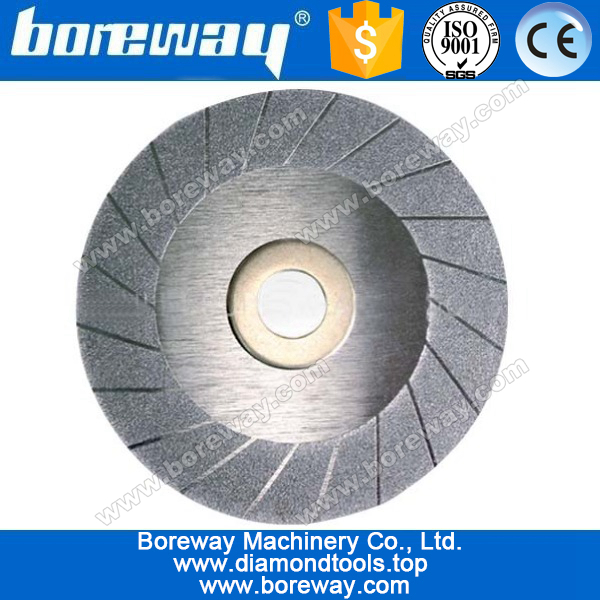

Electroplate/vacuum brazed diamond cup grinding wheels:

Electroplate/vacuum brazed diamond cup grinding wheels are designed for surface restoration or maintenance of granite,marble,concrete and other stone.

These electroplate/vacuum brazed diamond cup grinding wheels are suitable for large grinding machines and other hand-held machines.

The following are the normal specifications of electroplate/vacuum brazed diamond cup grinding wheels:

Diameter

Segment
Height

Connection

Grit

4"/100mm

2mm

20mm

30#

60#

120#

5"/125mm

2mm

20mm

6"/150mm

2mm

20mm

7"/180mm

2mm

20mm

8"/200mm

2mm

20mm

The above specifications just a reference for you.

Other specifications can be ordered by client.

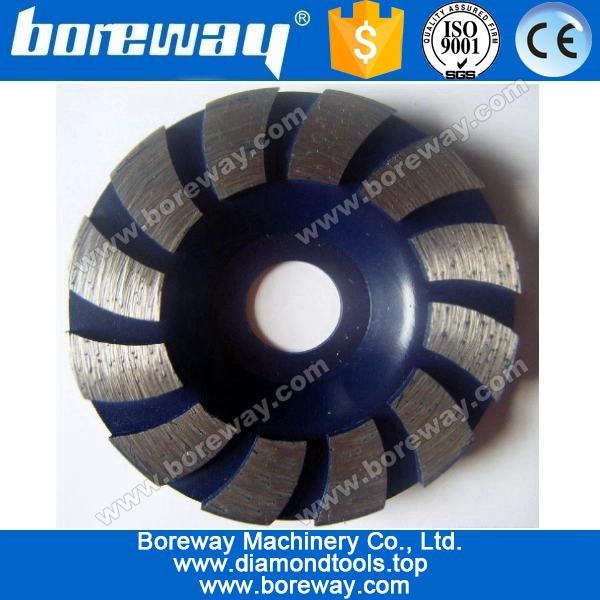

Special segment diamond cup grinding wheels:

Special segment diamond cup grinding wheels are designed for surface restoration or maintenance of granite,marble,concrete and other stone.

These special segment diamond cup grinding wheels are suitable for large grinding machines and other hand-held machines.

The following are the normal specifications of special segment diamond cup grinding wheels:

Diameter

Segment
Height

Connection

Grit

4"/100mm

5mm/6mm

M14 M16
M18 M20
5/8"-11
20mm 22.23mm
Snail Lock

35#
50#
120#
200#
400#

4.5"/115mm

5mm/6mm

5"/125mm

5mm/6mm

6"/150mm

5mm/6mm

7"/180mm

5mm/6mm

8"/200mm

5mm/6mm

9"/230mm

5mm/6mm

The above specifications just a reference for you.

Other specifications can be ordered by client.






Packing & Delivery:

We will deliver within seven days of your payment,diamond cup grinding wheels are packed in cartons.

We can also pack the diamond cup grinding wheels according to your requirements.

Special diamond cup grinding wheels delivery through consultation.
