diamond calibrating roller,Stone Industry diamond roller
- Model: BWM-DCR
- Out diameter: 180mm-320mm
- Length: 300mm-1600mm
- Spiral number: 5/6/7/12/16
- Segment size: 9*12,9*15,6*10
- Grit: 30/40/50/60/70/80/100/120/140
- Material: Diamond and metal
- Producing area: Fujian,china
- Port: Xiamen,port
Introduction：
Diamond calibration roller is most commonly used to calibrate and achieve a uniform thickness on ceramic tiles surface before polishing. Thanks to the continuous technical improvement and the feedback from our customers, our diamond rollers are approved for their good sharpness, long working lifetime, low energy consumption, low working noise, excellent working effect and stable performance.
Wet use only with sufficient water, Fast & Easy grinding, long life, perfect performance.
All of our our products have been strictly tested before access to market.
The following is the normal specification of diamond calibrating rollers:
Product Name
Out Diameter (mm)
Length (mm)
Spiral Number
Segment Size (mm)
Grit (#)
Diamond
Calibrating
Rollers
Φ180 - Φ320
320
5
6
7
12
16
9*12
9*15
6*10
30
40
50
60
70
80
100
120
140
400
595
645 (585)
800 (740)
800 (680)
995 (935)
1195 (1135)
1600 (1540)
The following shows only part of the product , other products can be customized according to your needs .
If you do not see the product you want , please contact us for more product images .

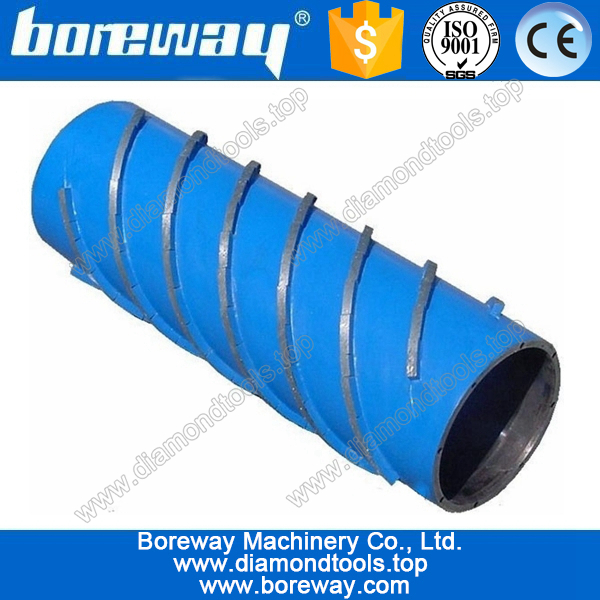

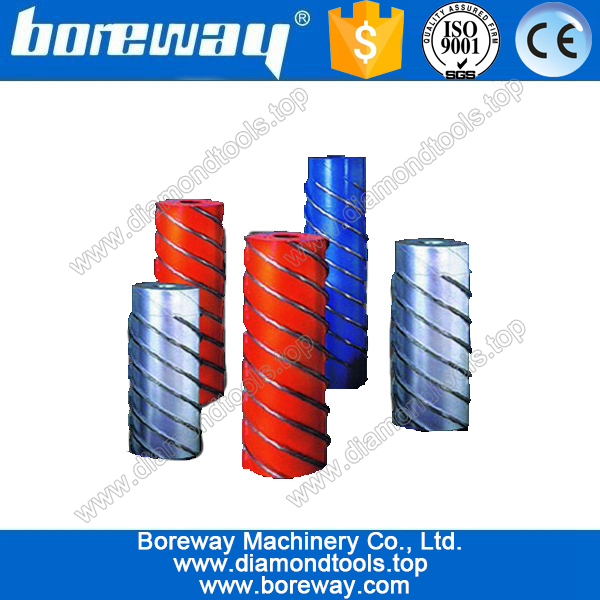

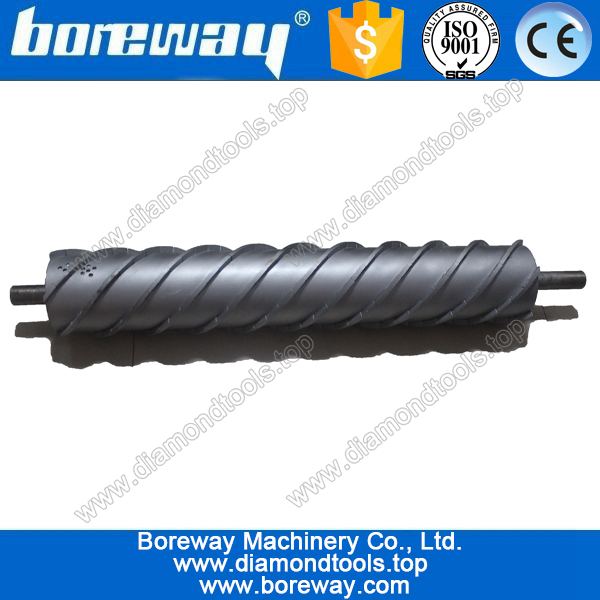

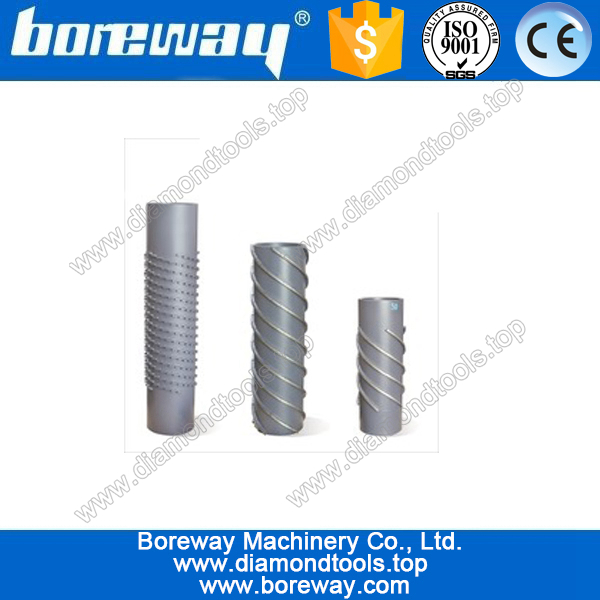

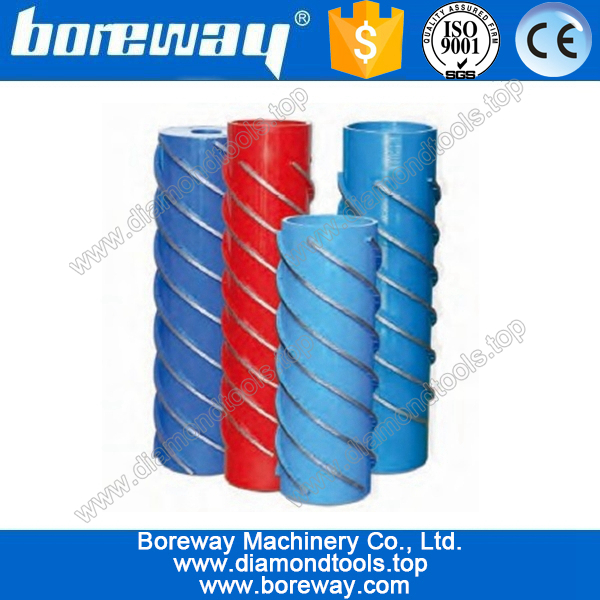

Above is a picture of our conventional diamond calibration rollers,
Other specifications can be customized according to requirements.
| Product Name | Out Diameter (mm) | Length (mm) | Spiral Number | Segment Size (mm) | Grit (#) |
| Diamond Calibrating Rollers |
Φ180 - Φ320 | 320 | 5 6 7 12 16 |
9*12 9*15 6*10 |
30 40 50 60 70 80 100 120 140 |
| 400 | |||||
| 595 | |||||
| 645 (585) | |||||
| 800 (740) | |||||
| 800 (680) | |||||
| 995 (935) | |||||
| 1195 (1135) | |||||
| 1600 (1540) |
If you do not see the product you want , please contact us for more product images .
Other specifications can be customized according to requirements.
We will deliver within seven days of your payment,diamond calibrating rollers are packed in wooden.
We can also pack the rollers according to your requirements.
Special specifications through consultation delivery.
