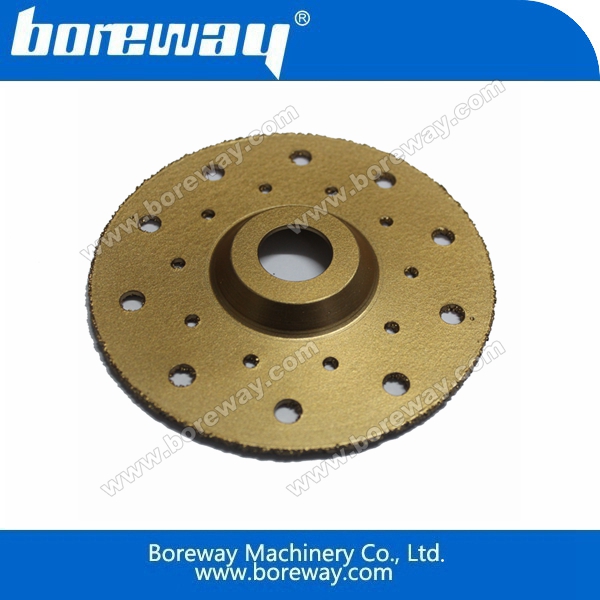

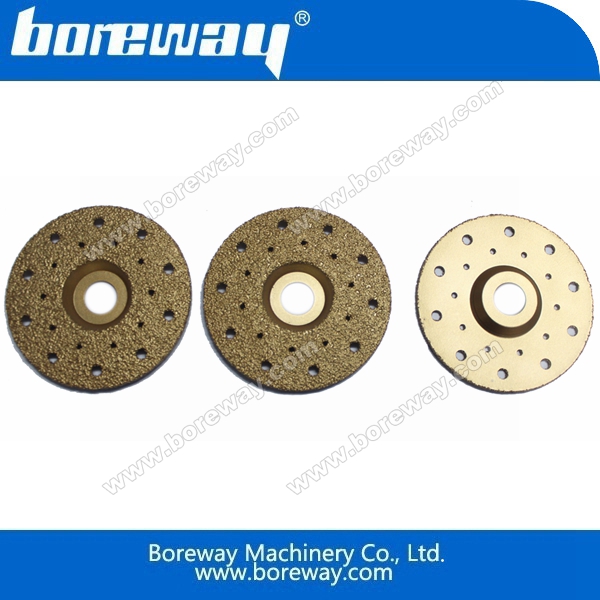

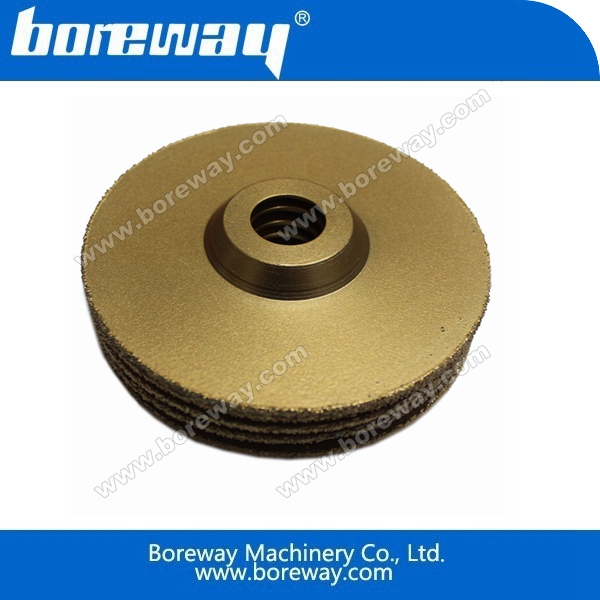

Vacuum brazed grinding cup wheel D120
- Model Number: BW-VBDGCW-120mm
- Type: Wet Use
- Diameter: 120mm
- Connecter: 7/8*-5/8* / M14 / 5/8" -11
- Technology: Brazed
- Machine: Angel Grinder, hand held grinders and floor polishing machine.
- Application: Fast grinding, rough deburring and smooth shaping and finishing of stones, and any other masonry materials.
Introduction:
Vacuum brazed cup grinding wheels for surface grinding and edge chamfering.Designed for working on soft to
hard stone, concrete and metal surface.For shapes and out looking, we have single row and double rows cup
grinding cup wheel;For segments type, we have wave turbo and straight turbo cup grinding wheel;For body type,
we have flat body and nonflat body cup grinding wheel;For bases type, we have aluminium based cup grinding
wheel and steel based cup grinding wheel.The former one is light weight and fast cooling effect by high comductivity,
while the later one is low priced and long lifespan.
Features:
1.Wet or Dry use
2.High working efficiency and using easily .
3.Convenient installation.
4.Low-noise,no-dust,friendly surroundings,safety operation.
Specifications:
The followings are the normal specifications of our vacuum brazed cup grinding wheel:
|
Diameter(mm) |
Thickness(mm) |
Grit Size (#) |
Connection |
Bond |
|
4" 100mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Diamond |
|
4.5" 115mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Diamond |
|
5" 125mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Diamond |
|
6" 150mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Diamond |
|
4" 100mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Hard Metal |
|
4.5" 115mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Hard Metal |
|
5" 125mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Hard Metal |
|
6" 150mm |
2.0-5.0 |
30/40# |
7/8*-5/8* / M14 / 5/8" -11 |
Hard Metal |
The above specification just for a reference.Other specification can be ordered by customers.
