Double Layer Vacuum Brazing Rotary Bush Hammer Plate For Sandblasting Finish
- Brand: Boreway
- Model: BW-VBBHP-300
- Number Of Layers: Double
- Number Of Rollers: 6 Rollers
- Material :Tungsten + Diamond
- Plate Diameter: 300mm,12 Inch
- Application : For Grinding Sandblasted Surface
- Roller Type: Vacuum Brazed Bush Hammer Roller
- Machine: Automatic And Semi-automatic Polishing Machine
- Feature: Good Balance Assures Excellent Grinding Effect
- Use: For Grinding Concrete, Marble, Granite, Asphalt Pavement
| Product Description： |
The 300mm double layer vacuum brazing rotary bush hammer plate, with spring support, reduces the pressure of the bush hammer roller when the grinding disc is working, and prolongs the service life.
Rotary double layer vacuum brazing bush hammer plate,can be polished out of the sandblasted surface.
12 Inch Double layer bush hammer plate with 6 roller for stone sandblasting is used sophisticated welding technology and selecting high quality aluminum alloy to casting, bush hammered's grit can be changed through the adjustment of spring elasticity on bush hammer, manual grinding machine press.
Both enlarging spring's interval to reduce spring elasticity and reducing machine's press can enhance bush hammer vibration to make bush hammered face rough.
| Feature: |
1.Rotary Bush Hammer Roller For Manufacturer,Used to make sandblasted surface.
2.Competitive price and superior quality,factory price and long life.
3.Different granularities and sizes as requested for the diamond roller.
4.Vacuum brazing double layer plate,Durable metal and diamond compound.
5.Bush Hammer Bit For Manufacturer,effective for grinding natural stones and concrete to get bush hammer effect.
| Product Specification: |
The Following Are Normal Specifications Vacuum Brazing Diamond Bush Hammer Plate:
| Diameter | Roller Number | Layer Number |
Roller Type |
Application |
| 300MM (12 Inch) |
6 Roller | Double Layer | Vacuum Brazed Bush Hammer Roller |
Concrete, Marble, Granite, Asphalt Pavement |
The above specifications is only for reference, other specifications may be available as per customer's demand.
More Normal Specification Of Rotary Bush Hammer Roller:
| Model | Out Diameter | Wheel Width | Segment Quantity | Segment Diameter |
| BW-BHR4530 | 45 | 22 | 30 | 3.6 4.5 4.6 4.7 6.0 8.0 |
| BW-BHR5330 | 53 | 30 | 30 | |
| BW-BHR5530 | 55 | 22 | 30 | |
| BW-BHR5545 | 55 | 22 | 45 | |
| BW-BHR5545 | 55 | 30 | 45 | |
| BW-BHR5545 | 55 | 39 | 45 | |
| BW-BHR5545 | 55 | 53 | 45 | |
| BW-BHR5545 | 55 | 55 | 45 | |
| BW-BHR5560 | 55 | 43 | 60 | |
| BW-BHR8060 | 80 | 55 | 60 | |
| BW-BHR5972 | 59 | 53 | 72 | |
| BW-BHR6077 | 60 | 53 | 99 | |
| BW-BHR3307 | 33 | 6 | 7 | Star Type |
| BW-BHR3310 | 33 | 6 | 10 | |
| BW-BHR4910 | 49 | 6 | 10 | |
| BW-BHR4915 | 49 | 6 | 15 | |
| BW-BHR4920 | 49 | 6 | 20 |
More Normal Specification Of Rotary Bush Hammer Plate:
| Model | Out Diameter | Wheel Width | Segment Quantity | |
| Inch | mm | |||
| BW-BH12514 | 5 | 125 | 3 | 14 |
| BW-BH12514 | 4 | 14 | ||
| BW-BH12520 | 3 | 20 | ||
| BW-BH12520 | 4 | 20 | ||
| BW-BH12530 | 5 | 125 | 3 | 30 |
| BW-BH15014 | 6 | 150 | 4 | 14 |
| BW-BH12520 | 6 | 150 | 4 | 20 |
| BW-BH15045 | 6 | 150 | 3 | 45 |
| BW-BH15030 | 4 | 30 | ||
| BW-BH20045 | 8 | 200 | 4 | 45 |
| BW-BH20030 | 6 | 30 | ||
| BW-BH25045 | 10 | 250 | 5 | 45 |
| BW-BH25030 | 6 | 30 | ||
| BW-BH30045 | 12 | 300 | 6 | 45 |
| BW-BH30030 | 9 | 30 | ||
| BW-BH35045 | 14 | 350 | 9 | 45 |
| BW-BH35030 | 12 | 30 | ||
Can customize the size of other rotary bush hammers roller as required.

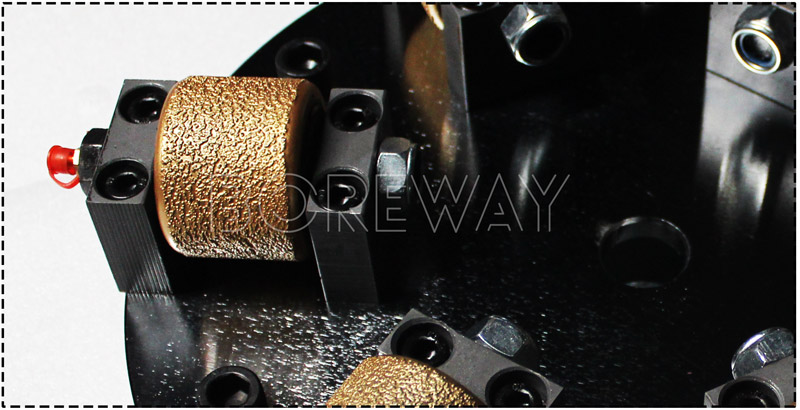

| Product show |
Double Layer Vacuum Brazing Diamond Rotary Bush Hammer Plate For Sandblasting Finish
| Application: |
Bush hammer bit for radial arm polishing machine, floor grinder.
Bush hammer plate for sandblasting surface,carbide bush hammer roller can create litchi surface.
Double layer bush hammer plate with 6 roller for grinding concrete, marble, granite, asphalt pavement.
| FAQ |
1.How can we be your agent in our country?
Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
2. If we need technical support, can you offer us?
Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
3.Can your products use different objects and materials?
It is best to communicate with our staff before using, because different products use different proportions of ingredients and use different effects.
