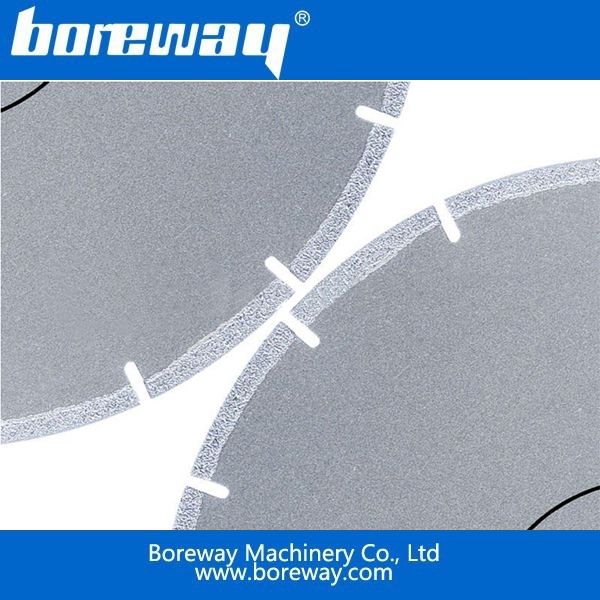

Multipurpose Saw Marble Saw brazing
- Model: BW-DS-DB-C06
- Type: Wet use
- Diameter: 105 mm -400 mm
- Section width: 1.2 mm -2.0 mm
- Applications: Boreway vacuum brazing marble blade Multipurpose blade.
- Equipment: Hydraulic power drills, electric hand drill.
- Industry: Diamond tools
- Welding methods: brazing.
- Advantages: Good sharpness and long life.
Plot:
1. Using vacuum brazing diamond on the inside, this awesome blade cutting speed on almost any material,
Such as stone, brick, concrete, glass, steel, aluminum, PVC, wood, steel and other steel products;
2, the project has progressed smoothly, fast and often, although shorter in life difficult to cut materials. Users
It's super-fast cutting speed, high efficiency, low cost of surprise;
3. For home improvement, DIY and contractor best choice.
Features:
1.Best saw marble / limestone, cut faster and last longer than
Plating marble blade;
2. Vacuum brazing, super aggressive, very smooth, while cutting marble, limestone
Soft stones;
3. The ideal of marble, to a hard stone and marble, at a minimum useful life of the blade;
4. Wet or dry cutting and cutting with water will help extend blade life.
Technical Parameters:
The following is the resulting vacuum brazing Marble Saw / Multipurpose Saw:
|
Diameter |
Steel core |
Granularity (#) |
Contact |
|
4 "/ ø105 |
1.2 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
4.5 "/ ø115 |
1.2 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
5 "/ Ø125 |
1.2 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
6 "/ Ø150 |
1.4 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
7 "/ Ø180 |
1.6 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
8 "/ Ø200 |
1.8 |
~ 60 # 30 # |
7/8 "-5/8" (22.23) |
|
9 "/ ø230 |
1.8 |
~ 60 # 30 # |
1 "-20mm |
|
10 "/ Ø250 |
2 |
~ 60 # 30 # |
1 "-20mm |
|
12 "/ Ø300 |
2 |
~ 60 # 30 # |
1 "-20mm, 50/60 mm |
|
14 "/ O350 |
twenty two |
~ 60 # 30 # |
1 "-20mm, 50/60 mm |
|
16 "/ Ø400 |
2.6 |
~ 60 # 30 # |
1 "-20mm, 50/60 mm |
Other specifications are available upon request
