Brazed Diamond Wire SawBrazed Diamond Wire SawBrazed Diamond Wire Saw

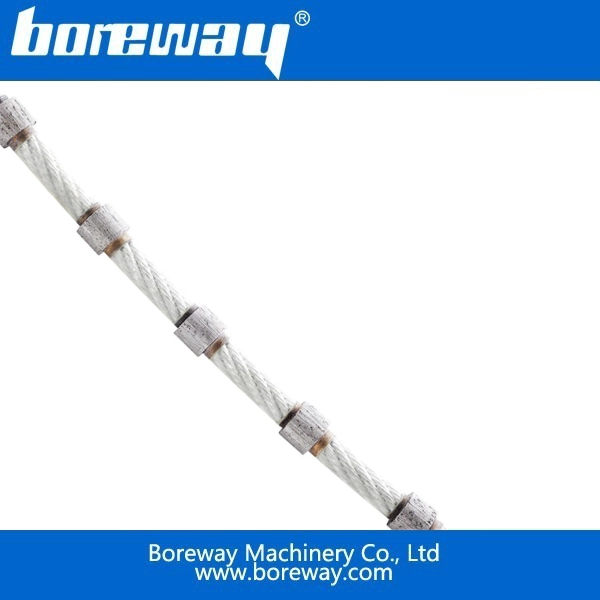

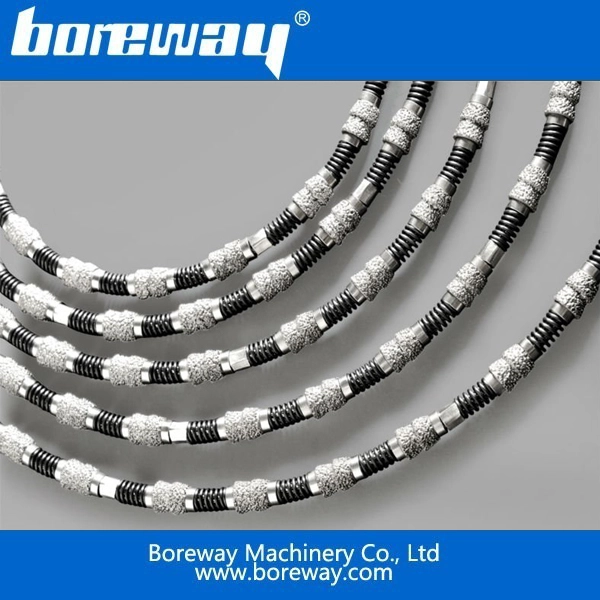

Brazed Diamond Wire Saw

  • Model: BW-ABDW-001
  • Type: Wet use
  • Diameter: 7.2 mm -11 mm
  • Weld length: 9 mm, 12.5 mm
  • Beads No: 28/30/32
  • Abrasive particle size: 30 # -40 #
  • Applications: Boreway vacuum brazed diamond wire saw is wet with cut mine and blocks.
  • Machine: Diamond wire machine.
  • Industry: Diamond tools
  • Welding methods: vacuum brazing
  • Advantages: Good sharpness and long life.

Plot:

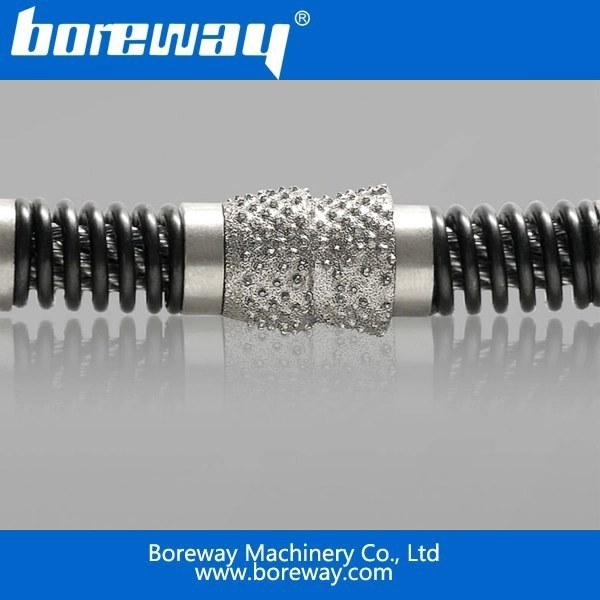

Brazing beads with a double arrow design and pattern, diamond
Steel body, extend tool life, and take advantage of the best diamond cutting efficiency.

 Features:
1. high bonding strength;
2, high cutting efficiency;
3, a good life;
4. marble, limestone quarrying extra aggressive, seat edging, analysis, or slab cutting;
5. Can be used wet or dry, preferably using wet cutting tool life concerns.

Technical Parameters:
The following is a vacuum brazed diamond wire:

Diameter
(Inch / mm)

Weld length
(Mm)

Number beads
(A / m)

Granularity (#)

Reinforcement

Application

ø11.0mm

12.5 / 11.0

28/30/32

~ 40 # 30 #

Spring / Plastic

Quarry / block grinding edge

ø10.0mm

12

28/30/32

~ 40 # 30 #

Spring / Plastic

Quarry / block grinding edge

ø8.8mm

11

28/30/32

~ 40 # 30 #

Spring / Plastic

Stone analysis

ø7.2mm

9

28/30/32

~ 40 # 30 #

Spring / Plastic

Slab Cutting

Other specifications are available on request.
