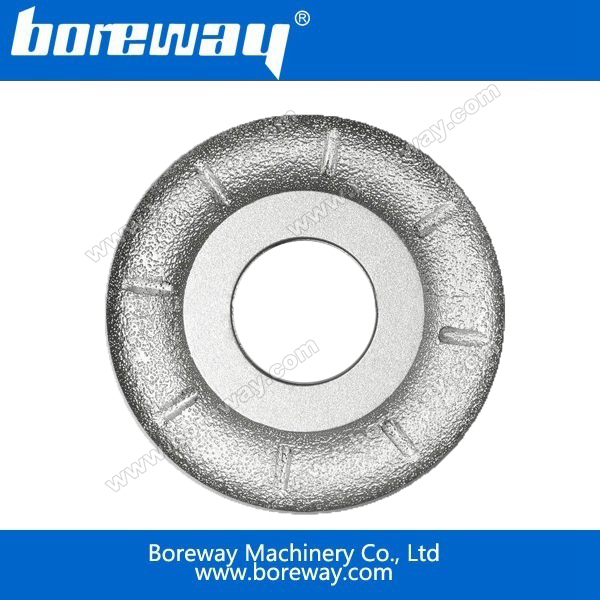

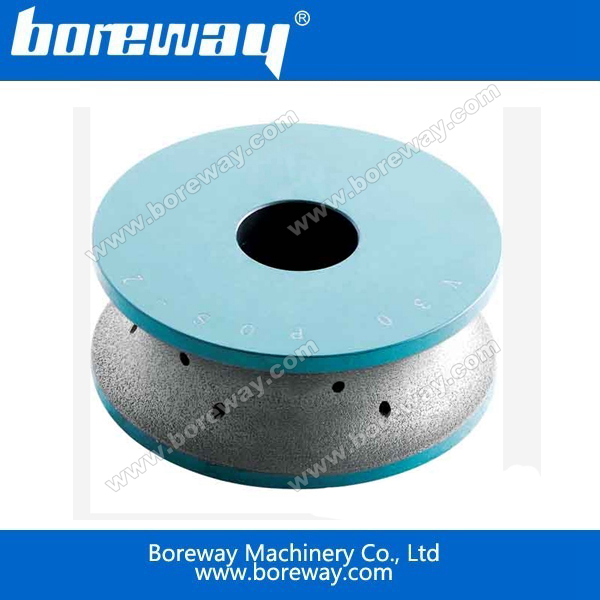

Vacuum brazed CNC profile wheel
- Model Number: BW-VBPW-01
- Type: Wet Use
- Diameter: 60mm-120mm
- Thickness: 20mm/30mm/40mm
- Inner hole: 35mm
- Segment shape: Continuous rim
- Applications: Boreway vacuum brazed CNC profile wheel is wet use for grinding stone slab.
- Machine: CNC machine.
- Industry: Diamond tools
- Welding method: Vacuum brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
1. CNC Profile Wheels for Marble/Limestone with smaller external diameter compared with Grinding
Wheels, popular diameters are 60mm, 100mm and 120mm with water cooling holes design;
Features:
1.original manufacturer;
2.High cutting efficiency with better smoothness;
3.Competitive price;
4. Profile Wheels available in Coarse, Medium and Fine diamond grit size;
5. Precision and fast shaping with excellent tool life on marble, limestone and many other soft stones.
Specifications:
The followings are the vacuum brazed CNC polishing wheel ：
|
Diameter (mm) |
Stone Thickness (mm) |
Inner Hole(mm) |
|
ø60 |
20/30/40 |
35 |
|
ø80 |
20/30/40 |
35 |
|
ø100 |
20/30/40 |
35 |
|
ø120 |
20/30/40 |
35 |
|
Size |
Edge Profile |
Stone Thickness(mm) |
|
H20 |
Dupont Edge |
20 |
|
H30 |
Dupont Edge |
30 |
|
H40 |
Dupont Edge |
40 |
|
T20 |
Double Radius |
20 |
|
T30 |
Double Radius |
30 |
|
T40 |
Double Radius |
40 |
|
V20 |
Full Bullnose |
20 |
|
V30 |
Full Bullnose |
30 |
|
V40 |
Full Bullnose |
40 |
|
H20 |
Dupont Edge |
20 |
|
H30 |
Dupont Edge |
30 |
|
H40 |
Dupont Edge |
40 |
|
T20 |
Double Radius |
20 |
|
T30 |
Double Radius |
30 |
|
T40 |
Double Radius |
40 |
|
V20 |
Full Bullnose |
20 |
|
V30 |
Full Bullnose |
30 |
|
V40 |
Full Bullnose |
40 |
