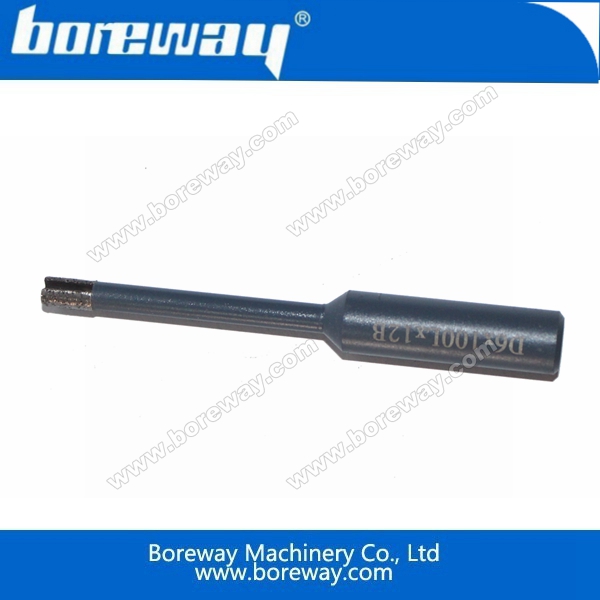

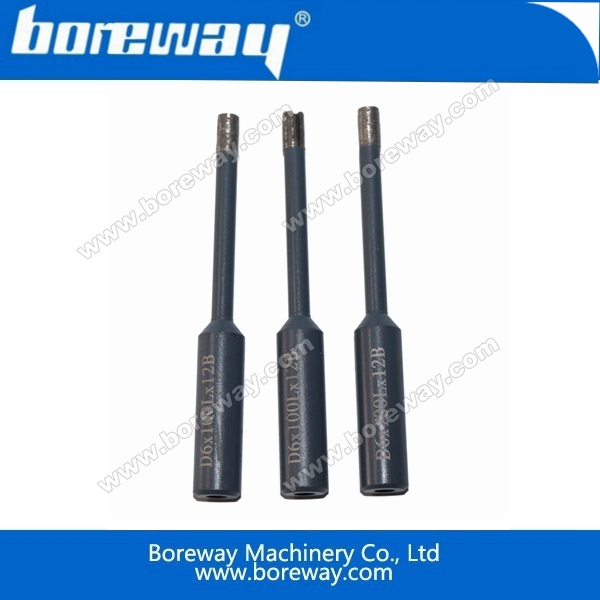

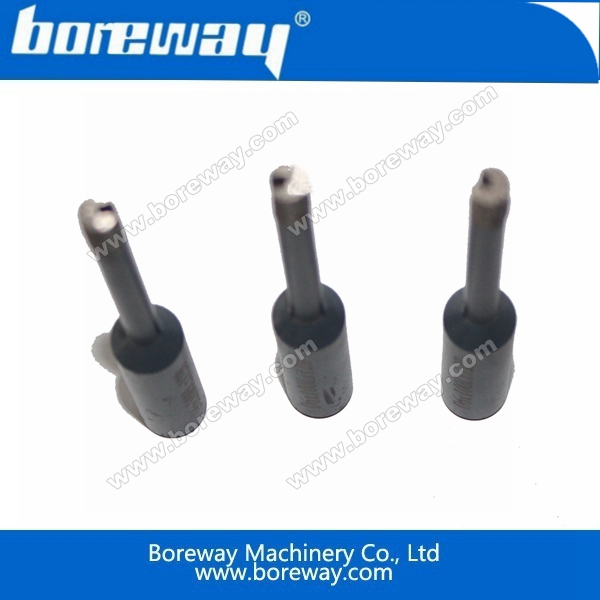

V-shaped small diameter core bit D6
- Model: BW-SDDCDB-01
- Type: Wet use
- Diameter: 6mm
- Length: 100 mm
- Connection: 12B
- Applications: small diameter diamond drill bit wet granite marble artificial stone and quartz.
- Adaptation machines: hand-held drilling and other drilling machines.
- Welding methods: sintering welding
- Advantages: Good sharpness and long lifespan.
Introduction:
V-shaped small diameter core bit D6 are suitable for small diameter diamond drill electric hand-held or
on a CNC drilling machine, suitable for all kinds of stone, such as the drilling of granite,
marble, sandstone, limestone, slate, and other small caliber.Specially for small-diameter hole drilling.
Features:
1, Specially for small-diameter hole drilling.
2. Good balance and stable performance.
3. High efficiency and long life.
Specifications:
The following is the normal size of our V-shaped small diameter core bit D6:
|
product name |
Diameter |
Segment specifications |
Length |
Connection |
Application |
Segment number |
Effective length |
|
Small diameter diamond drill bit |
6 mm (1/4 ") |
Ø6xH11 |
4 '' (100mm) |
5/8 "-11 M14 M16 1/2 "-G 10 B 12 B |
Granite Marble man made rock Crystal |
1 |
46 |
|
8 mm (5/16 ") |
Ø8xH11 |
1 |
46 |
||||
|
10 mm (3/8 ") |
Ø10xH11 |
1 |
46 |
||||
|
12 mm |
Ø12xH11 |
1 |
46 |
||||
|
13 mm (1/2 ") |
Ø13xH11 |
1 |
46 |
||||
|
14 mm |
Ø14xH11 |
1 |
46 |
||||
|
16 mm (5/8 ") |
Ø16xH11 |
1 |
46 |
||||
|
18 mm |
Ø18xH11 |
1 |
46 |
The above specifications are for reference only.Other specifications can be ordered by customers.
