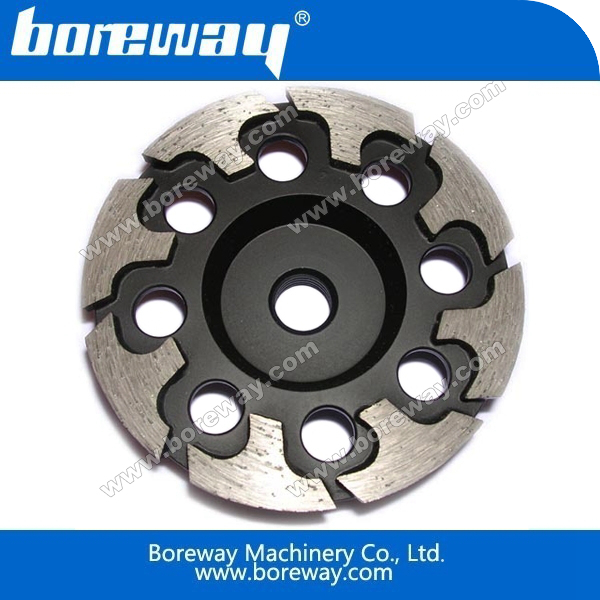

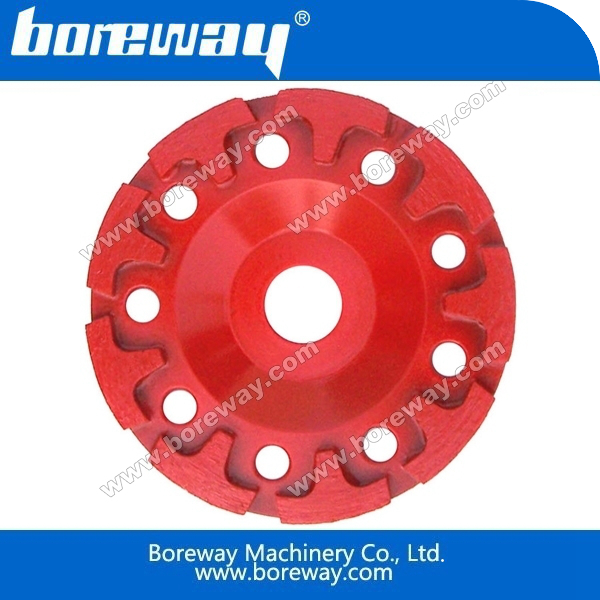

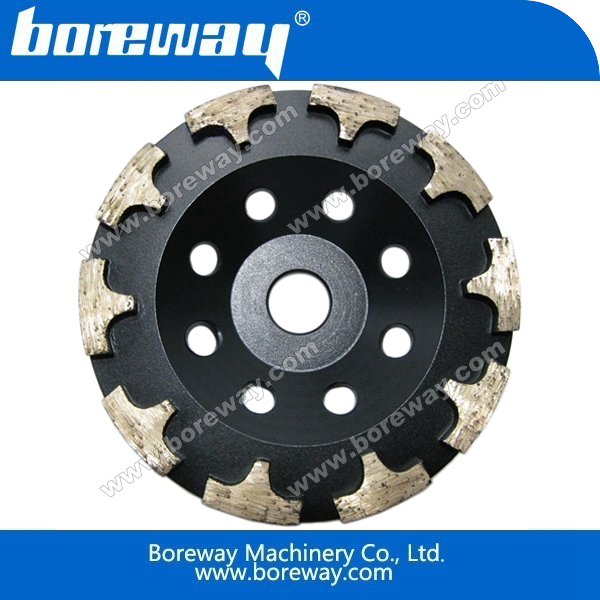

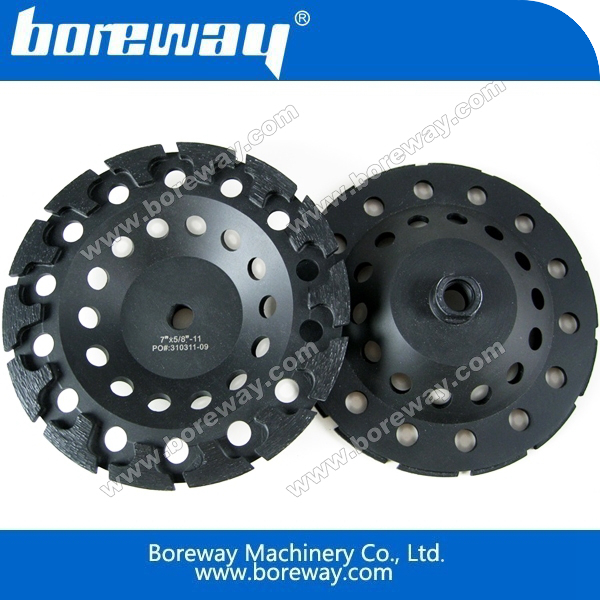

T shape segment diamond cup grinding wheels
- Model Number: BW-TSDCGW-002
- Type: Wet Use
- Diameter: 125mm to 230mm
- Segment Height: 7.0mm to 10.0mm
- Segment Grit: 6# 16# 30# 60# 120#
- Machine: Hand-held machine and other grinding machine.
- Industry: Diamond grinding tools
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Applications: Boreway T shape segment diamond cup grinding wheel is wet use for grinding concrete and stone.
Introduction:
T segment diamond cup grinding wheels with T shaped segments are used on angle grinders and floor grinding machines for grinding concrete and stone. The sintered T shaped segments offer a higher grinding efficiency and better grinding performance.
Features:
1. T shaped segment offer high grinding efficiency.
2. Good balance and stable performance.
3. High efficiency and longer lifespan.
Specifications:
The followings are the normal specifications of our T segment diamond cup grinding wheels:
|
Product Name |
Diameter |
Connection |
Segment Height |
Grit |
|
T Segment Diamond Cup Grinding Wheel |
5’’ 125mm |
5/8’’-11 20mm 22.23mm M14 Snail Lock |
7-10 mm |
Rough(6# 16# 30#) Medium(60#) Smooth(120#) |
|
6’’ 150mm |
7-10 mm |
|||
|
7’’ 180mm |
7-10 mm |
|||
|
9’’ 230mm |
7-10 mm |
The above specifications are for reference, other specifications can be ordered by customers.
Quality: Good quality,Premium.
