Diamond Sintered Profiling Grinding Wheel For Stone，CNC diamond profiling wheel for granite，cnc profiling wheel diamond for marble，diamond profiling wheel for milling

Model Number: BW-DGW-250
Diameter:250mm
Inner hole:50mm
Size:D250*180T*50H
Type：Wet use
Machine:Diamond Sintered Profiling Grinding Wheel For Stone D250*180T*50H is used in milling machine and bridge cutting machines.
Applications:Wet use for grinding granite,marble,counter and many other stone
Advantage:Good sharpness and long lifespan

Introduction:

Diamond Sintered Profiling Grinding Wheel For Stone D250*180T*50H are used for profiling and polishing the edge,

side of stone ,elevator door cover and frame of fireplace .Their merits are extremely high glossy surface ,

and high accuracy in size and shape.

Features:

1.Different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specification of our Diamond Sintered Profiling Grinding Wheel For Stone D250*180T*50H:

Product Name	Diameter	Thickness	Inner Hole	Application	Shape Type
Diamond grinding wheel	150mm	20/30/40	30	Granite Marble Other stone	Bullnose Single Dupont Single Bullnose Half Radius Single Threshold Single Edge Ogee Bullnose Bevel Double Ogee Double Radius Top Chamfer Other Types
	200mm	20/30/40	30
	250mm	20/30/40	50
	300mm	20/30/40	50
	350mm	20/30/40	50

The above specification just for a reference.Other specification can be ordered by customers.

Picture:

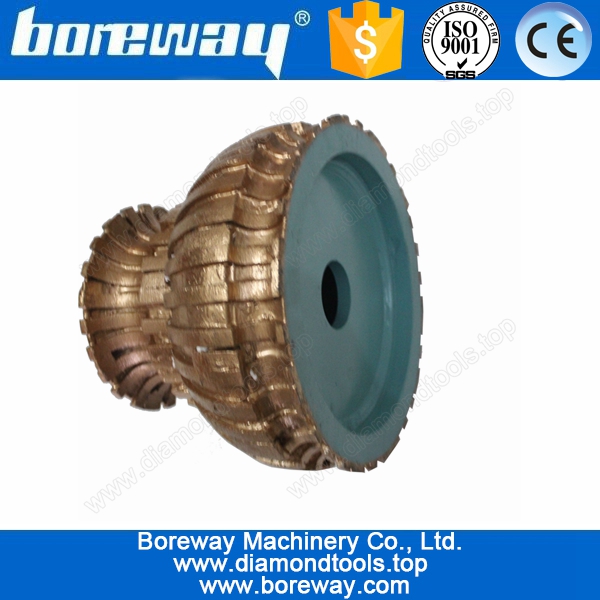

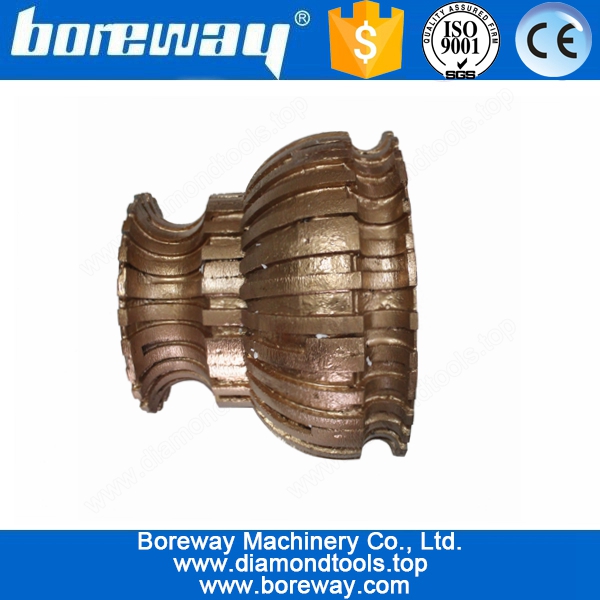

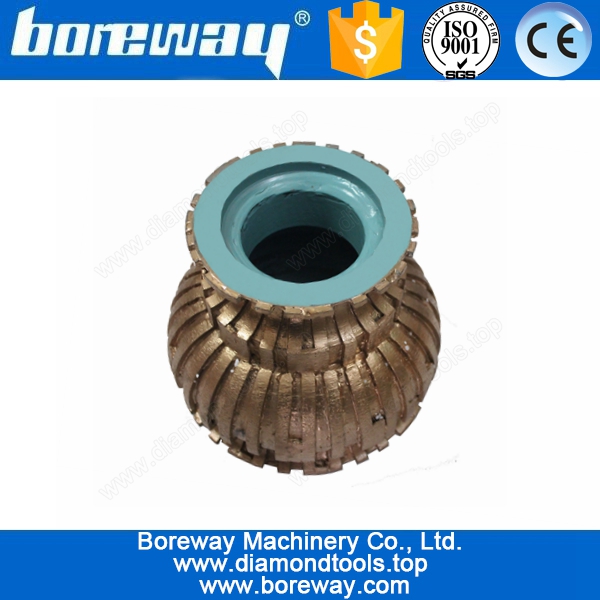

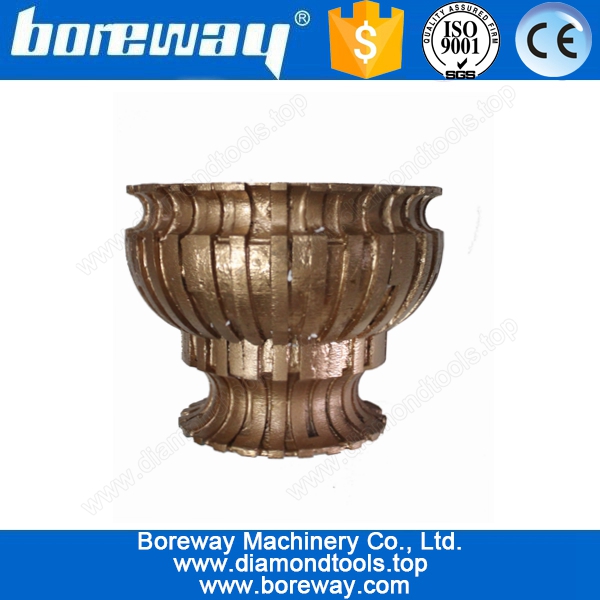

Diamond Sintered Profiling Grinding Wheel For Stone D250*180T*50H

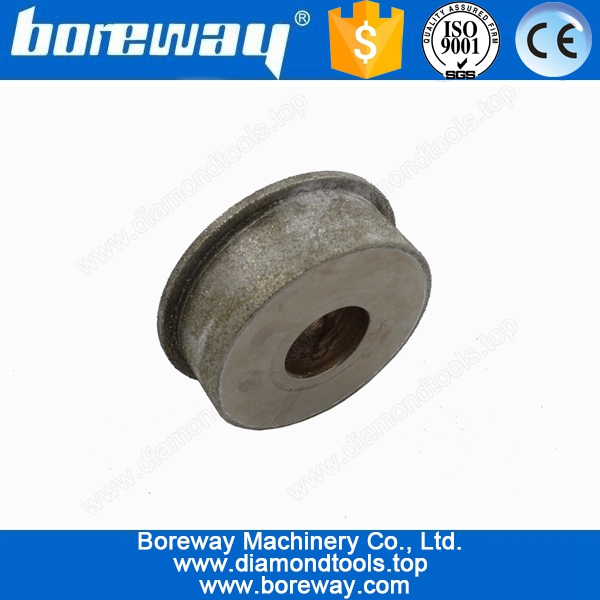

Diamond profiling wheel
