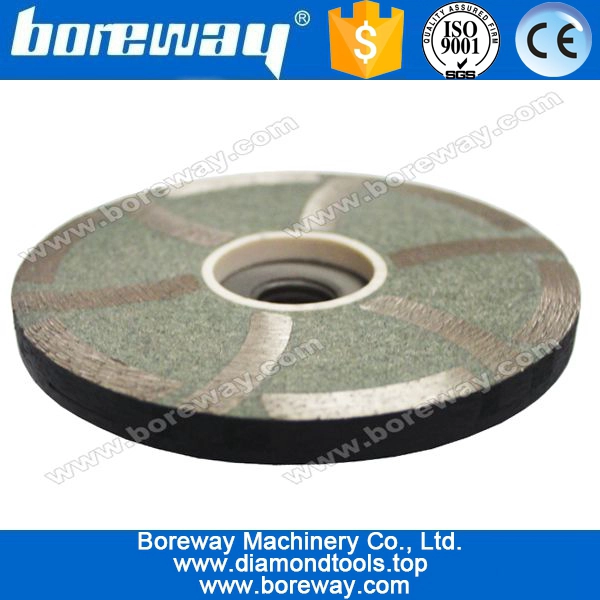

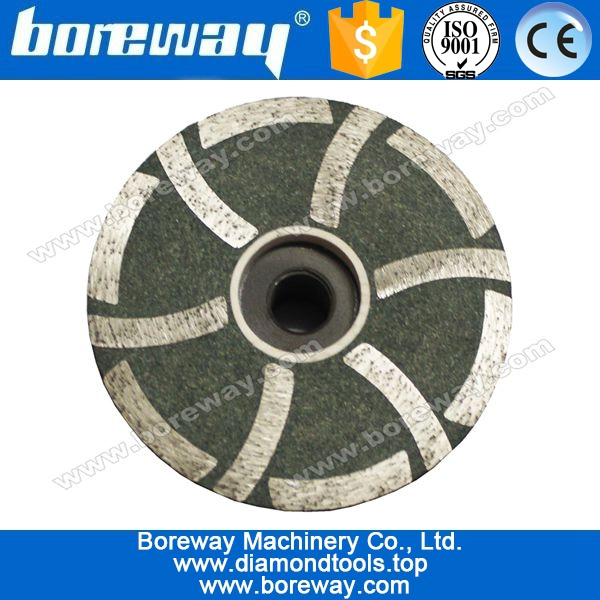

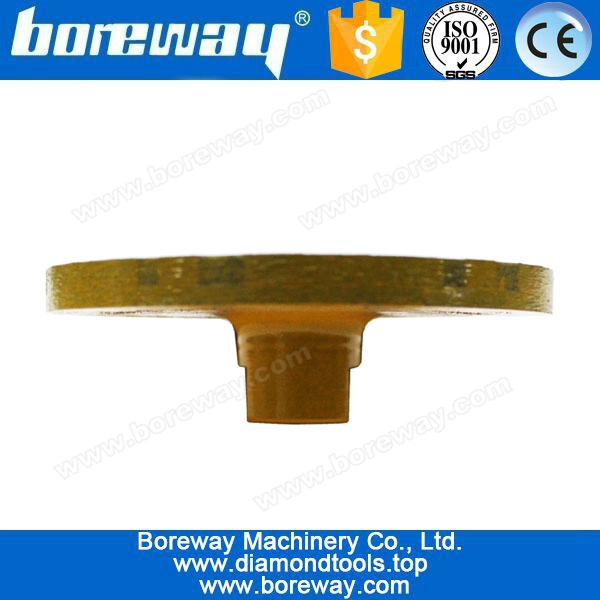

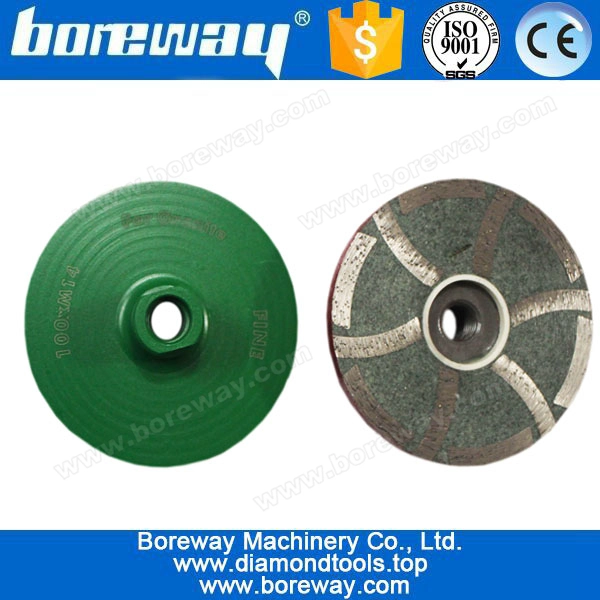

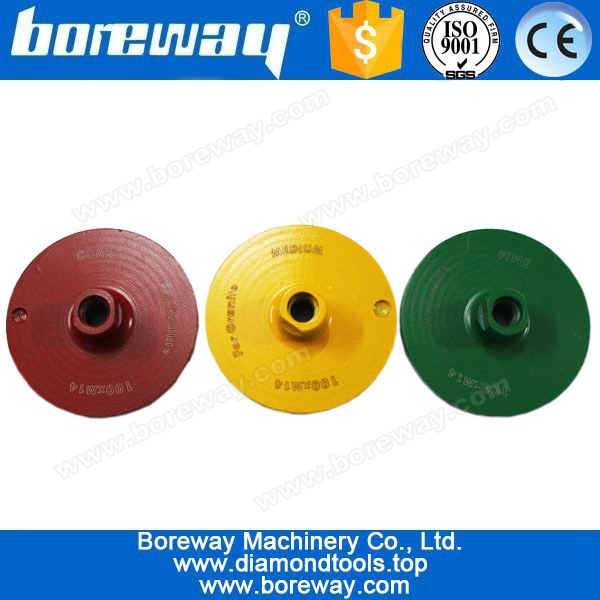

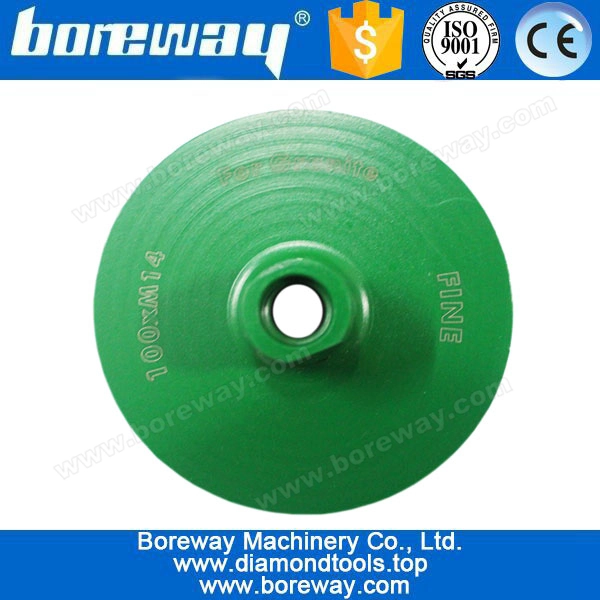

Spiral Flat Resin Filled Cup Wheel with 12 Diamond Segments
- Model Number: BW-DCW-010
- Diameter: 100mm
- Segment Height: 5-10mm
- Fitting: M14
- RPM: 4000-5000
- Grit: Rough (#30) Medium (#60) Smooth (#120)
- Technology: Sintering
- Usage: Wet
- Industry: Diamond grinding tools
- Machine: Angle grinder.
- Applications: Diamond cup wheel is used for grinding granite slab.
Introduction:
Spiral resin segment diamond cup wheels are designed with a large diamond grit for fast production. Wide gaps between
segments help prevent loading or gumming up. Using a hard bonded diamond for soft concrete to extend life.
Features:
1. Good balance and stable.
2. High efficiency and long lifespan.
Specifications:
Spiral Resin Segment Diamond Cup Wheel
|
Diameter |
Segment Height | Connection | Body | Grit |
|
100mm(4inch) |
5-10mm
|
5/8"-11 ø20mm ø22.23mm Snail Lock |
Steel Alumunium
|
Rough (#30) Medium (#60) Smooth (#120) |
|
110mm(4.3nch) |
||||
|
125mm(5inch) |
||||
|
150mm(6inch) |
||||
|
180mm(7inch) |
||||
|
200mm(8inch) |
The specification only for reference,other specification are available upon request.
Tel:008618650679939
Contact Person:boreway-05
PDF Show:PDF
