Sintered continuous rim ceramic bladeSintered continuous rim ceramic bladeSintered continuous rim ceramic bladeSintered continuous rim ceramic blade

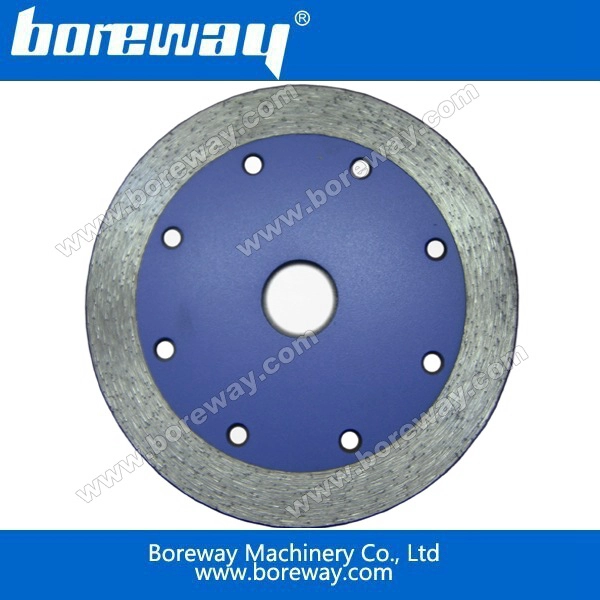

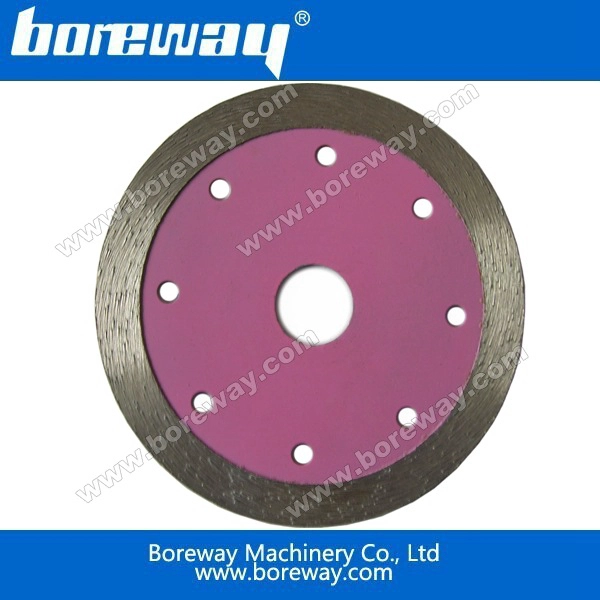

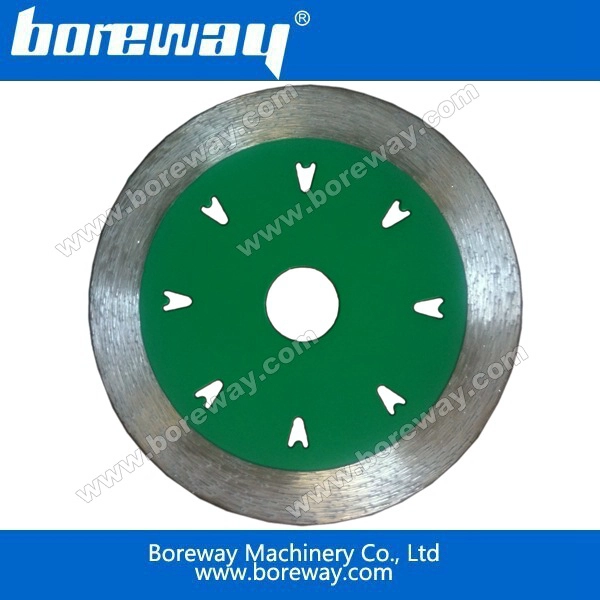

Sintered continuous rim ceramic blade

  • Model Number: BW-SCRCB-001
  • Type: Wet use
  • Diameter: 152mm-356mm
  • Segment Width: 1.8-2.4mm
  • Segment Height: 8mm
  • Segment Shape: Continuous rim.
  • Industry: Diamond tools
  • Technology: Sintered
  • Advantage: Good sharpness and long lifespan.
  • Applications: Sintered continuous rim ceramic blade is wet cutting ceramic.

Introduction:

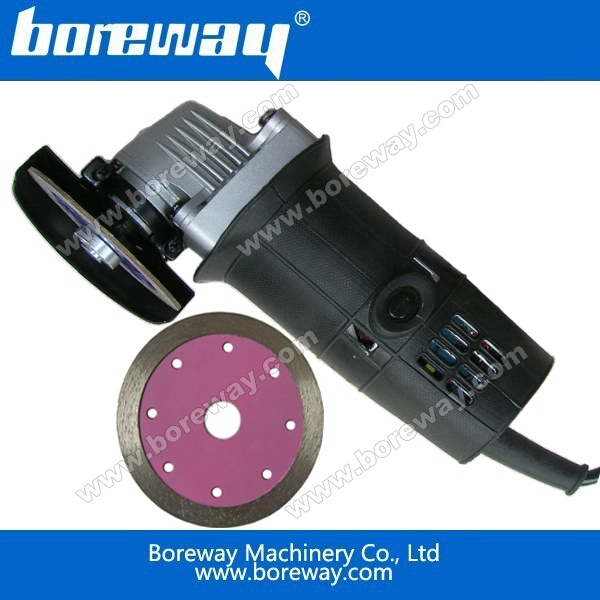

Sintered continuous rim ceramic blade for slab edge cutting suitable for bridge cutting machine, manual handling cutting machine or table cutting machine.Better cutting speed and longer life than normal segmented saw blades.


Features:
1. Universal wet cutting blades.
2. These rim blades can provide very fast, precise and smooth cutting.

Specifications:
The followings are the sintered continuous rim ceramic blade:

Item No.

Outer  Diameter

Segment  Width

Arbor

Segment  Height



Inch

mm

Inch

mm

Inch

mm

BSC-C060070

6 "

152

0.070 "

1.8

7/8 "

8

BSC-C070070

7 "

178

0.070 "

1.8

7/8 "

8

BSC-C080080

8"

203

0.080 "

2

7/8 "

8

BSC-C090080

9"

229

0.080 "

2

7/8 "

8

BSC-C100080

10 "

254

0.080 "

2

1"

8

BSC-C120085

12 "

305

0.085 "

2.2

1"

8

BSC-C140095

14 "

356

0.095 "

2.4

1"

8

Other size on request is available.
