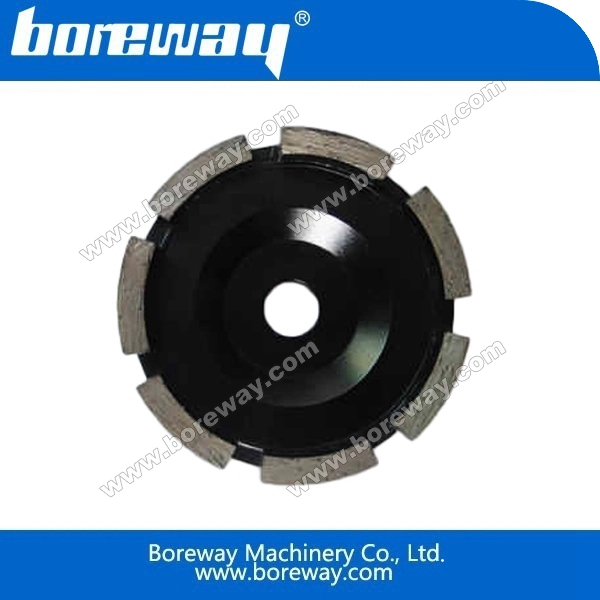

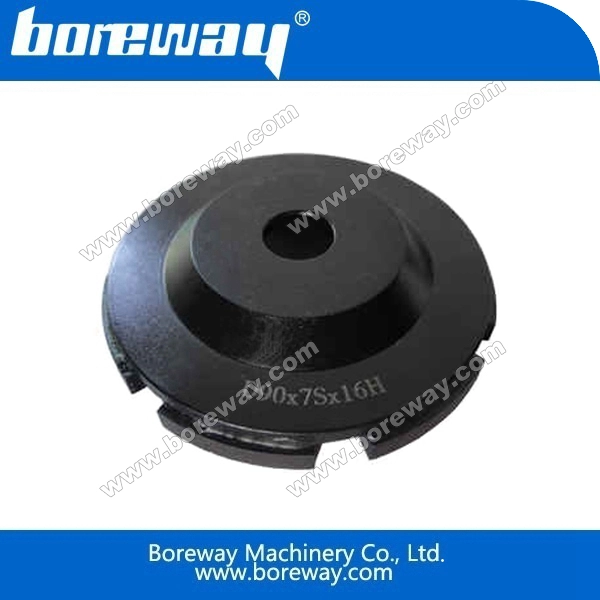

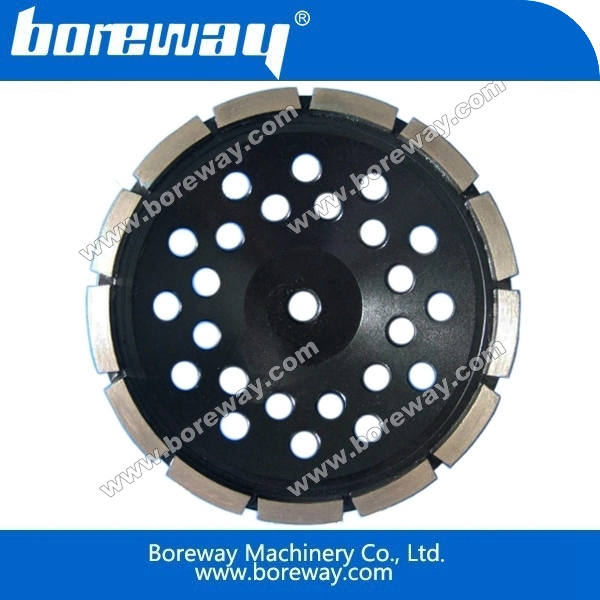

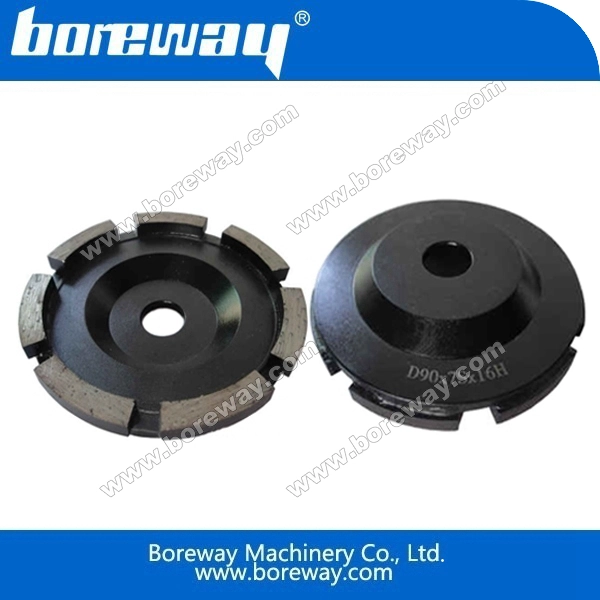

Single row segmented diamond cup wheels
- Model Number: BW-DCW
- Type: Wet and dry use
- Diameter: 105mm to 230mm
- Segment Height: 5-10mm
- Connection: 5/8"-11,20mm,22.23mm,M14,snail lock
- Grit: Rough(6# 16# 30#) medium(60#) smooth(120#)
- Segment shape: Single row shape
- Applications: Applicated for concrete and other natural stone
- Industry: Diamond grinding tools
- Welding method: Silver welding
- Machine: For most angle grinders
- Grinding result: Making the stone more flat
- Advantage: Good balance and stable performance
Introduction:
Single row segmented diamond grinding cup wheels are for grinding and polishing concrete products,masonry material and all types of natural stone with maximum stock removal and free cutting action for wet or dry applications.
Features:
1.Single row segmented design can provide fast beveling shaping.
2.Applicable for most angle grinders.
3.Good balance and stable performance.
4.High efficiency and long lifespan.
Specifications:
The followings are the normal specifications of our single row segmented diamond cup wheels:
|
Product Name |
Diameter |
Connection |
Segment Height |
Grit |
|
Single Row Diamond Cup Grinding Wheel |
4’’ 105mm |
5/8’’-11 20mm 22.23mm M14 Snail Lock |
5-10 mm |
Rough (6# 16# 30#)
Medium(60#)
Smooth(120#) |
|
4.5’’ 114mm |
5-10 mm |
|||
|
5’’ 125mm |
5-10 mm |
|||
|
6’’ 150mm |
5-10 mm |
|||
|
7’’ 180mm |
5-10 mm |
|||
|
9’’ 230mm |
5-10 mm |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
