PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD With Sacrificial Diamond Segment Epoxy Removing Floor ScrapersPCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD With Sacrificial Diamond Segment Epoxy Removing Floor ScrapersPCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD With Sacrificial Diamond Segment Epoxy Removing Floor ScrapersPCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD With Sacrificial Diamond Segment Epoxy Removing Floor Scrapers

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD With Sacrificial Diamond Segment Epoxy Removing Floor Scrapers

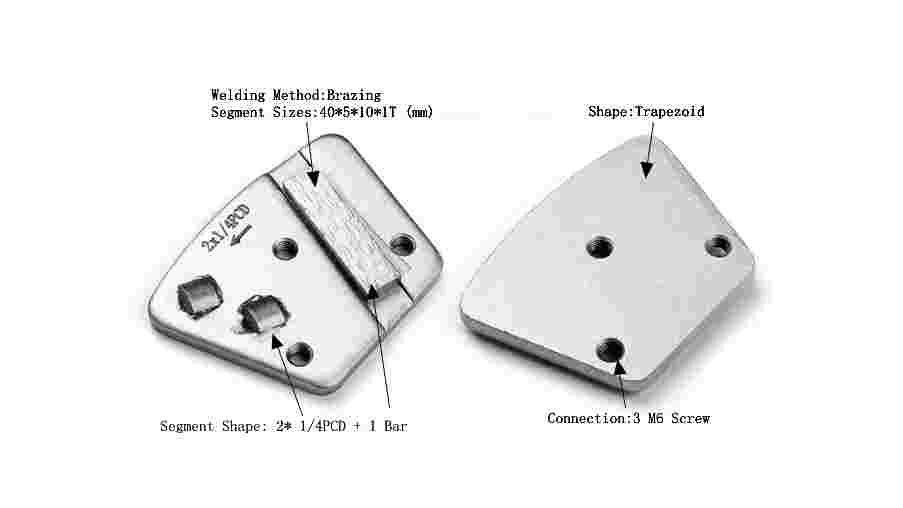

  • Brand: Boreway
  • Usage:Dry
  • Type:Abrasive Block
  • Materials:Diamond+PCD+Metal
  • Shape: Trapezoid
  • Connection:3 M6 Screw
  • Welding Method:Brazing
  • Segment Shape:1 Bar +2*1/4 PCD
  • Segment Sizes:40*5*10*1T (mm)
  • Application:Electric Grinder,Removal Floor Coatings
  • Applicable models:PCD Grinding machine; Multi-functional flooring grinding machine
the description:

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD




















Diamond Grinding Shoes With Two 1/4 PCD And One Round Segment For Removal Of Epoxy Glue And Resin Off Concrete Floor

BOREWAY metal bond trapezoid floor pads designed for removing adhesives, epoxy coatings and leveling uneven spots or joints. The trapezoid floor pads is a very aggressive segment and easily attaches to the segment plate.
It's good to coarse grinding concrete surface quickly, remove bump, make the surface leveling.
The floor grinding pads also idea for the initial steps in concrete polishing procedures.
Achieve maximum square footage at minimum cost.

Specifications:

Below are the regular specifications of PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD:


Noun: PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD
The gravel part: 16-270 # etc.
Size: 40*5*10*1T (mm) and 2*1/4PCD
Shape: 2x1/4PCD And One Bar Segment
Material: PCD + diamond + metal powder
Quality: International standard quality
Contact:   Magnetic polarity or M6, M8 or bare hole etc.
Machine:

PCD Grinding machine; Multi-functional flooring grinding machine

Bond:

Soft Bond, Medium Bond, Hard Bond.


Specially designed tools are available for any standard application. we can Tailor your tools to your specific needs.


Product details:

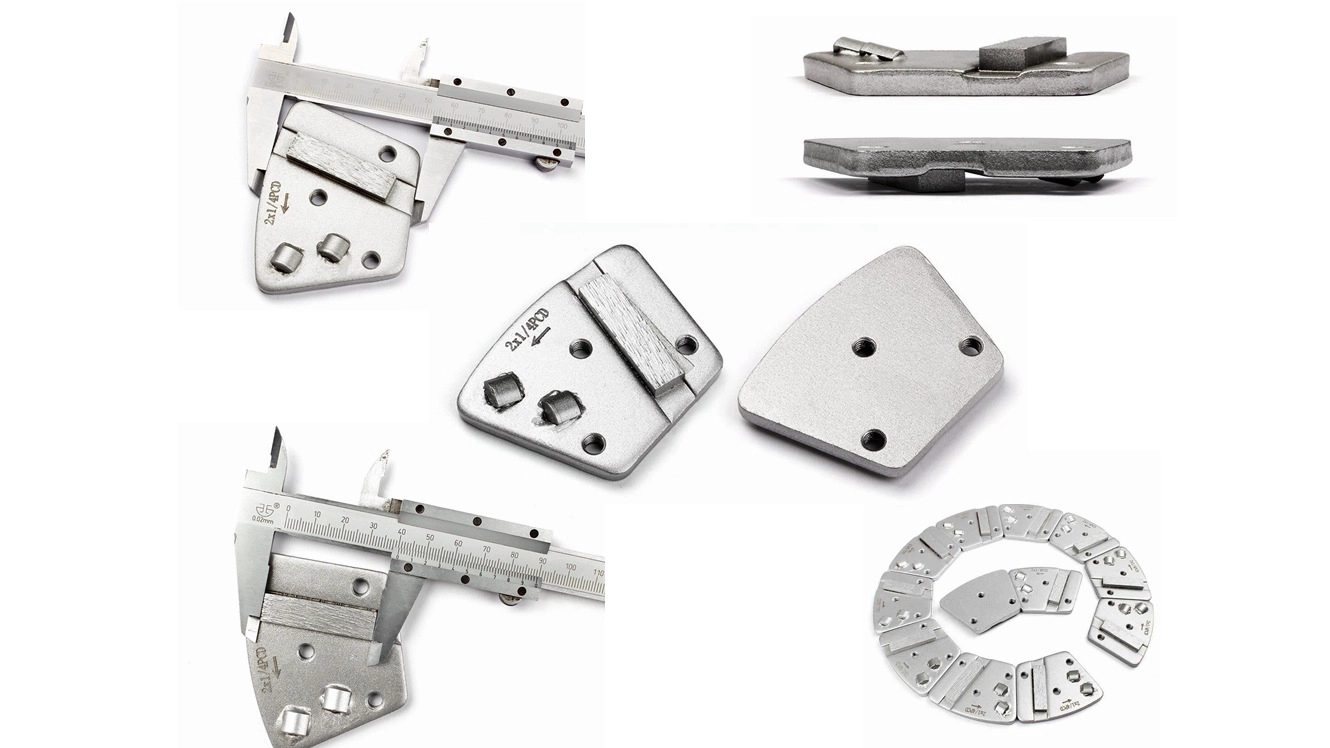

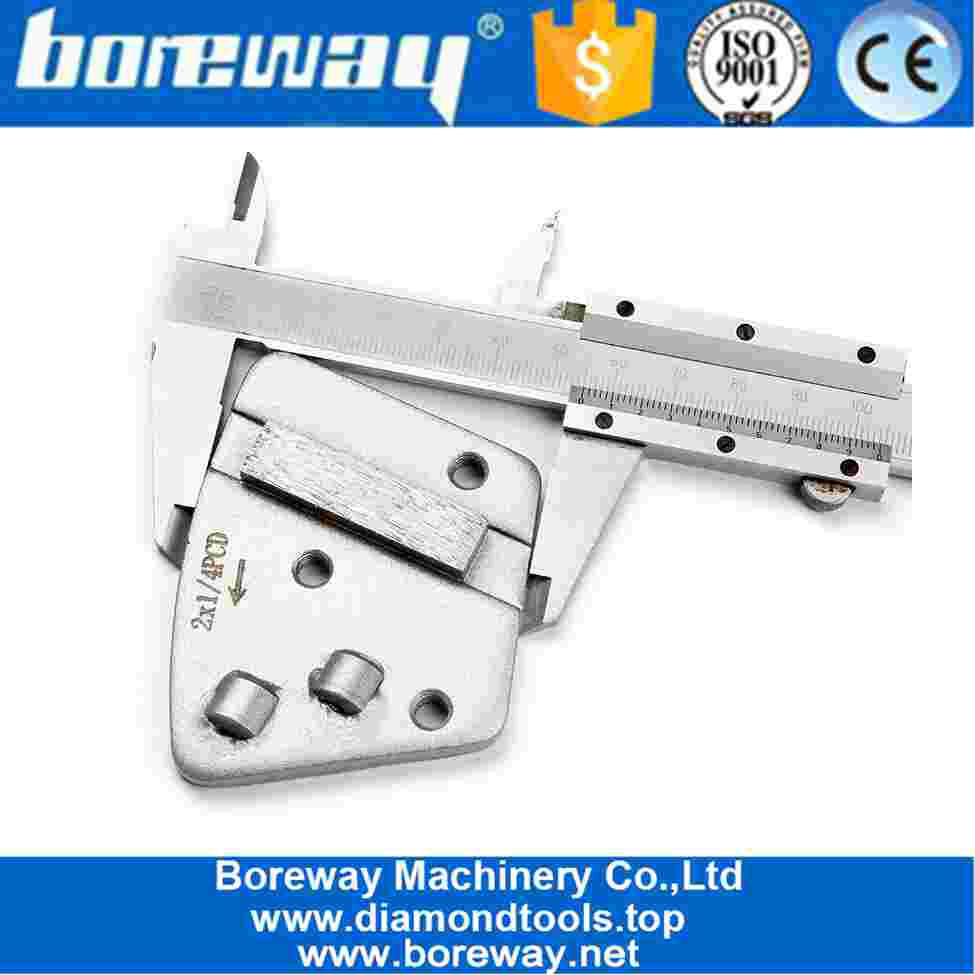

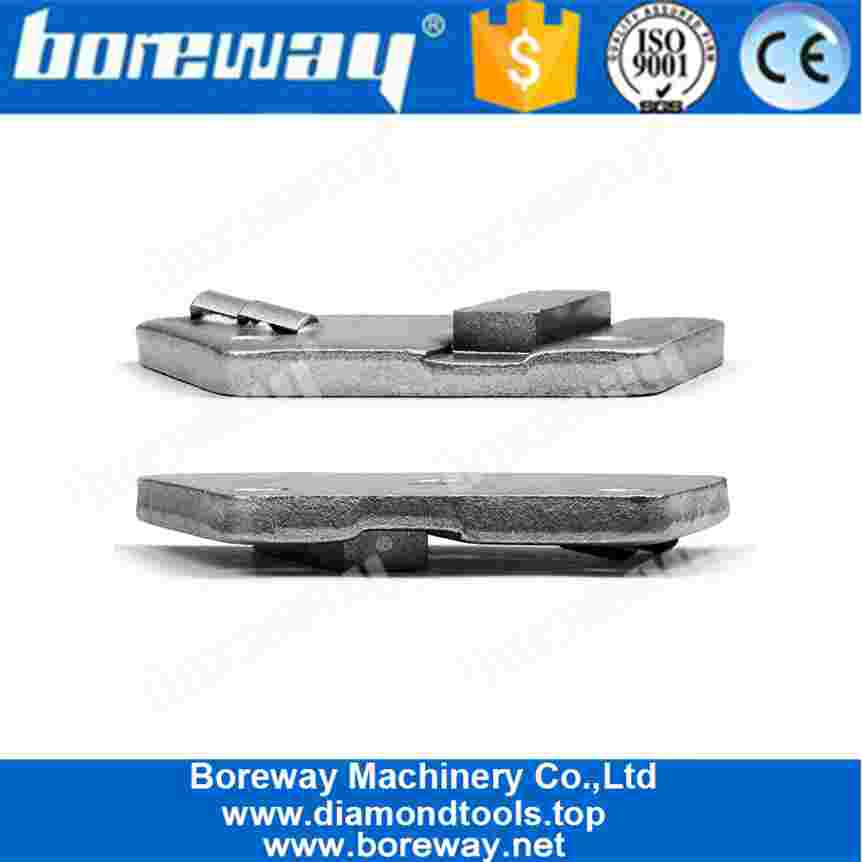

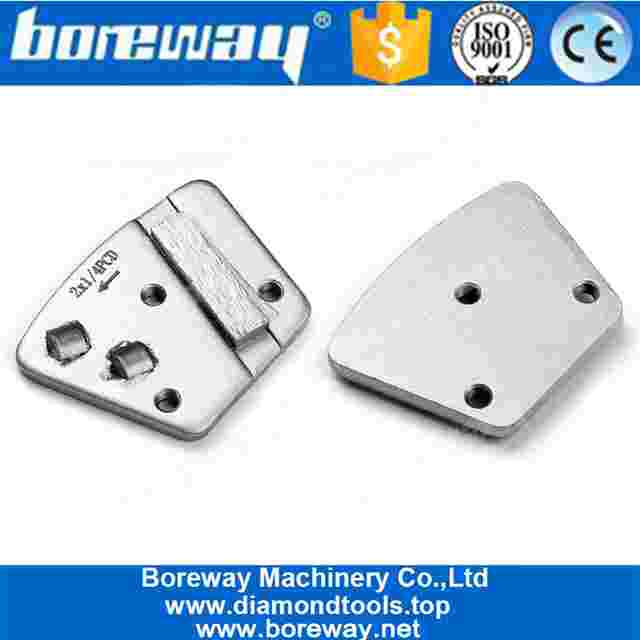

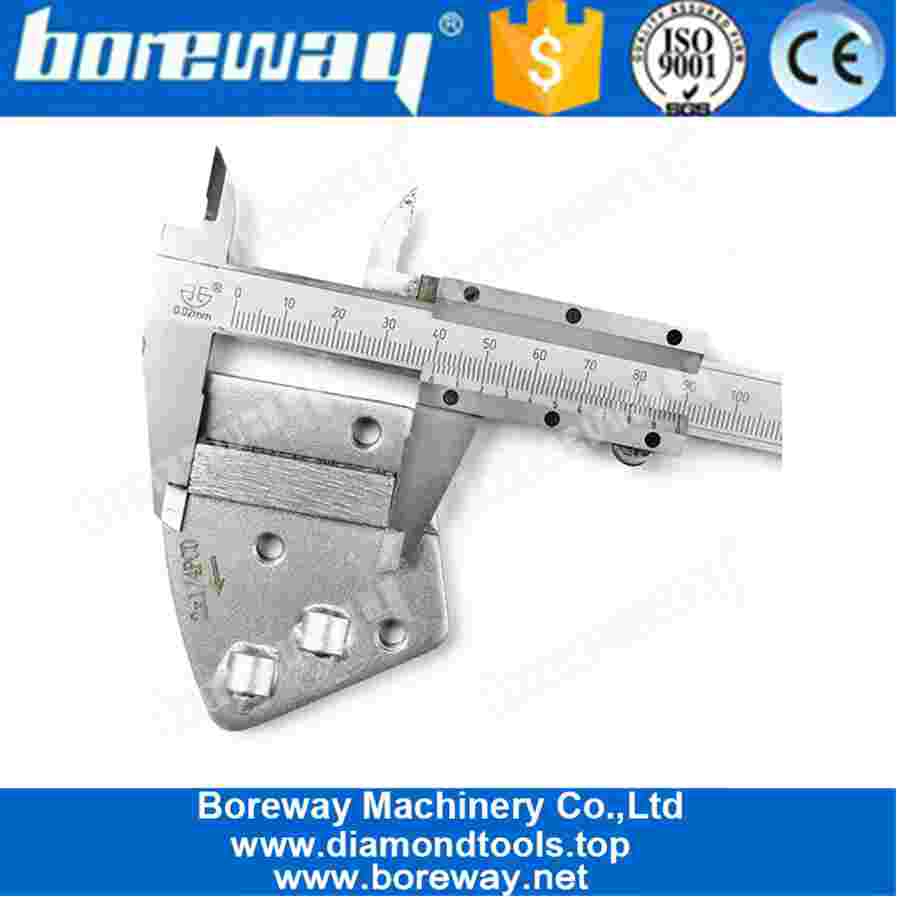

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD:
PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD
This trapezoid PCD diamond grinding shoe is a very aggressive and popular floor coating removal tools. The 1 bar segment and 2 quarter round PCD provide a high working efficiency and a long lifespan. For best results, use to remove the bulk of thick coatings without continued contact with concrete. Come back with an aggressive metal bond diamond segment and clean up any thin coating left behind. This helps to preserve the life of the PCD segments.

For more information of our trapezoid PCD diamond grinding shoe, please contact us or leave us a message, our engineer with response you within 24 hours.


Applications:

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD Suitable for general use of grinding (concrete and stone) while it is mostly used for paint, glue, epoxy removal, floor coating, high quality, high efficiency and long life.

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD

PCD Metal Trapezoid Grinding Disc 2 Quarter Round PCD

Note: Special logo, size piece and shapes, installation are available as per customer's request.


Advantages:

Very efficient for the toughtest situations such as the removal of very persistent coating.
1) High quality for long life;
2) Remove thin coating materials with ease;
3) Designed to work aggressively;
4) Smooth and level high spots.


Features:

Excellent wear resistance, low cost, better surface finish etc.
