One Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete SurfaceOne Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete SurfaceOne Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete SurfaceOne Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete Surface

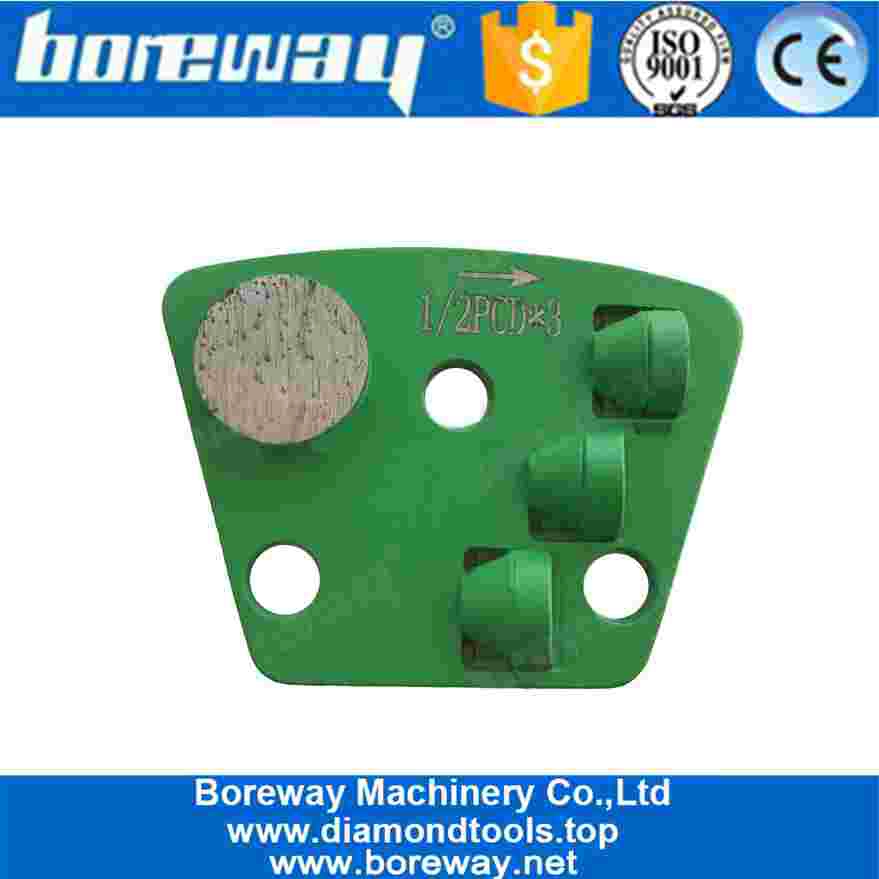

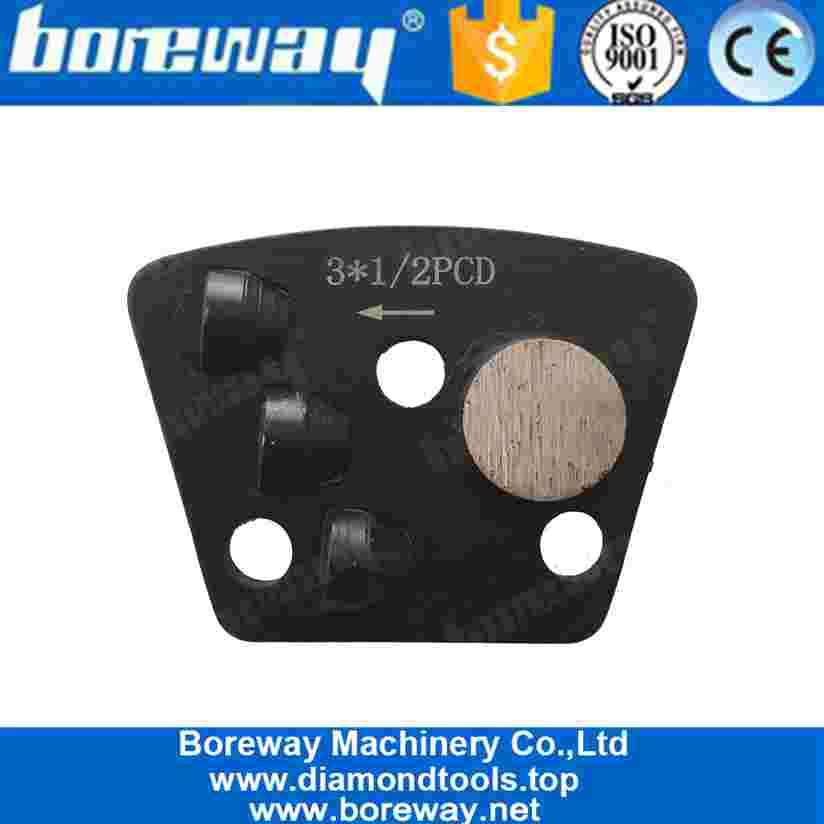

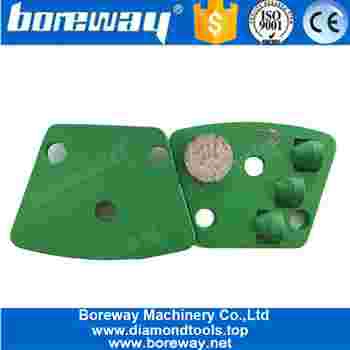

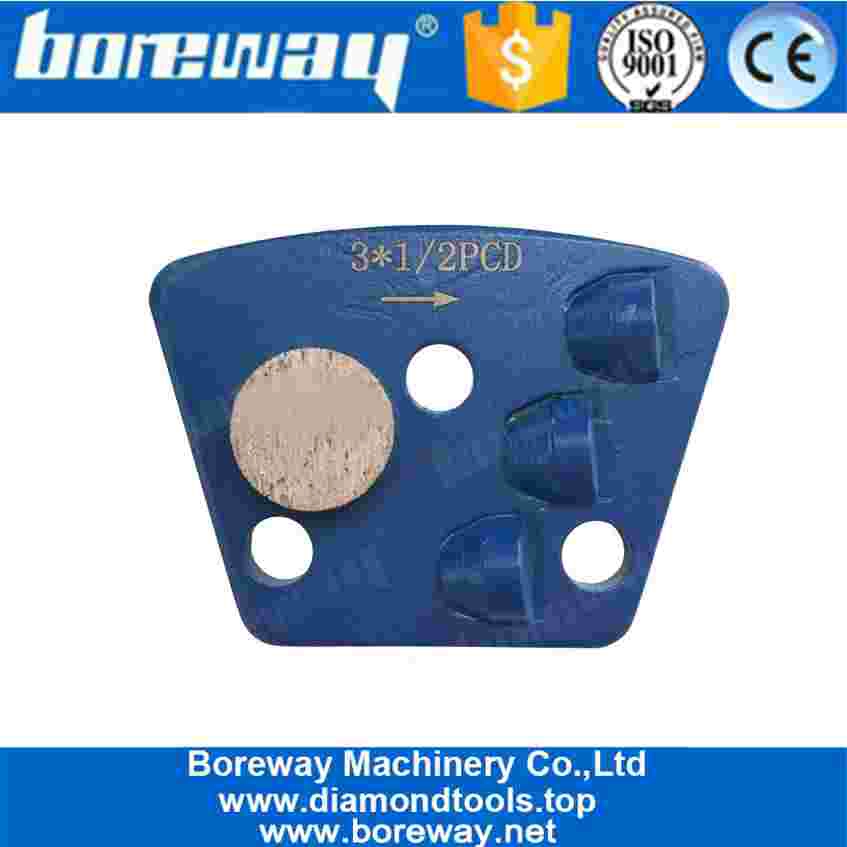

One Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete Surface

  • Brand: Boreway
  • Type:Abrasive Disc
  • Segment No.:3T
  • Segment Type:1/2PCD

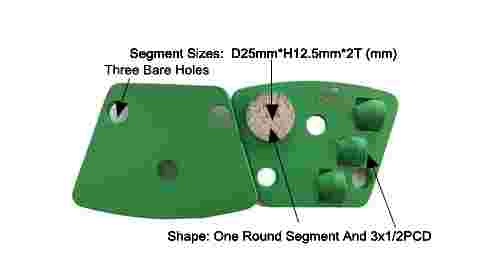

  • Segment Sizes: D25mm*H12.5mm*2T (mm)
  • Size:3x1/2PCD And One Round Segment
  • Usage:Expoxy, Glue, Paint, Concrete Floors
  • Advantage: High Working Efficiency
  • Material: Diamond + PCD + metal powder
  • Bonds: Soft bonds, medium bonds, hard bonds.
  • Features: Sharp use, long service life and good effect
  • Application: Mainly used for grinding concrete stone floor
  • Connection: Magnetic polar or M6, M8 or bare hole etc.
the description:

PCD Diamond Grinding Shoe For Concrete Surface






























One Round Segment And 3x1/2 PCD Diamond Grinding Shoe For Concrete Surface

Trapezoid tools with 3x1/2PCD is an unparalleled tool for epoxy and coating removal;
Featuring 3-PCD segments that effectively and efficiently removes coatings.

PCD tools with Sacrificial bars or Metal Bond Button are designed to remove coating over a surface equal to a troweled surface and will not damage the concrete. The sacrificial bars or the metal button act as a stabilizer and depth guide, and reduce the gauging of the floor caused by the aggressive pcd segments. These tools are suitable for removal of:

Specifications:

Below are the regular specifications PCD Diamond Grinding Shoe For Concrete Surface:

3x1/2 PCD and D25mm*H12.5mm*2T (mm)
Noun:  PCD Diamond Grinding Shoe For Concrete Surface
The gravel part: 16-270 # etc.
Piece Size:
Size: 3x1/2PCD And One Round Segment
Material: PCD + diamond + metal powder
Quality: International standard quality
Contact:   Magnetic polarity or M6, M8 or bare hole etc.
Machine:

For fast link grinding machine

Guarantee:

Soft Bond, Medium Bond, Hard Bond.


Specially designed tools are available for any standard application. we can
Tailor your tools to your specific needs.


Product details:

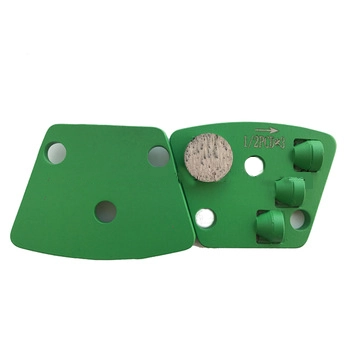

PCD Diamond Grinding Shoe For Concrete Surface:
PCD Diamond Grinding Shoe For Concrete Surface

Applications:

PCD Diamond Grinding Shoe For Concrete Surface Suitable for general use of grinding (concrete and stone) while it is mostly used for paint, glue, epoxy removal, floor coating, high quality, high efficiency and long life.

CD Diamond Grinding Shoe For Concrete Surface

CD Diamond Grinding Shoe For Concrete Surface

NB: Special logo, size piece and shapes, installation are available as per customer's request.


Advantages:

Very effective for the toughest situations such as extremely continuous paint removal.


Features:

Excellent wear resistance, low cost, better surface finish etc.

Related Products:

PCD grinding shoes PCD grinding shoes PCD grinding shoes PCD grinding shoes

Redi Lock Diamond Grinding Block With Sharp Segment Two PCD Redi Lock Diamond Grinding Block With Sharp Segment Two PCD


Three sectors of shoe grinding

Four sectors of grinding shoes








information about us:

Double Segments Lavina Grinding Block

Our service:

1. Low order quantity: you can meet the test order you need.
2. Fast delivery: We get big discounts from freight forwarders.
3. OEM acceptable: We can produce according to your samples or drawings.
4. Good quality: We have strict quality control system. Enjoying a good reputation in the market.
5. Good service: We consider our customers to be highly professional and enthusiastic.


Describe:

1. If we want to order your product, how do we know your quality?
Please test in a very small order and then you will know the quality. Now even
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
Necessary.

Can you provide samples for free?
We do not offer free samples. Based on years of experience, we believe people will get it.
By paying for the samples, we will cherish and value them more. We had
Be prepared to provide our potential customers with a special discount to take part in the test.
It is very important to give us feedback and we will be very grateful.

3. Does your company accept customization?
Of course, we accept that. It includes different colors, grit, etc. We can also distinguish your own logo
The brand is on board. You want us to produce any new products for you, just send us your products.
Draw or sample, we produce the same. We will not sell these products to others
Customers can only obtain a license.

please note:

1. Please provide the items before purchasing.
2. Please provide the model number before purchasing.
3. Other specifications can be customized according to requirements.
