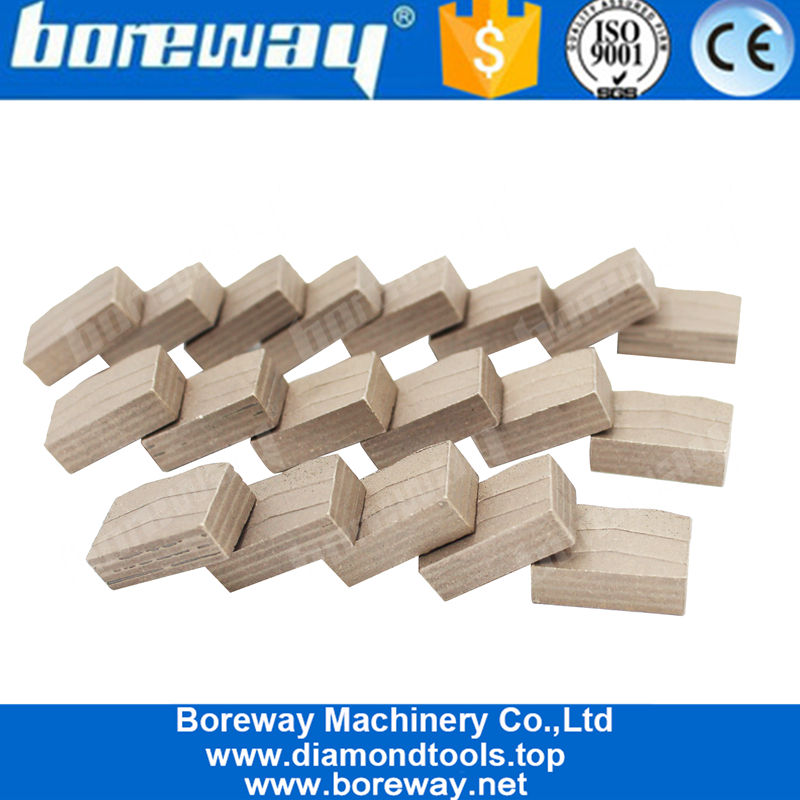

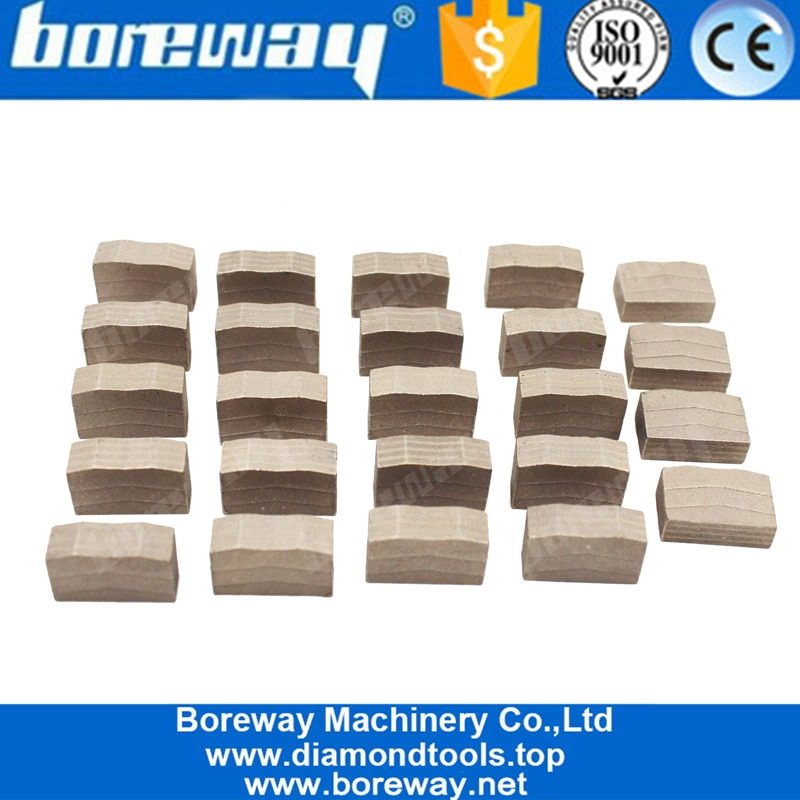

Sharp And Durable Circular Multi Cutter Diamond Saw Segment Tips Teeth For Granite Or Marble
- Hole:100/120MM
- Seg.No.:160pcs
- Max. RPM:300 RPM
- Brand Name:Boreway
- Model Number:BW-DSGB-12-20
- Welding way:Silver Welding
- Seg. size(L*W*H):24x12.5x20MM
- Disc diameter：3000MM,120inch
- Segment Composition: High-Quality Diamond Metal Powder
- Production Process:Cold Pressing And Hot Pressing Sintering
- Cutting Material: Granite, Marble And Other Medium-Hard Stones
- Welding Method: Silver Welding By High Frequency Welding Machine.

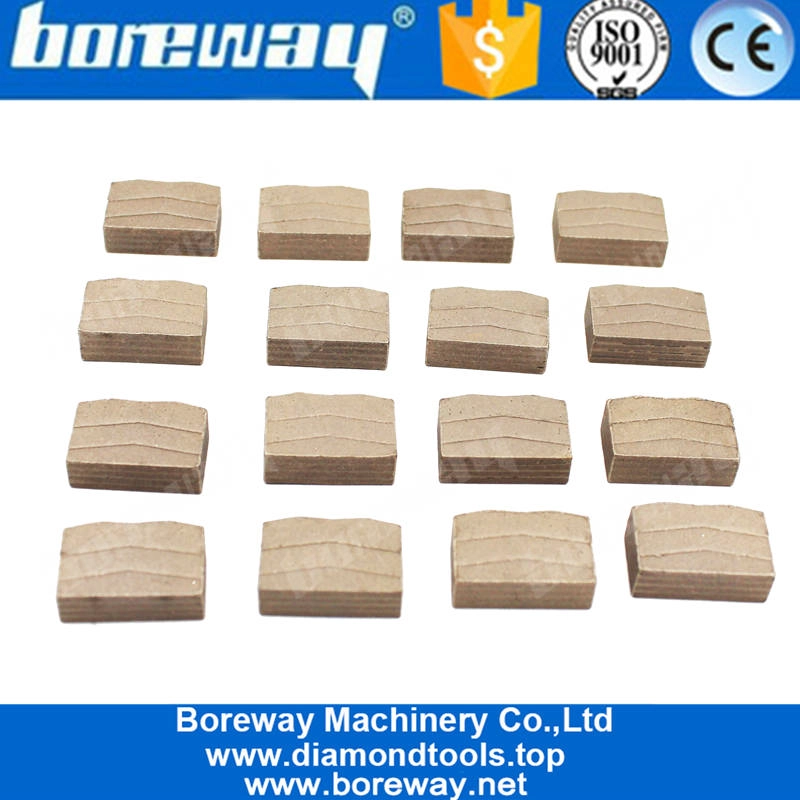

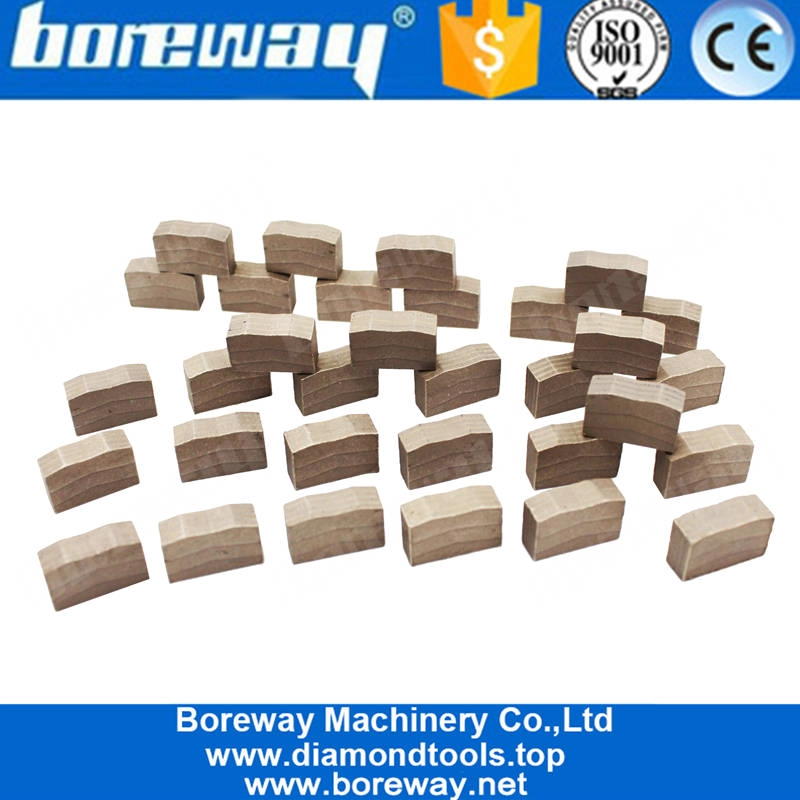

Sharp And Durable Circular Multi Cutter Diamond Saw Segment Tips Teeth For Granite Or Marble
|
Description:
|
Multi Cutter Segment For Granite Or Marble Manufacturer

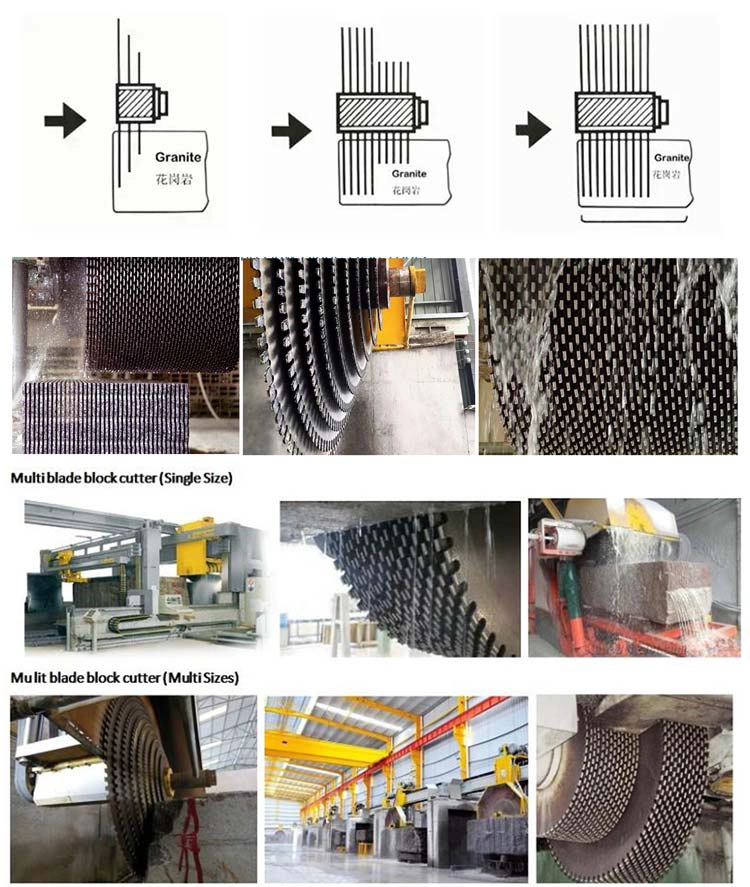

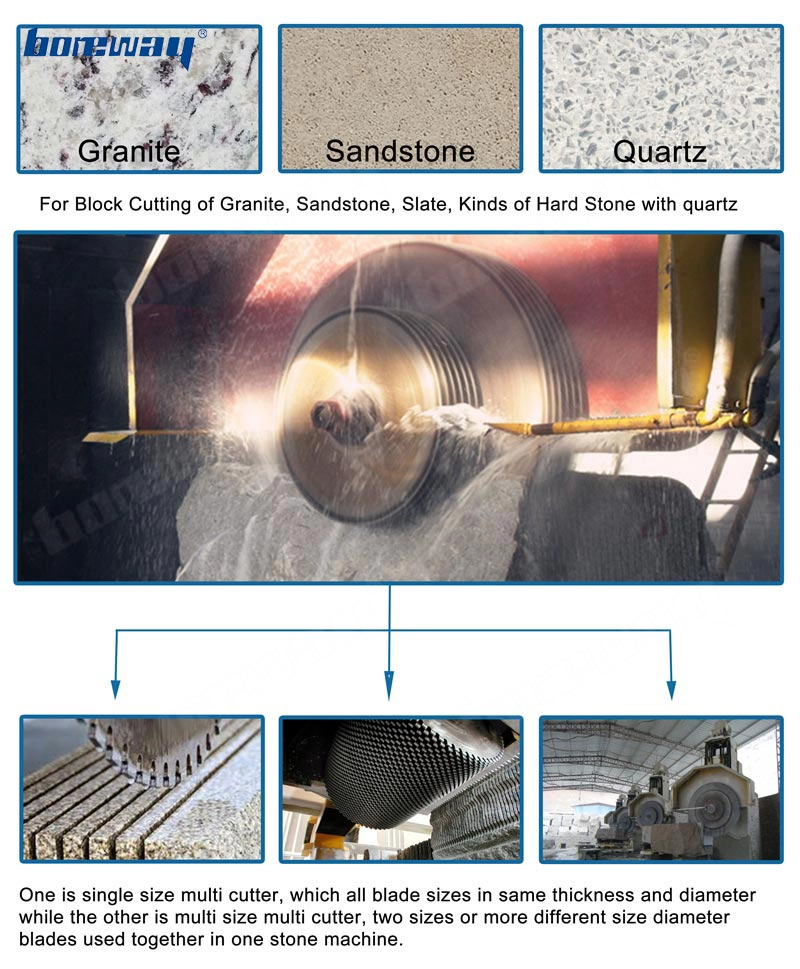

Multidisc granite saw blade refers to diamond saw blade used on multi cutter machine for sawing granite block to slabs or strips. There is two type of multi disc block cutter for granite, one is single size multi cutter (all diamond blades in same diameter) and the other is multi size multi cutter (two or more sizes of diamond blades in different diameters).
Feature:
2) Good price with excellent service and consistent quality.
3) Soft to hard bonds designed for cutting hard to soft materials
4) Universal wet cutting for different kinds of stone (granite marble sandstone etc...)
5) Sandwich or grooved segment with any shapes for single or multi-blade as required.
6) High quality, smooth cutting with no chipping, easy for welding, energy saving, reduce the stone waste
|
Advantage:
|
1. To get the even and smooth slab
2. To produce slabs in very short time
3. Easy manipulation and with low cost
4. To have low- noise and friendly surroundings
5. Always low power consume and lesser raw material waste
6. Flexibility,unlimited by the size of work piece,can be used for dressing and forming for abnormal profiles.
Multi Cutter Segment For Granite Or Marble Manufacturer
Multi cutter requests higher quality of diamond saw blades both in steel saw blank in vibration, balance and side jumping and also on diamond segments on more sharpness or cutting speed. So the segments for multi block cutter is with different formula or metal bond and diamond grade and density.
| Specification: |
The following are normal specifications Multi Cutter Segment For Granite Or Marble Manufacturer:
| Diameter(mm) | Thickness(mm) |
Teeth(pcs) | L | W | H | Hole(mm) | Max.RPM |
| 3000mm,120inch | 9.0(10.0） |
160 | 24 |
12.5/11.5 | 20/30 | 100/120 | 300 |
The above specifications is only for reference, other specifications may be available as per customer's demand.
Example :
Stone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.
Stone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.
Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.
Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.
Other specifications of cutter segment:

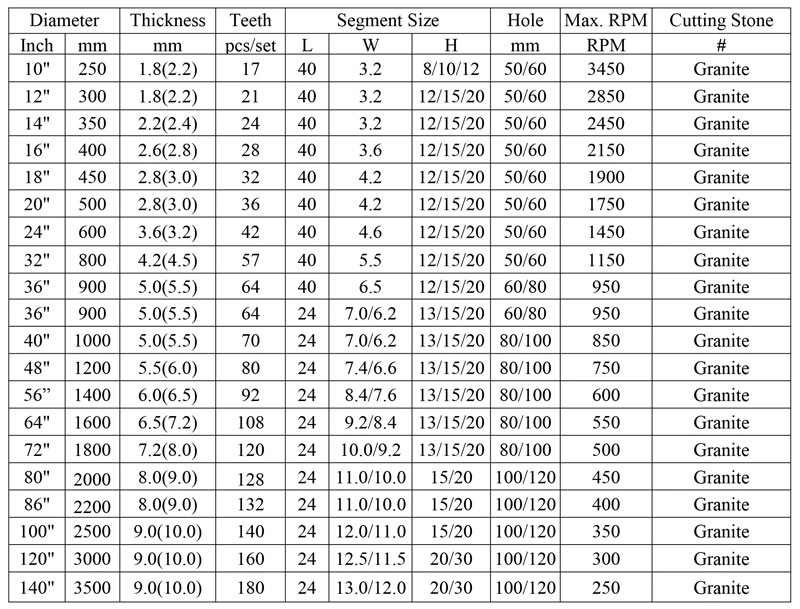

Multi-blade and single-disc saw blade specifications:
Note:
Cutting of the cutting tools to add some water, and water flow, make it a better cooling effect.
Otherwise required for composite saw blade speed in 280-320 revolutions per minute, car speed away too fast!
Factory=Quality Control=Competitive Price=Own technology=OEM
Cutting of the cutting tools to add some water, and water flow, make it a better cooling effect.
Otherwise required for composite saw blade speed in 280-320 revolutions per minute, car speed away too fast!
| Applications: |
Hot press v shape diamond segment only wet use
Multi Cutter Segment For Granite Or Marble Manufacturer wet cutting for different kinds of stone (granite marble sandstone etc...)

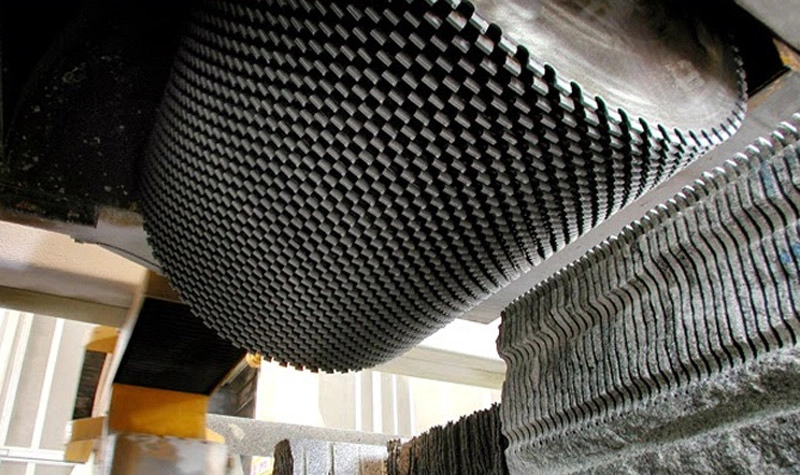

Using in block cutting for 900-3500mm circular saw blades for block cutting.
No.605 Huahui Center, Shuitou Town 362342 Quanzhou, Fujian, China
TEL: (+86)595-86990206 /
Fax: (+86)595-86990220
Mobile/WhatsApp/Wechat: (+ 86) 18650679939
Lyon Chang

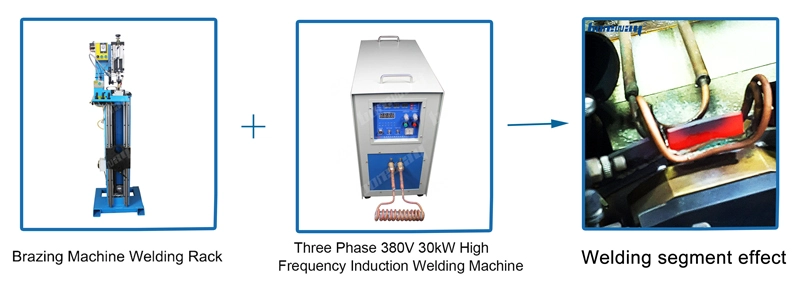

| Applications machine: |
High frequency silver welded machine is recommended instead of welding by fire.
Welding method: silver welding by high frequency welding machine
Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.
| About us: |
| Packing & Delivery: |
| Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
| FAQ: |
1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
| Please note: |
Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
