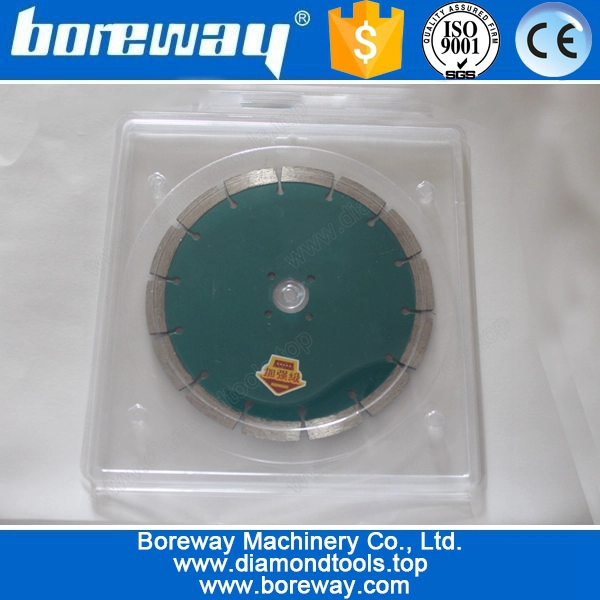

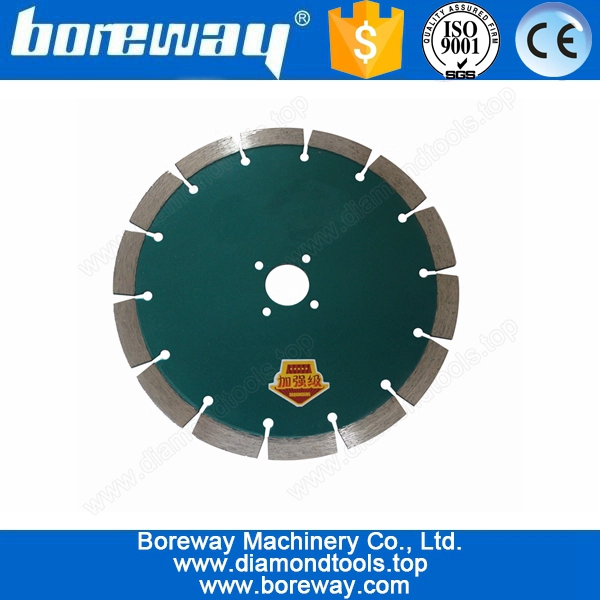

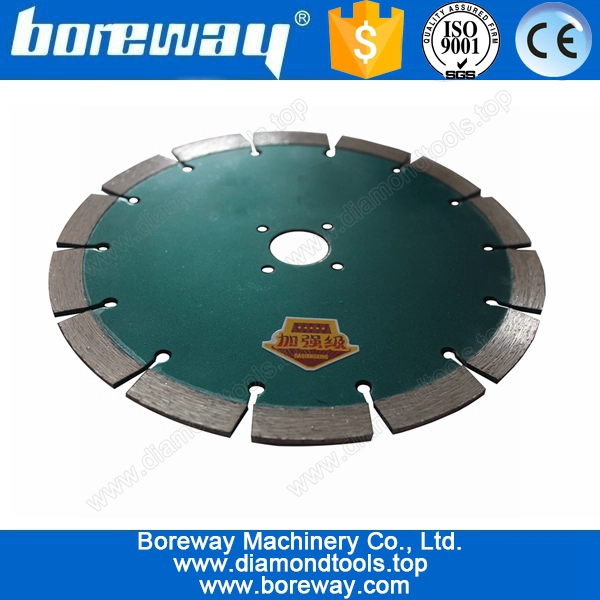

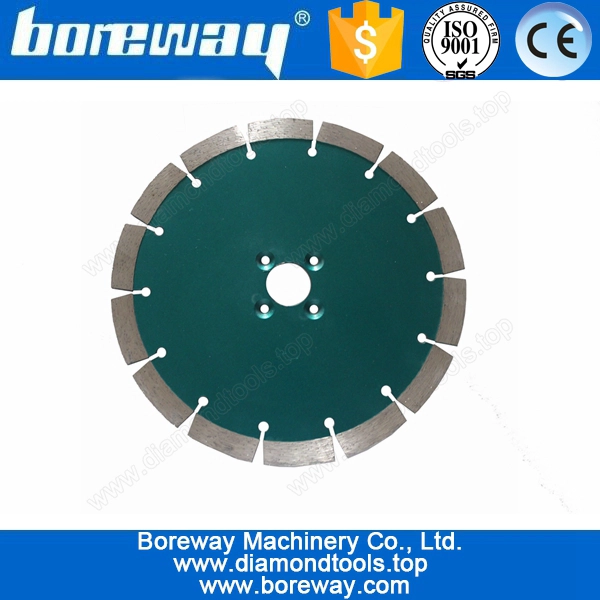

Key hole ceramic saw cutting,D205 diamond blade for cutting ceramic
- Model Number: BW-DSB-C01
- Type:Dry use
- Diameter: 205mm
- Specification:D205*20*2.2*8.0
- Bore:16/20/22.23/25.4/50
- Segment Number:14
- Machine: Manual cutting machine
- Applications:Key hole ceramic saw cutting for cutting and nondestructive grooving on marble,granite,ceramic title,concrete,decorative material
Introduction:
This key hole ceramic saw cutting is widely used for cutting and nondestructive grooving on marble,granite,ceramic title,
concrete,decorative material ,used on manual cutting machine
Suitable for dry cutting.
Feature:
1.Fast cutting speed and small cutting gap;
2.High cutting efficiency and no chipping;
Specification:
There are normal specification of Key hole ceramic saw cutting :
|
Product Name |
Diameter(mm) |
Segment Dimension(mm) |
Segment Number(mm) |
Bore/mm |
|
Dry cutting blade for ceramic |
105 |
20*1.8*7.5 |
8 |
/22.23/25.4/50 |
|
115 |
20*1.8*8.0 |
9 |
||
|
125 |
20*2.0*8.0 |
10 |
||
|
150 |
20*2.0*7.5 |
10 |
||
|
180 |
20*2.2*8.0 |
14 |
||
|
200 |
20*2.2*8.0 |
14 |
||
|
230 |
20*2.4*8.0 |
16 |
||
|
250 |
20*2.4*8.0 |
18 |
The above specification just a reference for you.Other specification can be ordered by clients.
Picture：
Similar product:

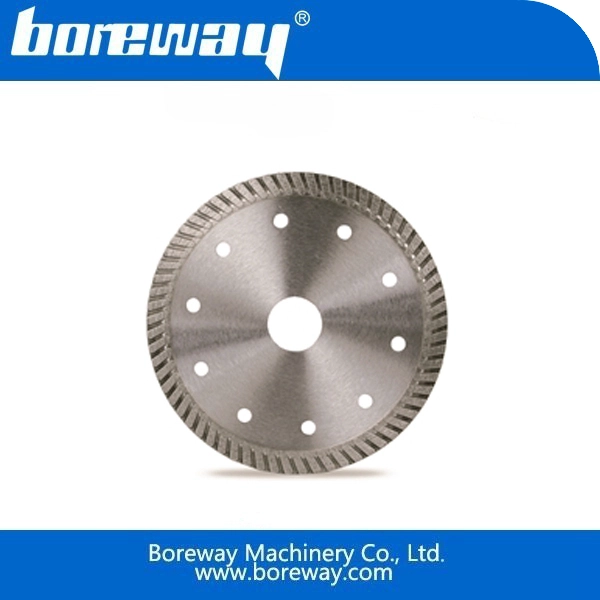

Diamond cutting blade for cutting tiles,glazed tiles
