High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

  • Product Name: Vacuum Brazed Diamond Core Drill Bits
  • Size: 6MM-150MM
  • Material: Diamond
  • Total Height: 100MM
  • Thread Connection: M14, 5/8-11"
  • Application: Dry/wet drilling for porcelain tile, granite, marble, stone, Masonry, brick...
Product Description:
High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection
Porcelain Tile Granite Marble Stone Masonry Hole Saw
Dry/wet drilling for porcelain tile, granite, marble, stone, Masonry, brick...

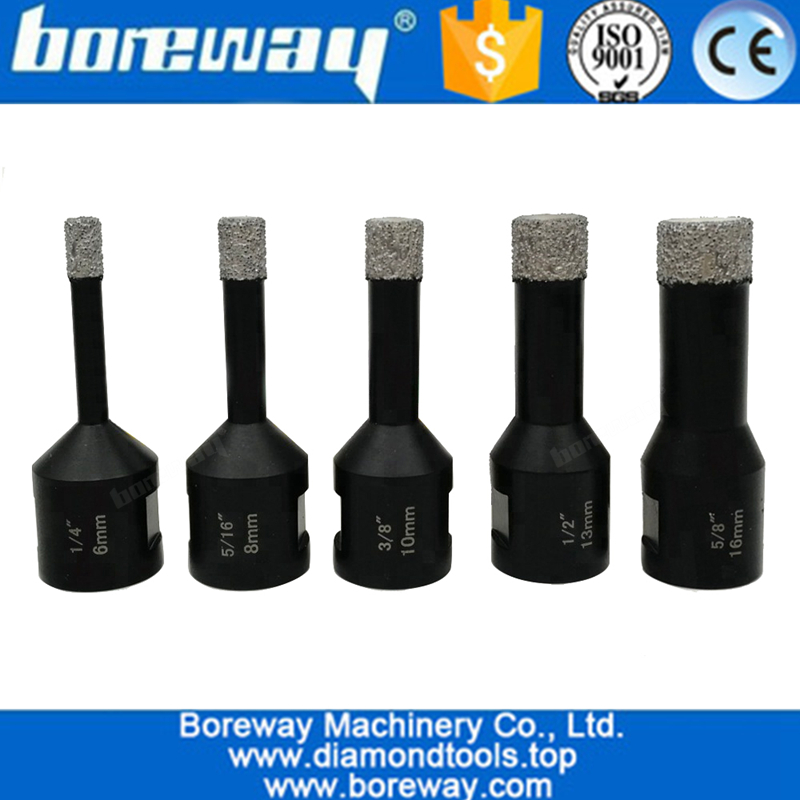

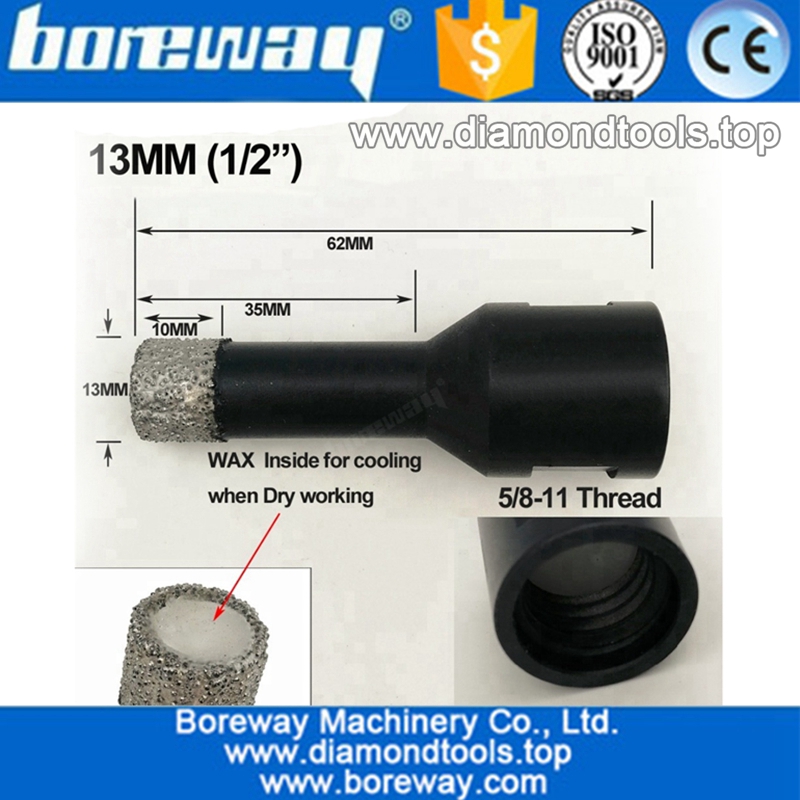

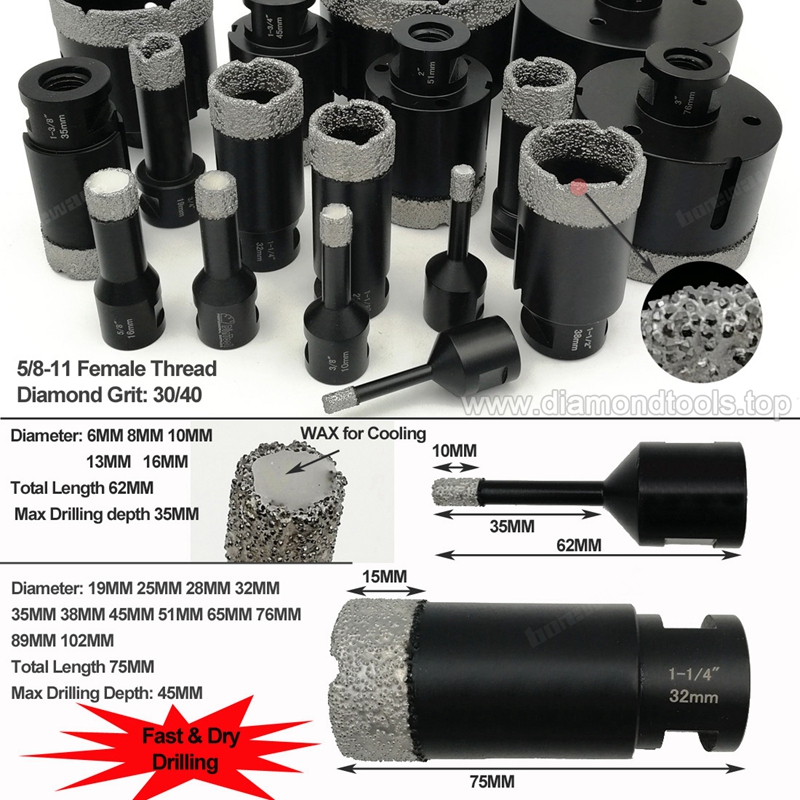

1).Diameter 1/4" (6mm); 5/16"(8mm); 3/8"(10mm); 1/2" (13mm); 5/8" (16mm);

Diamond height:H10mm

Max working depth:35mm

Length :62mm

Thread : 5/8-11

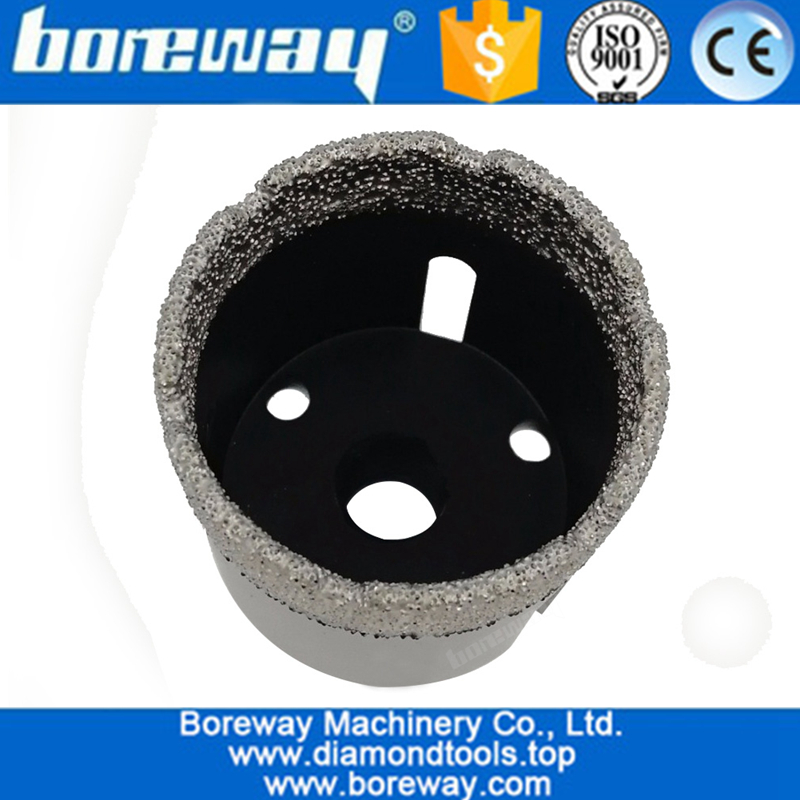

2).Diameter 3/4"(19mm); 1"(25mm); 1-1/8"(28mm); 1-1/4"(32mm);

1-3/8"(35mm); 1-1/2"(38mm); 1-3/4"(45mm); 2"(51mm);

2-1/2"(65mm); 3"(76mm); 3-1/2"(89mm); 4"(102mm)

Diamond height:H15mm

Max working depth:50mm

Length :75mm

Thread :5/8-11


Feature: Dry Drilling Bits Vacuum Brazed Diamond core drill bits

1.Long lifetime;

2.Less Chipping;

3.Better finish quality;

4. Less loss of material;

5. Less heat generation;

6. Fast and Smooth drilling;

7. Minimizing any breakage.


Pictures: 

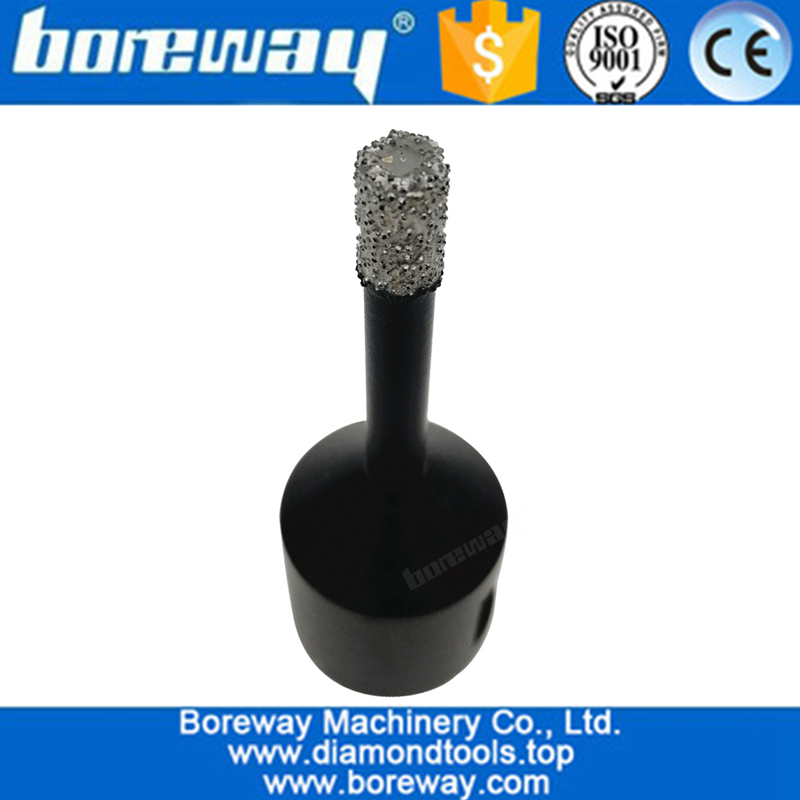

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection

High Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread ConnectionHigh Quality Dry Drilling Bits Vacuum Brazed Diamond core drill bits with 5/8-11 Thread Connection


More Related Products, Pls click here:Stone Drilling Tools diamond drill bits

Packing & Delivery:

1. Tools packing in carton cases;

2. When tools are in large quantities, they are packing in wooden cases.
