Heavy Duty 1/2"Gas Adapter Long Depth Small Diameter Diamond Cutting Bit
- Model Number: BW-DDB-009
- Type: Wet
- Diameter: 8mm
- Pipe Length: 200mm
- Technology: Sintering
- Finish: Spraying paint
- Industry: Diamond drilling tools
- Machine: Hand-held drill etc.
- Applications: Diamond drill bit is wet used for hard stone etc.
Introduction:
We sell drill bits for construction use as well as stone. These diamond bits are perfect to be used on most blind holeapplications such as drilling stone and other hard material. These wet bits would fit most of the popular drills.
Features:
1.Excellent cutting speed.
2.Good sintering offer high efficiency drilling.
Specifications:
Small Diameter Diamond Cutting Bit
| Code No. | Diameter | Segment Size | Usage | Pipe Length | Welding Method | Adaptor |
| BW-DDB-S04 | 20mm (3/4”) | 12x3x10 |
Wet |
85-200mm |
Silver Welding
Laser Welding
High Frequency
|
5/8"-11 |
| 22mm (7/8”) | 12x3x10 | |||||
| 25mm (1”) | 12x3x10 | |||||
| 29mm (1-1/8") | 12x3x10 | |||||
| 32mm (1-1/4”) | 16x3x10 | |||||
| 35mm (1-3/8”) | 16x3x10 | |||||
| 38mm (1-1/2”) | 16x3x10 | |||||
| 42mm (1-5/8") | 16x3x10 | |||||
| 45mm (1-3/4”) | 16x3x10 | |||||
| 50/51mm (2”) | 16x3x10 | |||||
| 57mm (2-1/4”) | 22x3.5x10 | |||||
| 60mm (2-3/8”) | 22x3.5x10 | |||||
| 63mm (2-1/2”) | 22x3.5x10 | |||||
| 70mm (2-3/4”) | 22x3.5x10 | |||||
| 76mm (3”) | 22x3.5x10 | |||||
| 80mm (3-1/8” | 22x3.5x10 | |||||
| 89mm (3-1/2”) | 22x3.5x10 | |||||
| 102mm (4”) | 22x3.5x10 | |||||
| 110mm (4-3/8”) | 22x3.5x10 | |||||
| 127mm (5”) | 24x4x10 |
The parameters only for reference,other specifications are available upon request.

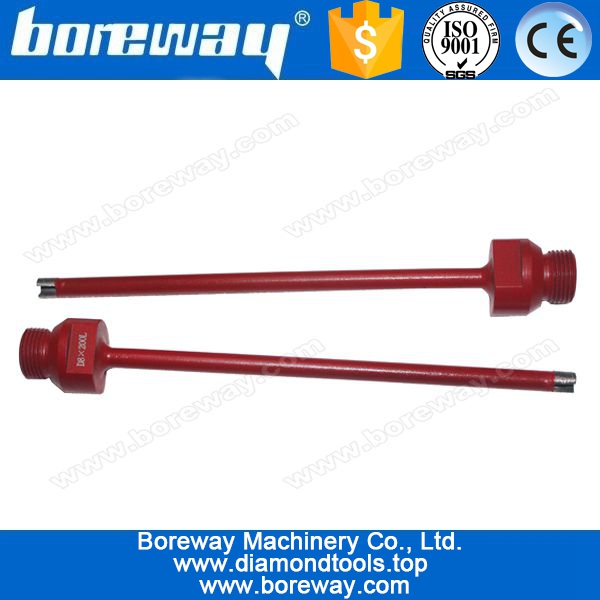

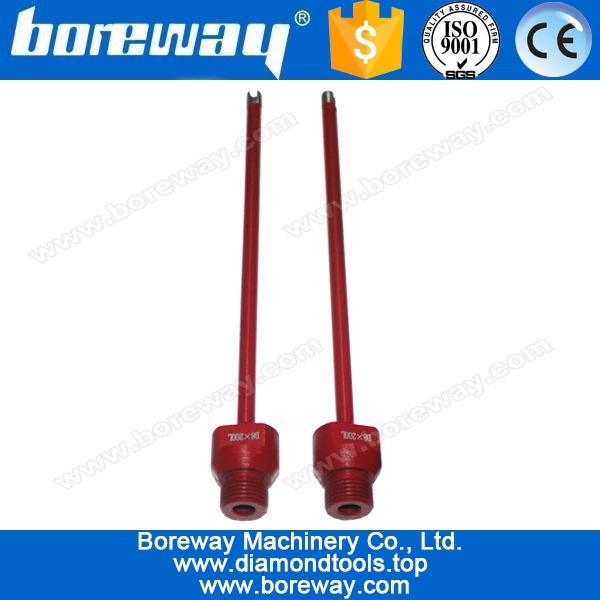

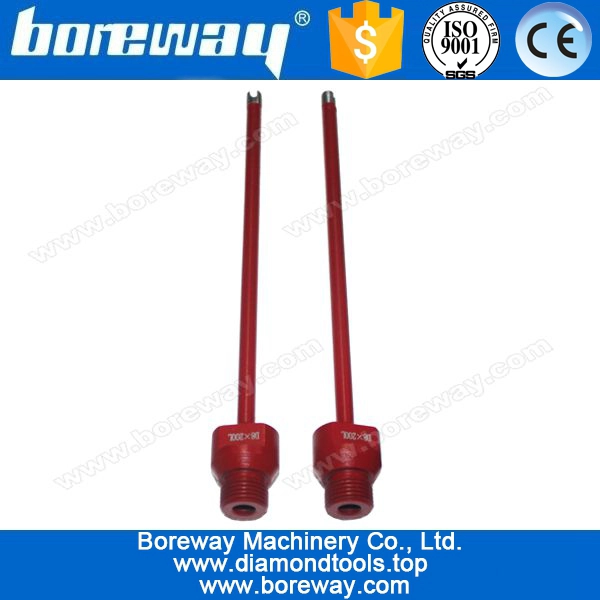

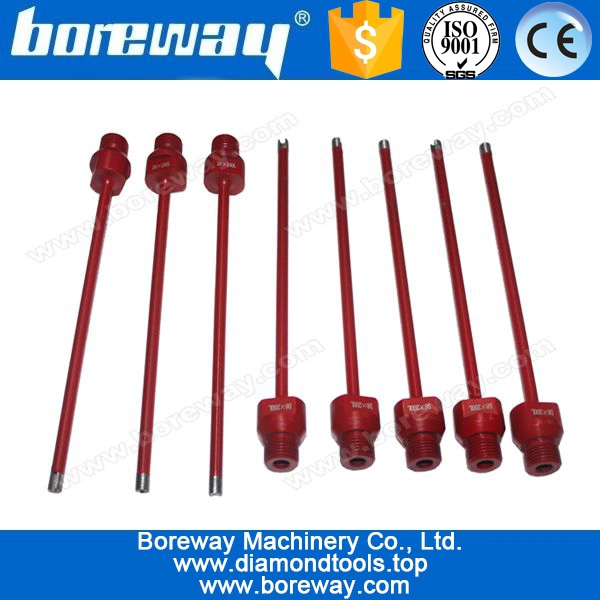

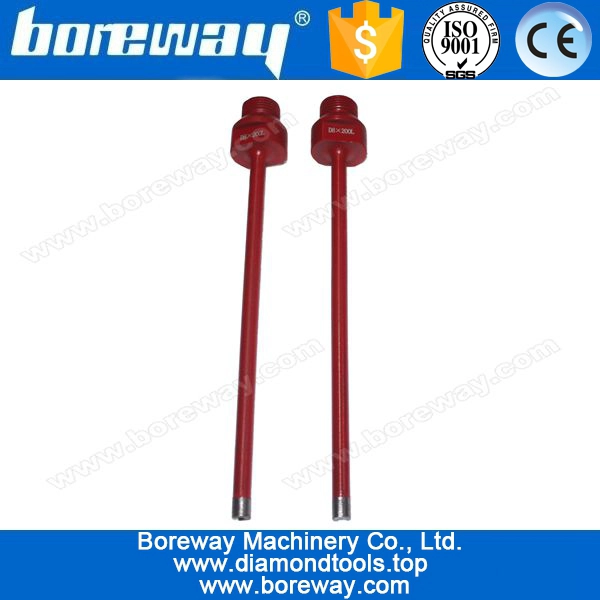

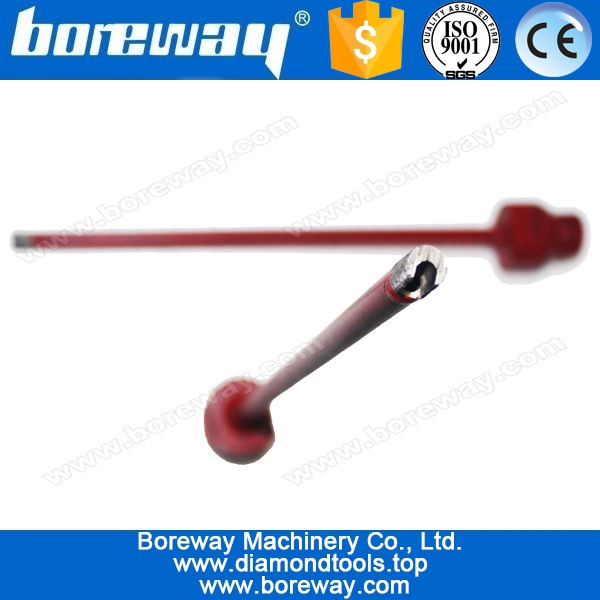

Picture of Product:
Small Diameter Diamond Cutting Bit
Tag:
Metal Bond
,Wet Use
,Sintering
,used for drilling granite
,Used for drilling marble
,Used for concrete drilling
Fujian Nan’an Boreway Machinery Co., Ltd.
Tel:008618650679939
Contact Person:boreway-05
PDF Show:PDF
