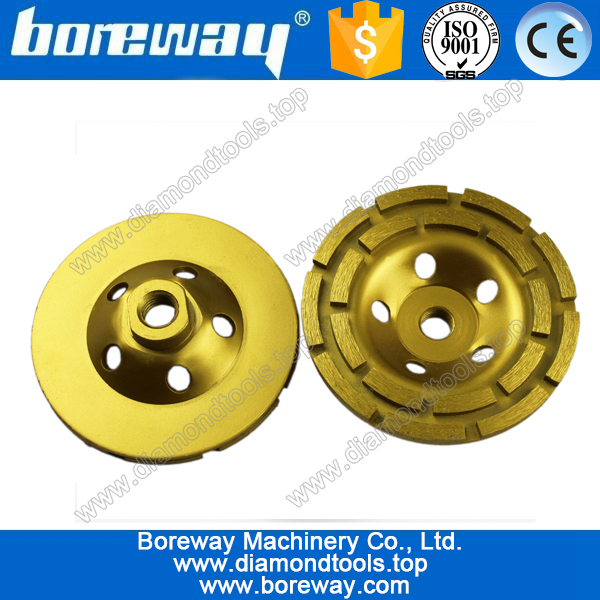

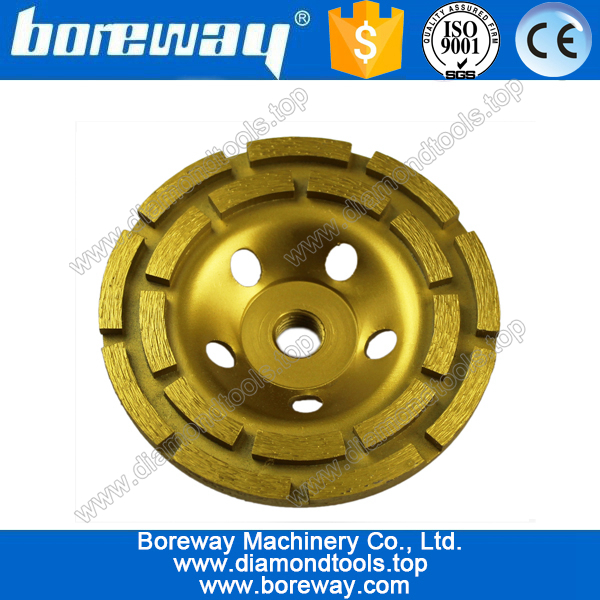

Double row diamond cup grinding wheel
- Model: BW-DRDCGW
- Type: Wet use
- Diameter: 75mm - 230mm
- Hole: M14, M16, M18, M20,22.23mm, 5/8 "-11, snail lock
- Material: diamond, metal
- Size: 30 # - 400 #
- Application materials: marble, granite and other stone, concrete, etc.
- Adaptation machines: hand-held tools, pneumatic tools
Introduction:
Double row diamond cup grinding wheel is mainly used for the edge of the surface, the chamfered surface of the stone, leveling, coarse grinding, fine grinding and so on. Easy to use, high efficiency grinding, It is fast pondering, trimming and finishing concrete shape, stone, the most effective tool for stone, usually with the use of electric or pneumatic tools at hand.
Features:
1. Shape accurate,Grinding effect, long pot life;
2. The high grinding efficiency, for different grinding objects, using different binding agent;
3.Factory direct, affordable, comprehensive and low cost;
4. We can manufacture according to customer's needs shape specifications;
specification:
The following are general specifications of our Double row diamond cup grinding wheel:
Diameter (mm / Inch) Height (mm) Connection granularity 75mm / 3 " 5mm / 6mm M14,M16,M18,M20 22.23mm 5/8 "-11 Snail Lock 30 # 50 # 120 # 200 # 400 # 100mm / 4 " 5mm / 6mm 115mm / 4.5 " 5mm / 6mm 125mm / 5 " 5mm / 6mm 150mm / 6 " 5mm / 6mm 180mm / 7 " 5mm / 6mm 230mm / 9 " 5mm / 6mm
Other specifications can be customized according to requirements.
