Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft BondDouble Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft BondDouble Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft BondDouble Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond

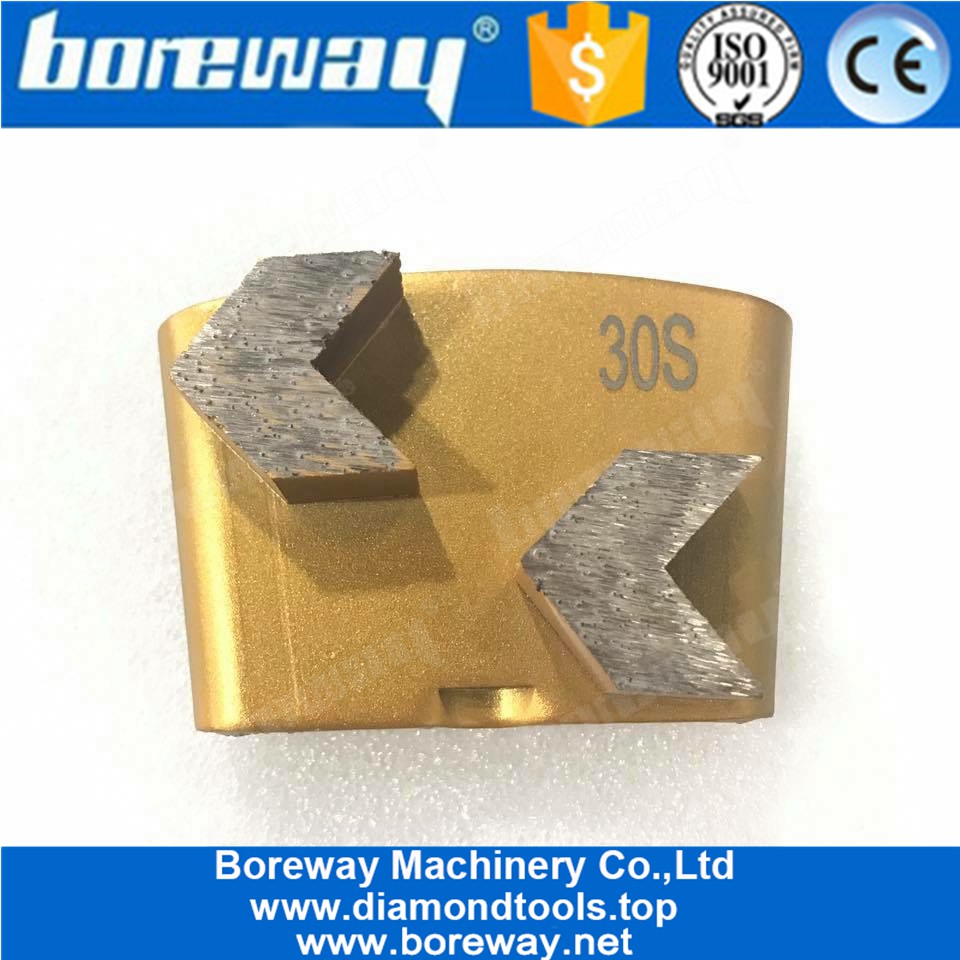

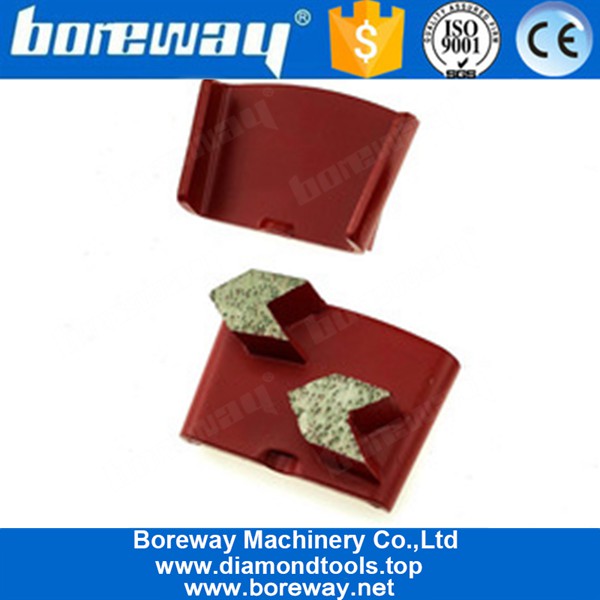

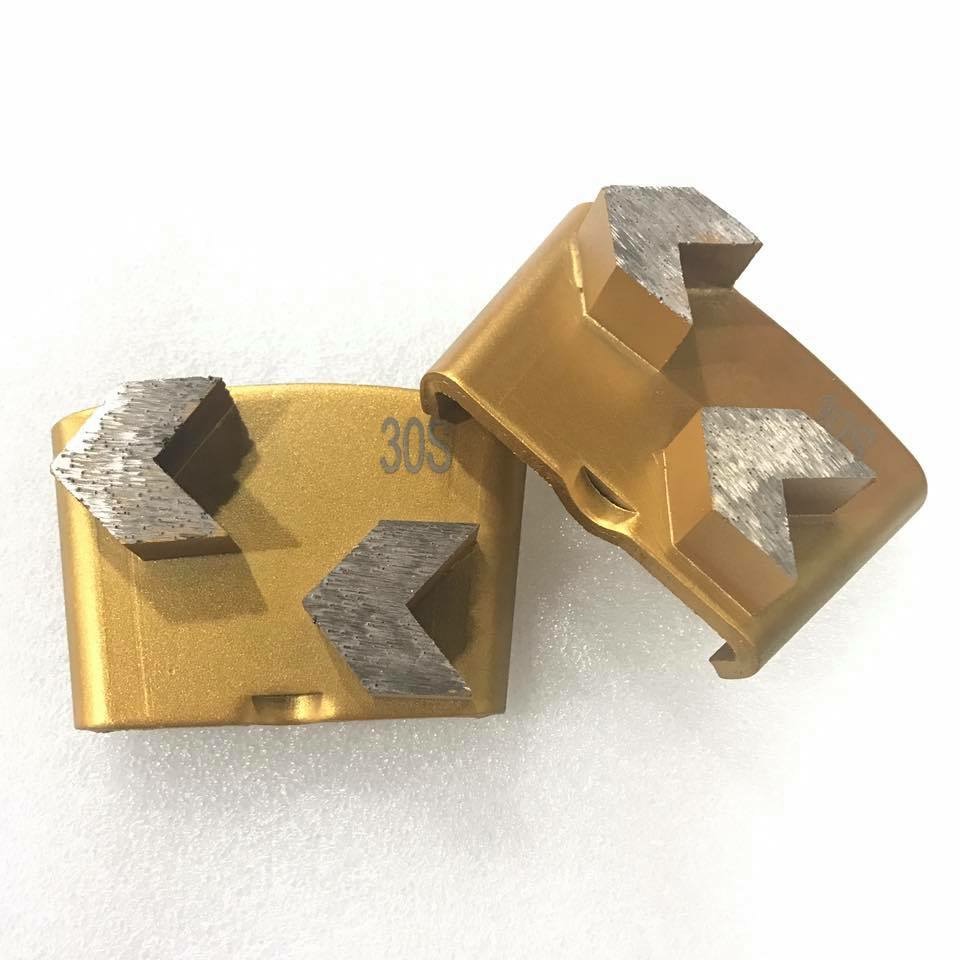

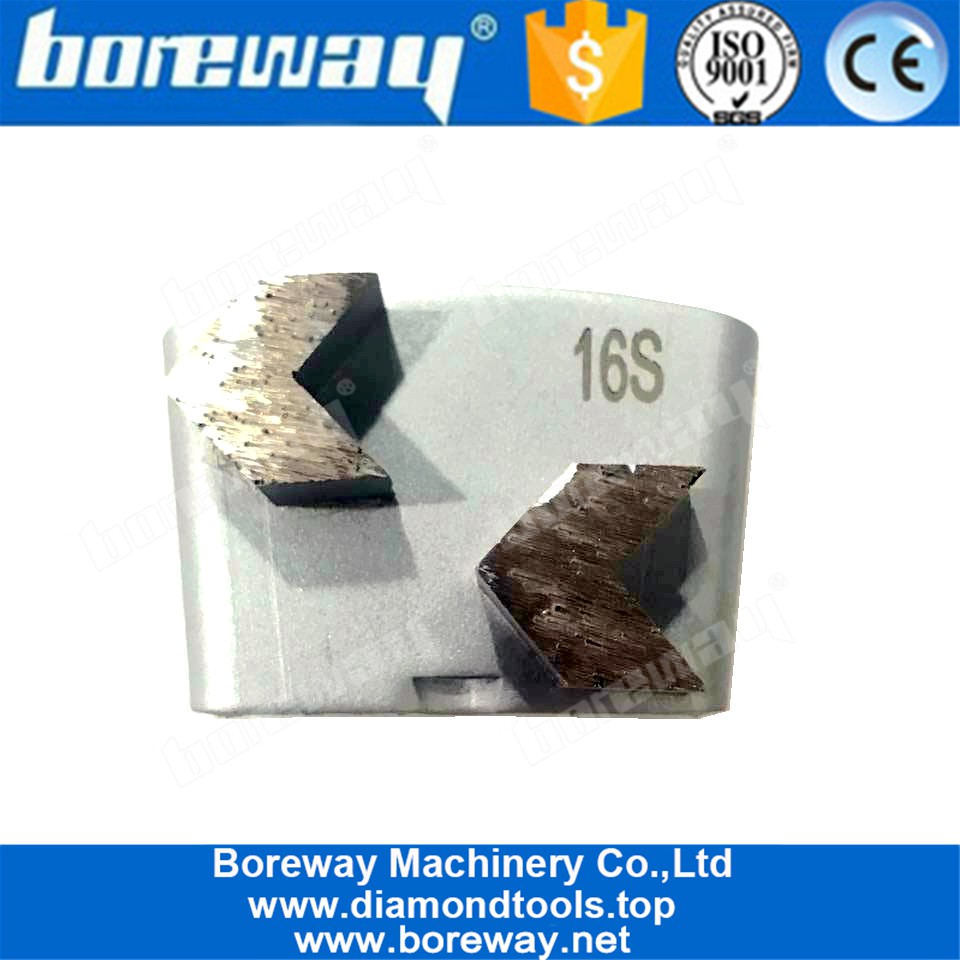

Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond

  • Brand: Boreway
  • Segment No.:2T
  • Type:Abrasive Block
  • Connection: HTC EZ Change Blank
  • Material: Diamond + Metal Powder
  • Application: Concrete and Terrazzo Floor
  • Machine: HTC Quick Connceting Grinding Machine
  • Segment Size:H8mm*2T (Double Arrow Segments)
  • Segment Grit: 16#, 24#, 36#, 46#, 50#, 80#, 100#, 120#, 180#, 200#, 270# etc.
  • Grit Hardness: Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond.
Descriptions:

Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond

                    














Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond

HTC Diamond Grinding Shoes for Concrete and Terrazzo Floor
These Premium Grinding Plates combine superior diamonds, an extremely durable, unique and versitile matrix to yield a high performance grinding product.
Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.

Specifications:

The following are normal specificationsDouble Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond:

Name: Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond
Grit: 16#, 24#, 36#, 46#, 50#, 80#, 100#, 120#, 180#, 200#, 270# etc.

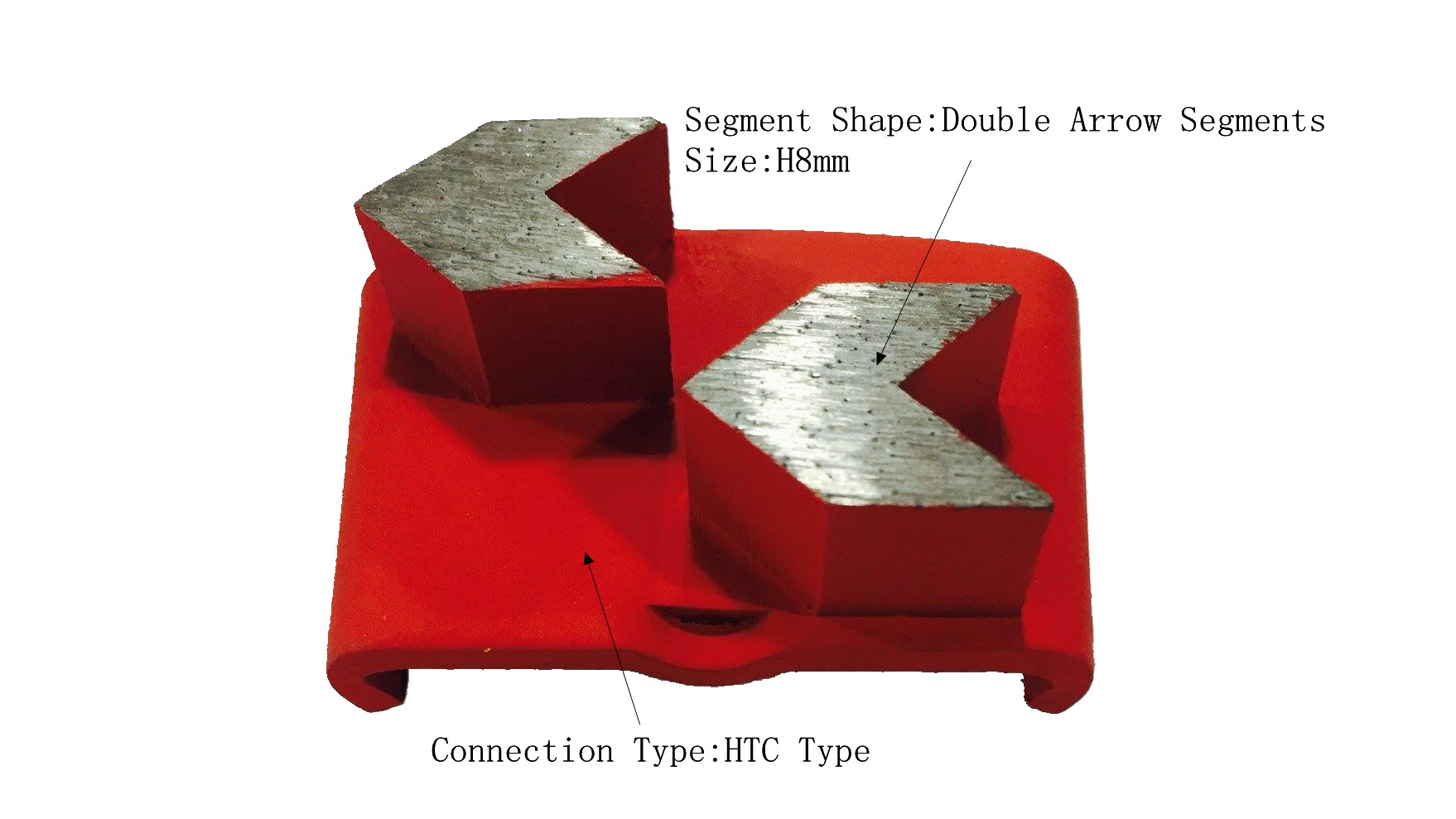

Segment Size: 8mm*2T (Double Arrow Segments)
Segment Shape: Double Arrow Segments
Material: Diamond + Metal Powder
Quality: International Standard Quality
Connection:   HTC EZ Change Blank
Machine:

HTC Quick Connceting Grinding Machine

Bond: Very Soft Bond, Soft Bond, Medium Bond, Hard Bond, Very Hard Bond, Extreme Hard Bond.
                                                                                                                                                                                                                                                               

Specially designed tools are available for any standard application. We can
tailor your tools to your specific needs.


Product Details:

Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond:
Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond
Tips: Diamond Bond Choice

Soft Bond - For Hard Concrete, between 4000 and 5500 psi. Bonds needs to be soft to expose diamond crystals to grind the hard surface. Hard concrete contains hard granite, quartz, river stone, flint rock.

Medium Bond - For Medium Concrete, between 2500 and 4000 psi - Suggested in most cases, most popular and most common bond used. For use on floors containing common pit gravel and/or medium river stone, traprock, crushed gravel. The Soft and Hard Bonds are typically reserved for extreme (uncommon) cases.

Hard Bond - For Soft Concrete, typically under 2500 psi. Bond has harder metals in its matrix to withstand the abrasion, so the diamond crystals are not kicked-out before they have a chance to work the surface. Soft concrete contains limestone, sandstone, dolmite, soft shell.

We also offer Super Soft Bond for Extra Hard Concrete, over 5500 psi. And Super Hard Bond for Extra Soft Concrete.
Applications:

Double Arrow Segments HTC Diamond Floor Grinding Blades With Super Soft Bond:
Suitable for general (concrete,stone) grinding use while mostly they are used for paint, glue, epoxy removal and floor coating, high quality and high efficiency, long lifespan.


HTC Grinding Shoes PCD Diamond Polishing Pads With PCD And Alloy

HTC Grinding Shoes PCD Diamond Polishing Pads With PCD And Alloy

Advantages:

1) Arrow shape segments make it much more sharp than normal shape
2) Combination of superior diamonds and an extremely durable and unique matrix
3) Removes stock quickly and efficiently to greatly reduce your product and labor cost
4) Amazing results on most types of concrete from soft to very hard


Features:

1) Arrow Segment size: H8mm (H10mm, H12mm also can be customized)
2) Different Segment Shapes: Rectangle, Round, Oval, Rhombus etc
3) Grit: Coarse, Medium, Fine(6#,16#,20#,30#,60#,80#,150#,220# etc)
4) Bond: Super Soft, Soft, Medium Hard, Hard, Super Hard
