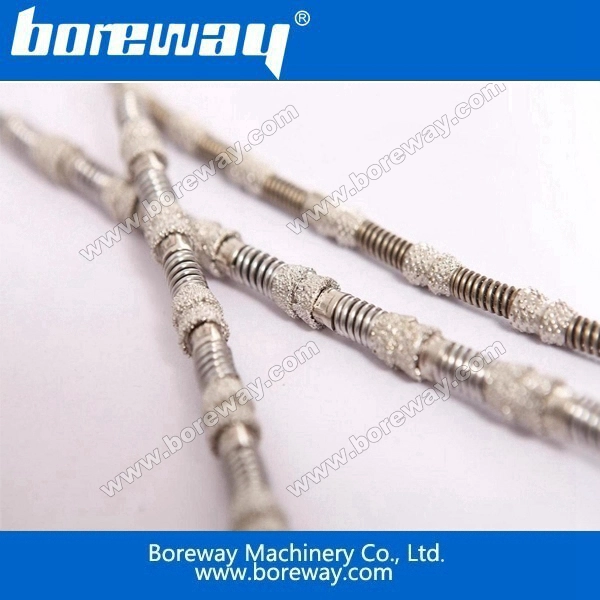

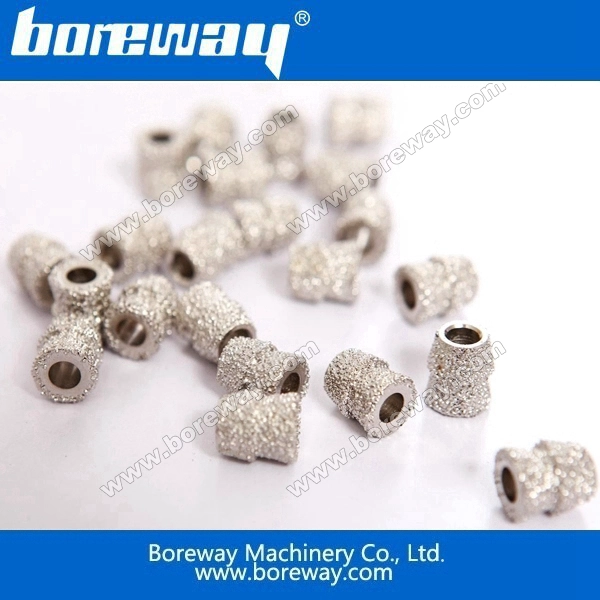

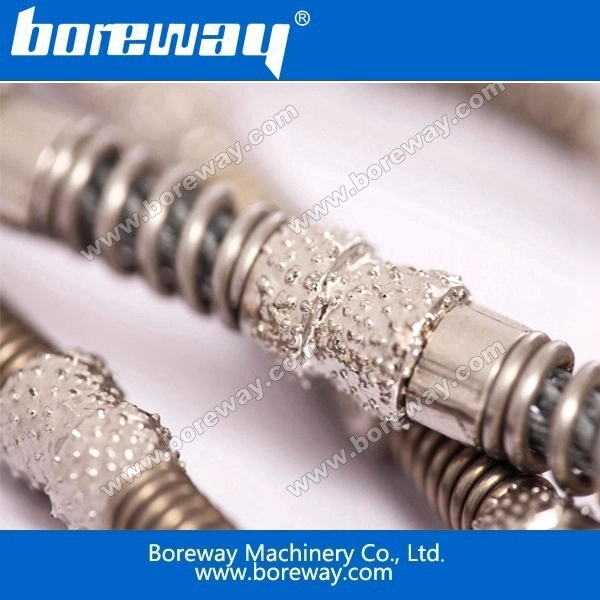

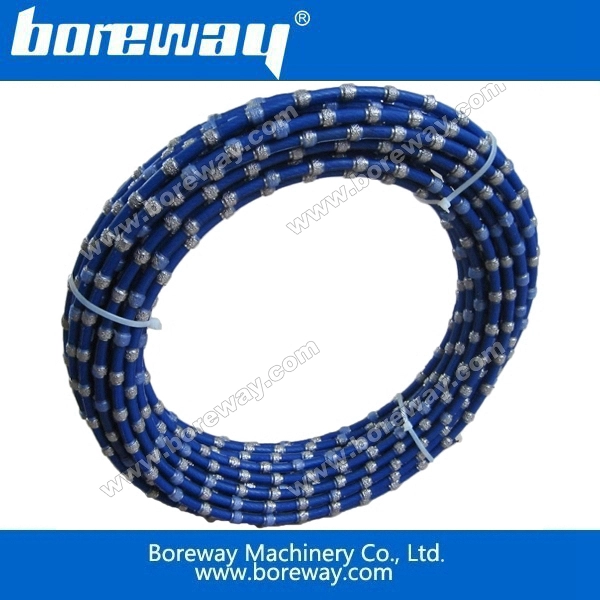

Diamond vacuum brazed wire and beads
- Model Number: BW-DVBWB-002
- Type: Wet Use
- Diameter: 7.2mm to 11mm
- Segment length: 9.0mm to 12.5mm
- Segment number: 28 30 32
- Applications: Boreway diamond vacuum brazed wire and beads are wet use for cutting stone slab and block etc.
- Machine: Wire cutting machine.
- Industry: Diamond cutting tools
- Welding method: Vacuum brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
These diamond vacuum brazed wire and beads are used for wet cutting various kinds of stone.The double arrow design and pattern-set diamond on steel body are to extend tool lifespan and make full use of diamonds for best cutting efficiency.
Features:
1.Universal wet cutting wire for various kinds of stone.
2.Extra aggressive on marble and limestone quarrying,block squaring,profiling and slab cutting.
3.Could be used wet or dry,best with wet cutting for tool lifespan concern.
Specifications:
The followings are the normal specifications of our diamond vacuum brazed wire and beads:
|
Diameter (mm) |
Bead Length (mm) |
Bead Number (pcs/M) |
Grit (#) |
Reinforcement |
Applications |
|
11.0 |
12.5/11.0 |
28/30/32 |
30#~40# |
Spring/Plastic |
Quarrying/Block Squaring |
|
10.0 |
12.0 |
28/30/32 |
30#~40# |
Spring/Plastic |
Quarrying/Block Squaring |
|
8.8 |
11.0 |
28/30/32 |
30#~40# |
Spring/Plastic |
Stone Profiling |
|
7.2 |
9.0 |
28/30/32 |
30#~40# |
Spring/Plastic |
Slab Cutting |
The above specifications are for reference, other specifications can be ordered by customers.
Grade: Premium.
