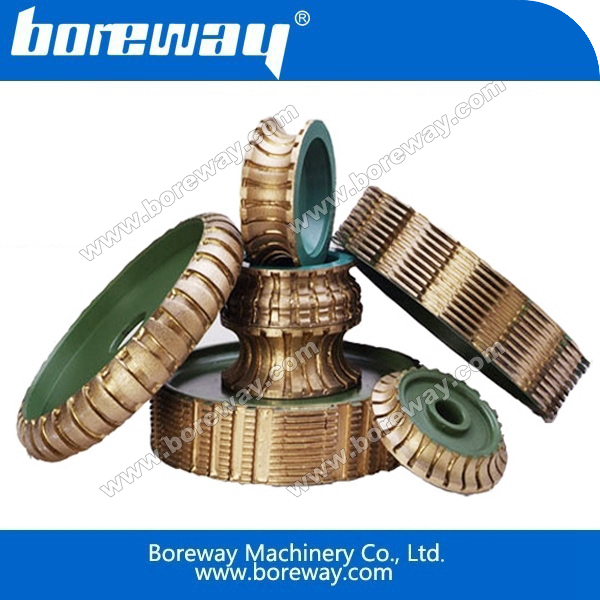

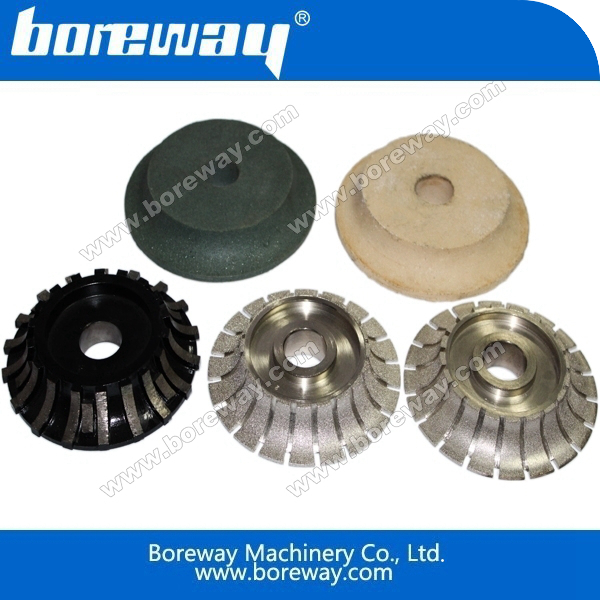

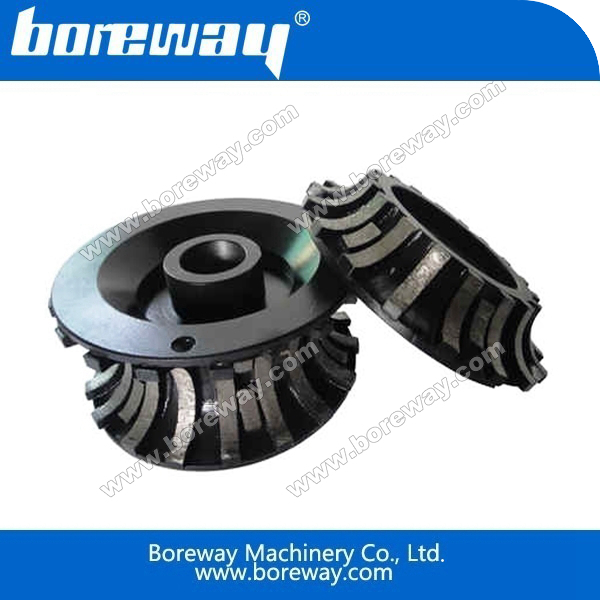

Diamond sintered profiling wheels
- Model Number: BW-PW
- Diameter: 140mm to 350mm
- Segment Width: 20mm to 160mm
- Inner hole: 30 or 50
- Grit No.: 40# 60#
- Applications: The diamond sintered profiling wheels are applicated for granite,marble,artificial stone etc
- Industry: Diamond grinding tools
- Grinding result: Flat surface and even size
- Advantage: Shaping of various special-shaped stones with high efficiency.
Introduction:
Diamond sintered profiling wheels are used for processing shaped stone,their merits are high efficiency
of production,long lifespan and accuracy in shape and size.Different shapes and specifications are available
upon clients’ requests.
Features:
1.Shaping of various special-shaped stones with high efficiency.
2.Small metamorphose and good balance,accuracy in shapes and sizes.
3.Long lifespan and stable performance.
Specifications:
The followings are the normal specifications of our diamond sintered profiling wheels:
|
Product Name |
Diameter(mm) |
Width/Thickness (mm) |
Arbor/Inner Hole (mm) |
Grit No. |
Applications |
|
Diamond Sintered Profiling Wheel |
Ø140-Ø350 |
20-160 |
30 50 |
40 60 |
Granite Marble Artificial stone etc. |
Other specifications can be ordered by customers.
