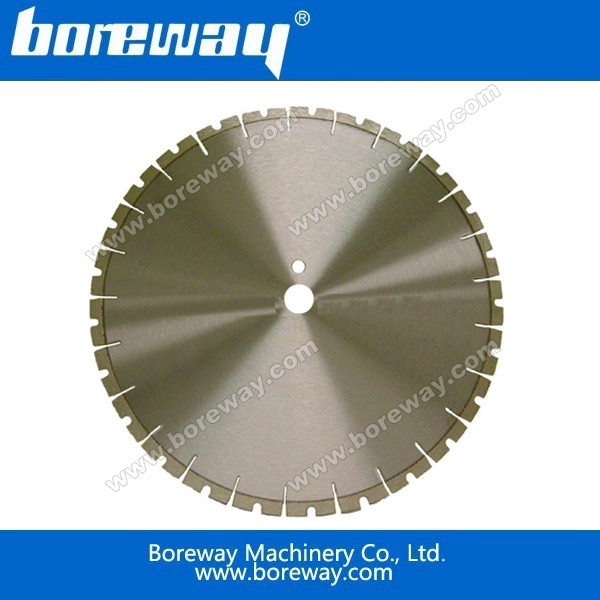

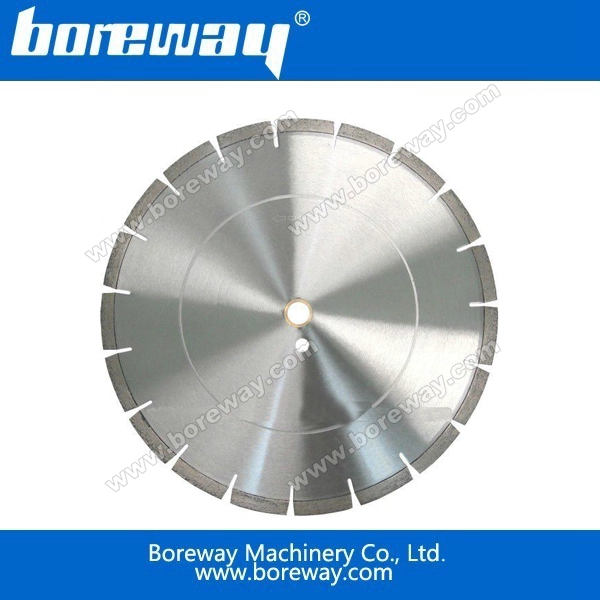

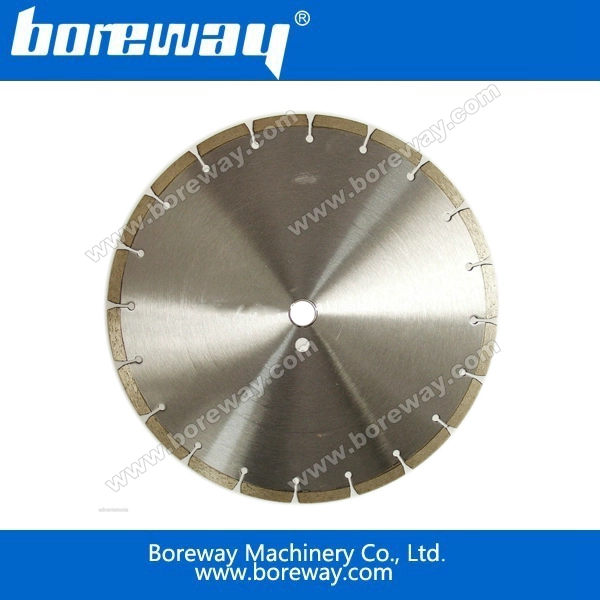

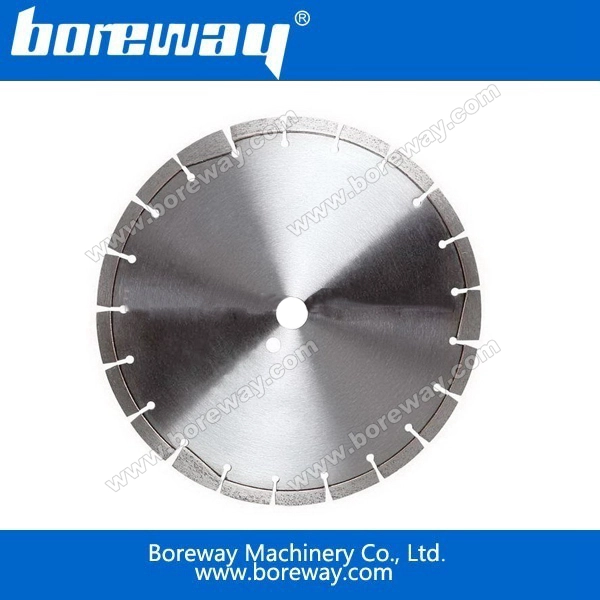

Diamond Iaser Cured Concrete Saw Blade
- Model Number: BW-BLCC-00
- Type: Wet or dry Use
- Diameter: 305mm-610mm
- Segment Width: 3mm-4.2mm
- Segment Height: 10mm
- Industry: Diamond tools
- Welding method: Laser welding
- Cutting result: High flatness and smooth
- Advantage: Good sharpness and long lifespan.
- Machine: Bridge cutting machine and other large cutting machine.
- Applications: Diamond laser cured concrete saw blade is cutting for concrete.
Introduction:
Diamond laser cured concrete saw blade is applied on reinforced concrete asphalt overlay , hard brick & block.Using for more than 30 hp electric or 55 hp gas/diesel power flat saws.
Features:
1. Universal dry and wet cutting blades.
2. Much fast and high efficiency cutting.
Specifications:
The followings are the laser cured concrete saw blade:
|
Item No. |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Segment No |
||
|
|
Inch |
mm |
Inch |
mm |
Inch |
mm |
pcs |
|
BL-CC 120120 |
12” |
305 |
0.120” |
3 |
1" |
10 |
21 |
|
BL-CC 140125 |
14” |
355 |
0.125” |
3.2 |
1" |
10 |
24 |
|
BL-CC 160140 |
16” |
406 |
0.140” |
3.6 |
1" |
10 |
28 |
|
BL-CC 180155 |
18” |
457 |
1.155” |
4 |
1" |
10 |
32 |
|
BL-CC 200155 |
20” |
508 |
1.155” |
4 |
1" |
10 |
36 |
|
BL-CC 240165 |
24” |
610 |
1.165” |
4.2 |
1" |
10 |
42 |
Other size on request is available .
