Diamond Sintered Tuck Point Blade For Hard Rock
- Model Number: BW-DTB-00
- Type: Wet Use
- Diameter: 105mm to 229mm
- Arbor: 16mm 20mm 22.23mm 25.4mm
- Segment Height: 8-10mm
- Segment Thickness: 6-10mm
- Segment number: 8-18
- Technology: sintered
- Industry: Diamond cutting tools
- Machine: Hand-held cutting machine and other machine.
- Advantage: Good sharpness and long lifespan.
- Applications: Diamond sintered tuck point blade is wet use for hard rock and other masonry.
Introduction:
Diamond sintered tuck point blade is used for grooving, which is Suitable for wall, hard stone,concrete pavement
and ground, refractory and other hard brittle non-metallic materials slot and grinding, carved antiskid lines, decorative
lines, which Is used for kinds of road cutting machine, desktop cutting machine etc.
Features:
1. Higher cutting efficience and long lifespan.
2. Fast and smooth cutting,high performance.
Specifications:
The followings are the normal specifications of our diamond sintered tuck point blade:
|
Product Name |
Outer Diameter |
Thickness |
Arbor |
Segment Height |
Segment No. |
Applications |
|
|
Diamond Sintered Tuck Point Blade For Hard Rock |
inch |
mm |
mm |
mm |
mm |
pcs |
Hard Rock Concrete |
|
4’’ |
105 |
6-10 |
16/20 22.23 25.4 |
8-10mm |
8 |
||
|
4.5’’ |
115 |
6-10 |
8-10mm |
8 |
|||
|
5’’ |
127 |
6-10 |
8-10mm |
10 |
|||
|
6’’ |
152 |
6-10 |
8-10mm |
12 |
|||
|
7’’ |
178 |
6-10 |
8-10mm |
14 |
|||
|
8’’ |
203 |
6-10 |
8-10mm |
16 |
|||
|
9’’ |
229 |
6-10 |
8-10mm |
18 |
|||
The above specifications are for reference, other specifications can be ordered by customers.

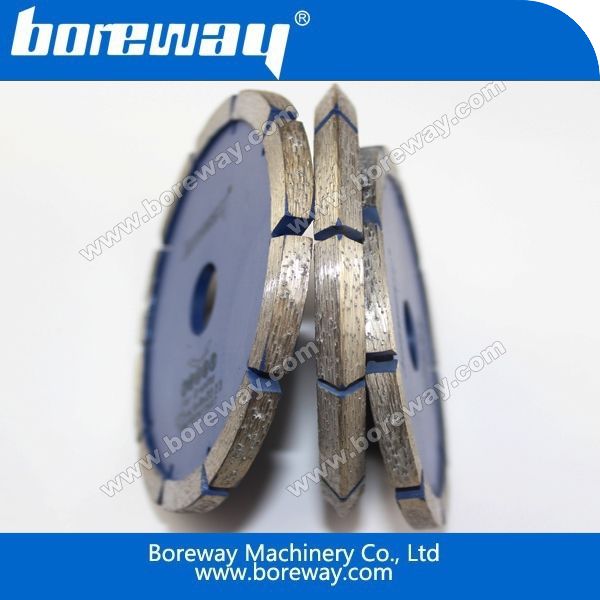

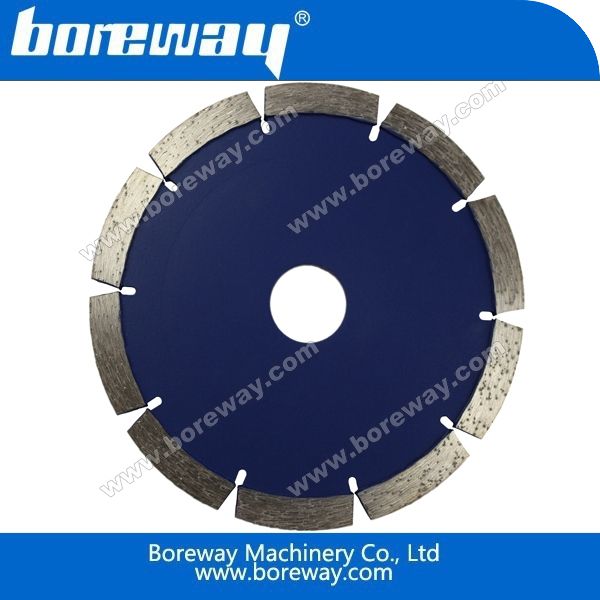

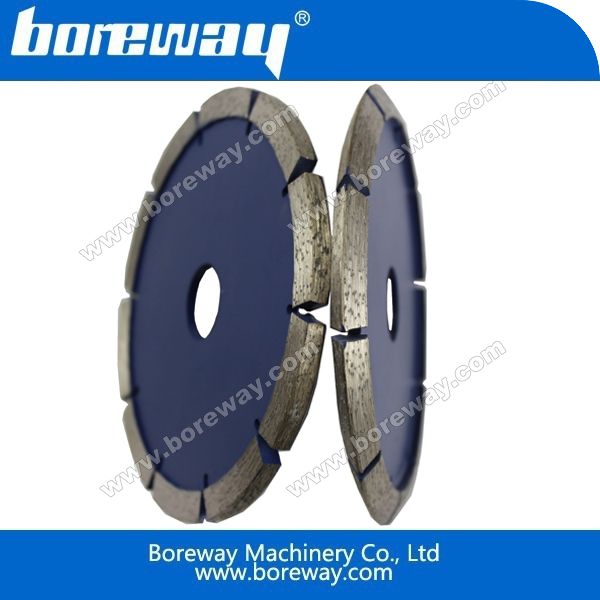

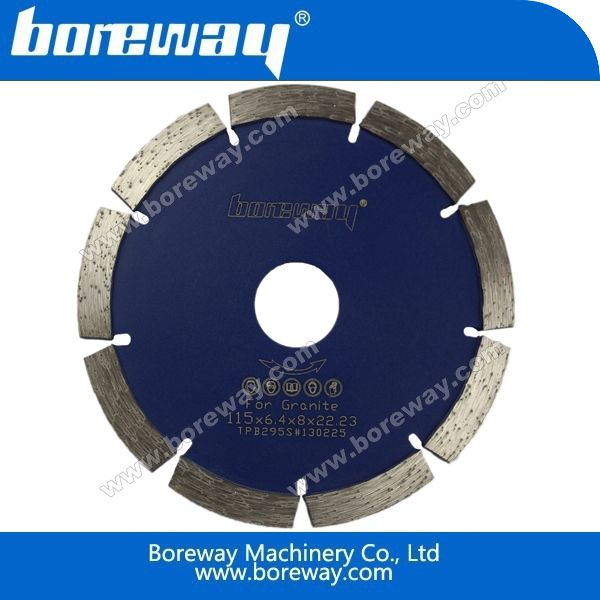

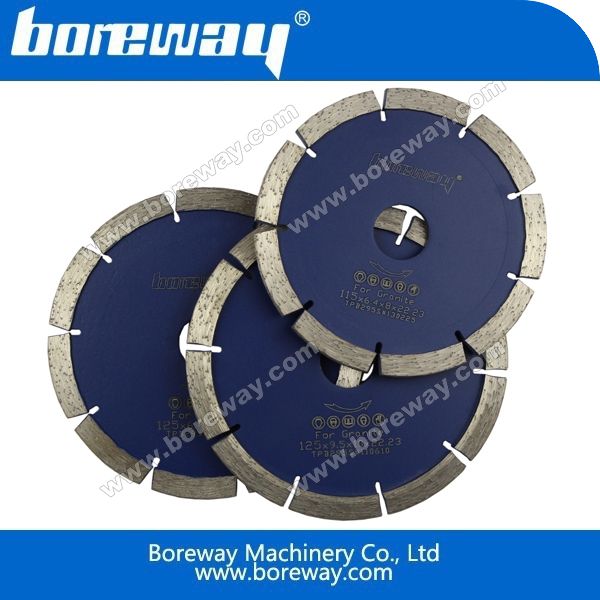

Picture of product:
Diamond Sintered Tuck Point Blade For Hard Rock
