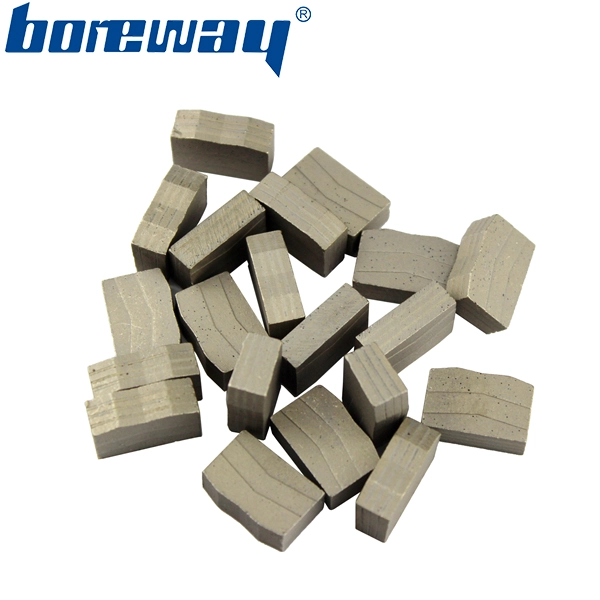

Diamond Segment for Cutting Marble Granite Quartz Concrete and Hard Stone factory low price
- Model Number: BW-DSEGG-001
- Type: Wet Use
- Diameter: 900mm-3500mm
- Segment Width: 6.1mm-12mm
- Segment Height: 13-20mm
- Segment shape: General purpose shape
- Applications: Be welded diamond saw blade for cutting granite and stone.
- Machine: Be welded diamond saw blade for granite by high frequency .
- Industry: Diamond tools
- Welding method: Silver or copper welding
- Welding result: Be welding saw blade for cutting.
- Advantage: Good sharpness and Long lifespan.
Introduction:
Wet use only, fast & easy cutting ,no chips , long lifespan ,and stable performance and high efficiency.
Diamond segment is made for welded on saw blade and for cutting granite and other hard stone.
Diamond segment can also be welded on drill bit for drilling stone,concrete and be welded on htc
for grinding stone and concrete floor.
Features:
1.High efficiency, long life and no breaking of segments.
2.Various specifications suitable for saw blade diameter350mm-3000mm.
3.Stable function and performance when cutting the stone,metal,concrete,wall.
4.Can be welded by high frequency welding.
Specifications:
The followings are the block cutting diamond segment for marble and stone:
Product Name |
Item Number |
Diameter (Inch/mm) |
Length (mm) |
Width (mm) |
Height (mm) |
Segment Number |
Block Cutting Segment For Marble |
DS02036 |
36”(900) |
24 |
6.9/6.1 |
13 |
64 |
DS02040 |
40”(1000) |
24 |
6.9/6.1 |
13 |
70 |
|
DS02044 |
44”(1100) |
24 |
7.4/6.6 |
13 |
74 |
|
DS02048 |
48”(1200) |
24 |
7.4/6.6 |
13 |
80 |
|
DS02052 |
52”(1300) |
24 |
8.4/7.6 |
13 |
88 |
|
DS02056 |
56”(1400) |
24 |
8.4/7.6 |
13 |
92 |
|
DS02064 |
64”(1600 |
24 |
9.2/8.4 |
13 |
108 |
|
DS02072 |
72”(1800) |
24 |
9.2/9.1 |
13 |
120 |
|
DS02080 |
80”(2000) |
24 |
11/10 |
15 |
128 |
|
DS020100 |
100”(2500) |
24 |
12.5/11.5 |
20 |
140 |
|
DS02120 |
120”(3000) |
24 |
12.5/11.5 |
20 |
160 |
|
DS02140 |
140”(3500) |
24 |
13/12 |
20 |
180 |
Other specifications are available upon request.

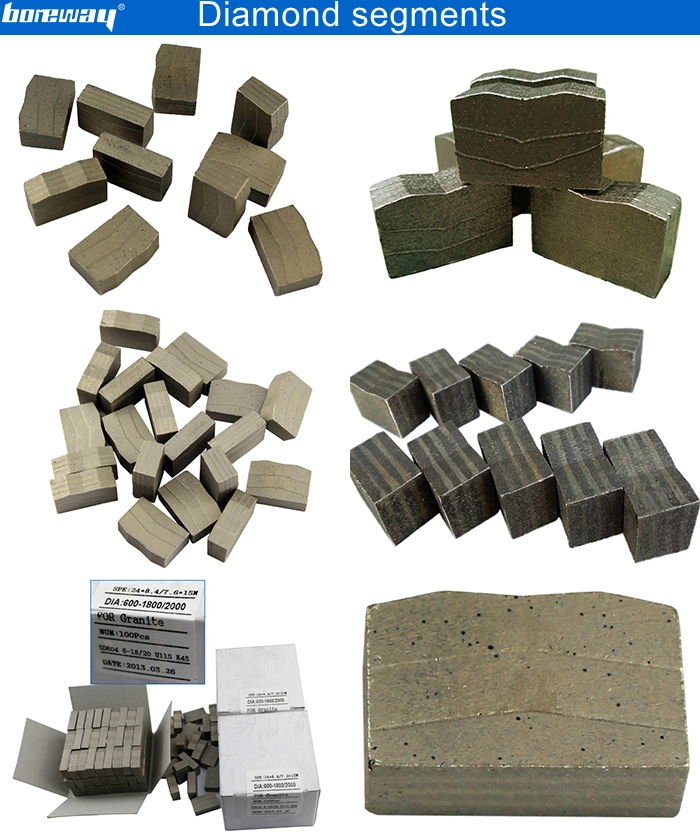

Related Picture of Diamond Segments
