Diamond Disc Cutter Blades For Cutting Sandstone
- Model:BW-DSB-SAN-U01
- Diameter:300-1000mm
- Bore:50/60mm
- Applicable:For cutting porcelain, tile and ceramic etc.
- Advantage:High efficiency,long lifespan,good stable
| Introduction: |
1. Diamond Disc Cutter Blades For Cutting Sandstone is suitable for bridge cutting machine, CNC cutting machine, table cutting machine and etc.
2. This kind diamond saw blade diameter is 300-1000mm, Inner hole is 50/60mm.
3. This diamond saw blade's segments are key hole type, BOREWAY can provide three quality (Premium, Standard, Economical) diamond segments, you can choose the right diamond segments as needed;
4. We can customized other size diamond segments for you, if you need, please contact us.
No.605 Huahui Center, Shuitou Town 362342 Quanzhou, Fujian, China
TEL: (+86)595-86990206 /
Fax: (+86)595-86990220
Mobile/WhatsApp/Wechat: (+ 86) 18650679939
Lyon Chang
2. This kind diamond saw blade diameter is 300-1000mm, Inner hole is 50/60mm.
3. This diamond saw blade's segments are key hole type, BOREWAY can provide three quality (Premium, Standard, Economical) diamond segments, you can choose the right diamond segments as needed;
4. We can customized other size diamond segments for you, if you need, please contact us.
| Features: |
1. Laser welding and high frequency welding saw blades is available
2. Wet use only, fast & easy cutting, long life；
3. Very less or no chips, perfect performance；
4. Other or special specification can be ordered by customers.
| Specification: |
The normal size of Diamond Disc Cutter Blades For Cutting Sandstone:
| Product name | Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension(mm) |
Segment Number |
Application |
| Diamond Saw Blades |
300 |
2.2 | 40*3.0*10(12,15,20) | 21 | Granite Marble Other stone |
| 350 | 2.2 | 40*3.2*10(12,15,20) | 24 | ||
| 400 | 2.6 | 40*3.4*10(12,15,20) | 28 | ||
| 450 | 3 | 40*3.6*10(12,15,20) | 32 | ||
| 500 | 3 | 40*4.0*10(12,15,20) | 36 | ||
| 550 | 3.6 | 40*4.6*10(12,15,20) | 40 | ||
| 600 | 3.6 | 40*4.6*10(12,15,20) | 42 | ||
| 650 | 4 | 40*5.0*10(12,15,20) | 46 | ||
| 700 | 4 | 40*5.0*10(12,15,20) | 50 | ||
| 750 | 4 | 40*5.0*10(12,15,20) | 54 | ||
| 800 | 4.5 | 40*5.5*10(12,15,20) | 57 | ||
| 850 | 4.5 | 40*5.5*10(12,15,20) | 58 |
Other connection and specification can be customized according to need.

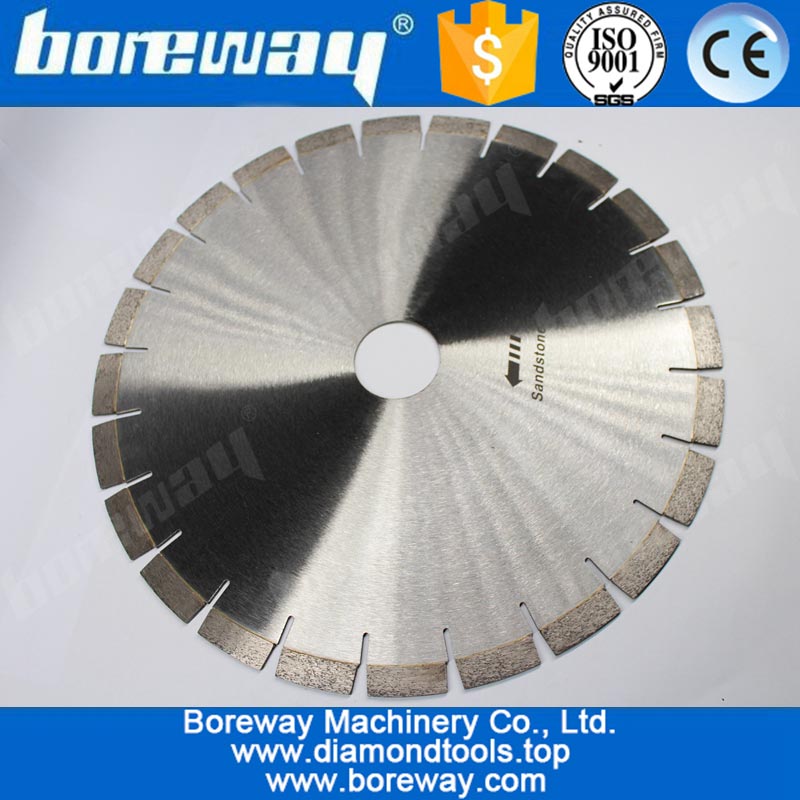

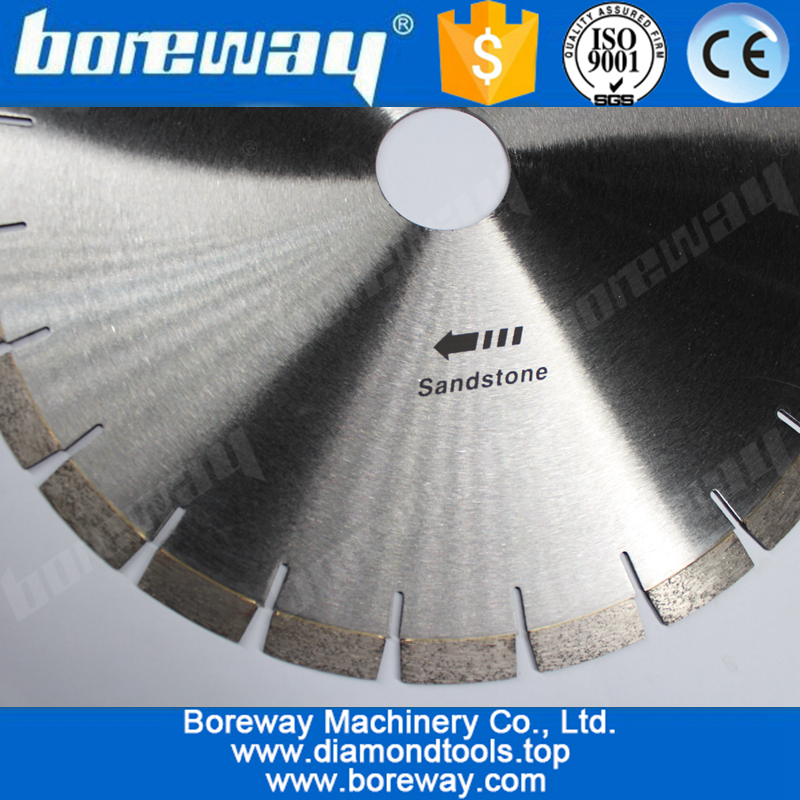

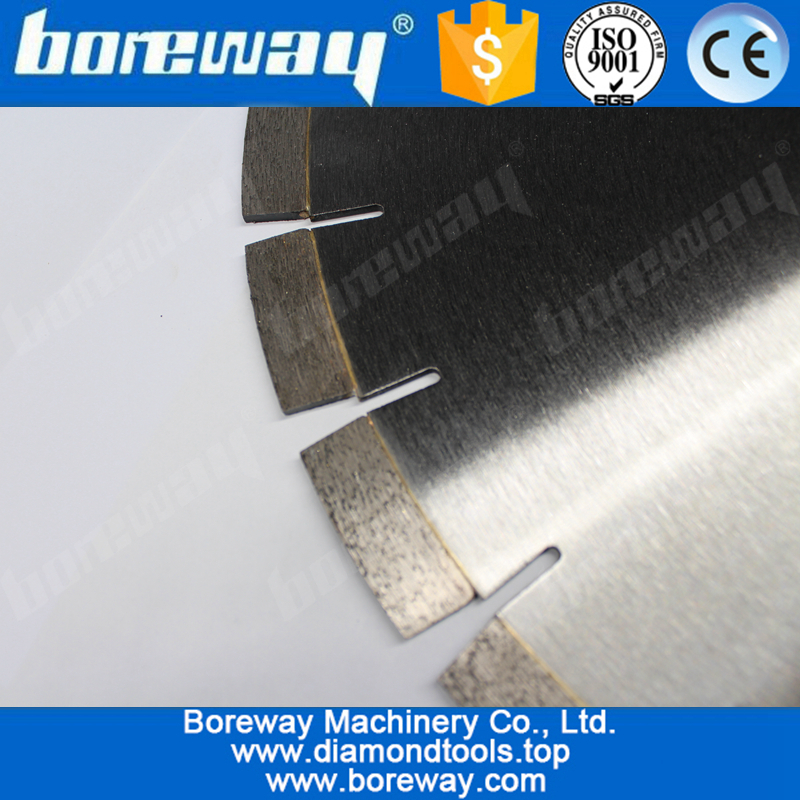

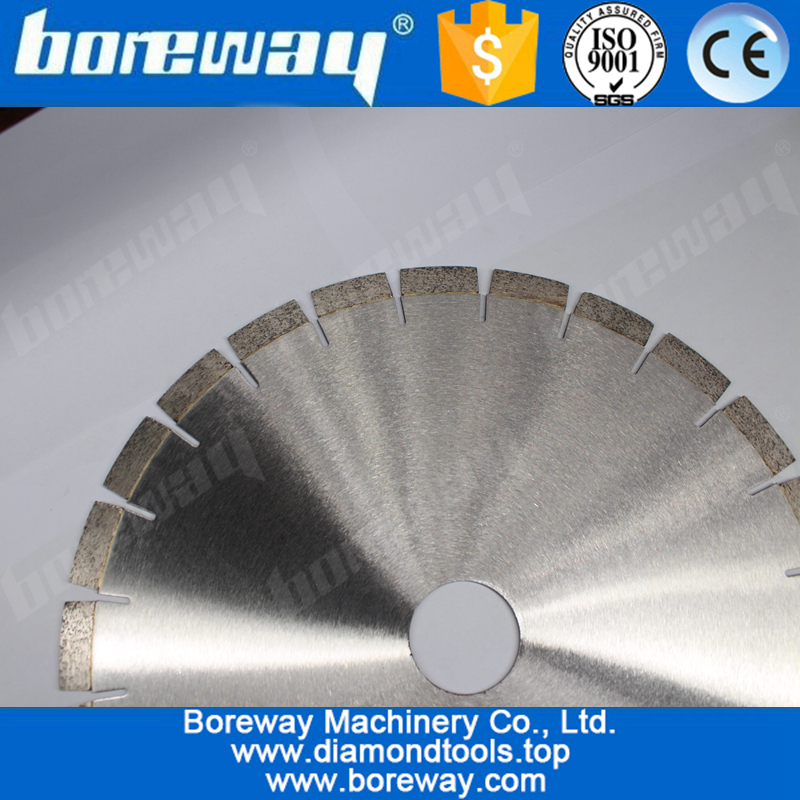

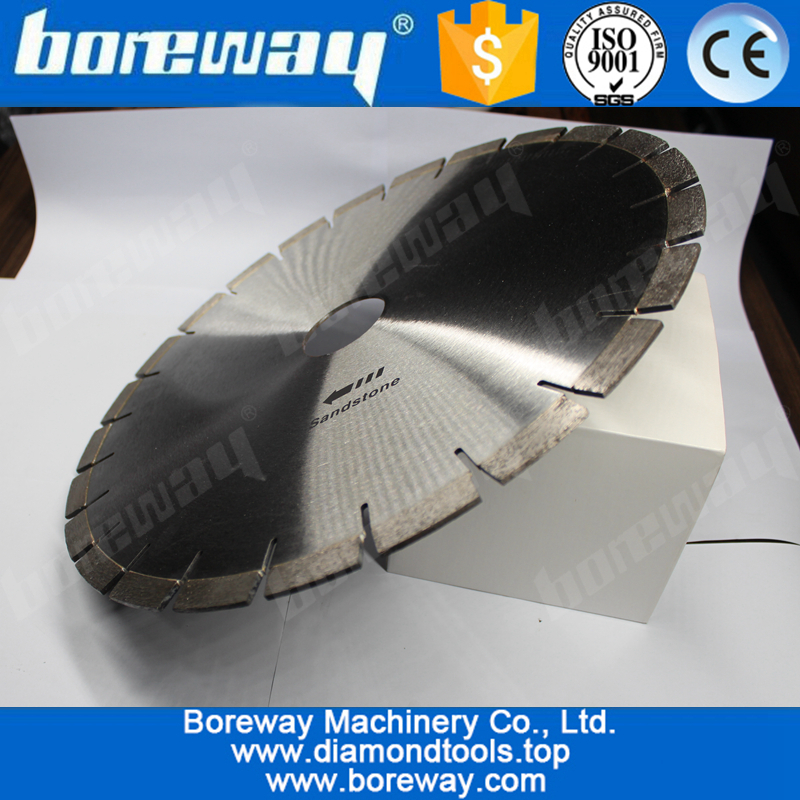

| Images: |
If you want know more images, please contact us.
