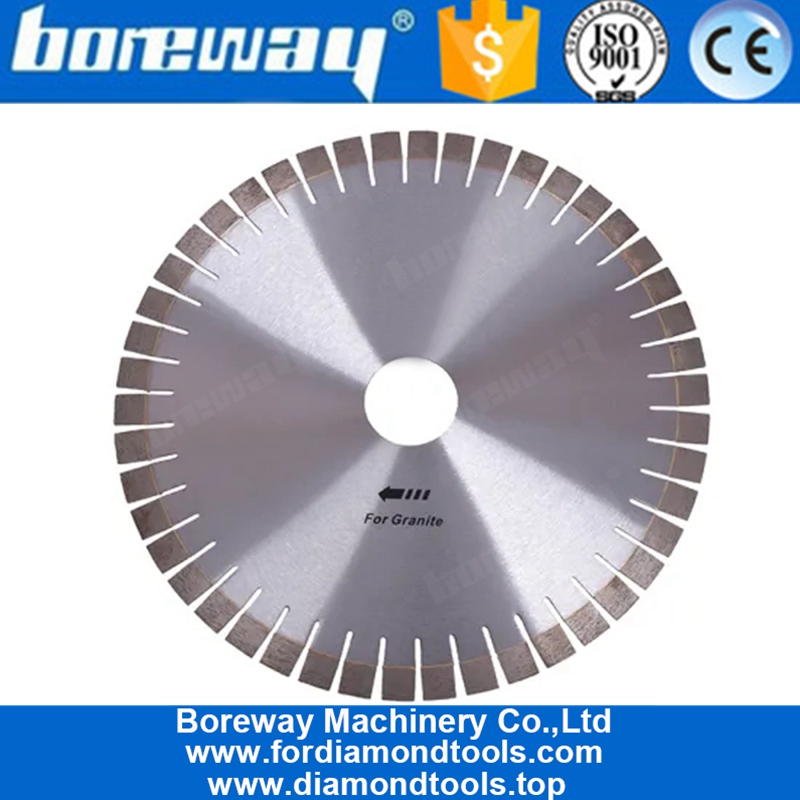

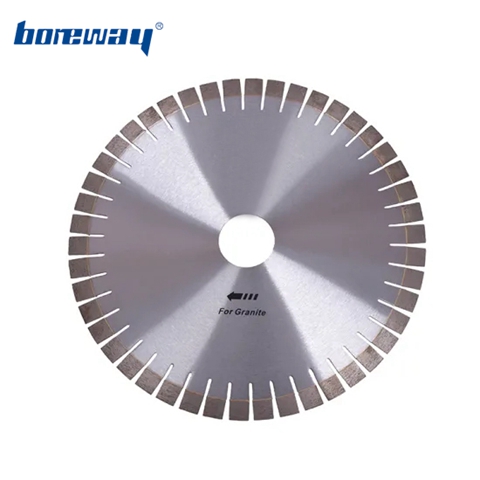

16 Inch 400mm High Speed and Efficient Diamond Cutting Blades for Granite
- Port: Xiamen
- Trademark: Boreway
- Model Number: BW-SBG-01-04
- Teeth per Inch: 28
- Inner Hole: 50mm, 60mm
- Specification: 16Inch, 400mm
- Segment Size(L*W*H): 40*4.0*12
- Silent or Normal: For Your Requirement
- Manufacturing Process: Hign Frequency Welded
- Performance: Fast Sharp Cutting and Stable Performance
Descriptions: |
16 Inch 400mm High Speed and Efficient Diamond Cutting Blades for Granite:
Normal Segmented Diamond Saw Blades for Slab Edge Cutting of Granite, Sandstone, kinds of Hard Stones with quartz.
High frequency welding is adopted for Diamond Cutting Blades for Granite, it is to avoid the diamond segment drop during cutting which may cause the harm to the operators..
This Diamond Cutting Blades for Granite is with the feature of safe cutting, high cutting efficiency, long lifespan and smooth cutting without edge-broken.
Such diamond saw blades are highest ratio of performance to price!
Specifications: |
We are instrumental in providing to our valuable customers excellent quality Diamond Cutting Blades for Granite which are available with following specification:
300-800 mm Granite Saw Blade dimension | |||||
Diameter | Dimension of Segment | No.of teeth | |||
Inch | mm | length | Thickness | Height | Number |
12 | 300 | 40 | 3.0/3.2 | 8/10/12 | 21 |
14 | 350 | 40 | 3.0/3.2 | 8/10/12/15/ | 24 |
16 | 400 | 40 | 3.4/3.6/3.8 | 8/10/12/15/ | 28 |
18 | 450 | 40 | 4.0/4.2 | 8/10/12/15/ | 32 |
20 | 500 | 40 | 4.0/4.2 | 8/10/12/15/20 | 36 |
24 | 600 | 40 | 4.6/4.8 | 8/10/12/15/20 | 42 |
28 | 700 | 40 | 5.2/5.5 | 8/10/12/15/20 | 42 |
32 | 800 | 40 | 6 | 8/10/12/15/20 | 46 |
In addition to 16 Inch 400mm High Speed and Efficient Diamond Cutting Blades for Granite,
All of our products have been strictly tested before accessto market. Other specifications can
be customized according to requirements.
3 Kinds of Silver Weld Diamond Saw Blade as follow:
1st Straight Slot Silver Weld Diamond Saw Blade
2nd Key Slot Silver Weld Diamond Saw Blade
3rd Fishhook Slot Silver Weld Diamond Saw Blade

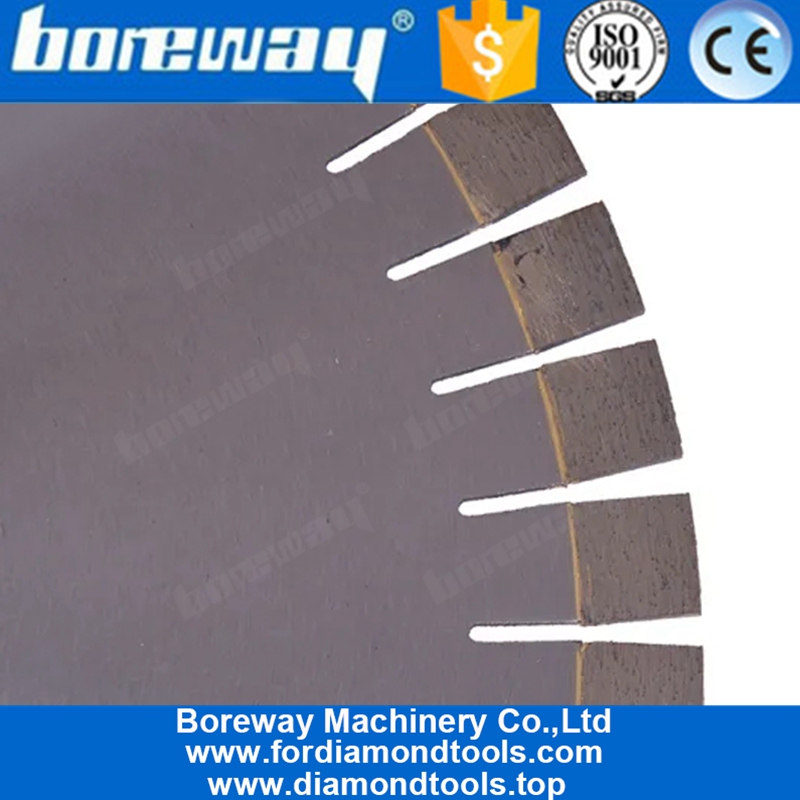

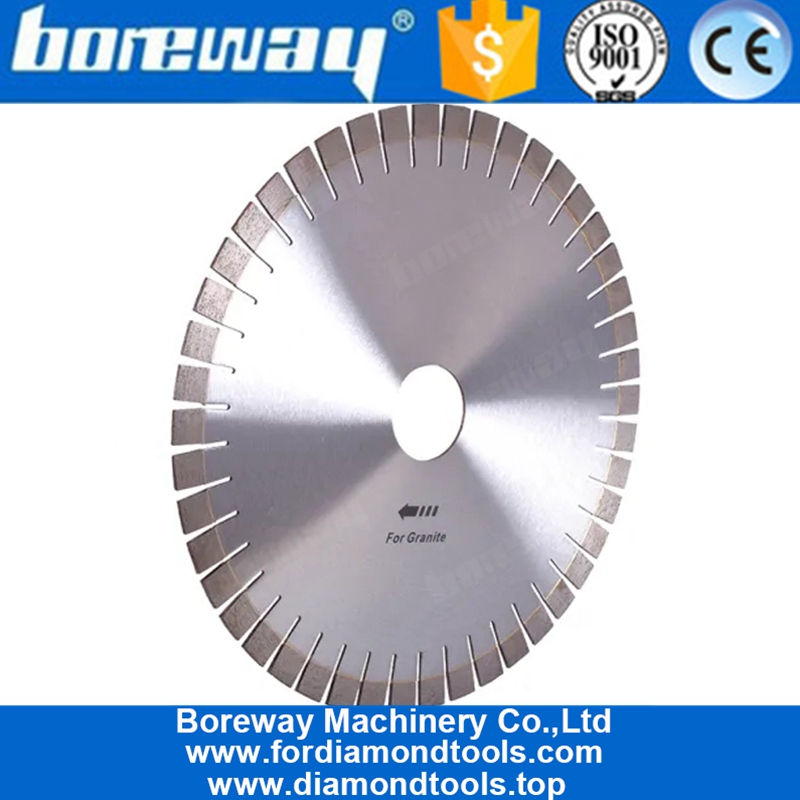

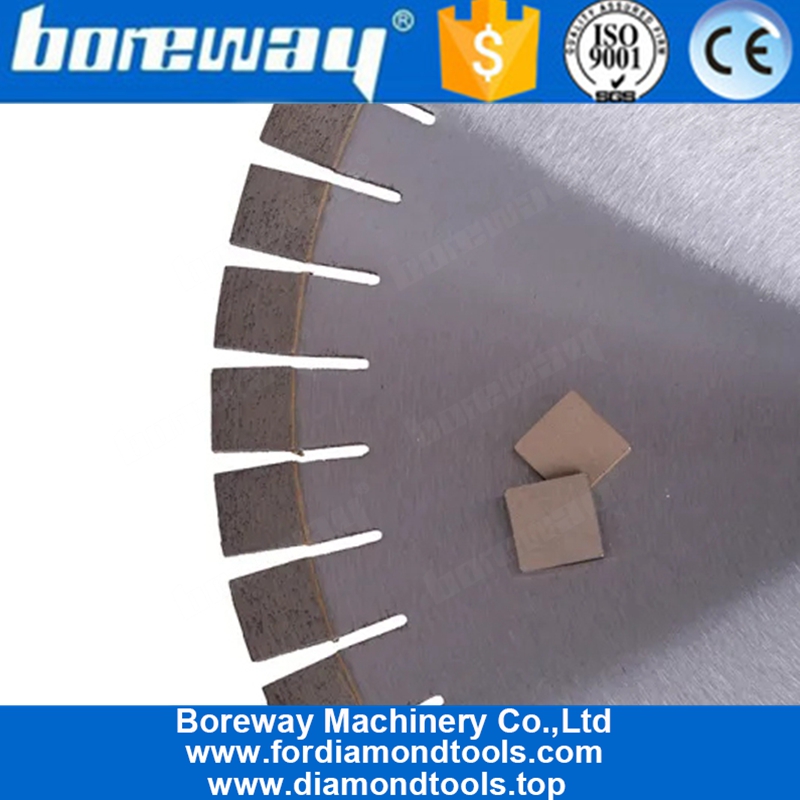

Product Details: |
16 Inch 400mm High Speed and Efficient Diamond Cutting Blades for Granite:


Applications: |
Diamond Cutting Blades for Granite. Suitable for Bridge Cutting Machine, Manual Handling Cutting Machine, Table Cutting Machine.

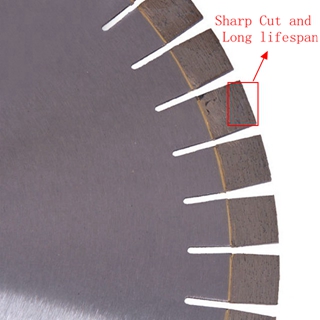

Cutting Effect:
Note: Special logo, segment size and shapes, installation are available by customer's request.
Advantages: |
2.Excellent comprehensive cutting performance.
3.High cutting efficiency, meanwhile, it has a long lifespan.
4.Silent and non-silent blades are available for client's choice.
About us: |
We have a strict quality control system:

Packing & Delivery: |
Packing:

Delivery:

Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
FAQ: |
1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use
Chinese products because of their high quality and high cost performance. We are a professional diamond
tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them
because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them
get more. We are ready to offer our potential customers a special discount on samples. It's very important that
you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label
and company brand. If you want us to make any new products for you, just send your products to us. Whether it's
drawings or samples, we have the ability to produce the same products. We will not sell these products to others,
only customers can get permission.
Please note: |
When place order for diamond saw blades please inform the following if possible:
Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
