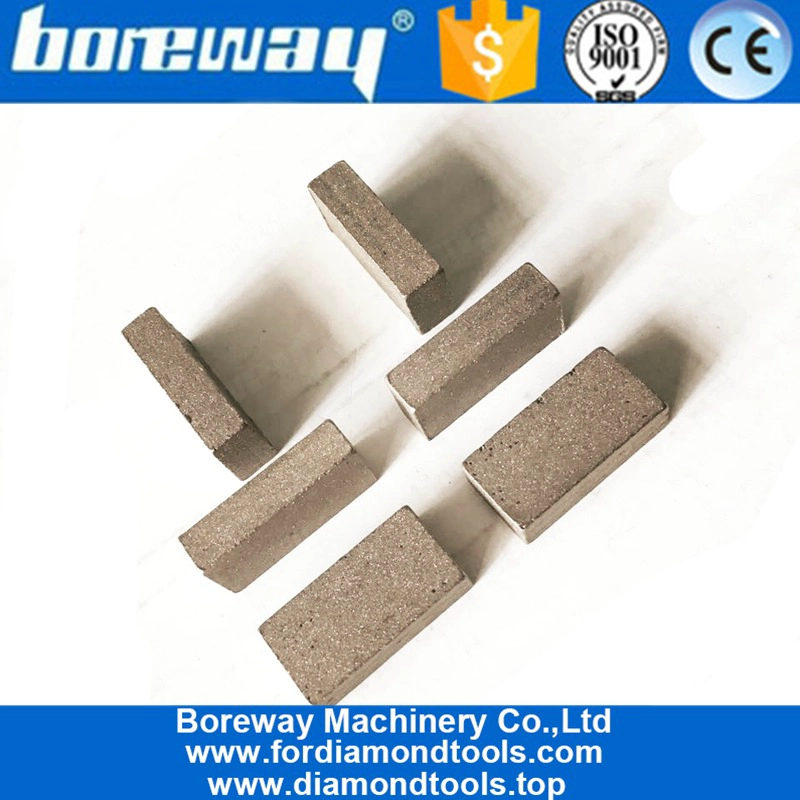

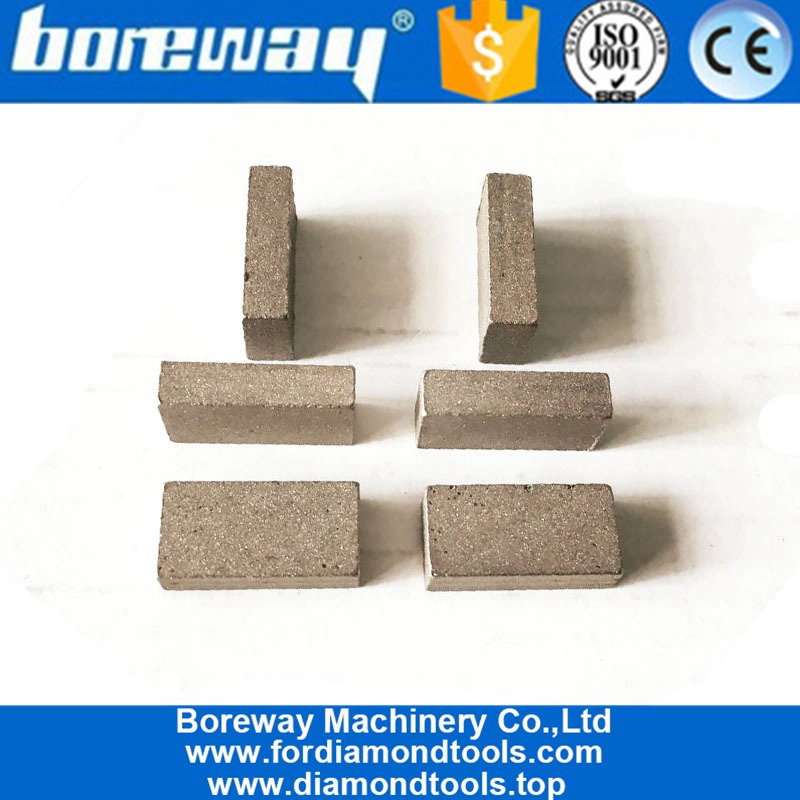

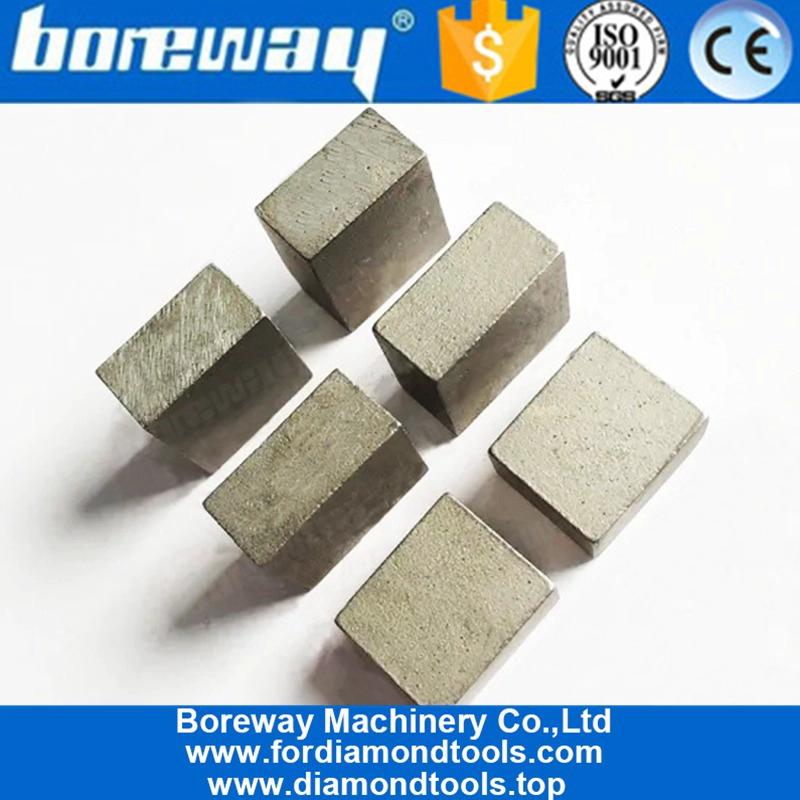

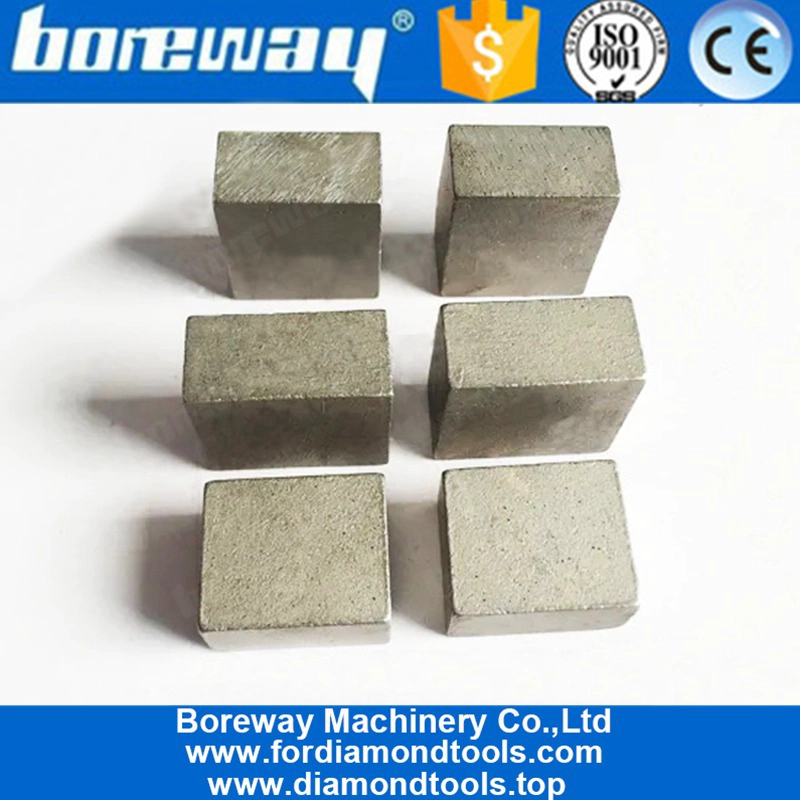

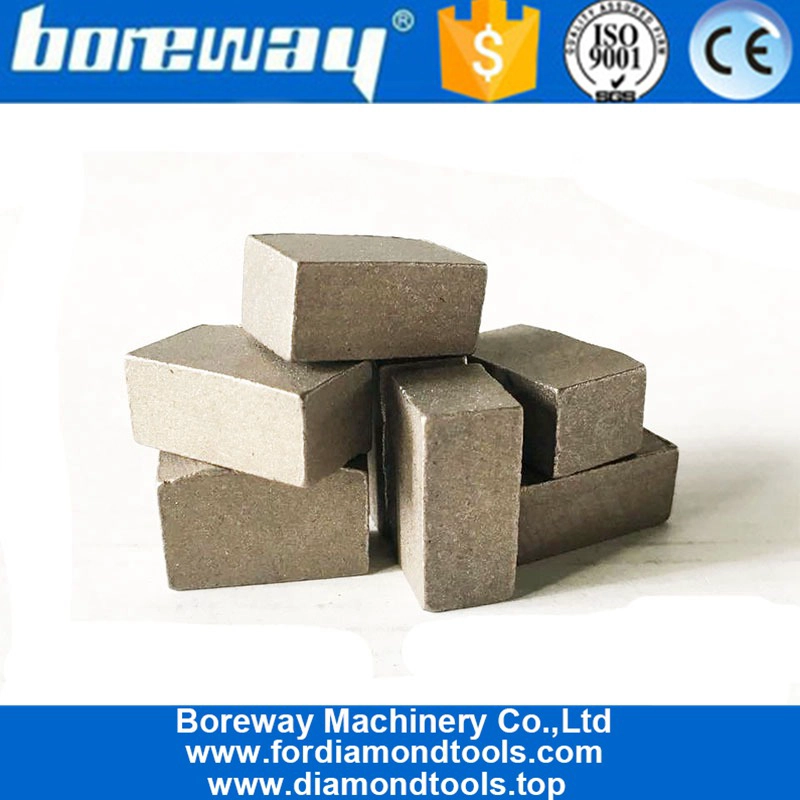

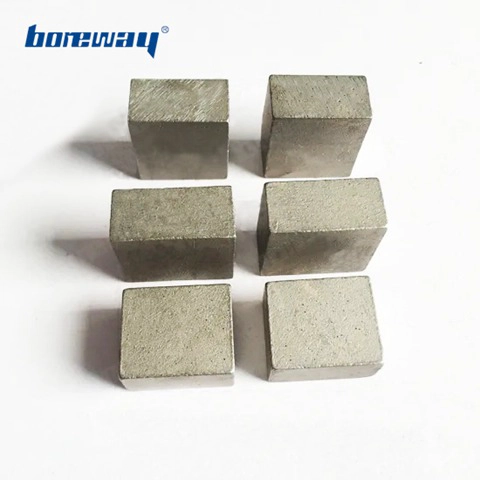

Factory Price 2500mm Box Shape Diamond Block Cutting Segment for Marble

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSMB-00
  • Type: Wet use only
  • Service: OEM & ODM
  • Application: Marble Block Cutting
  • Segment Size(L*W*H): 24*11.8/10.8*15mm
  • Cutting result: Flat surface and even size
  • Machine: Bridge Cutting Machine, Table Cutting Machine
  • Usage: Block cutting of marble, limestone, slate, various soft stone without quartz

Descriptions:



Factory Price 2500mm Box Shape Diamond Block Cutting Segment for Marble:

The design of Diamond Block Cutting Segment for Marble has good sharpness and high efficiency at the process of cutting;

The Diamond Block Cutting Segment for Marble has strictly raw material source and production quality control assure stable quality;

Such diamond segment are highest ratio of performance to price!

Specifications:

We are instrumental in providing to our valuable customers excellent quality
Diamond Block Cutting Segment for Marble which are available with following specification:

      1000-3500 mm Marble Segment Blade dimension
  Diameter    Dimension of Segment  No.of teeth
 Inch  mm  length  Thickness  Height  Number
 40  1000  24  7.4/6.8  15  70
 44  1100  24  7.4/6.8  15  74
 48  1200  24  7.5/7.0  15/20  80
 52  1300  24  8.0/7.4  15/20  88
 56  1400  24  9.0/8.4  15/20  96
 64  1600  24  9.0/8.4  15/20  108
 72  1800  24  10/9.0  15/20  120
 80  2000  24  10.6/9.8  15/20  128
 88  2200  24  11.5/10.5  15/20  136
 100  2500  24  11.8/10.8  15/20  140
 120  3000  24  13.0/12  15/20  160
 140  3500  24  13.5/12.5  15/20/30  180

Besides 2500mm Box Shape Diamond Block Cutting Segment for Marble,
All of our products have been strictly tested before access to market. Other specifications can be customized
according to requirements.

Product Details:

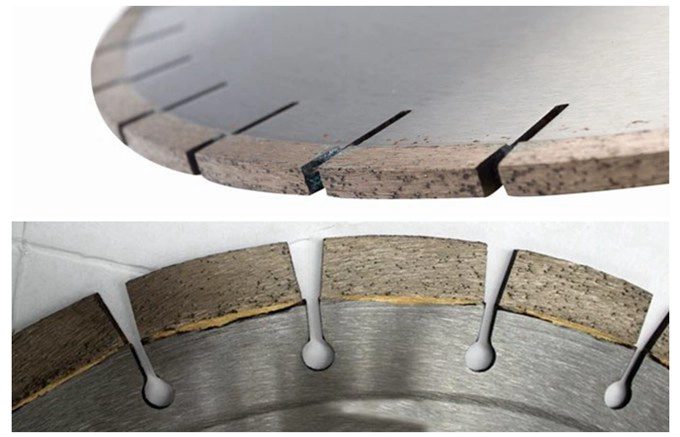

2500mm Box Shape Diamond Block Cutting Segment for Marble:

  

Applications:

2500mm Box Shape Diamond Block Cutting Segment for Marble, suitable for marble, limestone, slate, various soft stone without quartz.

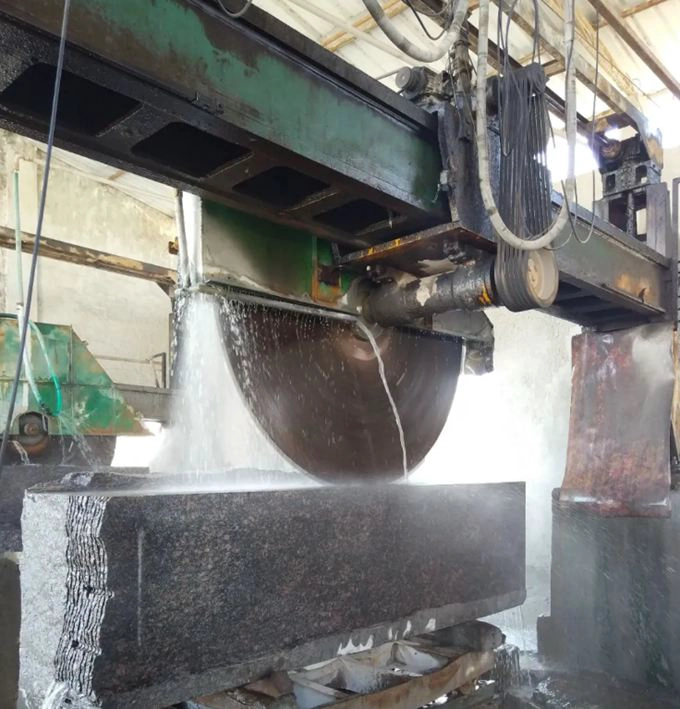

Cutting Effect:

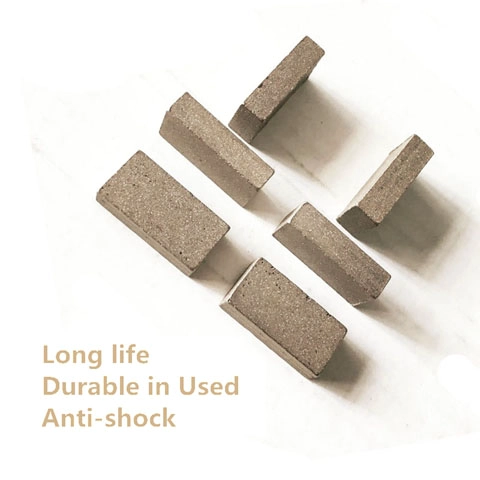

Advantages:

1.Ideal edge trimming quality best .

2.Excellent comprehensive cutting performance.

3.High cutting efficiency, meanwhile, it has a long lifespan.


Related Products:
     
             
                              


About us:

We have a strict quality control system:


270MM Bush Hammered Plate For HTC Grinders

Packing & Delivery:



Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1.If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2.What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency silver welded machine instead of fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be reduced!
