Home > Product > Vacuum Brazed Diamond Tools > Vacuum Brazed Diamond Mini Core Bit > Dia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
Dia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bitsDia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bitsDia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bitsDia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bitsDia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits

Dia.20mm Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits

  • Product Name: CNC Vacuum Brazed Diamond Finger Bits
  • Grit: 50/60#
  • Diameter: 20mm
  • Total Length: 65mm
  • Workable Length:50mm
  • Thread Connection: 5/8-11", M14, G 1/2"
  • Usage: Dry or Wet use, for granite,marble,ceramic and more...
Product Description
Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
CNC Diamond Finger Bits Ideal for marble and limestone drilling, can perform on granite, marble,tiles, porcelain,concrete and more; Vacuum Brazed Diamond Finger Bits Could be used wet or dry with cooling slots design for easier core removal when stuck.

CNC diamond finger bit

1.Fast speed at 6,000 to 7,000 rpm and 400 to 800 mm/min feeding

2.Smooth and Fast Milling on soft materials at a very affordable price

3.Vacuum brazed are used to cut soft materials like Marble and Limestone
4.Available with connection of M14, 5/8" -11 and G1/2’’ thread to fit different machine and models
5.Grooved water channel design offers necessary lubrication while removing    slurry from the cutting surface


Application:

1. Used on angle grinder

2. Also available to make a hole directly, but not recommend to do this job

3. Enlarge, shape and/or round bevel existing holes in Porcelain, Hard Ceramic, marble and granite


Feature:

1. Very easy to operate

2. Grit #50/60 provide you great finishing

3. Vacuum brazed technology provide high efficient working performance


Specification: Vacuum Brazed CNC Diamond Finger Bits Stone Finger Bits

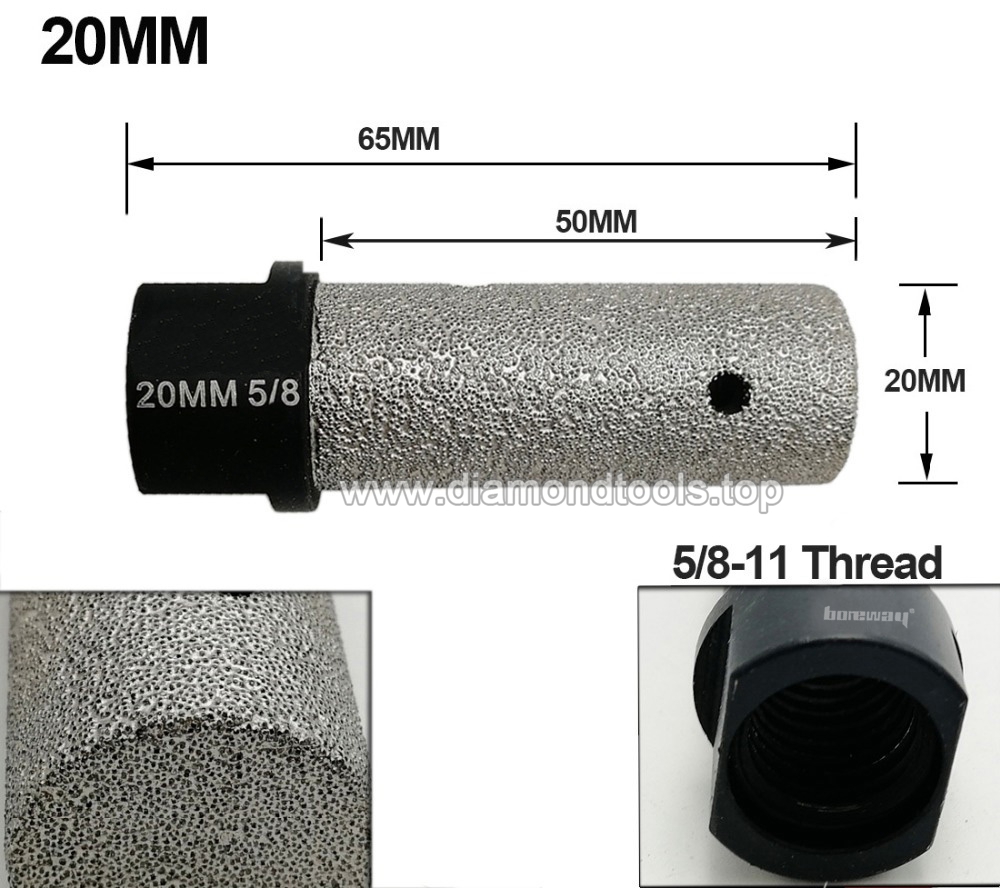

20MM Diameter, 50MM workable length, 5/8-11 thread, Total Length: 65mm, Grit #50/60

(NOTE: 5/8-11" Thread, it's usually suitable for North America Market, please attention!)


The followings are our normal sizes of the dry and wet use diamond core drill bits.

 Product  Diameter(mm)  Segment Height(mm)  Grit Size(#)  Connection
 Finger Bit  ø16  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
 Finger Bit  ø20  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
 Finger Bit  ø25  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
 Sink Wheel  ø25  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
 Sink Wheel  ø50  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
 Sink Wheel  ø75  35-60  30#~60#  M14 / 5/8" -11 / G1/2"
Other specification or any special requirements, Pls contact with us!

Pictures:

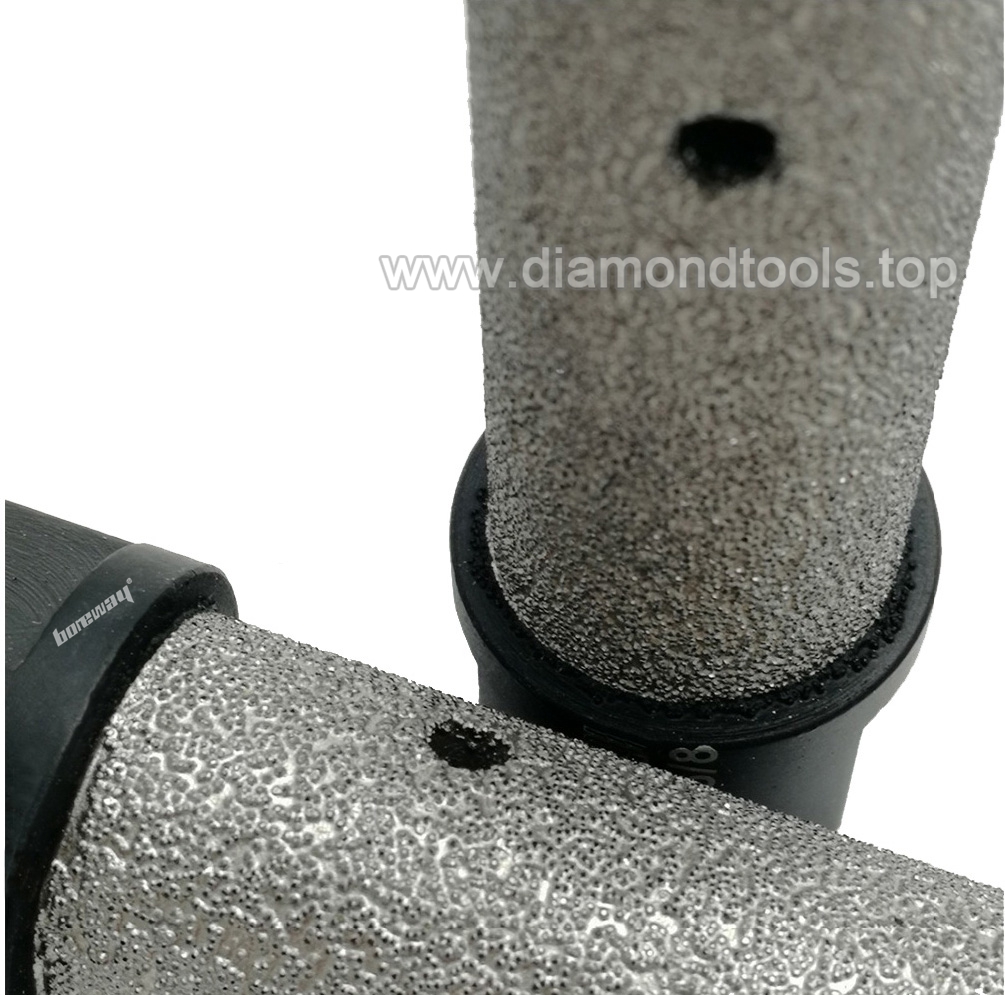

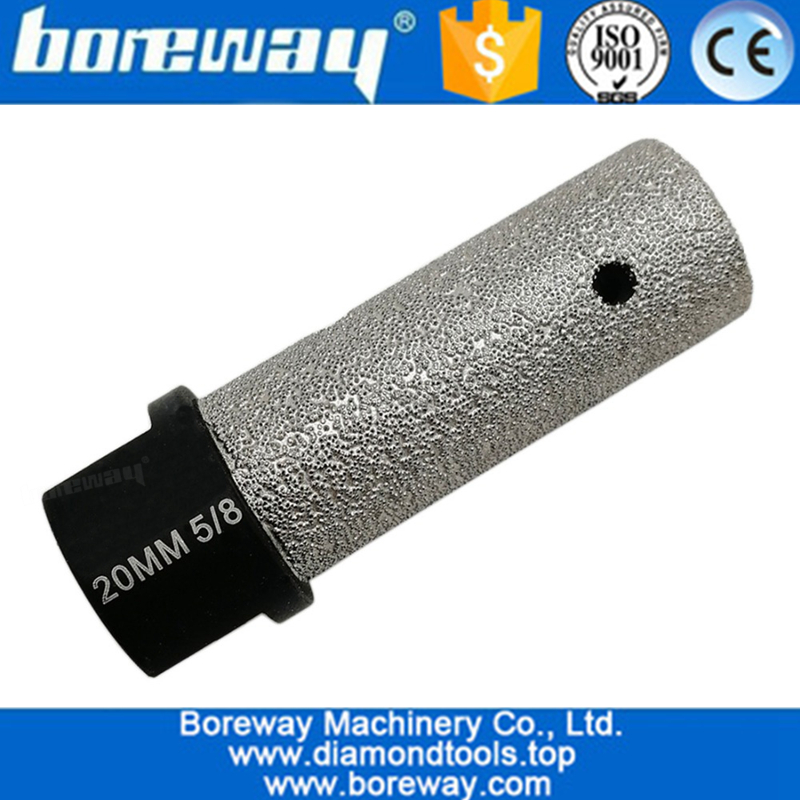

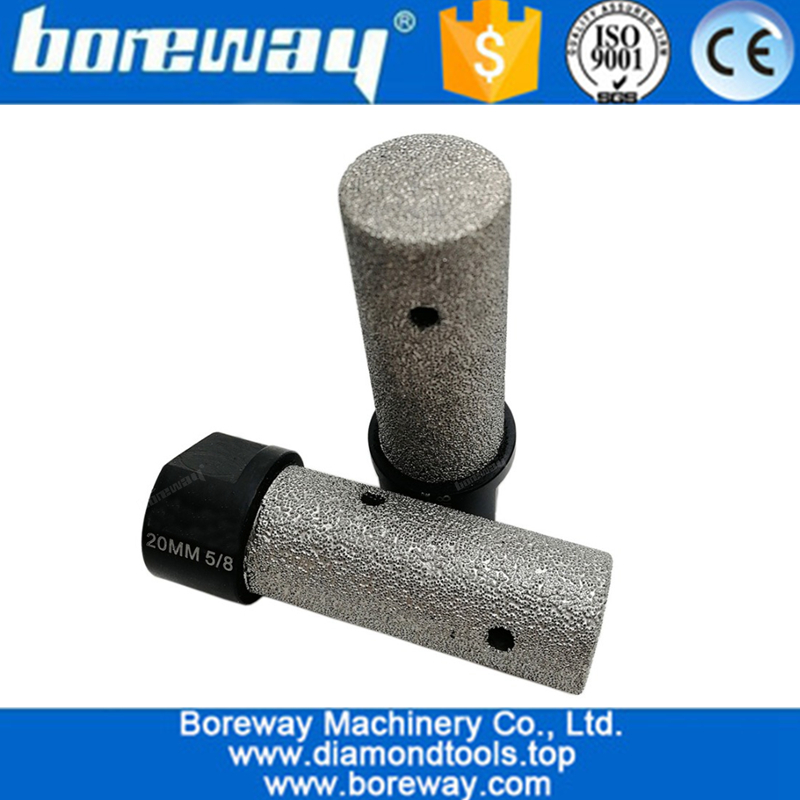

Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits
Vacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bitsVacuum Brazed CNC Diamond Finger Bits-Diamond Milling Cutter-Vacuum Brazed Diamond stone finger bits

Another model, Pls click here: Vacuum Brazed Diamond Finger Bits

Packing & Delivery:

1. Tools packing in carton cases;

2. When tools are in large quantities, they are packing in wooden cases.
