D354x10x2.2x3.0x50mm Diamond Blade Quartz CutterD354x10x2.2x3.0x50mm Diamond Blade Quartz CutterD354x10x2.2x3.0x50mm Diamond Blade Quartz CutterD354x10x2.2x3.0x50mm Diamond Blade Quartz CutterD354x10x2.2x3.0x50mm Diamond Blade Quartz Cutter

D354x10x2.2x3.0x50mm Diamond Blade Quartz Cutter

  • Model:BW-DSB-QUA-354-U01
  • Diameter:354mm
  • Height:10mm
  • Bore:50mm
  • Applicable:For cutting quartz.
  • Advantage:High efficiency,long lifespan,good stable
Introduction:
1. D354x10x2.2x3.0x50mm Diamond Blade Quartz Cutter is suitable for bridge cutting machine, CNC cutting machine, table cutting machine and etc.
2. This kind diamond saw blade diameter is 300-1000mm, Inner hole is 50/60mm.
3. This diamond saw blade's segments are key hole type, BOREWAY can provide three quality (Premium, Standard, Economical) diamond segments, you can choose the right diamond segments as needed.
4. We can customized other size diamond segments for you, if you need, please contact us;
Features:
1. Laser welding and high frequency welding saw blades is available
2. Wet use only, fast & easy cutting, long life;
3. Very less or no chips, perfect performance;
4. Other or special specification can be ordered by customers.
Specification:
The normal size of diamond saw blade:
Product  name  Diameter (mm)  Steel Core Thickness(mm)  Segment
Dimension(mm)
 Segment
Number
 Application
Diamond
Saw
Blades
 300
 2.2  40*3.0*10(12,15,20)  21  Granite
Marble
Other stone
 350  2.2  40*3.2*10(12,15,20)  24
 400  2.6  40*3.4*10(12,15,20)  28
 450  3  40*3.6*10(12,15,20)  32
 500  3  40*4.0*10(12,15,20)  36
 550  3.6  40*4.6*10(12,15,20)  40
 600  3.6  40*4.6*10(12,15,20)  42
 650  4  40*5.0*10(12,15,20)  46
 700  4   40*5.0*10(12,15,20)  50
 750  4   40*5.0*10(12,15,20)  54
 800  4.5   40*5.5*10(12,15,20)  57
 850  4.5   40*5.5*10(12,15,20)  58
Other connection and specification can be customized according to need.
Images:

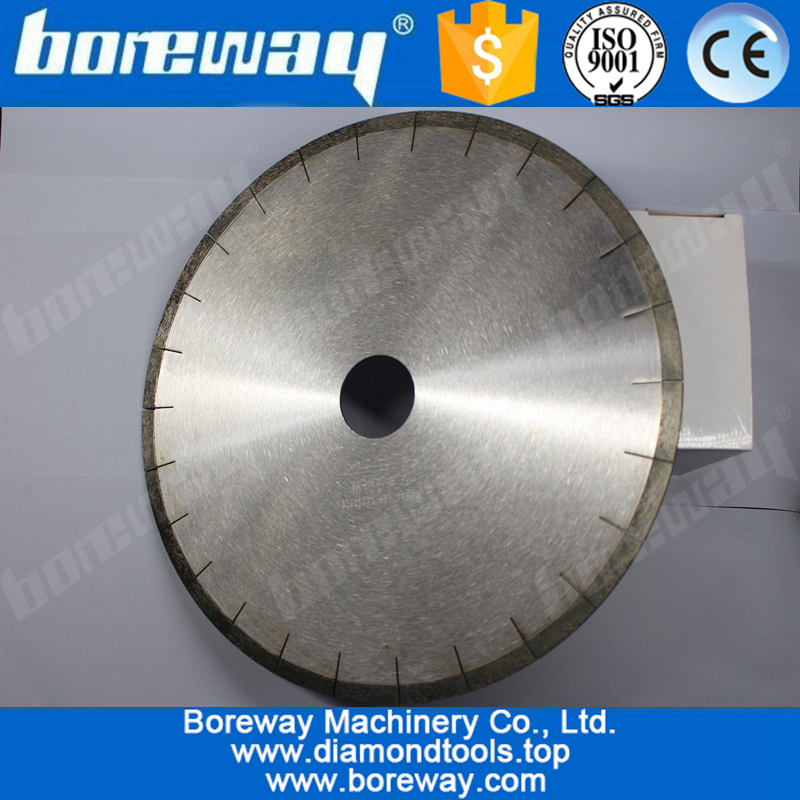

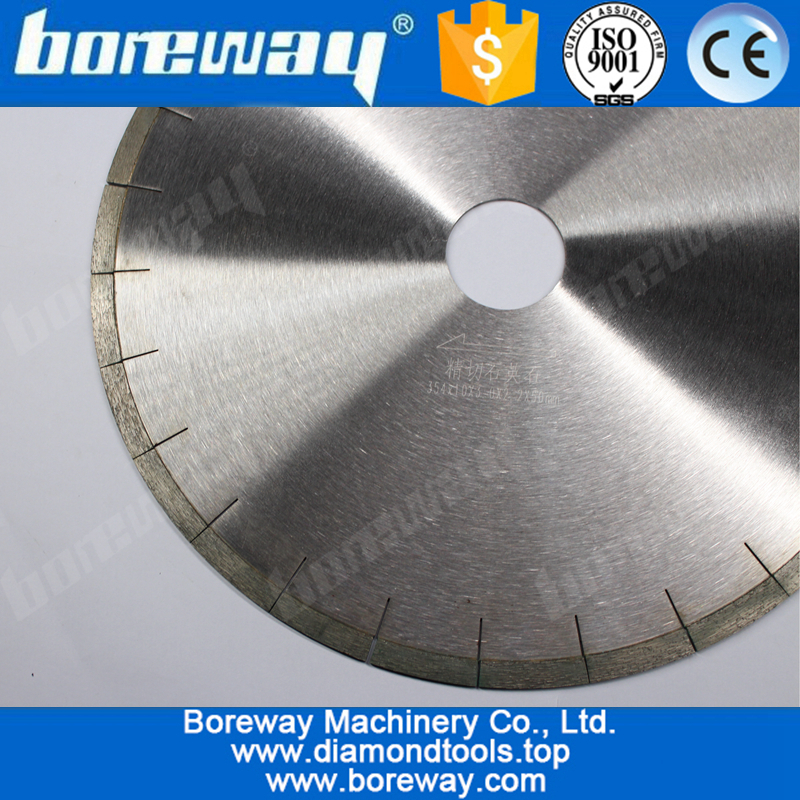

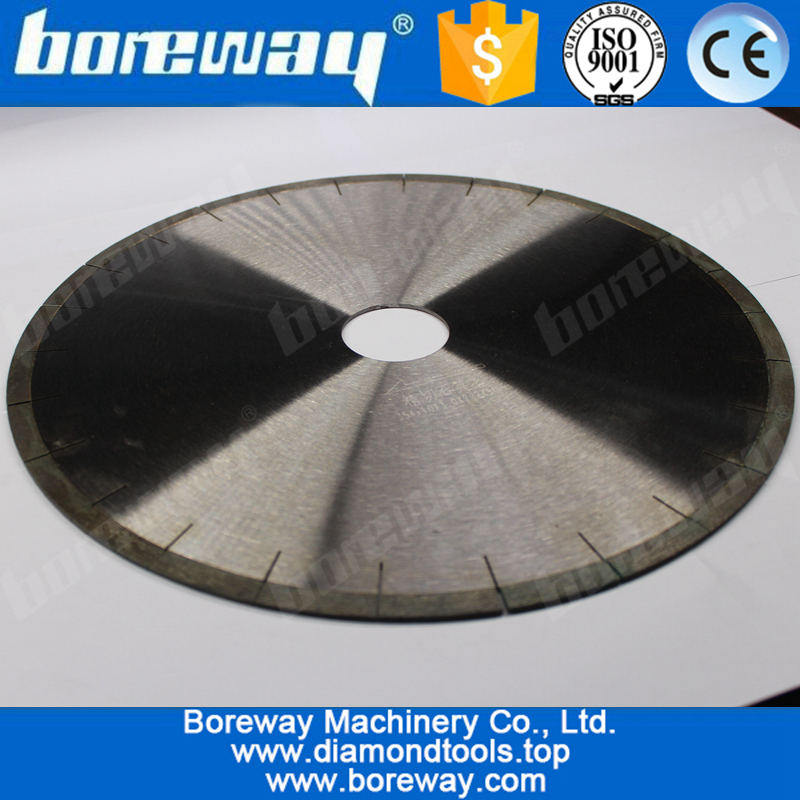

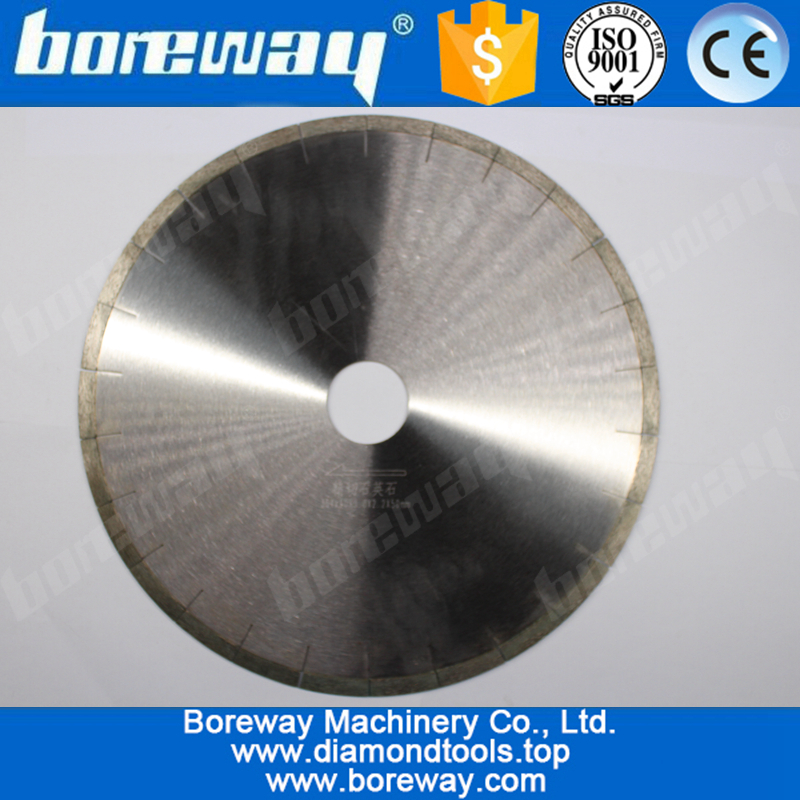

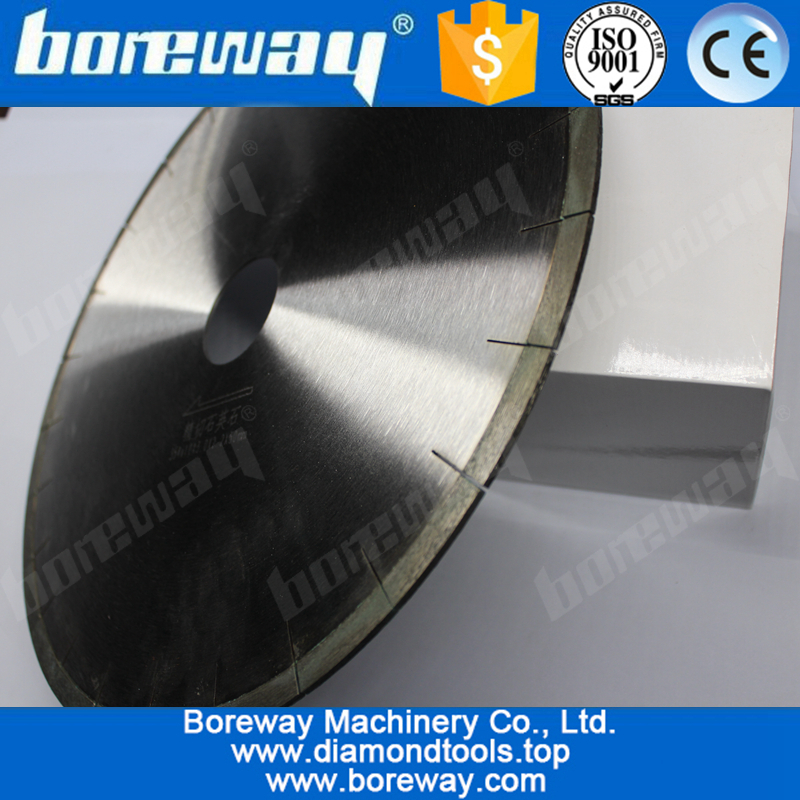

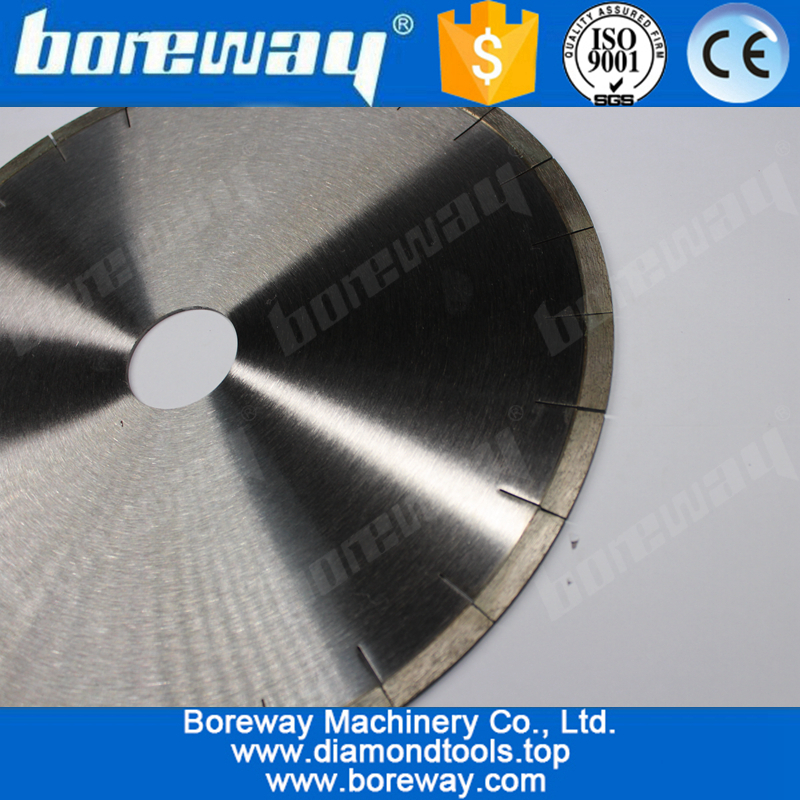

D354x10x2.2x3.0x50mm Diamond Blade Quartz Cutter

D354x10x2.2x3.0x50mm Diamond Blade Quartz Cutter
If you want know more images, please contact us.
