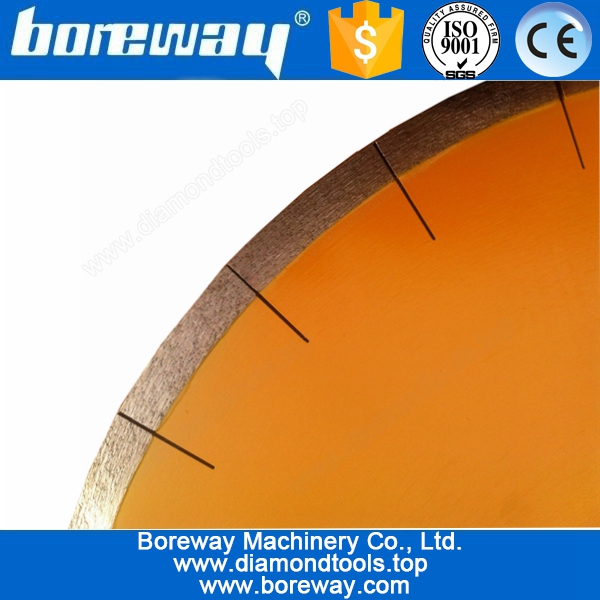

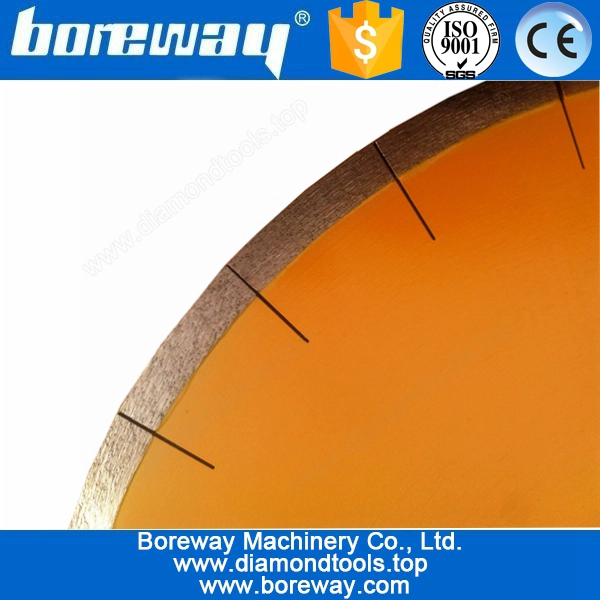

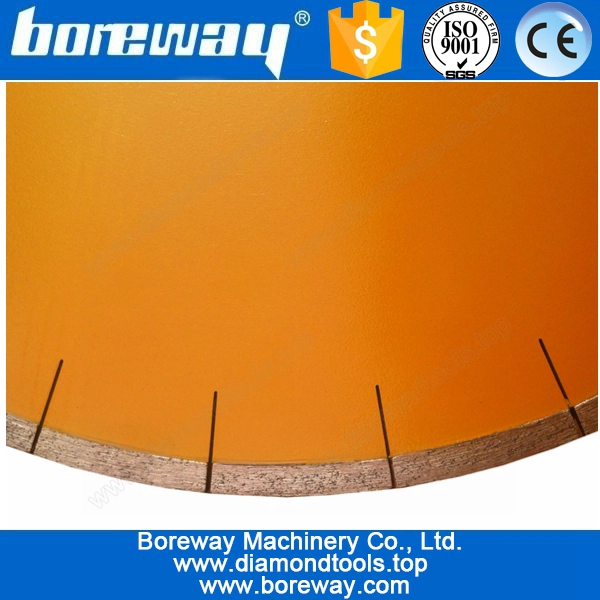

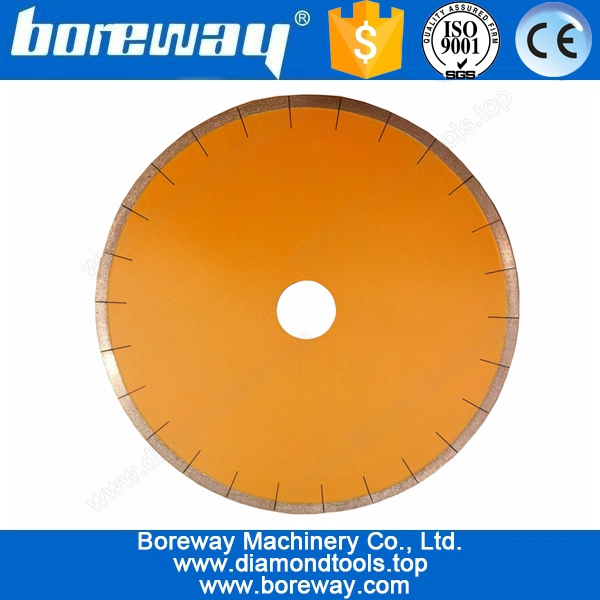

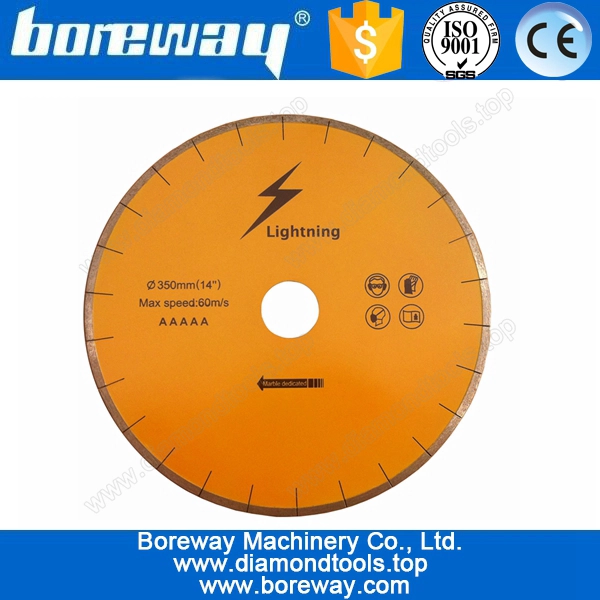

D350x8.5x2.8x50mm Diamond Cutting Wheel For Marble
- Model Number：BW-MDSB-350
- Type:Wet Use
- Diameter:350mm
- Segment height:8.5mm
- Thickness:2.8mm
- Inner hole:50mm
- Applications:Wet cutting for marble
- Machine:Bridge cutting machine and other large machine .
- Welding method:Silver or copper welding
- Advantage:High efficiency,long lifespan and good stable
| Introduction: |
2.Wet cutting marble slab, in particular cut beige marble slabs of medium and high hardness. Such as (Magnolia, Spanish beige, lightning, brown net) and so on.
3.Cutting range: can cut more than 91% of the marble slab, for the hard and brittle marble slab;Cutting effect is good, the collapse rate is low.
In the actual use of the equipment of the infrared bridge cutting machine, the cutting lifespan as below:
The lifespan of the cutting board (many different boards) is in the range of 1000-1500 squares; The lifespan of cutting a single type specification can reach more than 1500 squares ( The cutting life may affect by the cutting machine, the environment, and the method of use ect)
| Features: |
1. Sharp cutting, wear-resistant.
2. Auxiliary with angle grinder,multi-cutter machines
3. Fast cutting speed and small cutting gap.
4. High cutting efficiency and less chipping.
2. Auxiliary with angle grinder,multi-cutter machines
3. Fast cutting speed and small cutting gap.
4. High cutting efficiency and less chipping.
| Specification: |
| Diameter (mm/Inch) |
Inner Hole (mm) |
Segment Height (mm) |
Steel Blank Type |
Welding Method |
| 250mm(10") | 50/60mm | 7/8/10 | Normal & Silent |
Silver Welded |
| 300mm(12") | 50/60mm | 7/8/10 | ||
| 350mm(14") | 50/60mm | 7/8/10 | ||
| 400mm(16") | 50/60mm | 8/10 | ||
| 450mm(18") | 50/60mm | 8/10 | ||
| 500mm(20") | 50/60mm | 8/10 | ||
| 550mm(22") | 50/60mm | 8/10 | ||
| 600mm(24") | 50/60mm | 8/10 | ||
| 625mm(25") | 50/60mm | 8/10 | ||
| 700mm(28") | 50/60mm | 8/10/12 | ||
| 725mm(28") |
50/60mm | 8/10/12 | ||
| 750mm(30") | 50/60mm | 8/10/12 | ||
| 800mm(32") | 50/60mm | 8/10/12 |
The above specifications are for reference, other specifications can be ordered by customers.
