Dia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machineDia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machineDia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machineDia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machineDia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machineDia.350-3500mm induction brazing welding rack for diamond saw blades  High Quality welding frame machine

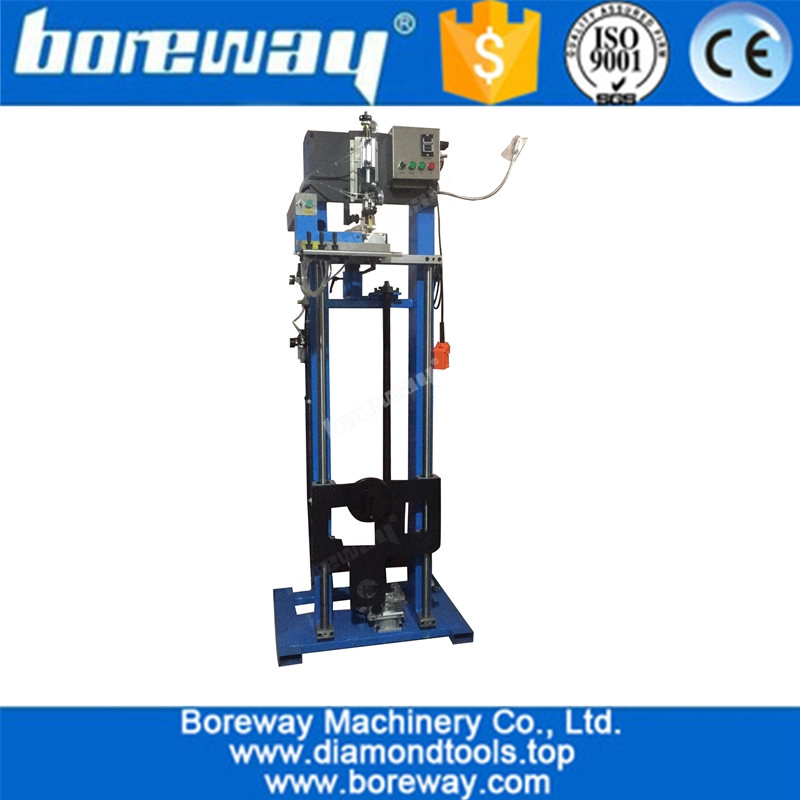

Dia.350-3500mm induction brazing welding rack for diamond saw blades High Quality welding frame machine

  • Model: BWM-HJ350
  • Voltage: 220V/50HZ
  • Current: 60A
  • Rated Capacity: 370W
  • Rated Duty Cycle: 100%
  • Welding Range: 350mm - 2500mm(Max 3500m
  • Verticality: 0.3mm; 0.3mm
  • Water Consumption: 1.5 - 2m³/h
  • Welding Rate: 4-20 PCS/Min
  • Welding Type: High-frequency induction brazing welding
Introduction:

Brief Introduction:

The "BWM-HJ350" Semi-Automatic Brazing Welding Frame Rack Machine is used for Welding Diamond Circular Saw Blade fromø350mm to ø3500mm, Standard welded 2500mm saw blade ( Should be boosted 1000mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.

This machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.



Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Details:                                                                                                                                                                                     
 Specification of semi-automatic diamond circular saw blade welding machine:

Model No.:  BWM-HJ350

Welding Range

MM

Ø240 – Ø3500                                            (Normal Ø2500, Max Ø3500 )

Verticality

MM

≤±0.03

Parallelism

MM

≤±0.03

Welding Rate(Segments Qty/Min)

PCS/Min

6 – 12

Air Pressure

Mpa

0.3 - 0.6

Water Pressure

Mpa

≥0.2

Voltage

V

220 (Single-phase), 50HZ

Power

W

550

Water Consumption

M³/h

1.5 - 2.0

Machine Dimensions

MM

L1030 * W500 * H2800 (Stand)

Machine Weight

KG

210

Package Dimensions

MM

L2500 * W700 * H750 (Horizontally)

Package Weight(Wooden Packing)

KG

260

Note :This machine doesnt include high frequency welding machine , air compressor and water pump.

Another two models ofWelding Frame Machine for circular diamond saw blades, 

Pictures:
The following shows are only part of diamond saw blade welding rack,if you want to know more details,please contact us.

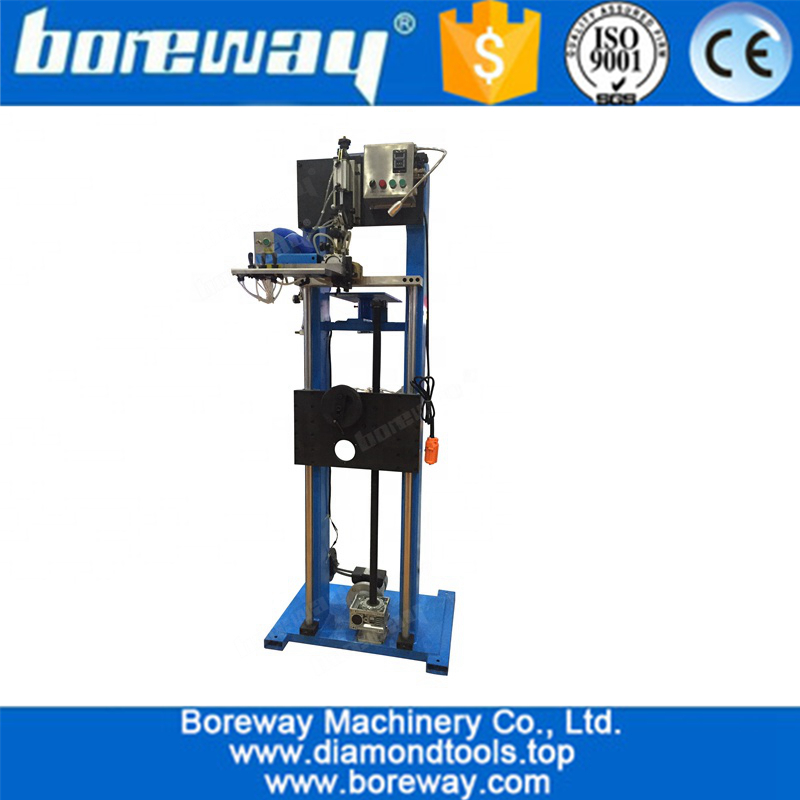

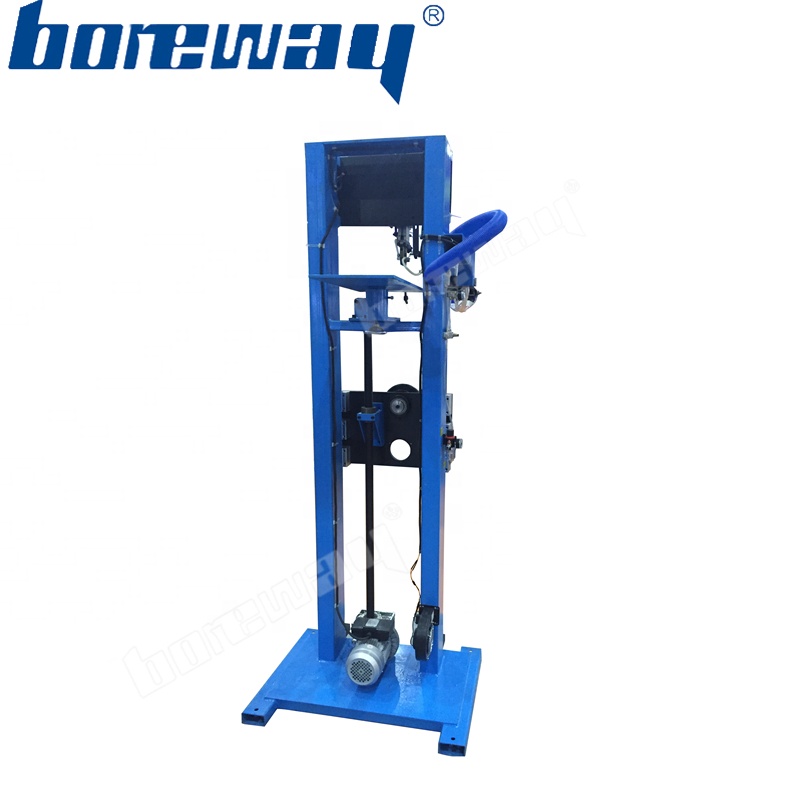

 Welding Frame Rack Front:          Welding Frame Rack Behind:
Semi-automatic welding frame rack for diamond saw bladeSemi-Automatic Welding Frame Machine for circle diamond saw blade

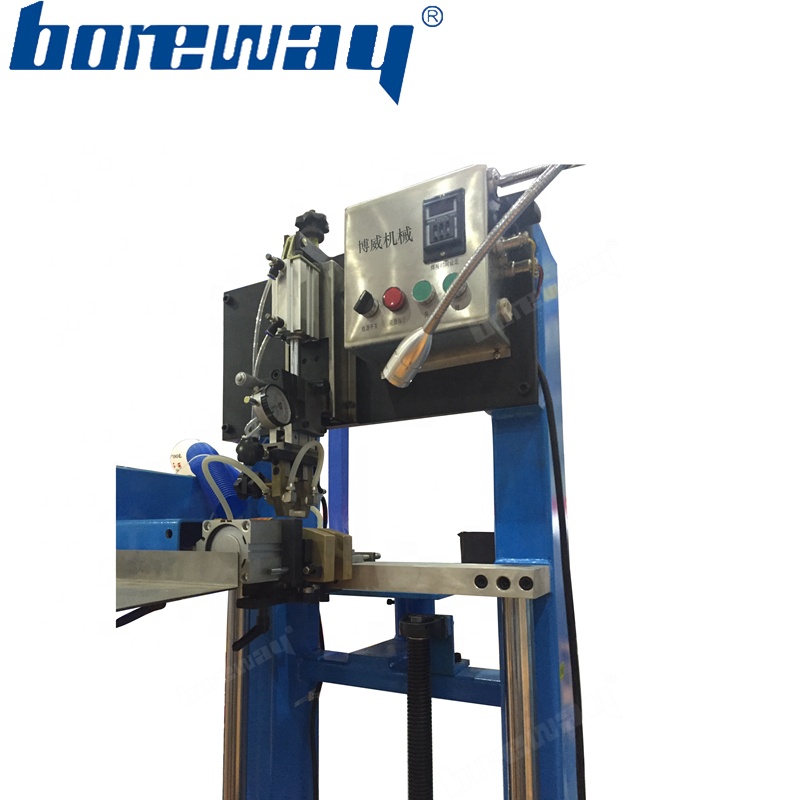

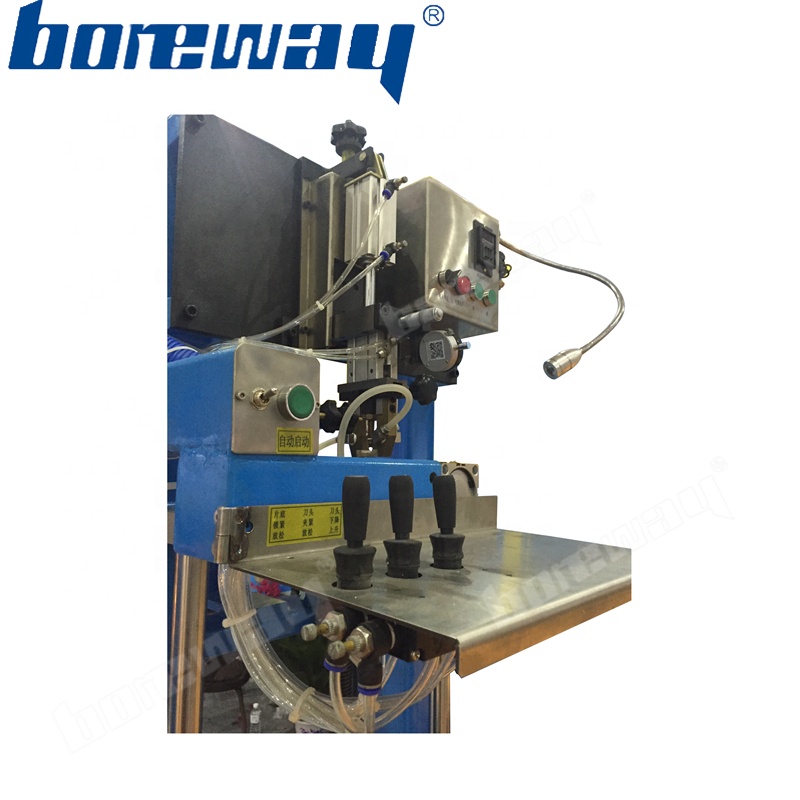

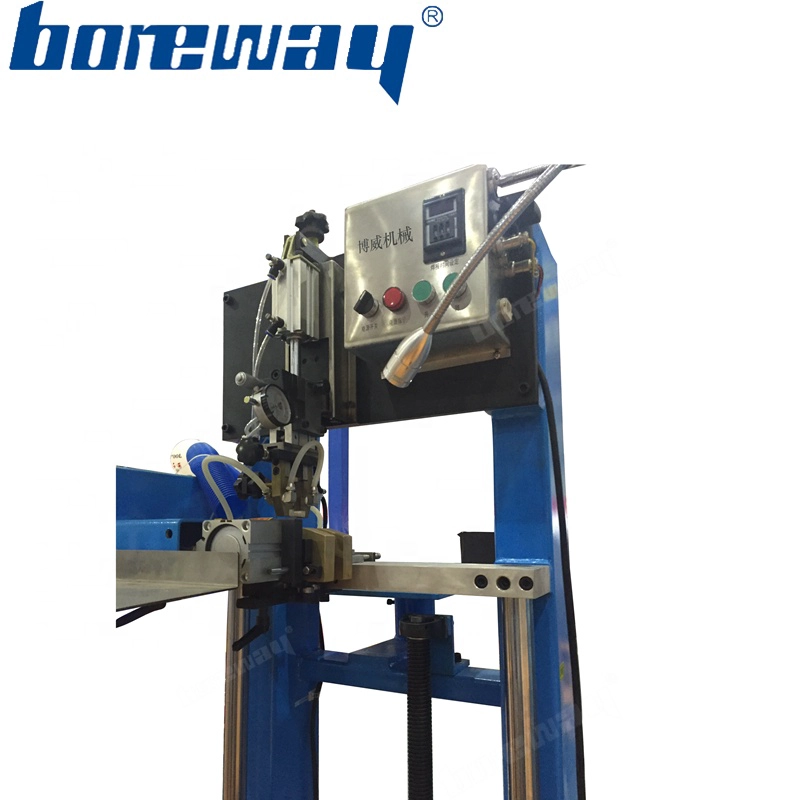

Welding Frame Rack Detail :
Semi-Automatic Welding Frame Machine for circle diamond saw bladewelding rack machine details
Semi-Automatic Welding Frame Machine for circle diamond saw bladewelding rack machine details

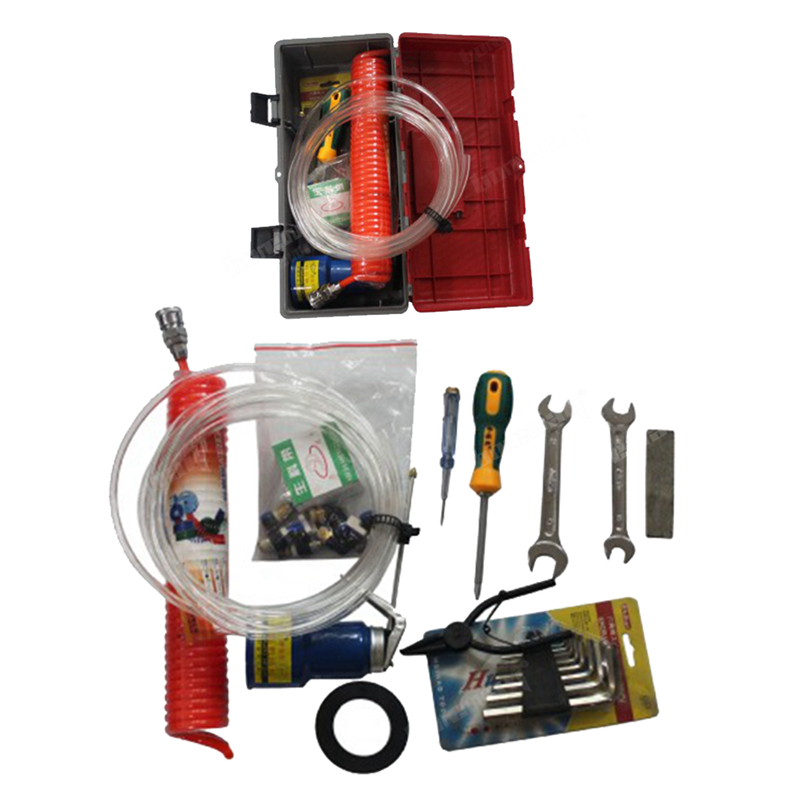

Tool Accessories                     The Packing: Standard Wooden Box
welding machine tool boxwelding frame rack machine wooden box packing
Packing

Diamond saw blade welding frame rack packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
