Ceramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness rollerCeramic diamond calibrating rollers, diamond fixed thickness roller

Ceramic diamond calibrating rollers, diamond fixed thickness roller

  • Model: BWM-DCR
  • Out diameter: 180mm-320mm
  • Length: 300mm-1600mm
  • Spiral number: 5/6/7/12/16
  • Segment size: 9*12,9*15,6*10
  • Grit: 30/40/50/60/70/80/100/120/140
  • Material: Diamond and metal
  • Producing area: Fujian,china
  • Port: Xiamen,port
Product Description:
Brief Introduction:
Diamond calibrating diamond roller is most commonly used to calibrate and achieve a uniform thickness on ceramic tiles surface before polishing. Thanks to the continuous technical improvement and the feedback from our customers, our diamond calibrating diamond roller are approved for their good sharpness, long working lifetime, low energy consumption, low working noise, excellent working effect and stable performance.
Wet use only with sufficient water, Fast & Easy grinding, long life, perfect performance.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Details:
Specification of diamond fixed thickness roller:
Product name Out diameter (mm) Length (mm) Spiral number Segment size (mm) Grit No. (#)
Diamond
calibrating
rollers
180 - 230 320 5
6
7
12
16
9*12
9*15
6*10
30
40
50
60
70
80
100
120
140

400
595
645 (585)
800 (680)
800 (740)
995 (935)
1195 (1135)
1600 (1540)

Pictures:

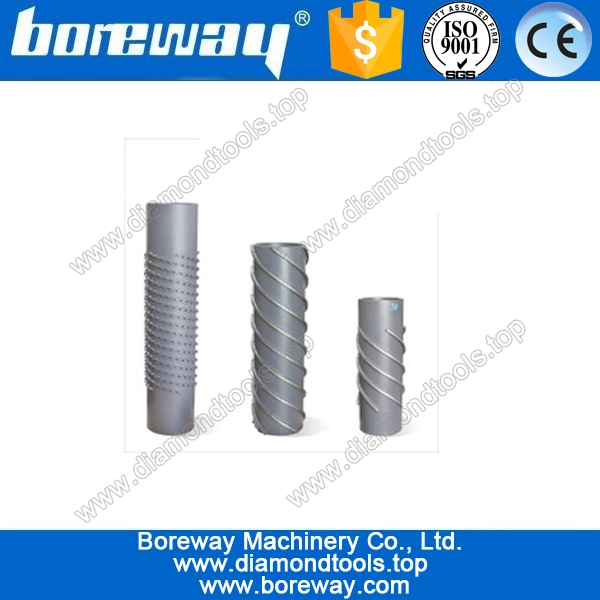

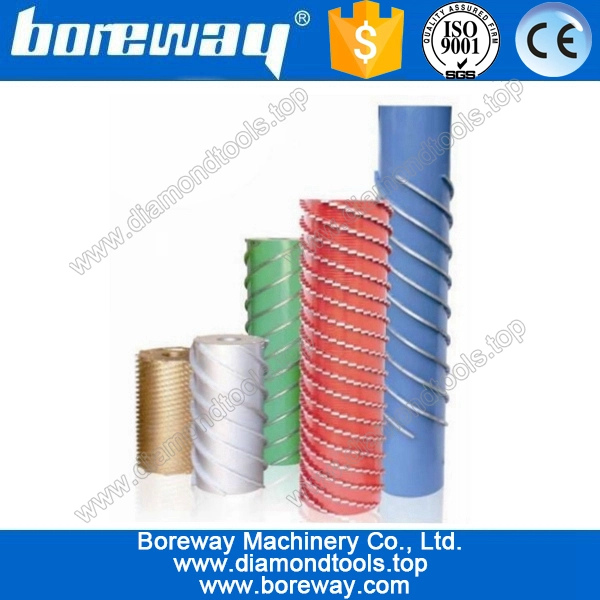

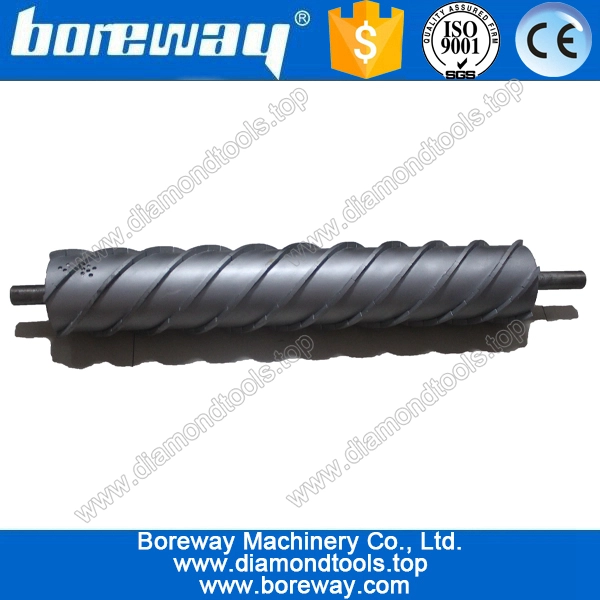

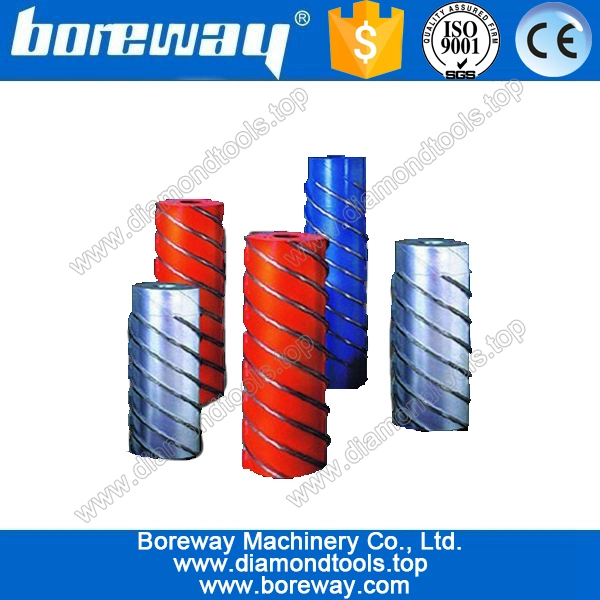

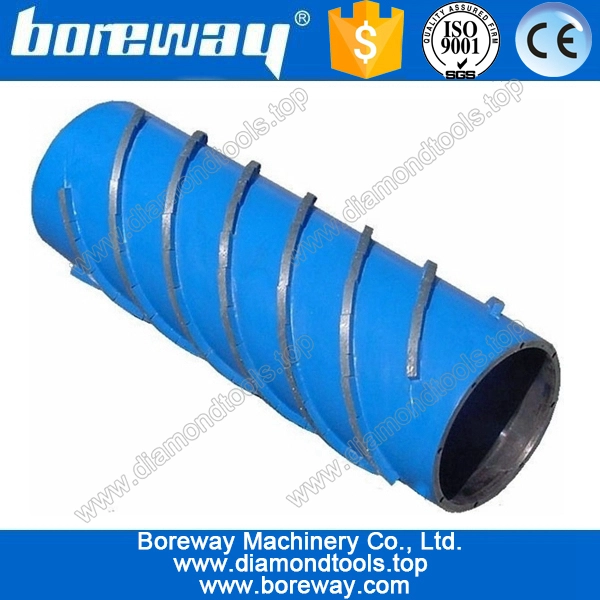

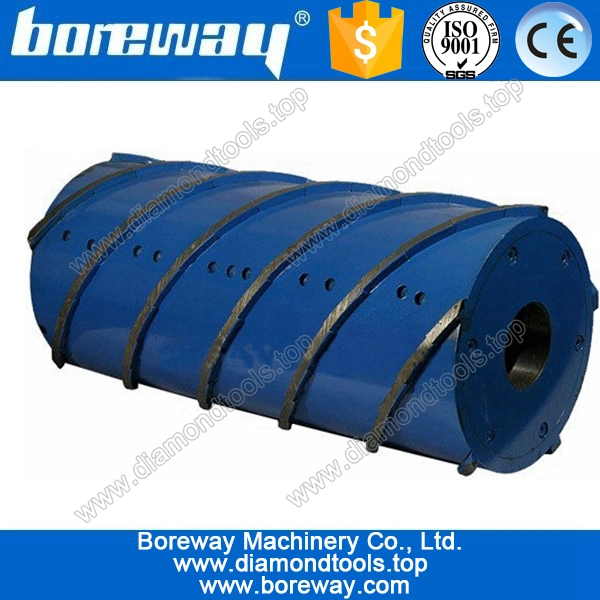

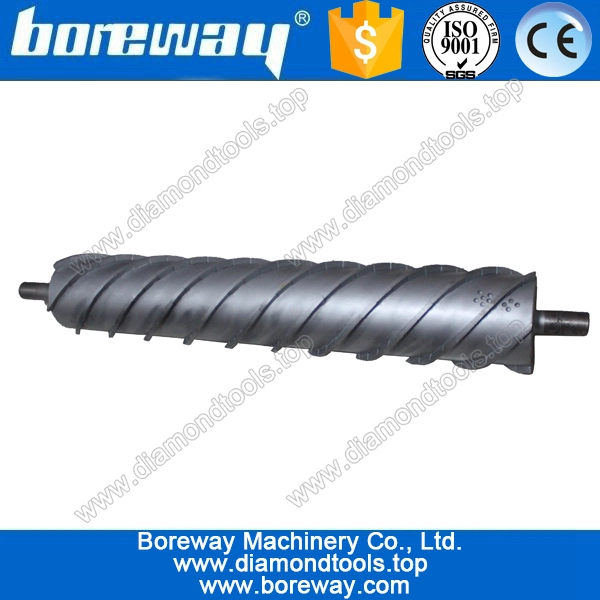

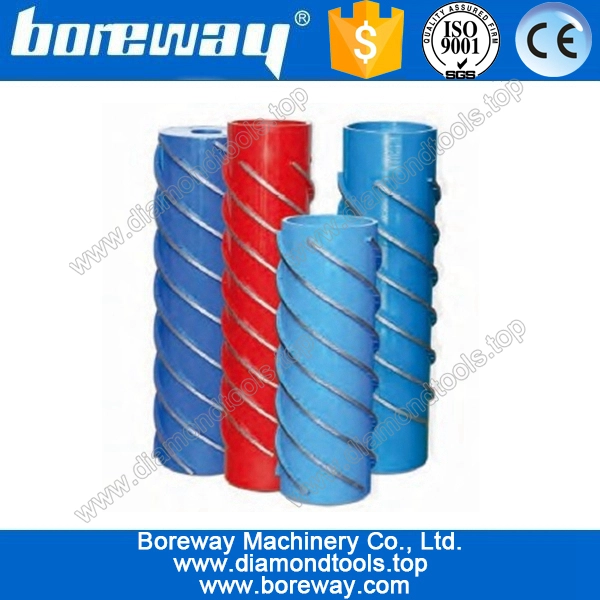

The following shows are only part of diamond fixed thickness roller:
diamond fixed thickness roller diamond fixed thickness roller diamond fixed thickness roller diamond fixed thickness roller

diamond fixed thickness roller diamond fixed thickness roller diamond fixed thickness roller diamond fixed thickness roller
Above is a picture of our conventional diamond calibration rollers,
Other specifications can be customized according to requirements.
Packing & Shipping:
diamond fixed thickness rollers packing in the wooden.
We can also pack the diamond fixed thickness roller according to your requirements.
Special specifications need to be negotiated for delivery times.
