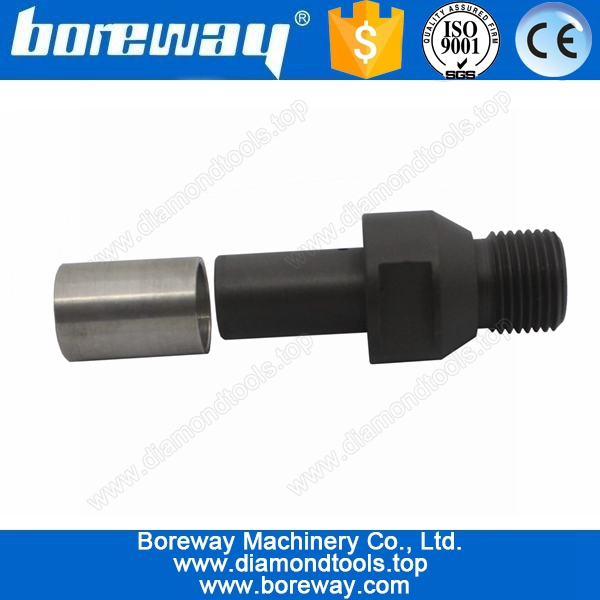

CNC screw core bit 20mm
- Model Number: BW-SCB-01
- Type: Wet Use
- Diameter: 20mm
- Segment Length: 20mm
- Thread: M12
- Connection Shaft:1/2’’G*68L&1/2’’G*100L
- Machine: Portable drilling rig and CNC machine tools
- Applications: Screw core bits mainly used for the center diamond drill screw holes, vias, blind holes trimming, and milling slots on stone slabs such as kitchen panel,washbasin,etc.
Introduction:
Diamond screw core bit this is mainly used for the center diamond drill screw holes, vias, blind holes trimming,
and milling slots on stone slabs such as kitchen panel,washbasin,etc. This finger bit tip
is fabricated with a 1/2’’ Gas thread connection.Suitable for portable drilling rig and
CNC machine tools. Flexible front screw drill replacement, as required to select and adjust
the drill pipe substrate, in order to achieve a change in terms of length.
In addition, the screw bit worn away only need to replace the drill part, the drill pipe
can continue to use the base.There are water holes in the side,it can easy to drainage and cooling.
Features:
1. high efficiency, durability, and security
2. easy bit changing,aggressive diamond bond for fast
Specifications:
The followings are normal specifications of our screw core bit:
|
Product Name |
Type |
Diameter |
Segment Length |
Thread |
Connection Shaft |
|
Diamond Core bit |
Hollow |
20mm |
20mm |
M12 |
1/2’’G*68L |
|
Solid |
30mm |
1/2’’G*100L |
The above specifications are for reference, other specifications can be ordered by customers.
