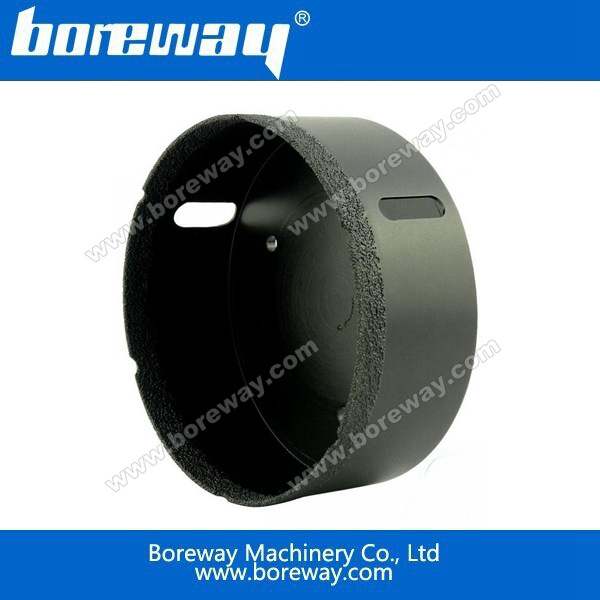

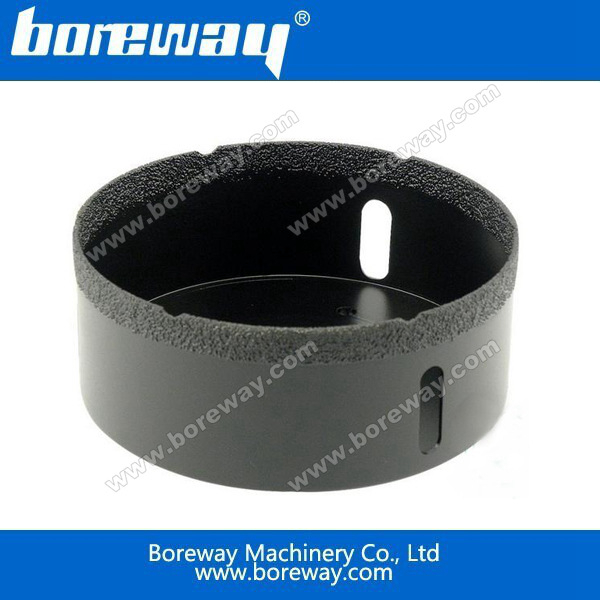

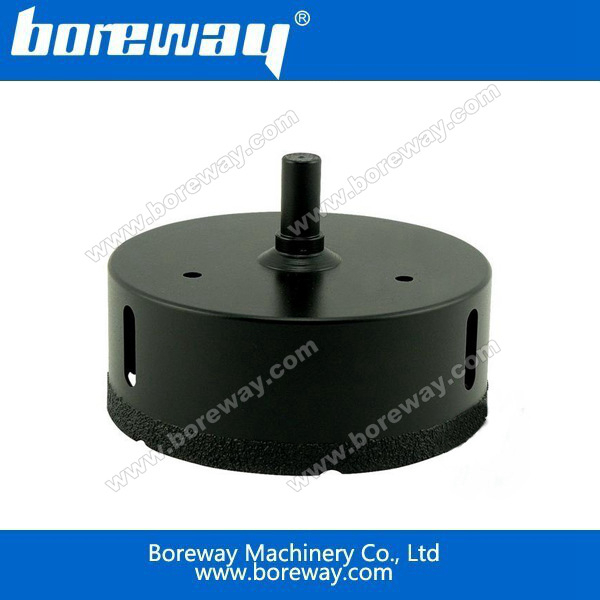

Brazed high performance core bit
- Model Number: BW-DS-DB-C06
- Type: Wet Use
- Diameter: 51mm-229mm
- Segment Width: 3.6mm-4.2mm
- Segment Height: 9mm
- Applications: Boreway brazed high performance core bit is wet used for drilling hole.
- Machine: Drilling machine and hand-held machine.
- Industry: Diamond tools
- Welding method: Brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
For drilling a wide range of hard to soft materials with or without steel reinforcing , reinforced
concrete , cured concrete with hard to soft aggregates , prestressed concrete , concrete with
stressed rebar ,asphalt .It is more effective on high power core drill .
Features:
1.Universal wet drilling core bits .
2.Designed for high performance drilling in a wide range of hard to soft materials .Even fast
drilling and maximum life .
Specifications:
The followings are the brazed high performance core bit :
|
Item No. |
Outer Diameter |
Segment |
Arbor |
Segment |
Segment |
||
|
|
Inches |
mm |
Inches |
mm |
|
|
|
|
CBB(or FC,V)-P0200140 |
2 |
51 |
0.140” |
3.6 |
1-1/4”-7 |
9mm |
5 |
|
CBB(or FC,V)-P0225150 |
2-1/4” |
57 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
5 |
|
CBB(or FC,V)-P0250150 |
2-1/2” |
64 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
6 |
|
CBB(or FC,V)-P0275150 |
2-3/4” |
70 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
6 |
|
CBB(or FC,V)-P0300150 |
3” |
76 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
7 |
|
CBB(or FC,V)-P0325150 |
3-1/4” |
83 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
7 |
|
CBB(or FC,V)-P0350150 |
3-1/2” |
89 |
0.150” |
3.8 |
1-1/4”-7 |
9mm |
8 |
|
CBB(or FC,V)-P0400158 |
4” |
102 |
0.158” |
4 |
1-1/4”-7 |
9mm |
9 |
|
CBB(or FC,V)-P0425158 |
4-1/4” |
108 |
0.158” |
4 |
1-1/4”-7 |
9mm |
9 |
|
CBB(or FC,V)-P0450458 |
4-1/2” |
114 |
0.158” |
4 |
1-1/4”-7 |
9mm |
10 |
|
CBB(or FC,V)-P0500158 |
5” |
128 |
0.158” |
4 |
1-1/4”-7 |
9mm |
11 |
|
CBB(or FC,V)-P0550158 |
5-1/2” |
140 |
0.158” |
4 |
1-1/4”-7 |
9mm |
12 |
|
CBB(or FC,V)-P0600158 |
6” |
152 |
0.158” |
4 |
1-1/4”-7 |
9mm |
13 |
|
CBB(or FC,V)-P0625158 |
6-1/4” |
159 |
0.158” |
4 |
1-1/4”-7 |
9mm |
13 |
|
CBB(or FC,V)-P0700165 |
7” |
178 |
0.165” |
4.2 |
1-1/4”-7 |
9mm |
15 |
|
CBB(or FC,V)-P0800165 |
8” |
203 |
0.165” |
4.2 |
1-1/4”-7 |
9mm |
18 |
|
CBB(or FC,V)-P0900165 |
9” |
229 |
0.165” |
4.2 |
1-1/4”-7 |
9mm |
20 |
Standard length 14” , other length or thread can be produced on required .
There are standard flat segment , FC segment , and V-shaped segment , FC and V-shaped segment designed other size on request available .
Grade: Premium , Standard .
