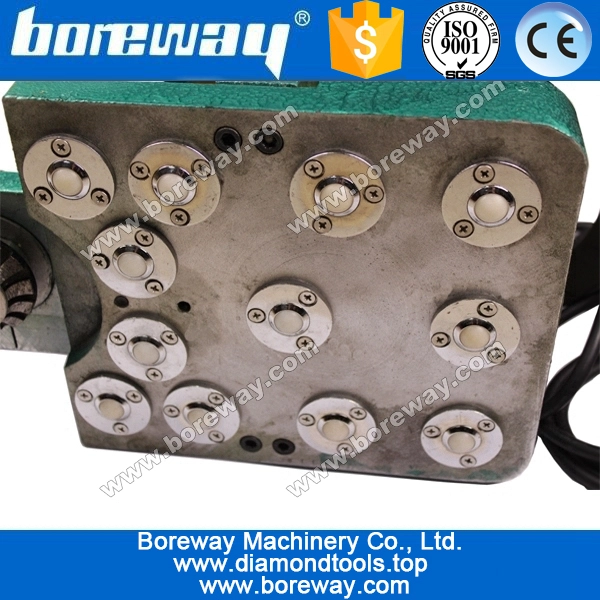

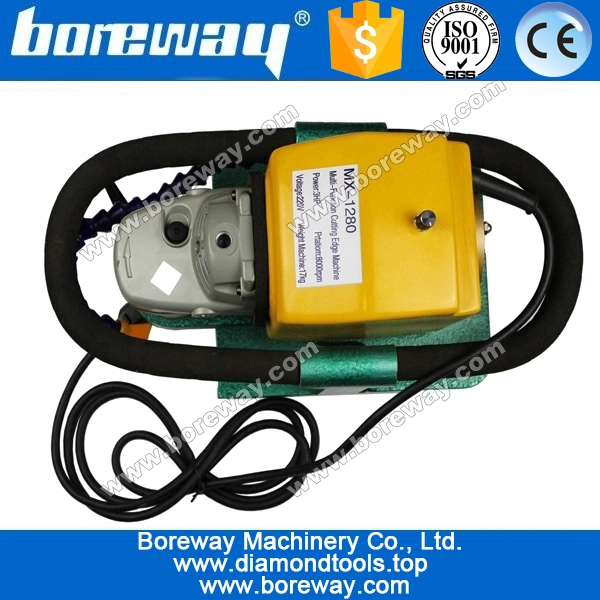

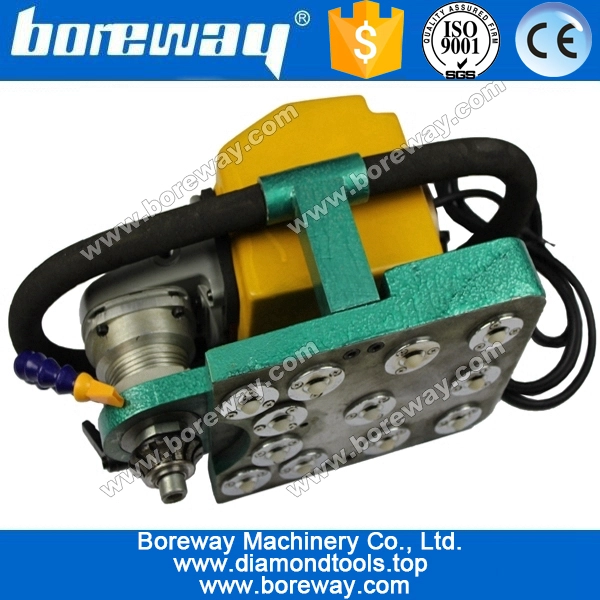

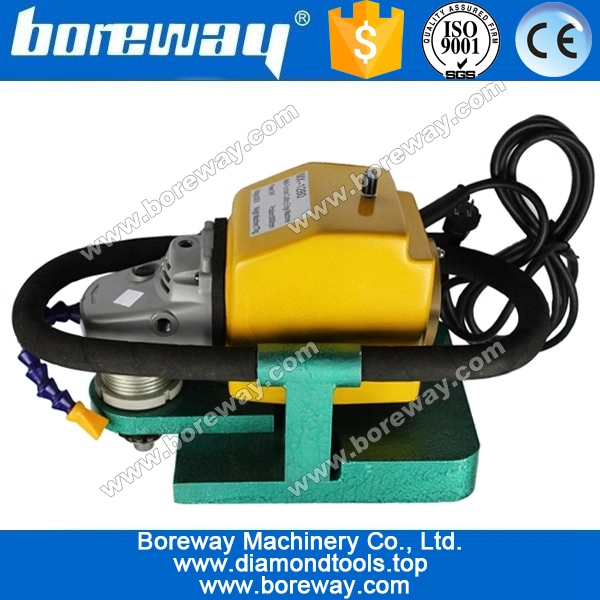

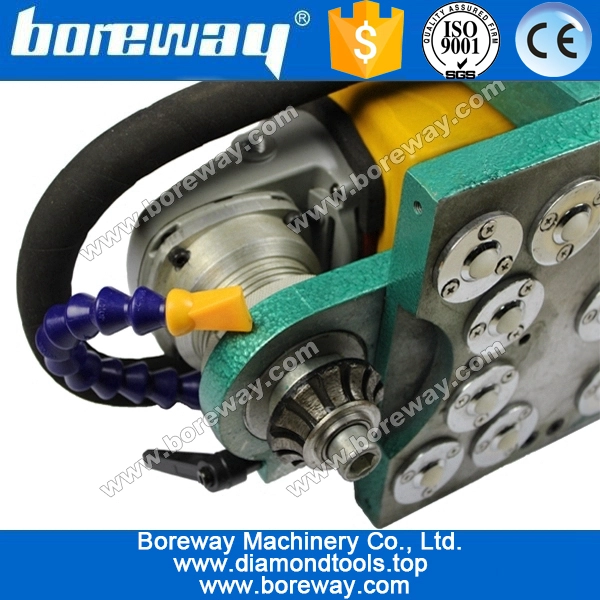

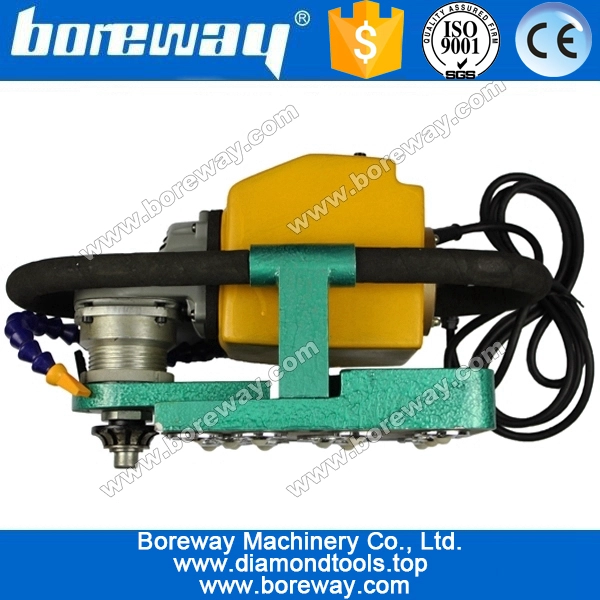

Boreway multi-function cutting edge machine
- Model Number: BW-MX1280
- Type: Wet Use
- Speed: 8500r/min
- Thickness: 10mm to 50mm
- Rated power: 2200W
- Weight: 17Kg
- Applications: Boreway multi-function cutting edge machine is wet use with router bit for grinding stone slab.
- Industry: Diamond grinding tools
- Advantage: Machine of portable, easy to operate, safe and effective, value and durable.
Introduction:
The BW-MX1280 multi-function cutting edge machine is designed for chamfering and profiling the edge of stone countertops. Apply with max diameter 90mm profiling router bits. Mainly for wet use,Convenient and safe.
Features:
1.Pulley type and Water slide type are both available.
2.The speed can be adjusted according to your demands.
3.Using electricity as power, the rotation torque is stable and strong.
4.With appropriate weight,convenient to operate.
Specifications:
The followings are the normal specifications of our multi-function cutting edge machine:
|
Parameters |
Numerical |
|
Type |
BW-MX1280 |
|
Size of grinding router bit |
MAX : ø90 mm |
|
Dimension |
400mm * 300mm * 280mm |
|
Rated speed |
8500 R/Min |
|
Process Thickness |
1cm - 5cm |
|
Thread type |
M8, M10, M12 |
|
Rated power |
2200 W |
|
Weight |
17 Kg |
The above specifications are for reference, other or special specifications can be ordered by customers.

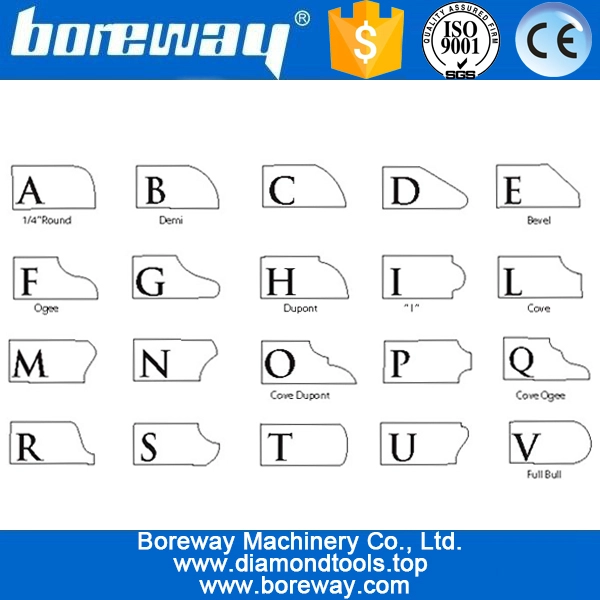

Stone Shape:
Note：
1. Please place the chamfering machine on a flat and stable base when profiling working .
2. For your safety,please use leakage protector.
