Boreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale priceBoreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale priceBoreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale priceBoreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale priceBoreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale priceBoreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale price

Boreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling wholesale price

  • Product Name: Vacuum Brazed Diamond Engraving Bits
  • Application: For stone edge profiling/cutting
  • Models: 31 different models for selection
  • Size: shank 6mm-12mm, shank 6mm-12mm
  • Main Material: Artificial diamond
  • Process: Vacuum Brazed
  • Type: Carving Bits
Introduction:
Boreway Vacuum brazed diamond Engraving Bit Diamond Carving Tool for Massonry Drilling
Diamond bits with a large variety of specifications are extensively used for sculpturing,dressing,precision grinding and internal grinding carbide, ceramic, glass, precious stone, alloy and many other abrasive material.all sizes, shapes, assortments are upon your specific request.kit assortments of mounted points & burrs are flexible.

Features:

1.Special shapes and sizes available upon request.;

2. Diamond bits designed for edge details grinding and engraving application;
3. For use in soft stones and granites, water use suggested in granite and hard stones;
4. Vacuum Brazed Diamond Bits for bowl-hole mounting systems available in our standard product list.

Advantage:

1. Segment is very sharpening;

2. Efficiency and operator safety;

3. Competitive price and superior quality;
4. Long engraving life and stable performance;
5. High quality: It must pass our QC testing for 3times.

Tips:

1. Wet or Dry use;

2.Water or other cooling agent is recommended for longer life of the bit;

3. Life longer than conventional diamond coated rotary points, saving time and money;
4. A new generation of tools, innovative Diamond BRAZED Profile Wheel Lasts up to double.


Specification & Pictures: Vaccum Brazed Diamond engraving bits

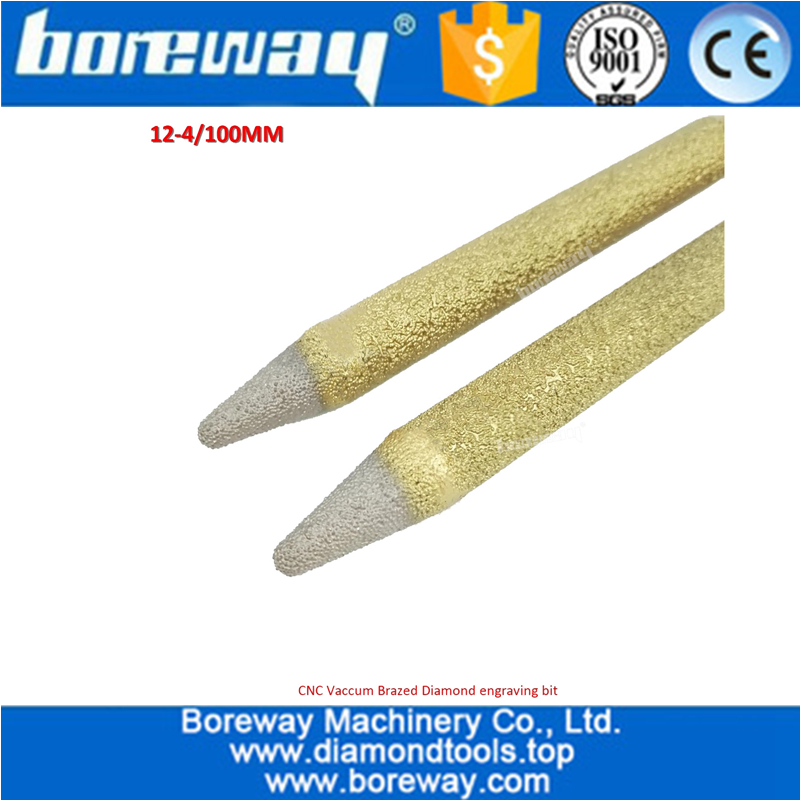

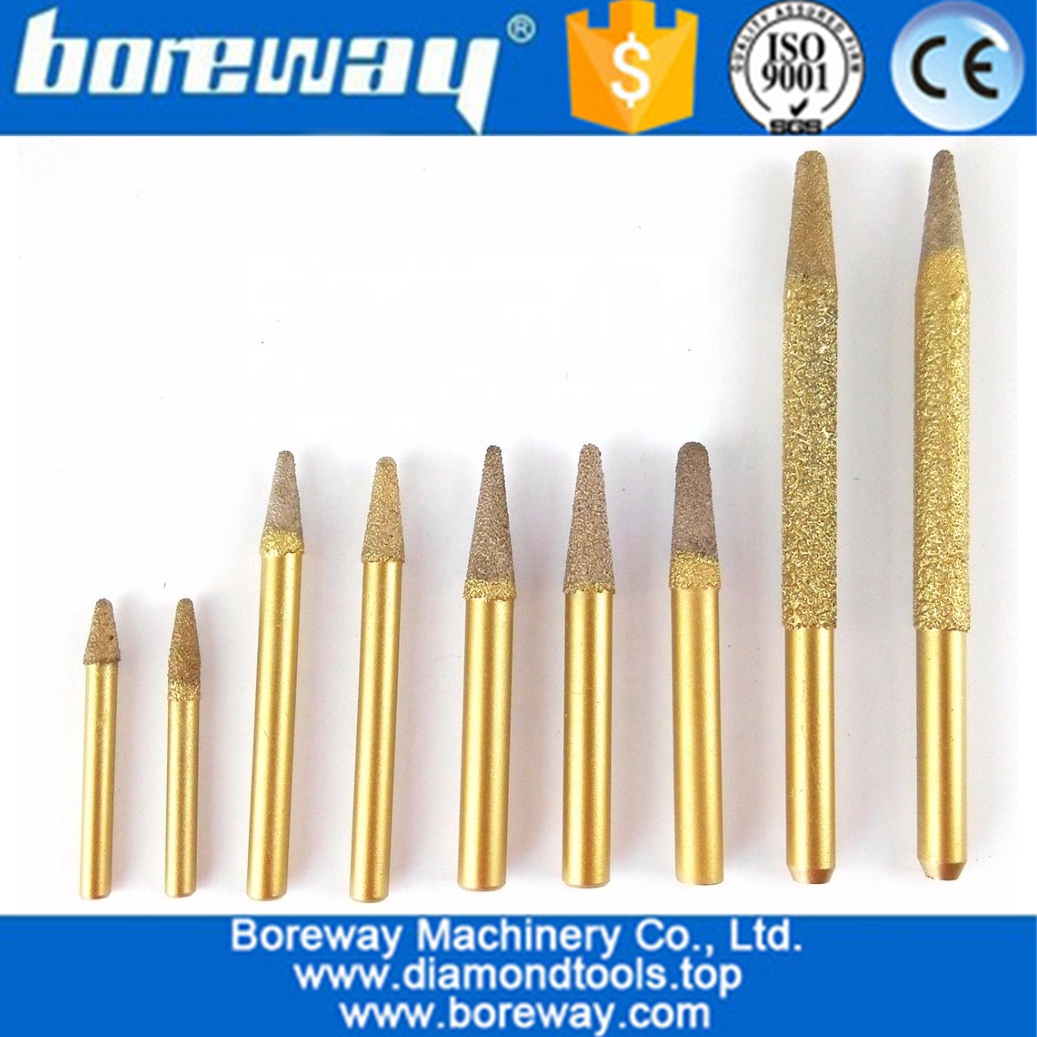

Vaccum Brazed Diamond engraving bitsTaper or Cone type with ball end
 Total length  Workable length  Shank  Cone
 90MM  30MM  8MM  3MM
 90MM  30MM  8MM  4MM
 70MM  20MM  12MM  5MM
 150MM  100MM  12MM  6MM
 150MM  100MM  12MM  3MM
 150MM  100MM  12MM  4MM
 90MM  20MM  8MM  4MM
90MM
 30MM  10MM  4MM
 150MM  100MM  10MM  6MM
 150MM  100MM  10MM  4MM
 90MM  20MM  10MM  6MM
 60MM  12MM  6MM  3MM
Vaccum Brazed Diamond engraving bitsTaper or Cone type with ball end
Vaccum Brazed Diamond engraving bitsTaper or Cone type with ball end

Vaccum Brazed Diamond engraving bits, straight knife, Flat-end
 Total length  Workable length  Shank
 120MM  20MM  10MM
 76MM  12MM  10MM
 90MM  20MM  6MM
 90MM  20MM  8MM
 60MM  10MM  8MM
 60MM  12MM  12MM
Vaccum Brazed Diamond engraving bits,straight knife,Flat-end

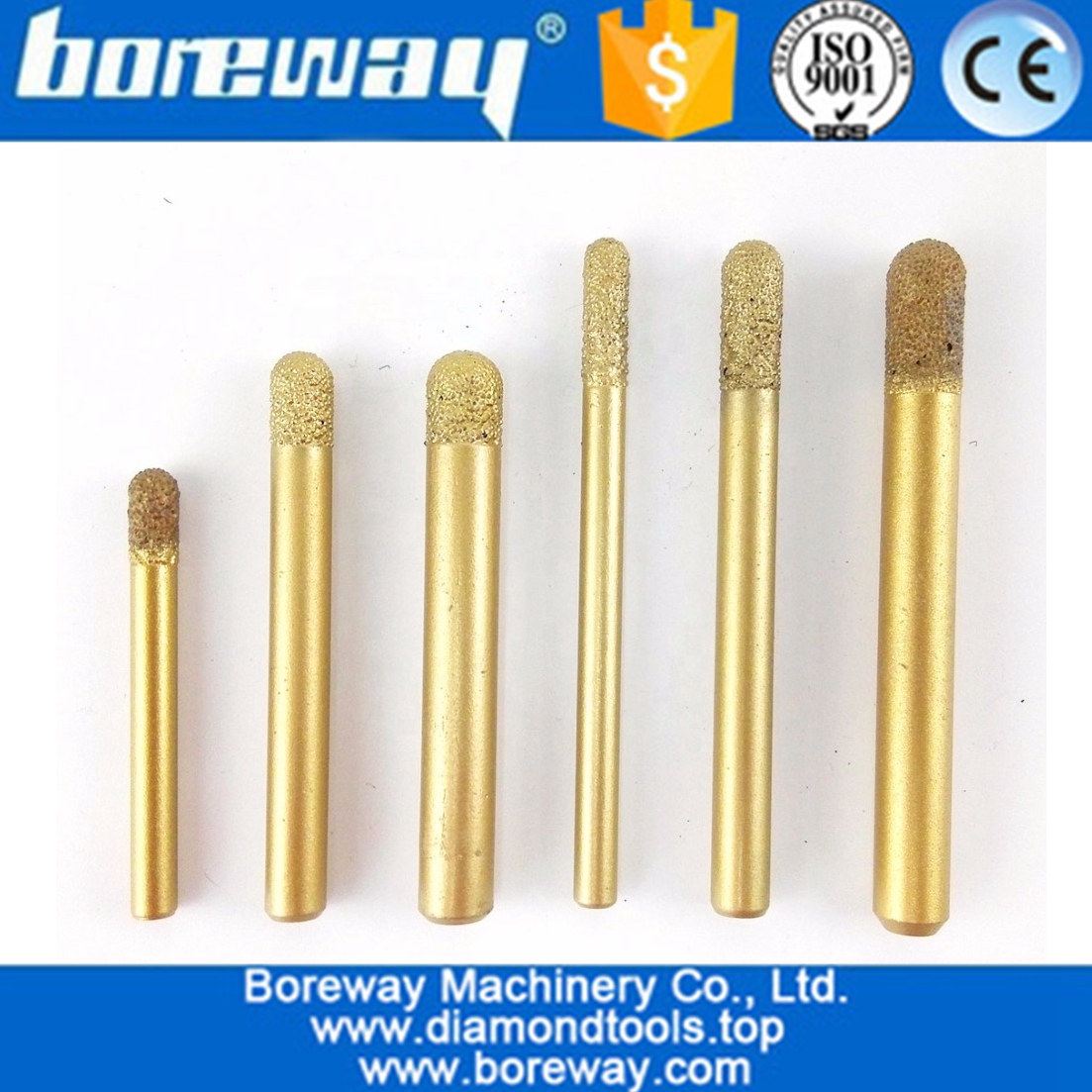

Vaccum Brazed Diamond engraving bits ball end

 Total length  Workable length  Shank
 90MM
 20MM  8MM
 76MM  12MM  8MM
 90MM  20MM  6MM
76MM 12MM 10MM
 60MM  12MM 6MM
90MM 20MM  10MM
Vaccum Brazed Diamond engraving bits ball end

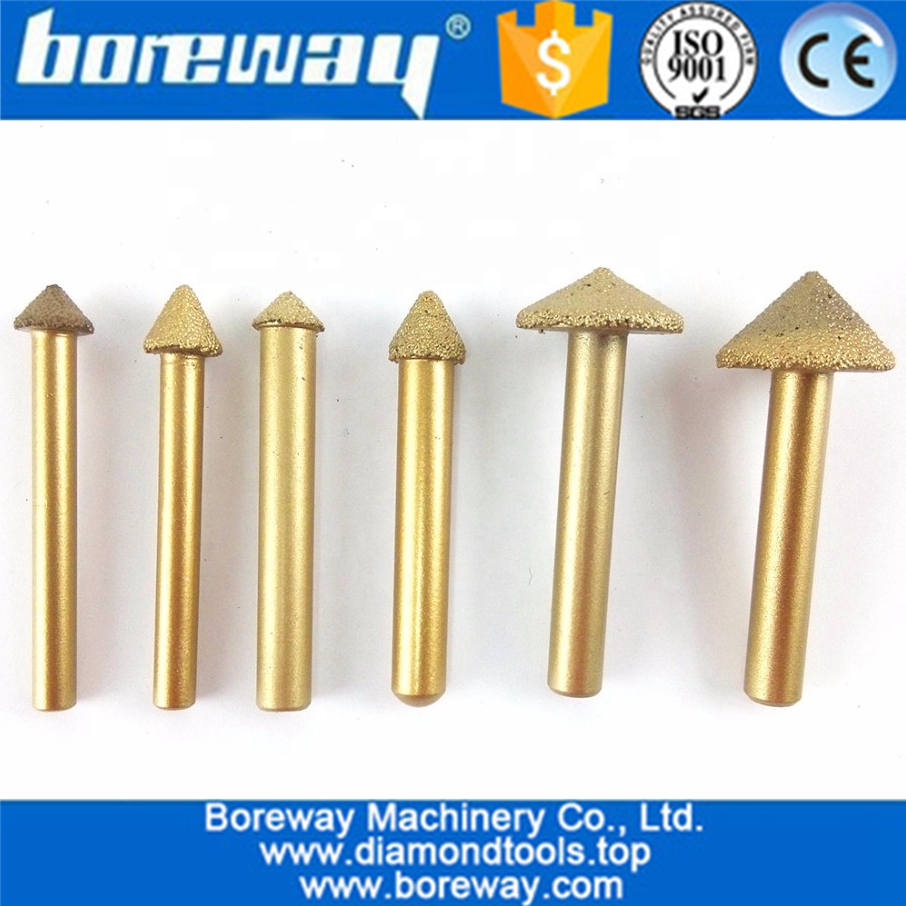

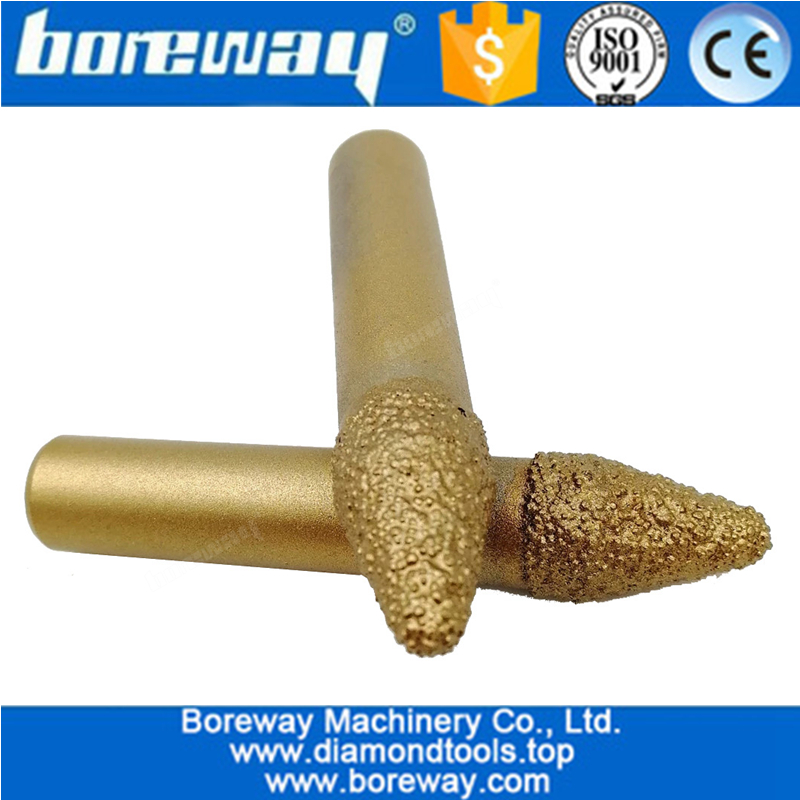

3D Vaccum Brazed Diamond engraving bits, big mushroom        

 Total length  Degree  Shank  Max Diameter
 60MM  60MM  6MM  10MM
 60MM   90MM  8MM  10MM
 60MM 8MM  10MM  10MM
 60MM  60MM  8MM  10MM
3D Vaccum Brazed Diamond engraving bits,big mushroom

Different Sizes as the picture showed.There are 31 models.
Please check the sizes marked the photos (ie, Max Diameter, Thickness, shank, Length)

Vaccum Brazed Diamond engraving bitsTaper or Cone type with ball end
Vaccum Brazed Diamond engraving bitsTaper or Cone type with ball end
Vaccum Brazed Diamond engraving bits, straight knife, Flat-end
Vaccum Brazed Diamond engraving bits, straight knife, Flat-end
Vaccum Brazed Diamond engraving bits ball end
Vaccum Brazed Diamond engraving bits ball end
3D Vaccum Brazed Diamond engraving bits, big mushroom
3D Vaccum Brazed Diamond engraving bits, big mushroom

Finished Products 
Suitable for: Marble, bluestone,granite,sandstone
Vacuum Brazed Diamond engraving bit
Other Specifications or more details, Pls Contact with us!
