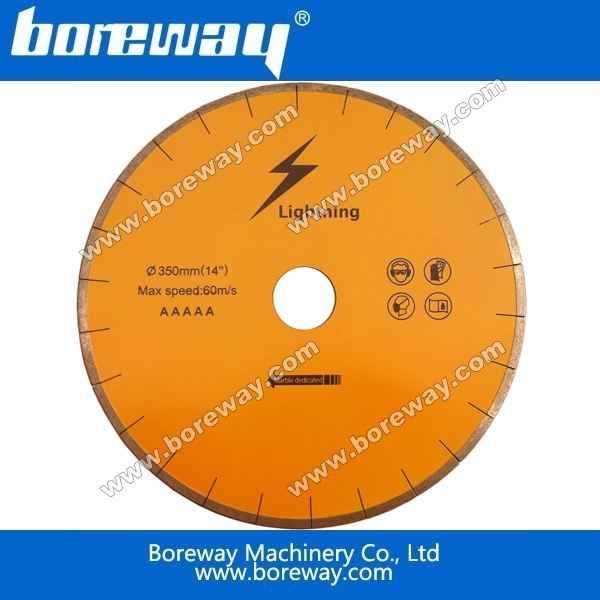

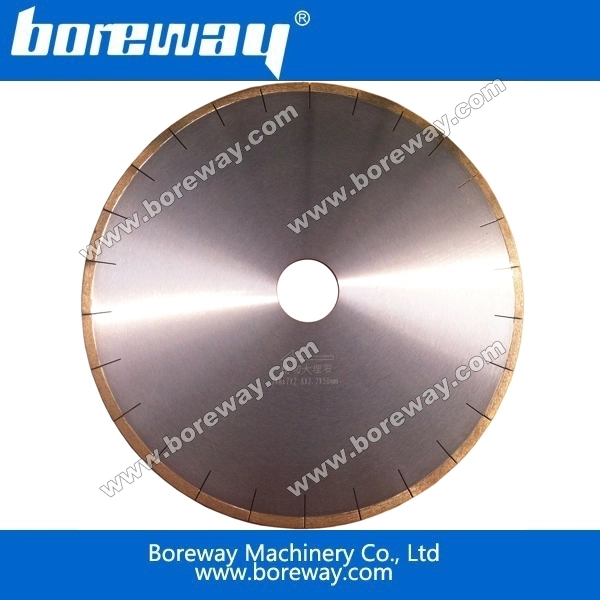

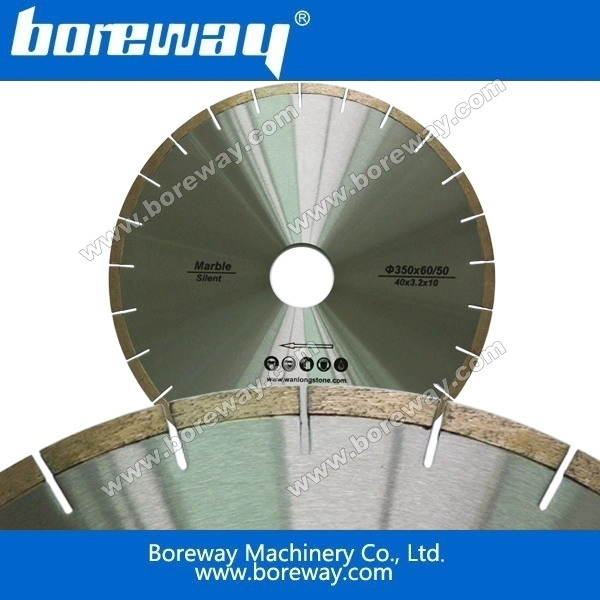

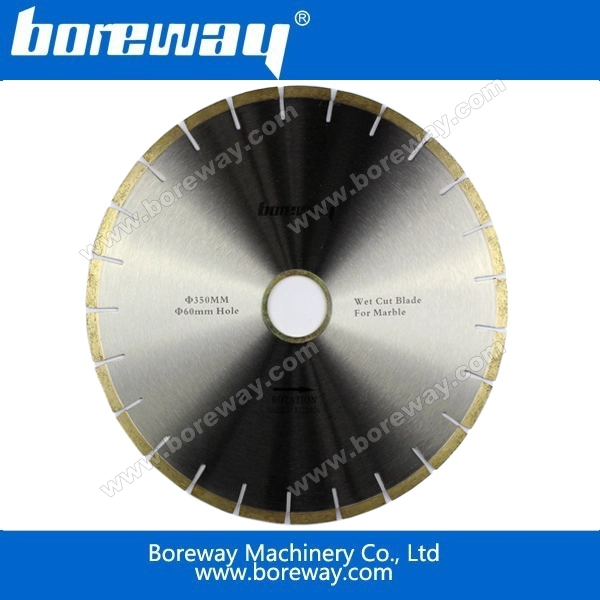

Boreway edge cutting blade and segment for marble
- Model Number: BW-ECBSFM-001
- Type: Wet Use
- Diameter: 300mm to 850mm
- Steel core: 2.2mm to 4.5mm
- Segment number: 22 to 58
- Applications: Boreway edge cutting blade and segment for marble is wet use for
- cutting marble and other stone.
- Machine: largr cutting machine and bridge cutting machine.
- Industry: Diamond cutting tools
- Welding method: silver welding
- Advantage: Good sharpness and Long lifespan.
Introduction:
These cutting blade and segment are widely used for cutting marble and other soft stones.
Ideal edge trimming quality with better blade continuity and narrower segment gap.
Features:
1.Good continuity,effectively reduce the distance between teeth.
2.Further Strengthen the effect of trimming,reduce the loss of stone.
3.With high working performance,the blade would not chip or break slates while cutting.
Specifications:
The followings are the normal specifications of our edge cutting blade and segment for marble:
|
Product Name |
Diameter |
Steel Core (mm) |
Segment Dimension (mm) |
Segment Number |
Application |
|
Edge Cutting Blade For Marble |
Ø300 |
2.2 |
43/40*3.2*10 |
22 |
Marble |
|
Ø350 |
2.2 |
43/40*3.2*10 |
25 |
||
|
Ø400 |
2.6 |
43/40*3.6*10 |
29 |
||
|
Ø450 |
3.0 |
42/40*4.0*10 |
32 |
||
|
Splitting Blade For Marble |
Ø500 |
3.0 |
40*4.0*10 |
36 |
|
|
Ø550 |
3.6 |
40*5.0*10 |
40 |
||
|
Ø600 |
3.6 |
40*5.0*10 |
42 |
||
|
Ø650 |
4.0 |
40*5.5*10 |
46 |
||
|
Ø700 |
4.0 |
40*5.5*10 |
50 |
||
|
Ø750 |
4.0 |
40*5.5*10 |
54 |
||
|
Ø800 |
4.5 |
40*6.0*10 |
57 |
||
|
Ø850 |
4.5 |
40*6.0*10 |
58 |
The above specifications are for reference, other specifications can be ordered by customers.
