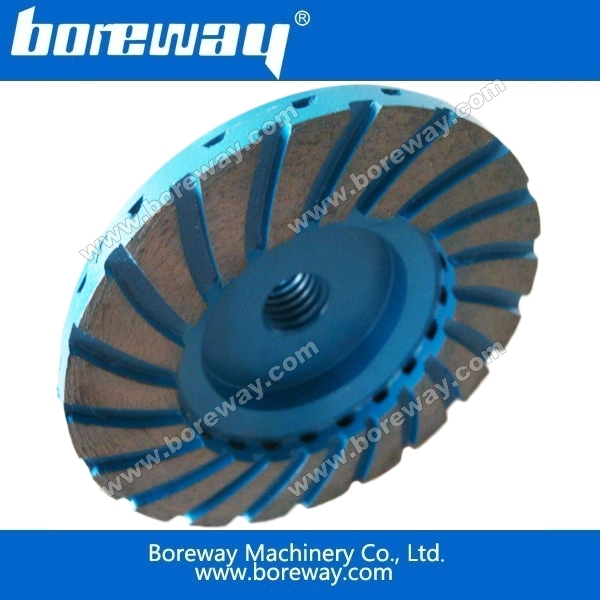

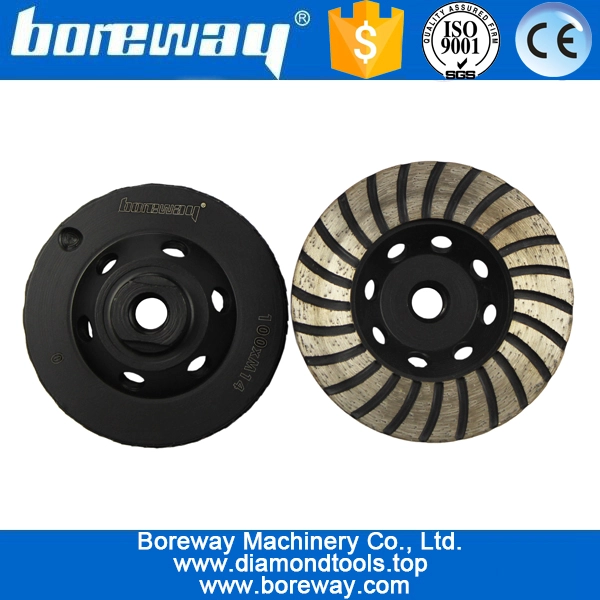

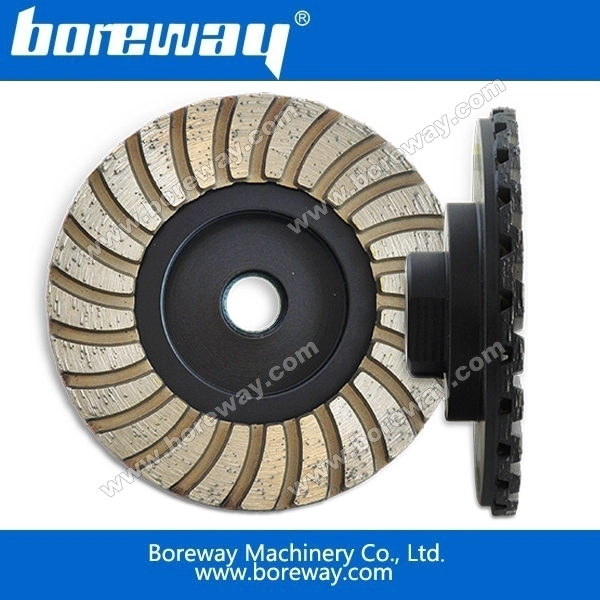

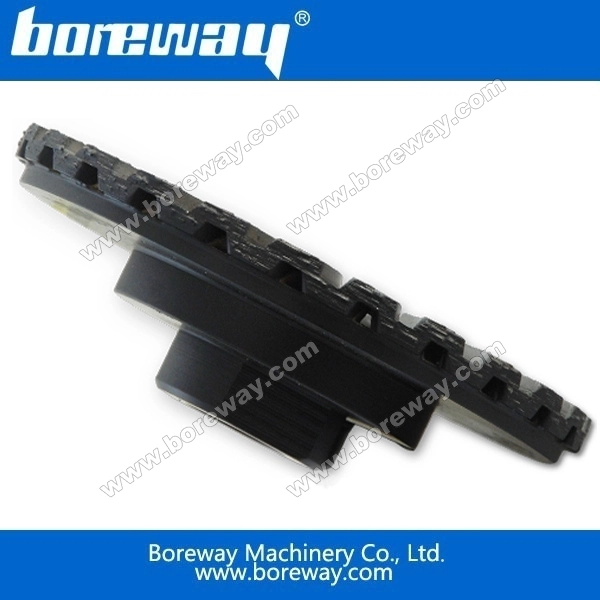

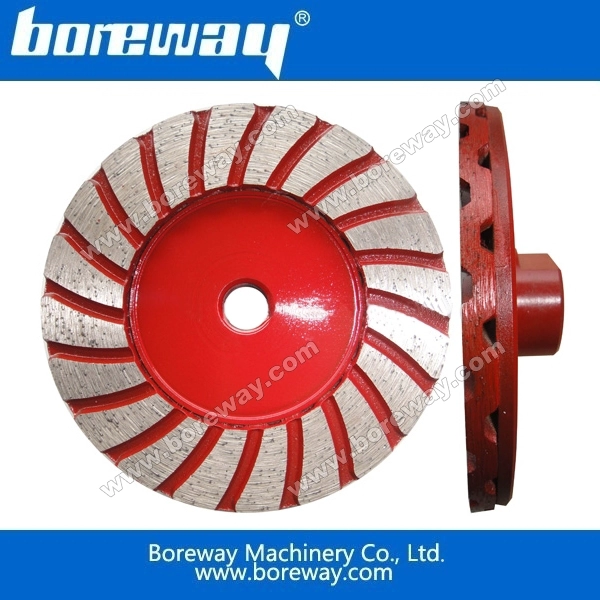

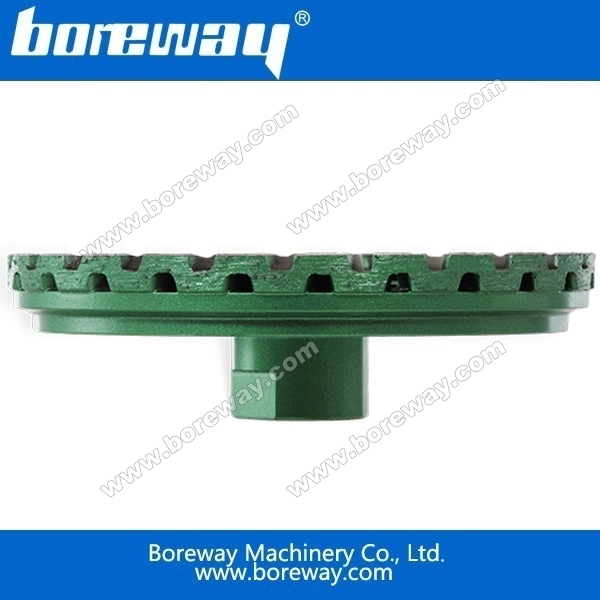

Boreway double-layer turbo diamond cup wheels
- Model Number: BW-DTDCW-001
- Type: Wet Use
- Diameter: 105mm to 230mm
- Segment Height: 5mm to 10mm
- Grit : 30#,60#,120#
- Applications: Boreway double-layer turbo diamond cup wheel is wet use for grinding stone concrete and other materials.
- Machine: Hand-held grinding machine and other grinding and polishing machine.
- Industry: Diamond grinding tools
- Welding method: Sinter welding
- Advantage: Good sharpness and long lifespan.
Introduction:
Double-layer turbo diamond grinding cup wheels are designed for grinding concrete and all types
of stone like granite,marble, sandstone,limestone,etc. Ideal for smoothing and shaping as well as
stock removal. The double-layer design offer high grinding efficiency,longer lifespan and better
performance. May be used on most hand held grinders and floor polishing machine.
Features:
1.Double-layer turbo designed segment can provide fast beveling,smoothing and shaping.
2.Applicable for most angle grinders.
3.Good balance and stable performance.
4.High efficiency and long lifespan.
Specifications:
The followings are the normal specifications of our double-layer turbo diamond cup wheels:
|
Product Name |
Diameter |
Connection |
Segment Height |
Grit |
|
Double-layer Turbo Diamond Cup Grinding Wheel |
4’’ 105mm |
5/8’’-11 20mm 22.23mm M14 Snail Lock |
5-10 mm |
Rough(30#) Medium(60#) Smooth(120#) |
|
4.5’’ 114mm |
5-10 mm |
|||
|
5’’ 125mm |
5-10 mm |
|||
|
6’’ 150mm |
5-10 mm |
|||
|
7’’ 180mm |
5-10 mm |
|||
|
9’’ 230mm |
5-10 mm |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
