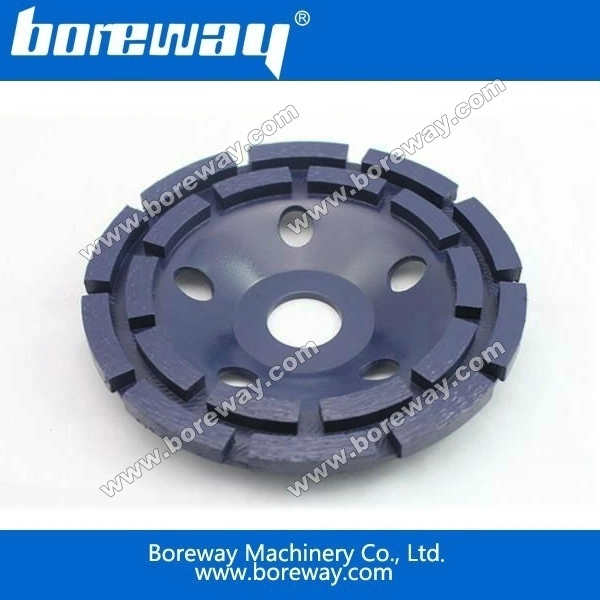

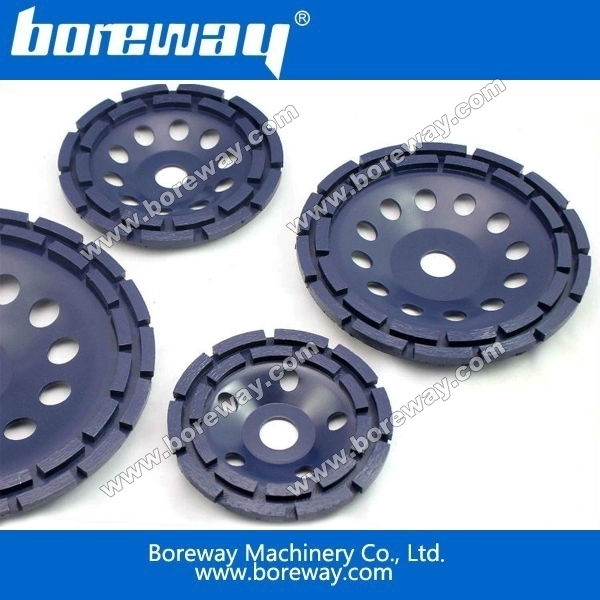

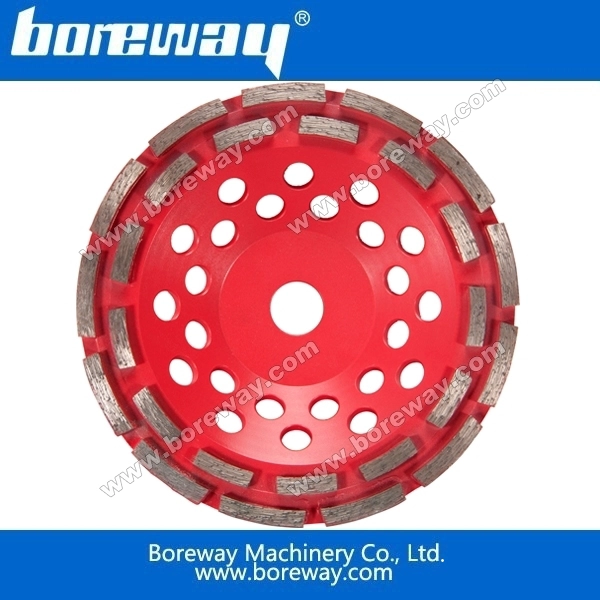

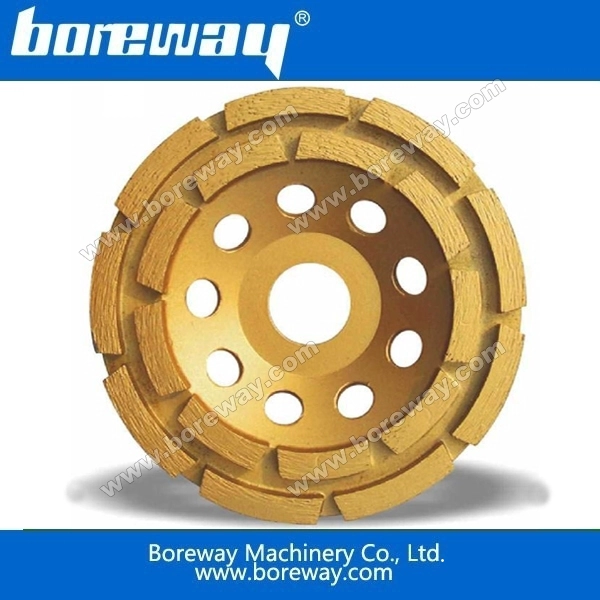

Boreway double row segmented diamond cup wheels
- Model Number: BW-DRSDCW-001
- Type: Wet Use
- Diameter: 105mm to 230mm
- Segment Height: 5mm to 10mm
- Grit: 6#,16#,30#,60#,120#
- Applications: Boreway double row segmented diamond cup wheels are wet use for grinding marble granite and concrete.

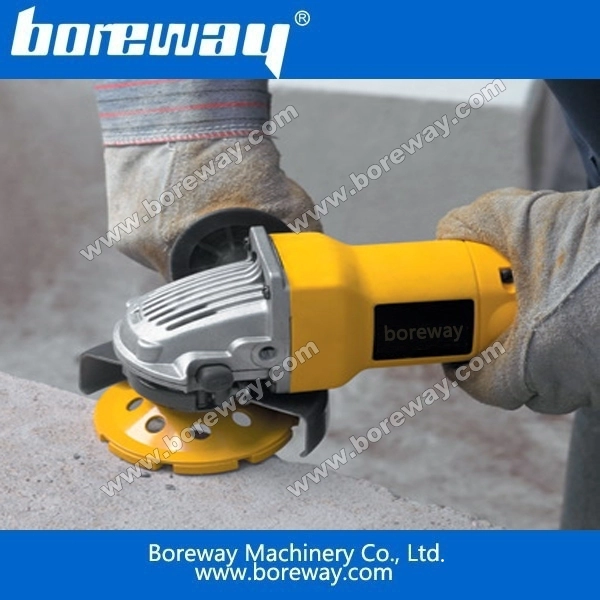

- Machine: Hand-held grinding machine and other grinding and polishing machine.
- Industry: Diamond grinding tools
- Welding method: Segmented welding
- Advantage: Good sharpness and long lifespan.
Introduction:
Double row segmented diamond grinding cup wheels are for grinding and polishing concrete
products,masonry material and all types of natural stone with maximum stock removal and free
cutting action for wet or dry application.It contains a higher diamond count and feature venting
holes for fast, rough, dry or water-cooling grinding with long wheel life.
Features:
1.Double row segmented design can provide fast beveling shaping.
2.Applicable for most angle grinders.
3.Good balance and stable performance.
4.High efficiency and longer lifespan.
Specifications:
The followings are the normal specifications of our double row segmented diamond cup wheels:
|
Product Name |
Diameter |
Connection |
Segment Height |
Grit |
|
Double Row Diamond Cup Grinding Wheel |
4’’ 105mm |
5/8’’-11 20mm 22.23mm M14 Snail Lock |
5-10 mm |
Rough (6# 16# 30#) Medium(60#) Smooth(120#) |
|
4.5’’ 114mm |
5-10 mm |
|||
|
5’’ 125mm |
5-10 mm |
|||
|
6’’ 150mm |
5-10 mm |
|||
|
7’’ 180mm |
5-10 mm |
|||
|
9’’ 230mm |
5-10 mm |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Normal,Good quality,Premium.
