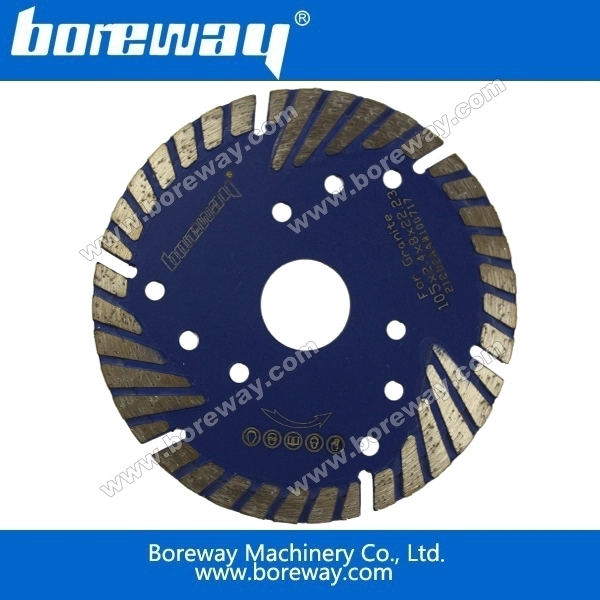

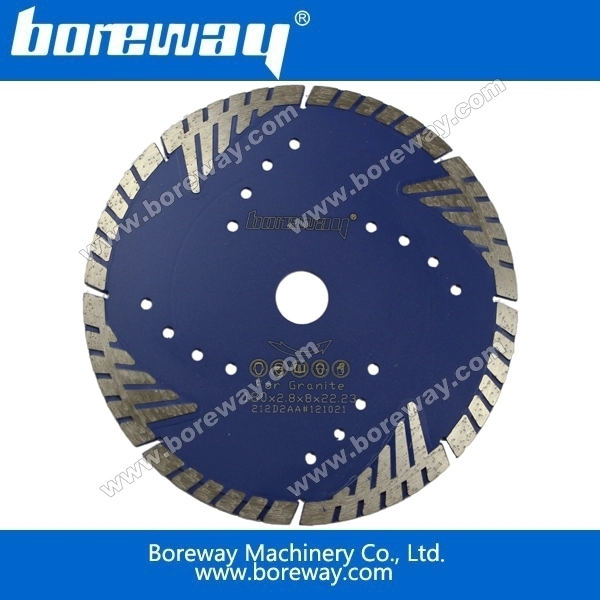

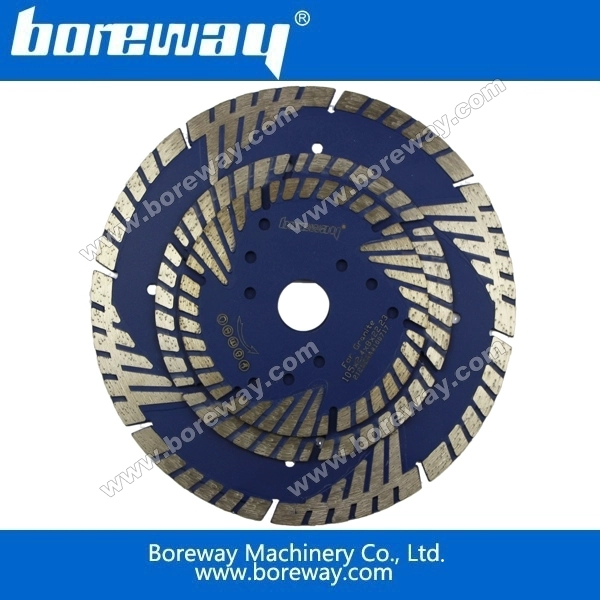

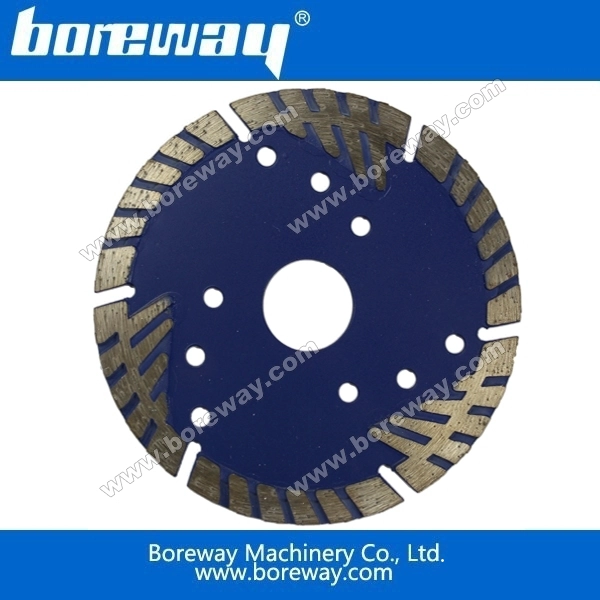

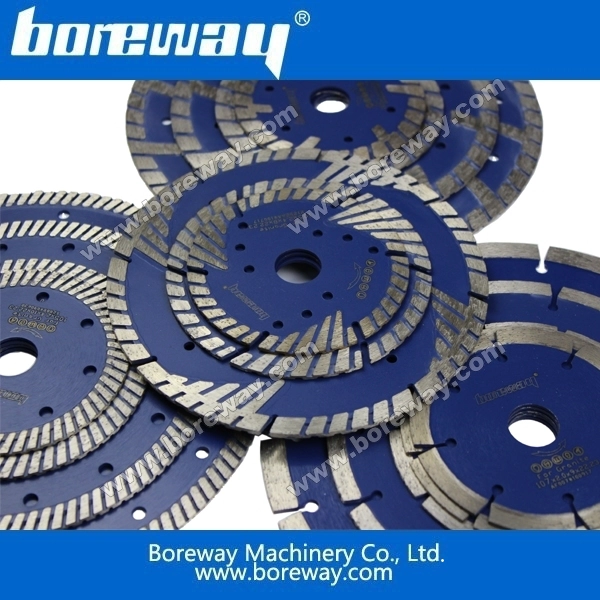

Boreway diamond sintered segmented bevel turbo blades
- Model Number: BW-DS-DB-C06
- Type: Wet Use
- Diameter: 105mm to 229mm
- Segment Width: 1.8mm to 2.8mm
- Segment Height: 8mm
- Segment Number: 8,10,14,18
- Machine: Hand-held machine and other cutting machine.
- Industry: Diamond cutting tools
- Technology: Sintered
- Advantage: Good sharpness and long lifespan.
- Applications: Boreway diamond sintered segmented bevel turbo blade is wet use for cutting masonry ceramic and concrete etc.
Introduction:
These diamond sintered segmented bevel turbo blades are used on manual hand-held cutting
machines for cutting wide range of natural stone like granite,sandstone,limestone. These blade
can also be used for cutting reinforced concrete,hard concrete,hard brick,asphalt,tile and other
hard decorative materials.
Features:
1.Universal dry and wet cutting blades.
2.Unique design of segments allows ideal debris removal,better cooling and protecting core,and
provide extremely fast cutting.
Specifications:
The followings are the normal specifications of our diamond sintered segmented bevel turbo blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Segment Number |
Applications |
||
|
Diamond Sintered Segmented Bevel Turbo Blades |
inches |
mm |
inches |
mm |
mm |
mm |
Pcs |
Masonry Ceramic Concrete etc. |
|
4’’ |
105 |
0.070’’ |
1.8 |
16/20 22.23 25.4/50 |
8mm |
8 |
||
|
5’’ |
127 |
0.080’’ |
2.0 |
8mm |
10 |
|||
|
7’’ |
178 |
0.085’’ |
2.2 |
8mm |
14 |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
18 |
|||
The above specifications are for reference, other specifications can be ordered by customers.
Note: These blades process only wide turbo teeth,and may be with flange(with letter N in item No.)
